RURAL LTE broadband antenna and router

The omnidirectional Falcon RURAL 4G LTE broadband antenna was specially developed for vehicles and buildings where rooftop installation is not possible and where no wired internet is available. The Falcon Rural 4G kit is a complete solution that includes an external MIMO 4G antenna and a mobile router. This high-gain antenna delivers up to 5 times the 4G performance of your mobile phone. Unlike the 4G antenna in your mobile device, which is suppressed inside a building, the Falcon 4G RURAL booster antenna with wall mount can be installed in a better location, such as the exterior of the vehicle or building. It is ideal for all applications in caravans, trucks, event venues, campsites, garden sheds, offices, bars, stables, or any commercial or private application where the internet is only available via the 4G network.

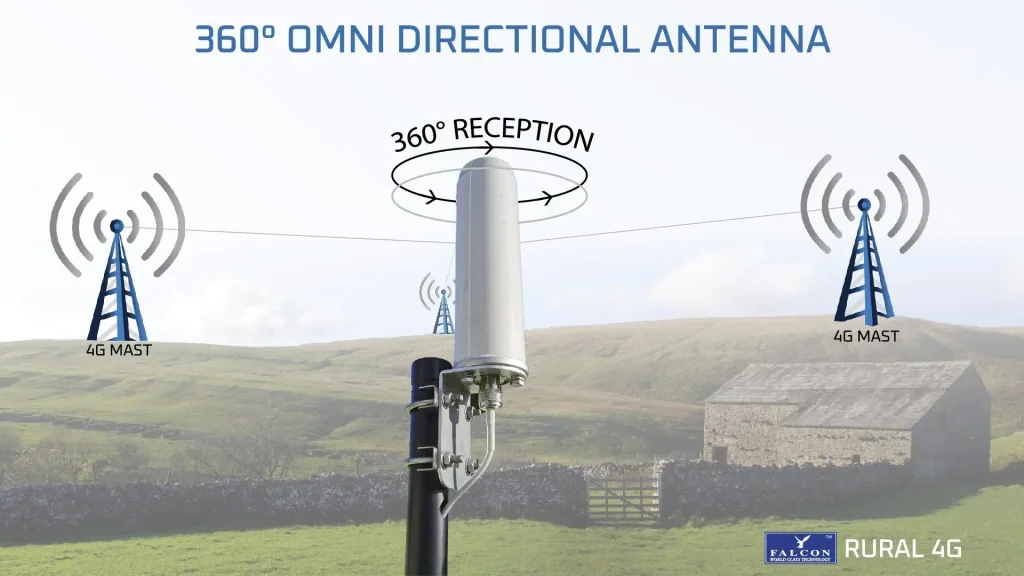

The external omnidirectional antenna has an extremely slim design, measuring just 22 cm high and 6 cm in diameter, yet still features the critically important MiMo (Multiple Input, Multiple Output) technology. This allows you to send and receive a data signal simultaneously at the best possible 4G speed. In addition to traditional internet access such as Facebook, Twitter, Instagram, TikTok, etc., you can also enjoy all streaming functions, whether for your smartphone, tablet, or on your TV with a streaming dongle such as a Fire TV Stick, Apple TV, Google Chrome, Sky Dongle, or your Smart TV.

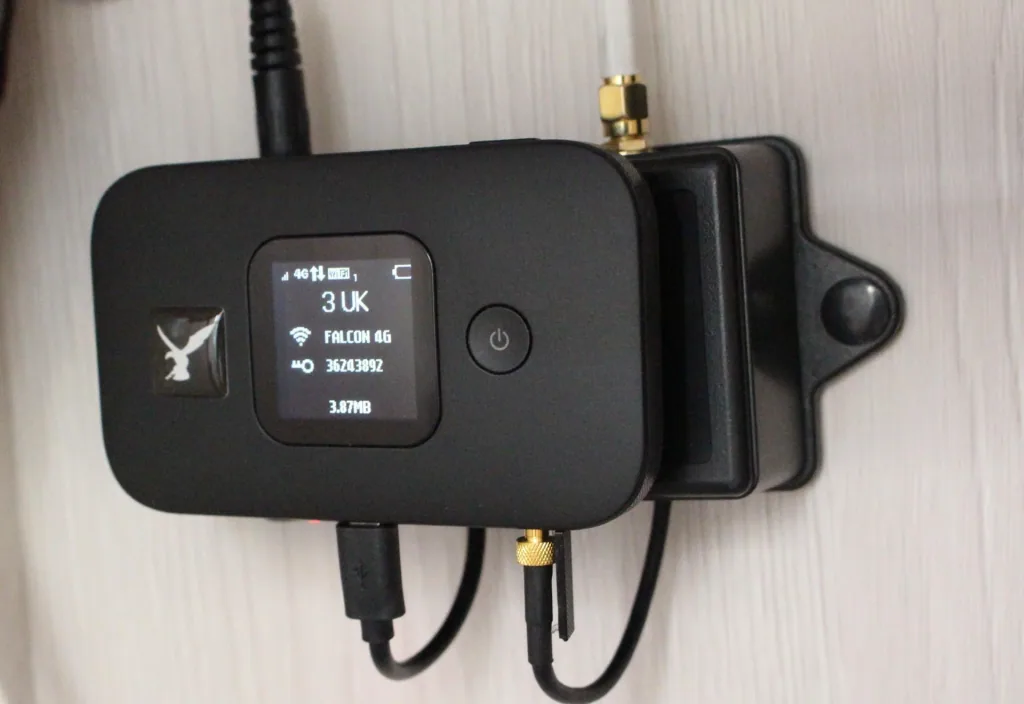

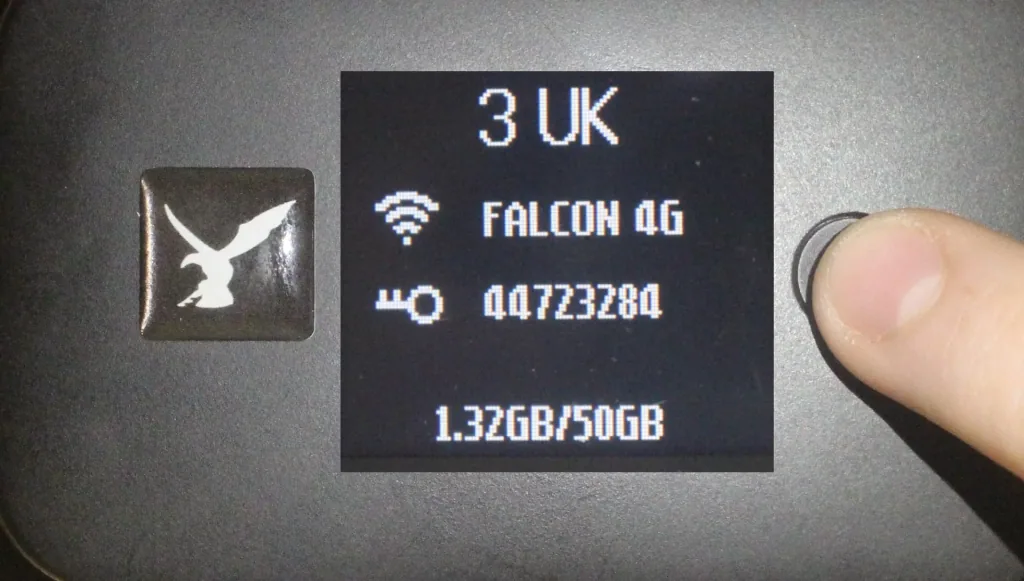

The included MiFi hotspot establishes a connection to the 4G/3G network via the roof antenna. The router's LCD screen displays the network name and password, along with important connection information including current speed, data in use, and the number of devices connected via Wi-Fi. For most users, you simply need to turn it on and connect to the Wi-Fi network using the password shown on the display, but for advanced users, you can access additional settings via a web browser or with the free app from the Apple App Store, Google Play Store on Android, or the Amazon Store.

The MiFi device also has its own internal battery that lasts for 6 hours, so you can detach it from the charging cradle and take it with you for mobile use, although the power will be much lower than when used with the roof antenna. The pocket-sized mobile Wi-Fi router allows you to get online on the go, such as at a café, on the beach, or wherever. Simply plug in the mobile router.

The system works on all UK and EU frequencies for 4G LTE at speeds of up to 150 Mbps and is backward compatible with 3G up to 42 Mbps and even 2G networks where supported. It is fully unlocked, so it works on any network and gives you the freedom to choose your data network service provider.

Wi-Fi Router Specifications:

• Unlocked for all mobile networks
• Fast startup
• 1.45-inch LCD display
• Supports up to 10 simultaneous users/devices
• 1500mAh battery
• Communication system: LTE FDD/LTE/TDD/UMTS/HSUPA/HSPA+ GSM/GPRS/EDGE
• Speed: LTE FDD 150 Mbps / LTE TDD 112 Mbps
• 2 x TS9 MIMO antenna connectors
• 96.8 x 58 x 13.5 mm (WxHxD)
• Weight 82g

Antenna specifications:

• Broadband antenna, works with 3G & 4G
• Digital TV antenna 8-10dBi
• Frequencies 698-960 / 1710-2700
• Omnidirectional radiation
• Ground plate independent
• Height 218 mm
• Diameter 63 mm
• Peak gain (isotropic) 698-960 MHz: 2.3 dBi, 1710-2700 MHz: 5 dBi
• IP66 water and dustproof

Scope of delivery:

• LTE antenna Rural 4G omnidirectional
• Mounting pole, mast clamps, heavy-duty anchor
• 5 m HQ SMA cable
• Magnetic Docking/Charging Station
• Mobile Router
• 12V and 240V Cable
• User Manual
