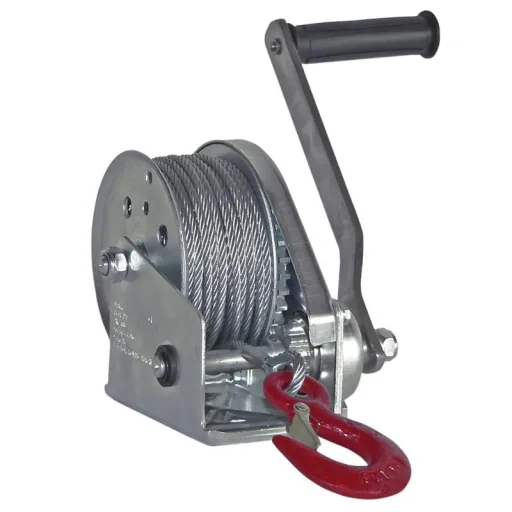

Handbrake winch BHW-1200, Max. lifting capacity / pulling force lowest (1st) layer: 550 daN, incl. 20 m rope with SOB hook
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-978021 |
| Merk | PLANETA |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Load capacity from 200 kg to 1,200 kg
- Smooth running thanks to spur gear
- Secure hold thanks to load pressure brake
- Fully galvanized housing and cable drum
- Wire rope and hook, enclosed loose
- Removable hand crank
- Gearbox and brake are covered
- Easy cable installation
- Documentation in German with EC Declaration of Incorporation
The PLANETA BHW hand cable winch, with its consistent lightweight construction in fully galvanized steel, impresses with outstanding performance data. It is extremely smooth-running thanks to the spur gear and very safe thanks to the protected load pressure brake. The cable is very easy to install thanks to a special fastening element, and the narrow cable drum supports an optimal winding pattern of the cable on the drum. The drum edges are flanged to protect the rope. Mounted on a solid base, the crank can be rotated freely.
| Mounting type | |
|---|---|
| Mounting type | Ground mounting |
| Mounting type | Screw mounting |
| Rope diameter | |
| Rope diameter | 5 mm |
| Drum diameter | |
| Drum diameter | 47.8 mm |
| Rope length | |
| Rope length | 20 m |
| Weight | |
| Weight | 3.7 |
