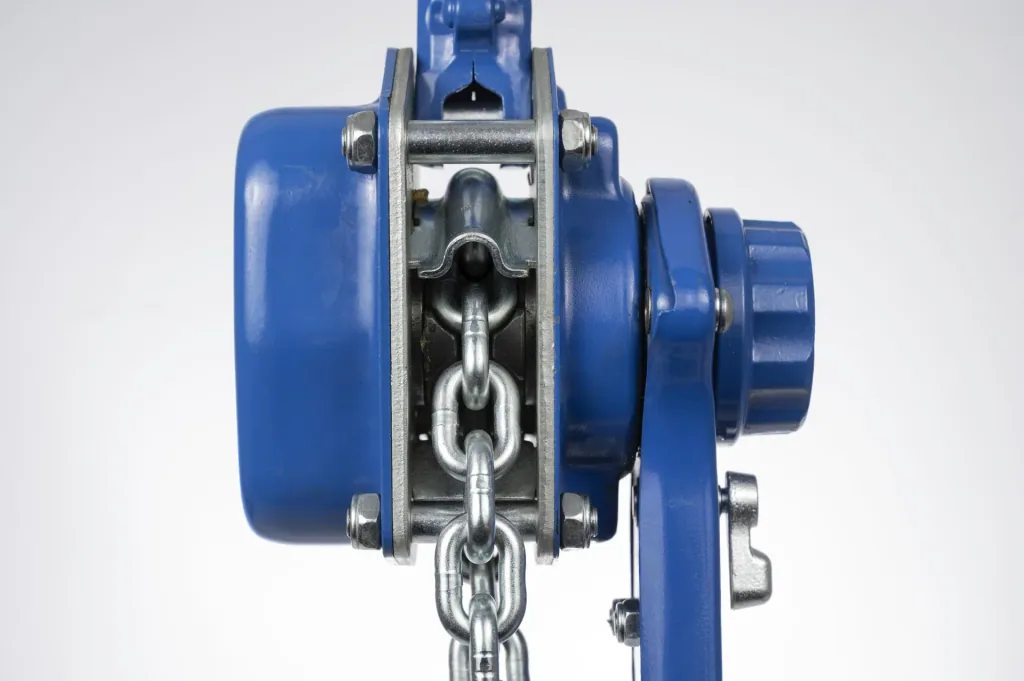

Lever hoist PLX-III 0.75, load capacity 750 kg, stroke 1.5 m, 1-fall
| Artikelnummer | WF-977979 |
| Merk | PLANETA |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- Load capacity from 750 kg to 6,000 kg
- Precise chain guide
- Fully galvanized and powder-coated
- Integrated freewheel
- Load chain according to EN 818-7-T
- Forged safety hooks
- New chain end piece for additional safety
- Freely rotating hooks
The PLX-III lever hoist is a versatile lifting and tensioning device, yet simple to handle. It is used in industrial applications, in freight transport, as an aid during assembly, as well as in construction and trades. The high quality of series production and a long service life, even under heavy loads, characterize this device.
Easy freewheel
By positioning the selector switch in the center position, the unloaded chain can be easily pulled through the device in freewheel mode.
Practical chain end piece
In addition to its function as a pull handle for positioning the chain, it also provides additional safety, as it cannot be pulled through the device with the load chain.
Robustness
Galvanically galvanized screws, nuts, and bolts prevent corrosion, even during outdoor use. The easy-grip handwheel made of cast steel underscores the robustness of the PLX-III lever hoist.
Rotatable hooks
The carrying and load hooks, forged from heat-treated tempered steel, are freely rotatable and feature spring-loaded, galvanized hook locks.
| Height | |
|---|---|
| Height | 320 mm |
| Drive | |
| Drive | Manual |
| Lift | |
| Lift | 1.5 m |
| Number of chain strands | |
| Number of chain strands | 1 |
| Lever force | |
| Lever force | 14 daN |
| Weight | |
| Weight | 7 kg |
