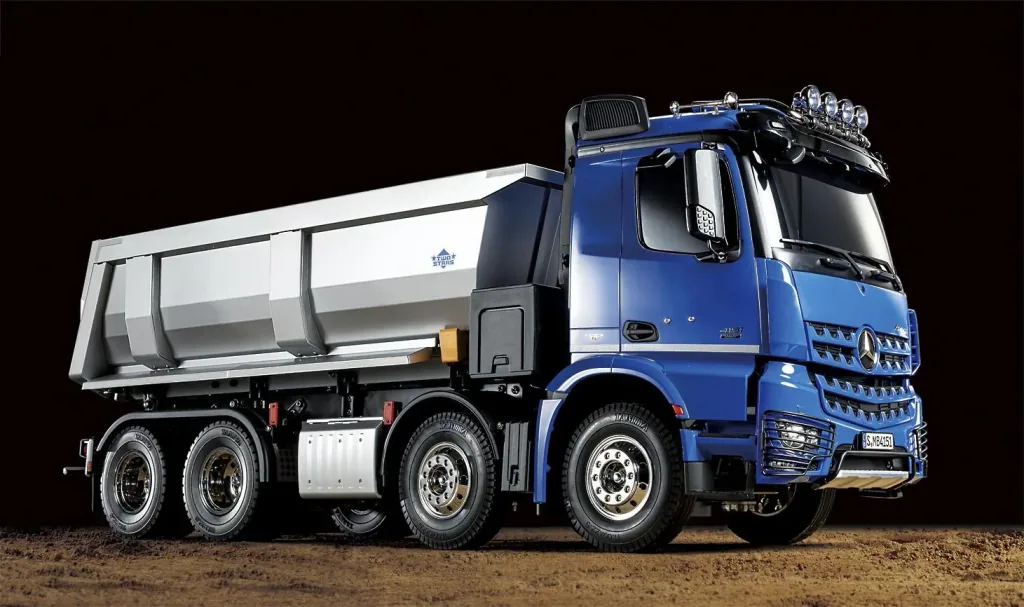

RC Kipper MB Arocs 4151 8 x 4 1:14

The TAMIYA truck for tough construction site use! The Mercedes Benz Acros 4151 8x4 is a true heavyweight on the construction site. TAMIYA modified the proven chassis for this truck: The truck has four axles, just like the original. The two rear axles are driven by a powerful 540 electric motor. The two front axles are controlled by a servo (sold separately). The steering angle of the two axles is different, ensuring true-to-original handling.

The frame features a subframe to accommodate the newly designed tipping trough. The trough has been reinforced with a metal subframe and can be controlled via the optional TAMIYA ACU-01 unit (56545).

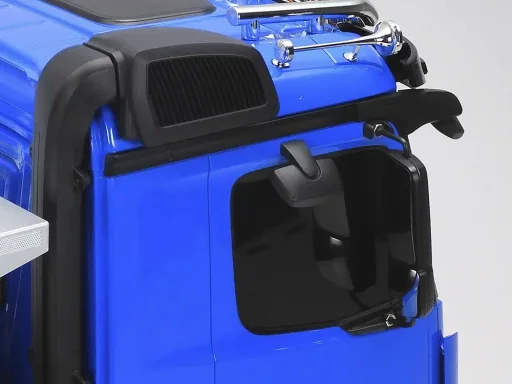

The unmistakable design of the new Arocs is as extraordinary as the truck itself. For the look, specially developed for construction vehicles, a radiator grille with an excavator tooth design was installed, conveying the message: "Bite through and grab hold." In keeping with the robust appearance, special protective grilles for the lighting system are attached to the bumper.

With the 667 mm long and approximately 4 kg heavy kit model, impressive combinations can be assembled. The proven and robust TAMIYA truck technology is found beneath the forward-tilting driver's cab. A new Mighty-Tuned 35T electric motor delivers its power to the two rear axles via a switchable 3-speed transmission. A detailed aluminum ladder frame gives the model the necessary stability and flexibility.

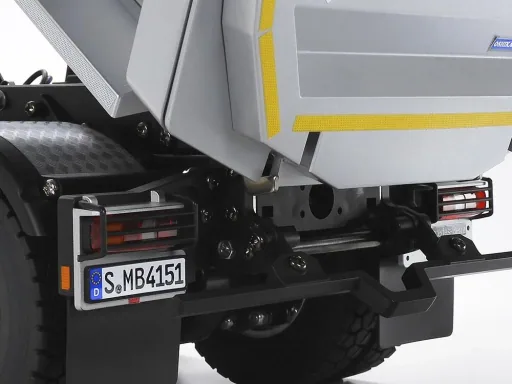

A tow bar (e.g. Carson 500907182) can be attached to the rear of the frame and used to pull trailers.

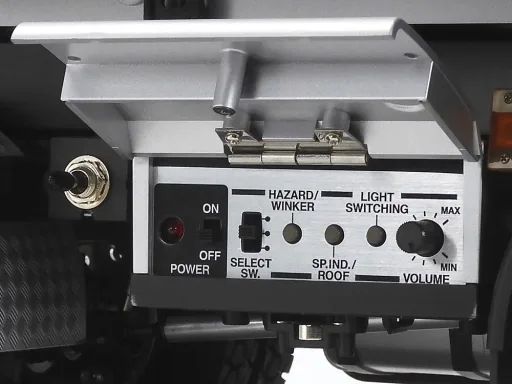

With the optionally available multifunction unit, almost all of the original's sound and light functions can be simulated deceptively realistically.

Technical specifications

• Kit model in 1:14 scale
• TAMIYA 4-axle chassis with reinforced frame and drive for the two rear axles
• Both front double axles are articulated via a steering servo. The axles steer at slightly different angles for true-to-scale handling.
• Prototypical ABS body replica of the Arocs 4151, including handrails, steps, side mirrors, and much more.
• New tipping trough with a metal subframe. The tipping body can be controlled via the separately available ACU-1 (300056545) (TAMIYA MFC-03 unit 56523 required).
• Includes TR mighty-tuned motor for perfect power delivery to the two driven rear axles.
• New rear tires, bumper, and fenders.
• 3-speed manual transmission can be controlled via optional 4-channel radio control.

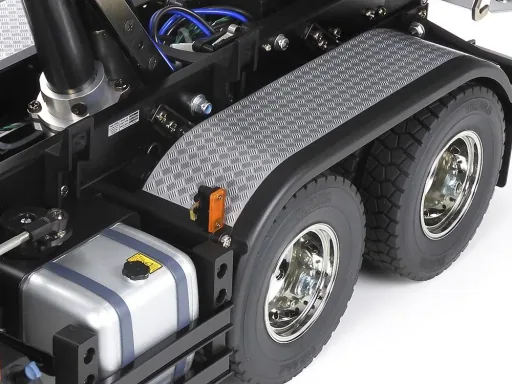

• Leaf springs on the axles and rear shock absorbers with coil springs.
• The headlights on the roof lamp bar can be equipped with LEDs (sold separately).

Dimensions

• 667 x 196 x 168 mm (length x width x Height)

Scope of delivery

• Kit model
• Detailed instructions
• Electric motor
• 3-speed manual transmission

WARNINGS

These instructions should be read and understood in full together with an adult. Keep away from small children. Children must not put parts or packaging material in their mouths. The model may have some sharp edges. Be careful when handling them. Read the instructions included with the RC unit and keep them for future reference.

If you have any difficulties during assembly, ask a supervising adult or a model builder with RC experience or a specialist dealer.

Use tools only for their intended purpose. Incorrect use may result in injury.

If you use paints and/or glue (not included in the kit), read and follow the enclosed instructions.

Keep the kit away from small children. Prevent children from putting any components in their mouths or putting plastic bags over their heads.
