Motor winch, 2,700 kg, portable with radio remote control
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-802947 |
| Merk | Westfalia |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
With adapter plate for permanent mounting or variable use on the trailer hitch. Can be operated with a radio remote control or a wired remote control. Electric forward and reverse. Manual operation via hand crank without power is possible. Complete with pulley for even more pulling power. By using the pulley, the effective pulling force can be doubled.
Technical Data
- Voltage: 12 Volts
- Power: 125 Watts
- Protection class: IPX4
- Operating mode: S2 5 min
- Insulation class: F
- Minimum breaking load: 1980 N/mm2
- Remote control battery: A23 (12 V)
- Remote control transmission frequency: 433.42 MHz
- Pulling speed: 1.3 m/min
- Rolling pulling power: 2,700 kg
- Pulling power with pulley: 5,400 kg
Dimensions
- Total: 250 x 240 x 200 mm
- Pull rope (L x Ø): 9 m x 4.8 mm
Weight
- Approx. 11 kg

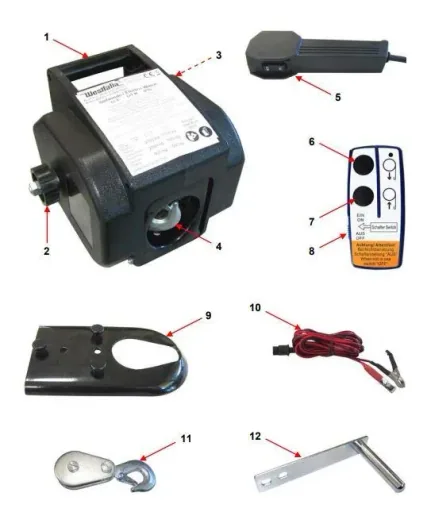

Scope of delivery
- 1 x cable winch
- 1 x radio remote control
- 1 x cable remote control, approx. 3.50 m
- 1 x battery connection cable, approx. 3.00 m
- 1 x mounting plate
- 1 x pulley with load hook
- 1 hand crank
| Voltage | |
|---|---|
| Voltage | 12 volts |
| Rolling pulling force | |
| Rolling pulling force | 2,722 kg |
| Rope diameter | |
| Rope diameter | 4.8 mm |
| External dimensions | |
| External dimensions | 250 x 240 x 200 mm |
| Battery type | |
| Battery type | Primary alkaline manganese (AlMn) cells up to 50 g |
| Weight | |
| Weight | 11 kg |
| Output power | |
| Output power | 125 W |
| Number of batteries | |
| Number of batteries | 1 |
| Drive | |
| Drive | 12 V |
| Rope length | |
| Rope length | 9 m |
| Rope speed | |
| Rope speed | 1.3 m/min |
