Single cable LNB 4 x Unicable receiver and 3 standard outputs, LTE shielding
Info over dit artikel:
- Unicable LNB with 3 legacy direct outputs
- high-quality shielding
- LTE shielding
- extendable weather protection
- 1080p Full HD, 4K (UHD) and 3D capable
| Artikelnummer | WF-994072 |
| Merk | Ankaro |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- Unicable LNB with 3 Legacy Direct Outputs
- High-quality shielding
- LTE shielding
- Retractable weather protection

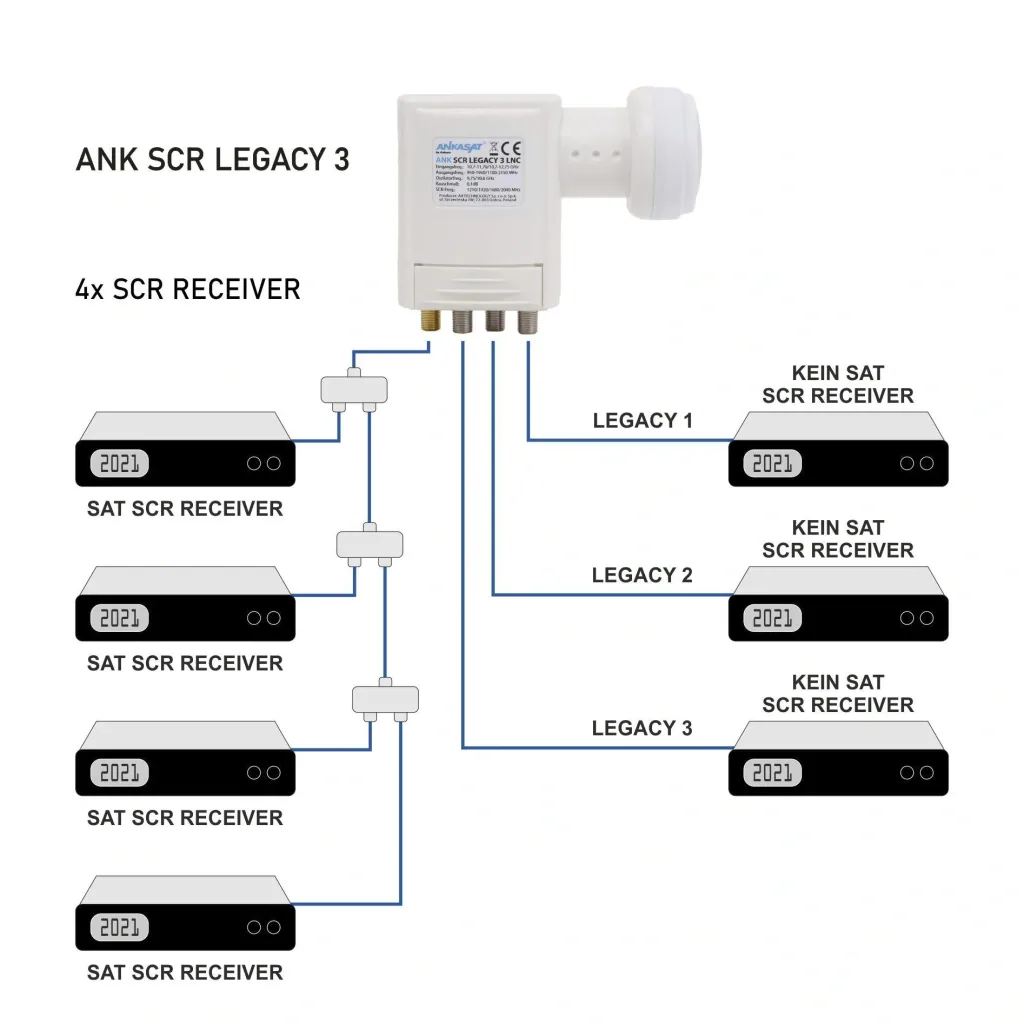

The ANKASAT ANK SCR LEGACY 3 (4 UB) LNB has one SCR connection (Unicable) and two Legacy Direct connections. Up to 4 independent Unicable-capable receivers can be connected to the SCR Unicable connection. 3 additional standard receivers/subscribers can be connected directly via the 3 Legacy outputs. Optimal LTE shielding: The LNB features high-quality shielding, which even offers protection against harmful LTE and mobile phone interference.
Technical specifications:
• SCR outputs: 1 for 4 user bands
• LEGACY outputs: 3
• Input frequency: 10.7 GHz - 12.75 GHz
• Oscillator frequency: 9.75 GHz Low, 10.60 GHz High
• Phase noise: (10 kHz): -90 dBc/Hz max.
• Low noise figure <0.1 dB
• Feed diameter: 40 mm
• 1080p Full HD, 4K (UHD) and 3D capable
User band frequencies: 1210, 1420, 1680, 2040 MHz
