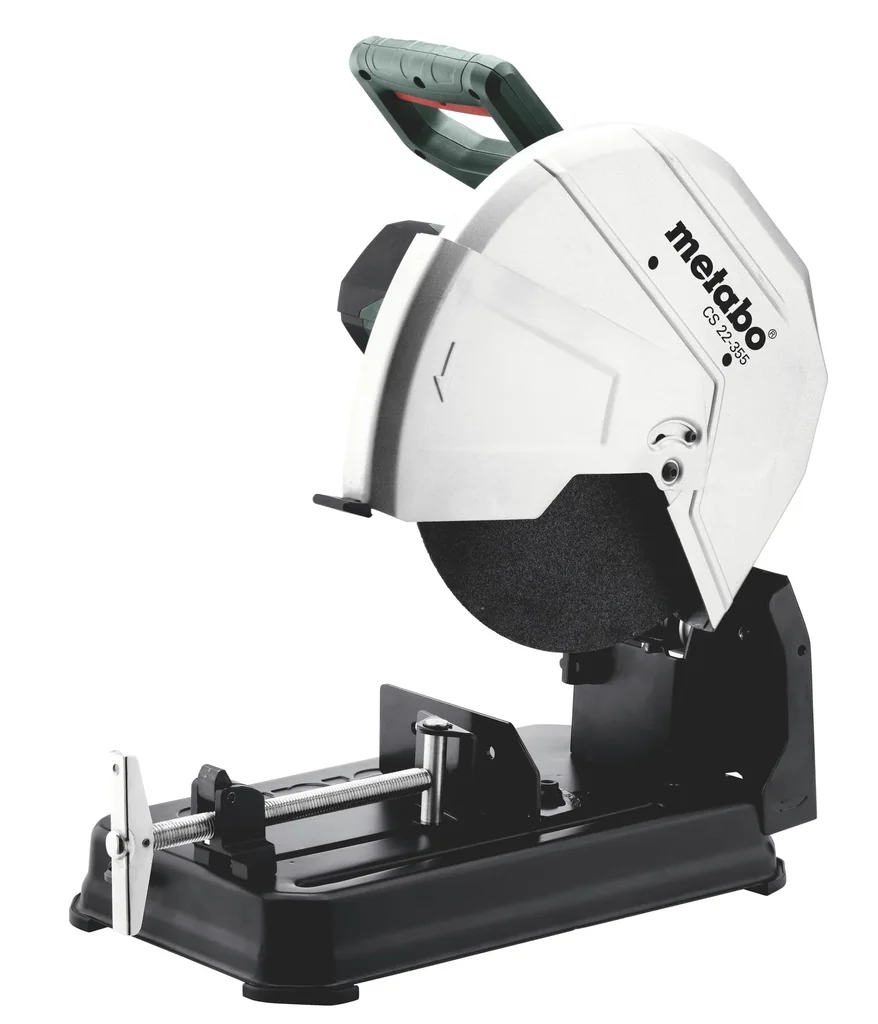

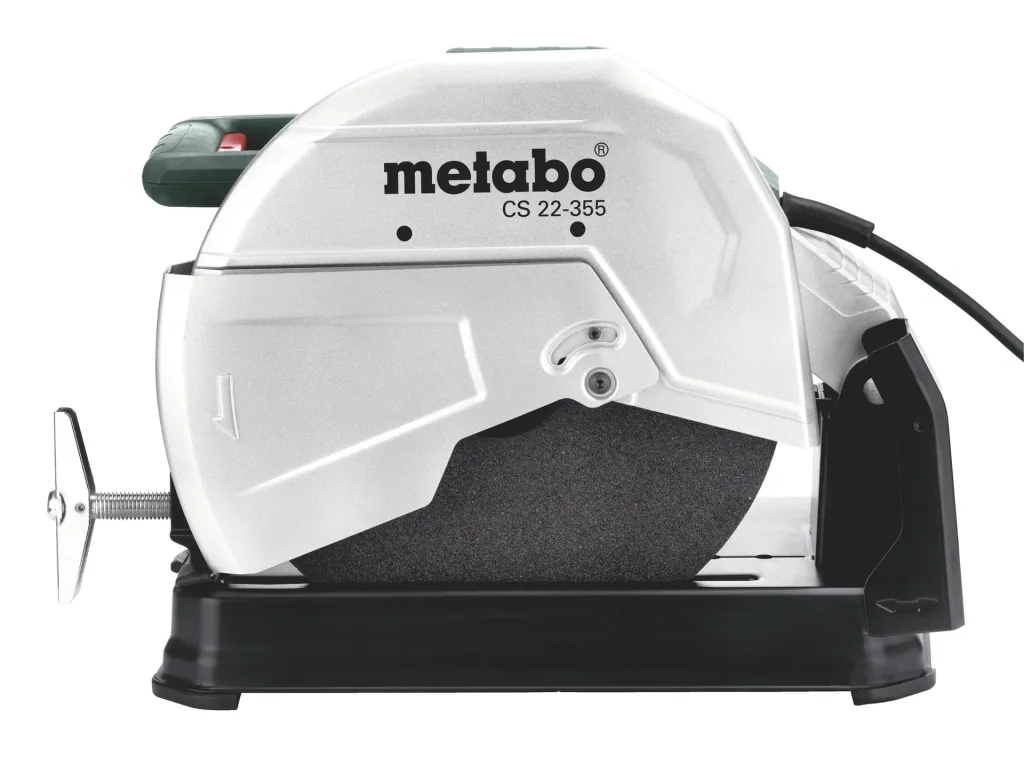

Metal cutting grinder CS 22-355
Info over dit artikel:
- High-performance metal cut-off saw
- Quick-release clamping device with stepless miter adjustment
- Large handle perpendicular to the cutting axis for optimal power transmission
- Easy, quick disc change thanks to spindle lock
- Safety switch to prevent unintentional starting
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-992624 |
| Merk | Metabo |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Powerful metal cutting machine for cutting profiles, pipes, and bars made of steel, non-ferrous metals, iron, and cast iron profiles
- Quick-action clamping device with continuously variable miter adjustment for angle cuts from -15° to 45°
- Large handle perpendicular to the cutting axis for optimal power transmission during cutting
- Adjustable cutting depth limiter for optimal use of the cutting wheel
- Simple, quick wheel changes thanks to spindle lock
- Maximum user protection: pivoting cutting guard, adjustable spark deflector, and rubberized base for safe cutting
- Safety switch to prevent accidental starting
- Robust, large machine table with practical storage for Allen keys
- Easy transport thanks to integrated carrying handle and transport lock
Technical Data
- For grinding wheels (Ø x bore): 355 x 25.4 mm
- Idle speed: 3700 rpm
- Rated power consumption: 2300 watts
Dimensions
- Max. cutting capacity round tube: 132 mm
- Max. cutting capacity square tube: 120 x 120 mm
- Max. cutting capacity rectangular tube: 100 x 208 mm
- Max. Cutting capacity L-profile 150 x 150 mm
- Dimensions of the base plate 456 x 256 mm
- Transport height 394 mm
- Cable length 4 m
Weight 16.8 kg
Scope of delivery
- 1x Metal cutting grinder CS 22-355
- 1x Allen key
- 1x Support flange
- 1x Clamping nut
- 1x Cutting disc 355 mm
| Power output | |
|---|---|
| Power output | 2,300 W |
| Idle speed | |
| Idle speed | 3,700 rpm |
| Cable length | |
| Cable length | 4 m |
| Weight | |
| Weight | 16.8 kg |
