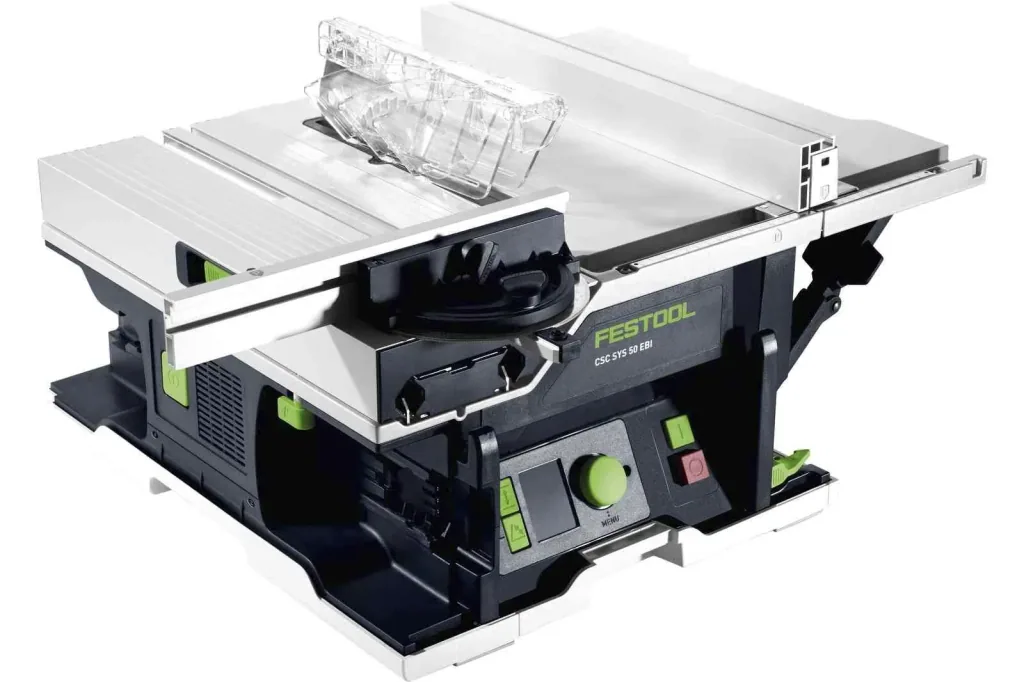

Systainer saw cordless table saw CSC SYS 50 EBI-Basic

• Crosscuts up to 450 mm wide, precise and fast with the integrated sliding table.
• Rigid cuts up to a cutting height of 48 mm and a width of 280 mm with secure support on the integrated fold-out table.
• Angle cuts from -2° to 47° (-10° possible with a limited cutting depth of 21 - 32 mm) thanks to the pivoting saw blade.
• Exact height and angle adjustment using electric stepper motors. Adjustable to an accuracy of 0.1 mm and controlled via display.
• Conveniently transportable in the handy Systainer format.

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. As incredibly handy as its external dimensions are, it is just as surprisingly versatile in use: with parallel cuts of up to 280 mm, a cross-cut width of up to 450 mm and angle cuts from -2° to 47°. The unique digital operation delivers extremely precise results accurate to within a tenth of a millimeter. The 2x18 volt dual battery system in combination with the brushless EC-TEC motor impresses with its power and pulling power – you won't notice any difference compared to mains-powered machines. Together with the UG-CSC-SYS base frame, you have the perfect work table right there with you, making transport from the vehicle to the job site effortless. In short: sawing precision to go!

• Versatile: Parallel cuts up to 280 mm; cross-cut width of up to 450 mm. Angle cuts from -2° to 47°
• Practical: with a cutting height of up to 35 mm, even angle cuts of down to -10°; Ideal for undercutting filler strips
• Compact and mobile: can be transported with one hand in the practical Systainer format. Even easier with the UG-CSC-SYS base frame
• Highest precision: Height and angle are adjusted electrically at the touch of a button via the digital display – accurate to the tenth of a millimeter
• Repeatable accuracy: Height and angle adjustment (mm and inch) is carried out parallax-free via the digital display, i.e., more accurate than any eye measurement. Repeatable cuts are guaranteed
• Convenient: Four saw blade positions can be saved and selected via the digital display
• High-precision parallel stop: Robust parallel stop with double clamping (using a single clamping lever) for exact alignment and perfect cutting results
• High-precision angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the sliding carriage. For miter angles between -70° and +70°
• Absolutely smooth: ball-bearing sliding carriage for parallel and angle cuts with the highest precision
• Powerful: The brushless EC-TEC motor with high speeds of 6,800 rpm guarantees fast sawing progress and perfect cutting results
• Durable: The combination of brushless EC-TEC motor and dual battery system with two 18 volt battery packs (from 4.0 Ah) ensures long running times
• Durable: The brushless EC-TEC motor is durable, robust and maintenance-free
• Work according to the material: with saw blades for every material; The speed is preselected for the appropriate speed for the material via the digital display.
• Low dust: Dust bag for low-dust work even without a mobile dust extractor.
• Healthy working in the system: Also ideal in combination with Festool cordless vacuum cleaners.
• Compatible: Fits with the entire Festool Systainer system and bott vehicle equipment.

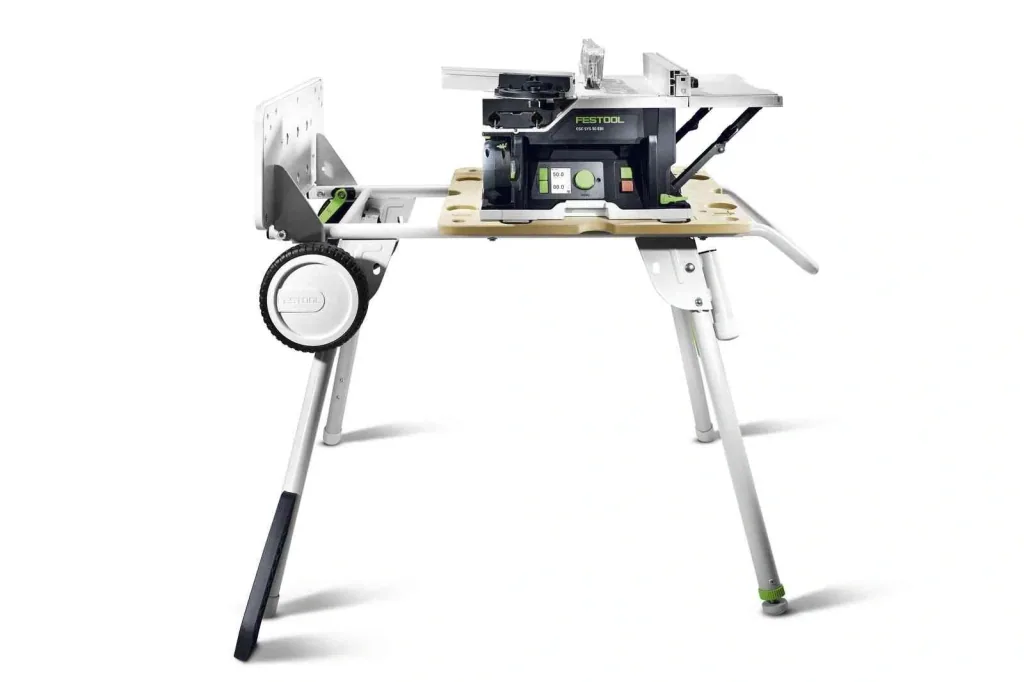

• Flexible base frame: The UG-CSC-SYS base frame is the perfect transport solution to the work site and the ideal work table in one.

Technical data

• Battery voltage: 2 x 18 volts
• Idle speed: 4500 - 6800 rpm
• Saw blade mounting hole: 20.00 mm
• Incline angle: -10 - +47°
• Cutting height 0°: 0-48 mm
• Cutting height 45°: 0-34 mm
• Cutting height -10°: 21-32 mm
• Miter angle: 0-70°
• Parallel cutting width: 280.00 mm
• Table height: 280.00 mm

Dimensions

• (L x W x H) 512 x 396 x 296 mm
• Dust extraction connection: 27/36 mm

Weight: 15 kg

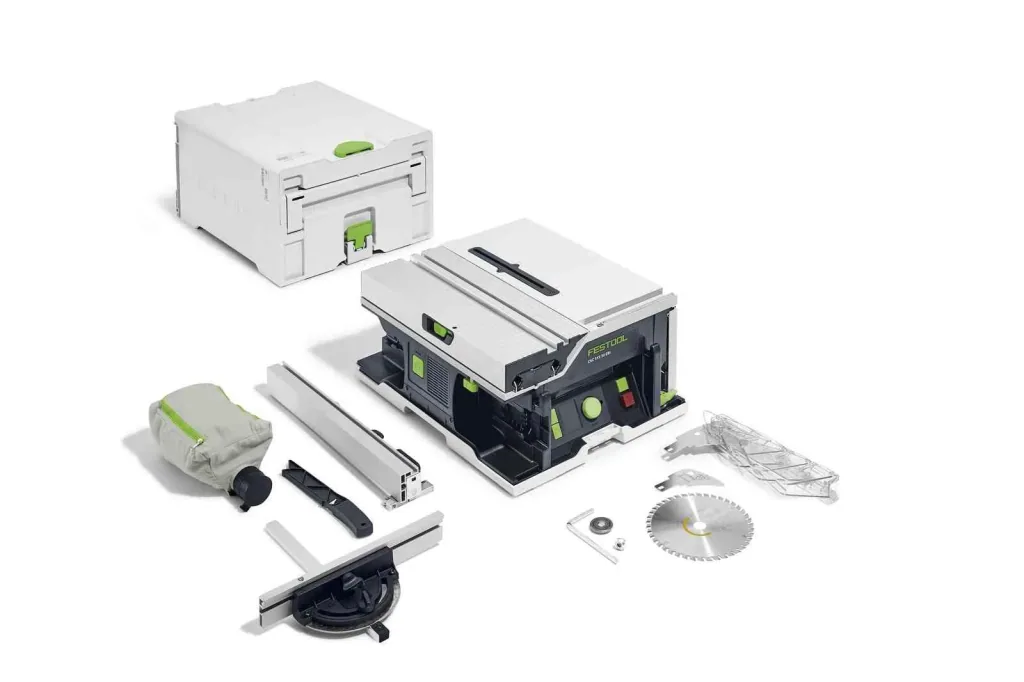

Scope of delivery: 1 x Systainer saw cordless table saw CSC SYS 50 EBI-Basic
