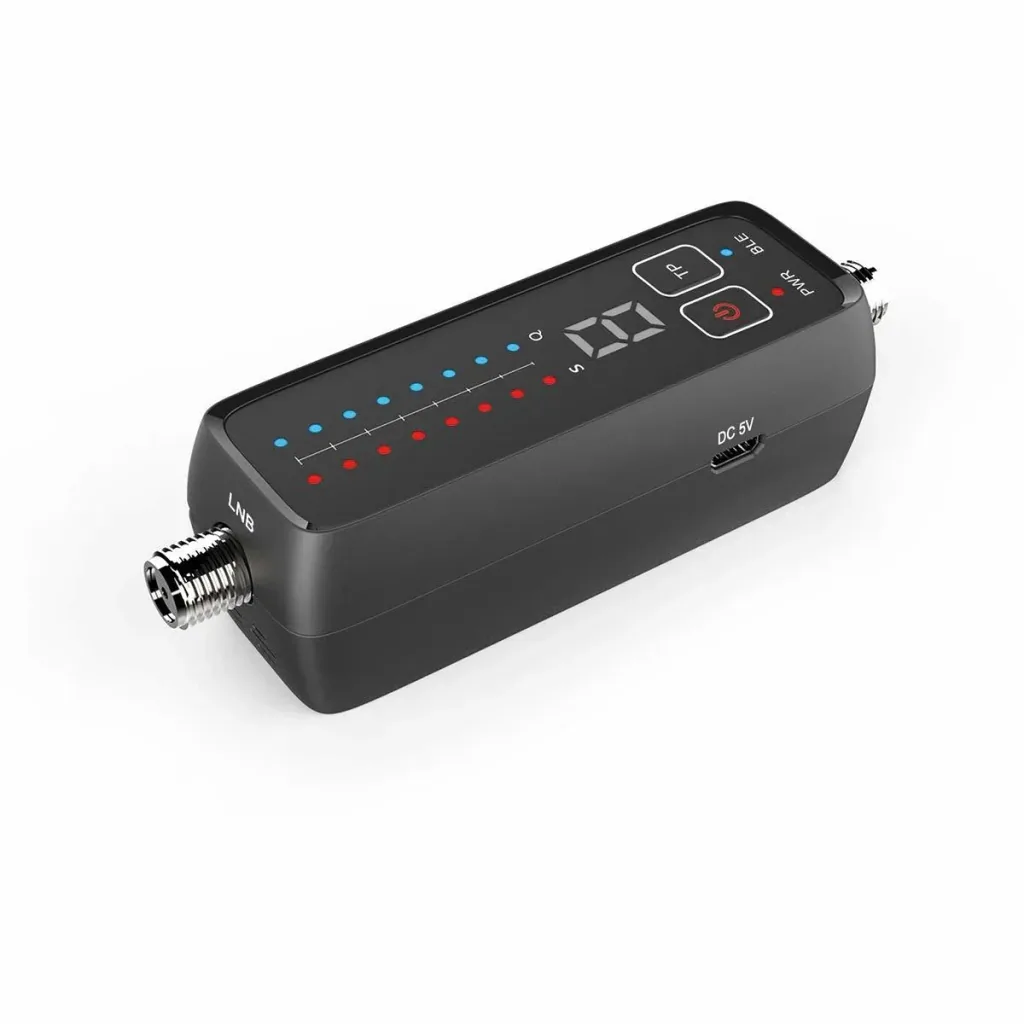

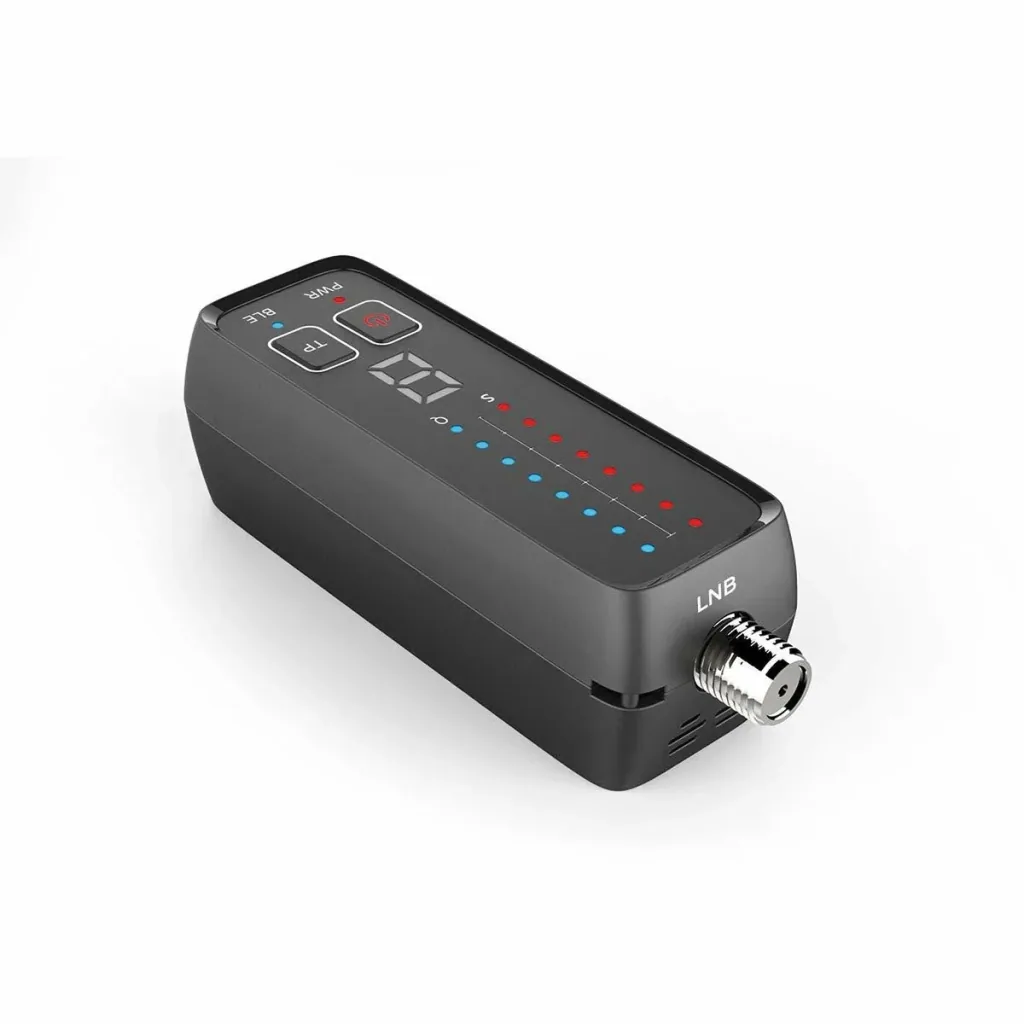

Satfinder with Bluetooth and app control

The Easyfind BT satellite finder is a small measuring device that is perfect for adjusting your antenna while traveling. If you use the satellite finder without the mobile app, you can choose from 8 pre-installed satellites. The device has a battery life of approximately 15 minutes. If you connect the satellite finder to your mobile phone via Bluetooth, it becomes a fully-fledged measuring device. Read the elevation and azimuth settings based on your location in the app or check the measured values ​​of the received signal.

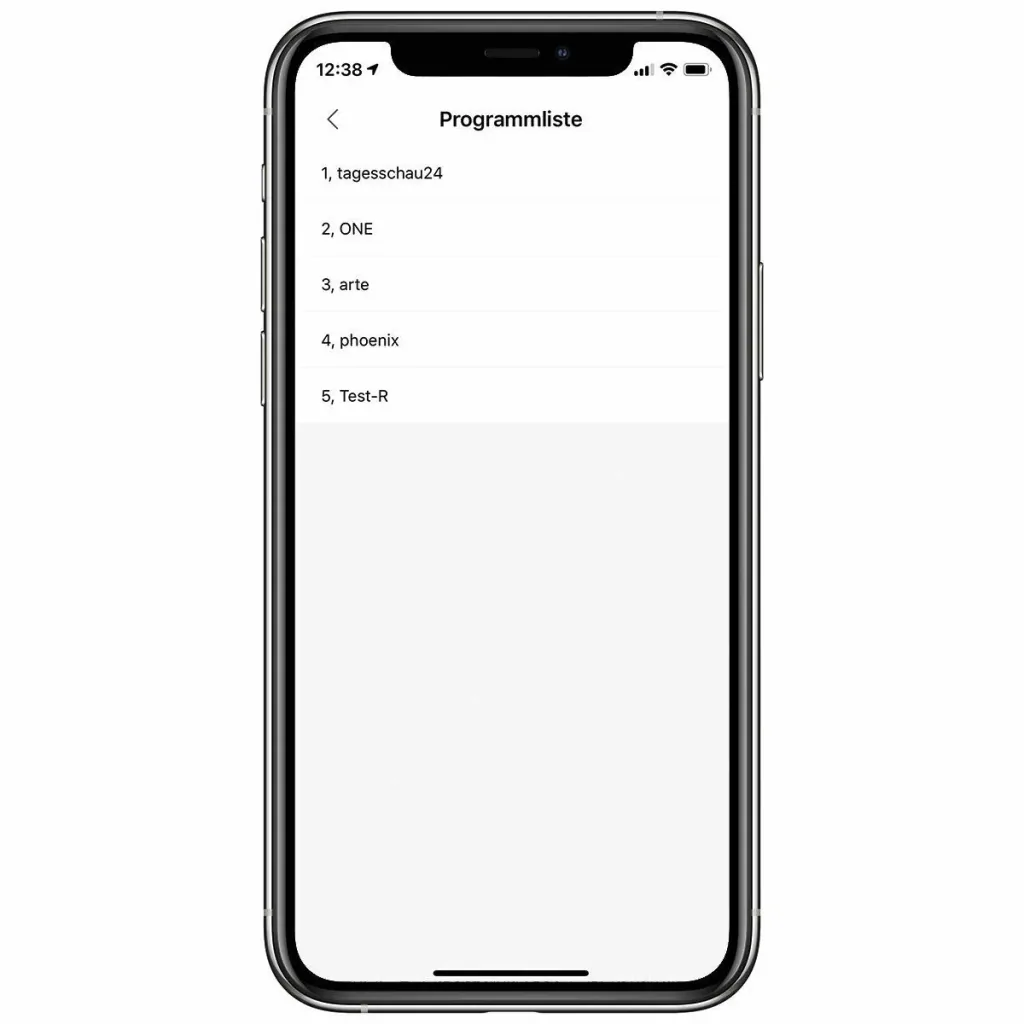

The compass in the app helps you align the antenna. The NiT function shows you in plain text which satellite you have found.

Thanks to its low weight and compact dimensions, the satellite finder can also be used for installations on roofs or similar. The satellite finder supports DiSEqC 1.0 and 1.1. The EasyFind BT app for iOS is available free of charge from the Apple App Store.
The Android version can also be downloaded free of charge from our website. The device is fully functional even without a connection to a mobile phone!

Pre-installed satellites:
E1 = Astra 19.2°
E2 = Hotbird 13°
E3 = Eutelsat 16°
E4 = Astra 23.5°
E5 = Astra 28.5°
E6 = Amos 4°
E7 = Türksat 42°
E8 = Hispasat 30°


• Opticum EasyFind BT SatFinder with 8 pre-installed satellites (can be changed as required via the app)

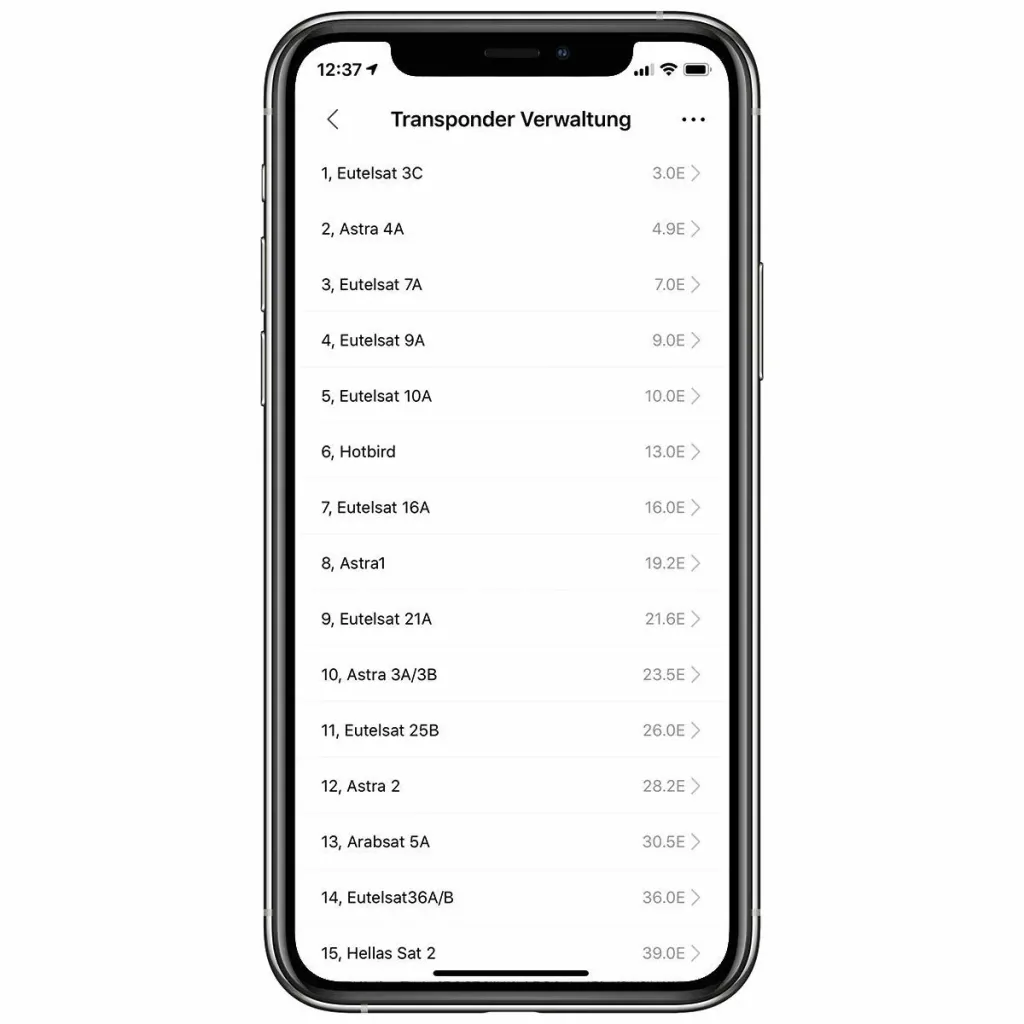

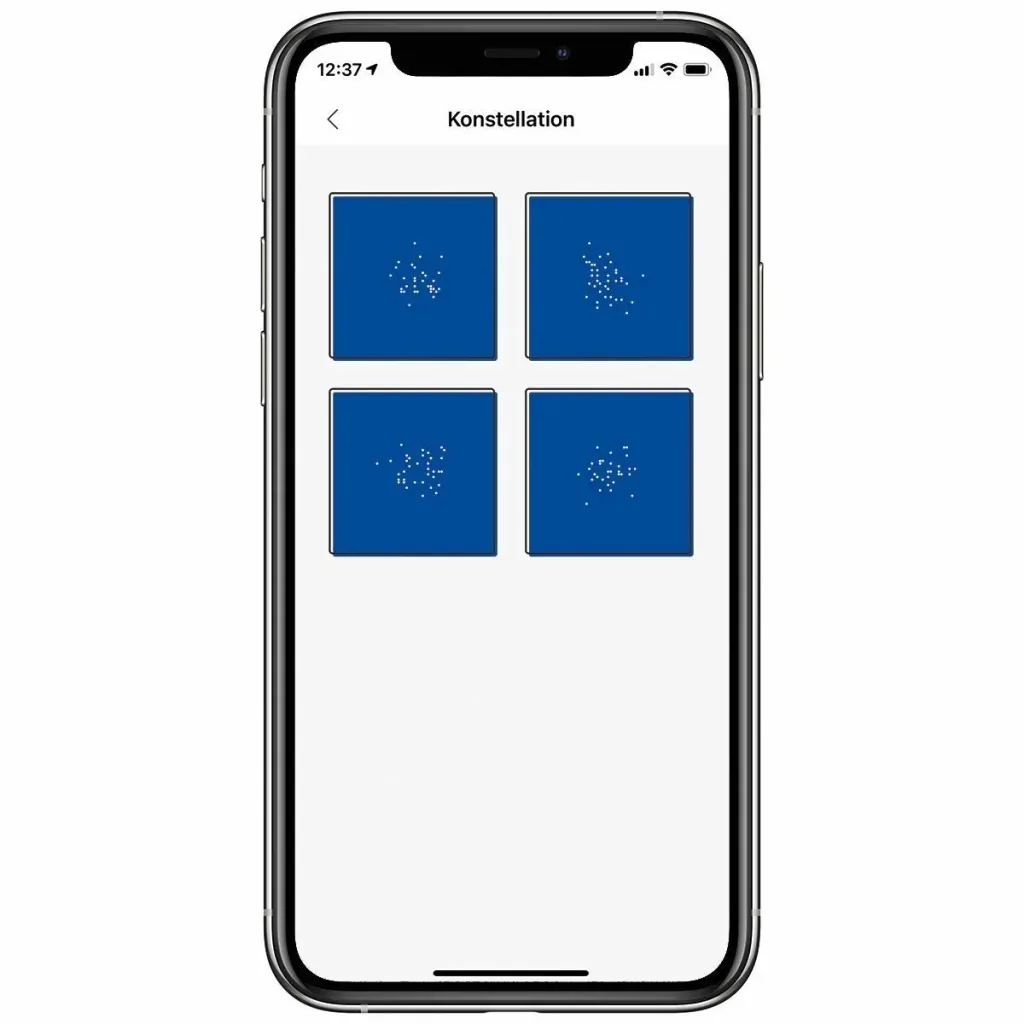

• Mobile phone app for iOS and Android turns the satfinder into a fully-fledged measuring device. (Level in dBμV, quality, CN, BER, MER)
• Extremely lightweight, only 80g including battery. Easy operation via a button on the device. Can also be used without the app.
• Pre-installed satellites: Astra 19°, Hotbird, Eutelsat 16°, Astra 23.5°, Astra 28.5°, Amos, Türksat, Hispasat. The list can be changed as required via the app.
• Device comes with a built-in battery and charging cable. Acoustic and visual signal indicator.

Scope of delivery:

• 1x Opticum EasyFind BT Satfinder
• 1x Charging cable
• 1x F-connector cable
• 1x Instructions
