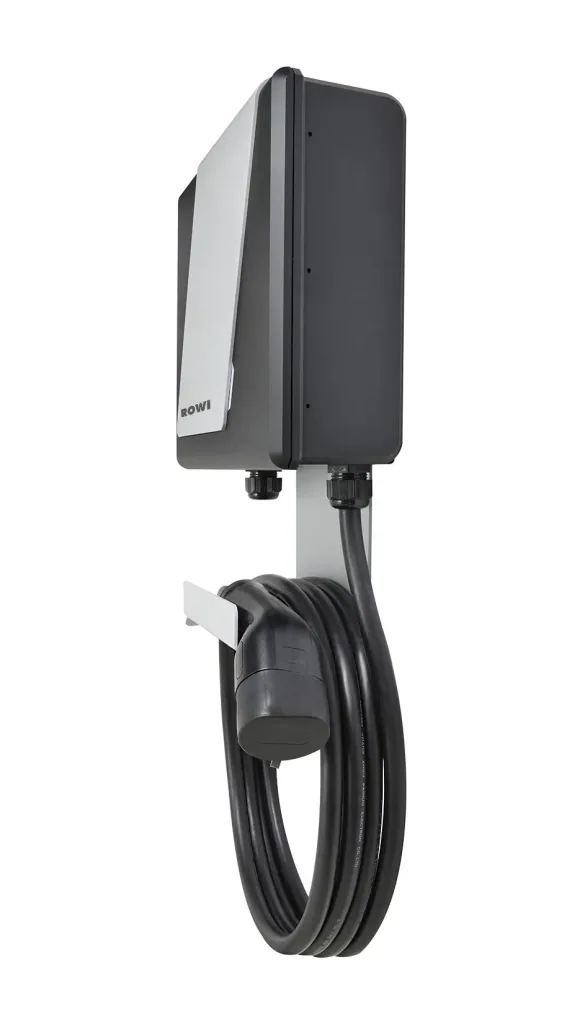

Wallbox 22 kW, LWB 22/1 F Premium

• Suitable for indoor or outdoor use thanks to IP45 certification
• Power limitation to 11 kW possible via app or backend
• OCCP standard and intelligent load management
• Type 2 charging plug according to IEC 62196 included
• Permanently mounted, three-phase charging cable, 5 m
• LED status display
• Practical cable holder
• With MID-compliant electricity meter
• User authentication - via RFID, PLC or app
• WIFI via USB adapter, Ethernet
• Remote updateable via backend
• Connection to photovoltaic system possible
• Can be integrated into a smart home
• Monitoring and control of charging processes via backend and app

The ROWI Wallbox LWB 22/1F Premium offers fast and safe charging at home. As a three-phase charging station for electric vehicles, it can be used indoors and outdoors or connected to a photovoltaic system. It is also eligible for KFW funding, thus enabling every electric car driver to access e-mobility at an affordable price. This premium wallbox from ROWI has an MID-compliant electricity meter, its power limit can be set to 11 kW via an app or backend, and enables user identification. Furthermore, this wallbox can be integrated into a smart home and offers monitoring and control of charging processes via a backend or app. It is Wi-Fi capable via USB adapter, Ethernet, and can be remotely updated via a backend.

Technical specifications:

• Mains voltage: 3-phase 400 volts
• Frequency: 50/60 Hertz
• Maximum charging power: 22 kW
• Current: 32 A max.
• RCD (residual current device): 30 mA AC Type A RCCB & 6mA DC residual current detection
• Charging connector: Type 2 plug or socket according to EN 62196
• Cable length: 5 meters
• Mounting: Wall
• Protection class: IP45
• Overvoltage category: III

Dimensions: approx. 48 x 36 x 13 cm

Weight: 6.6 kg (including charging cable)

Scope of delivery:

• 1 x Wallbox 22 kW, LWB 22/1 F Premium
• 1 x User manual
