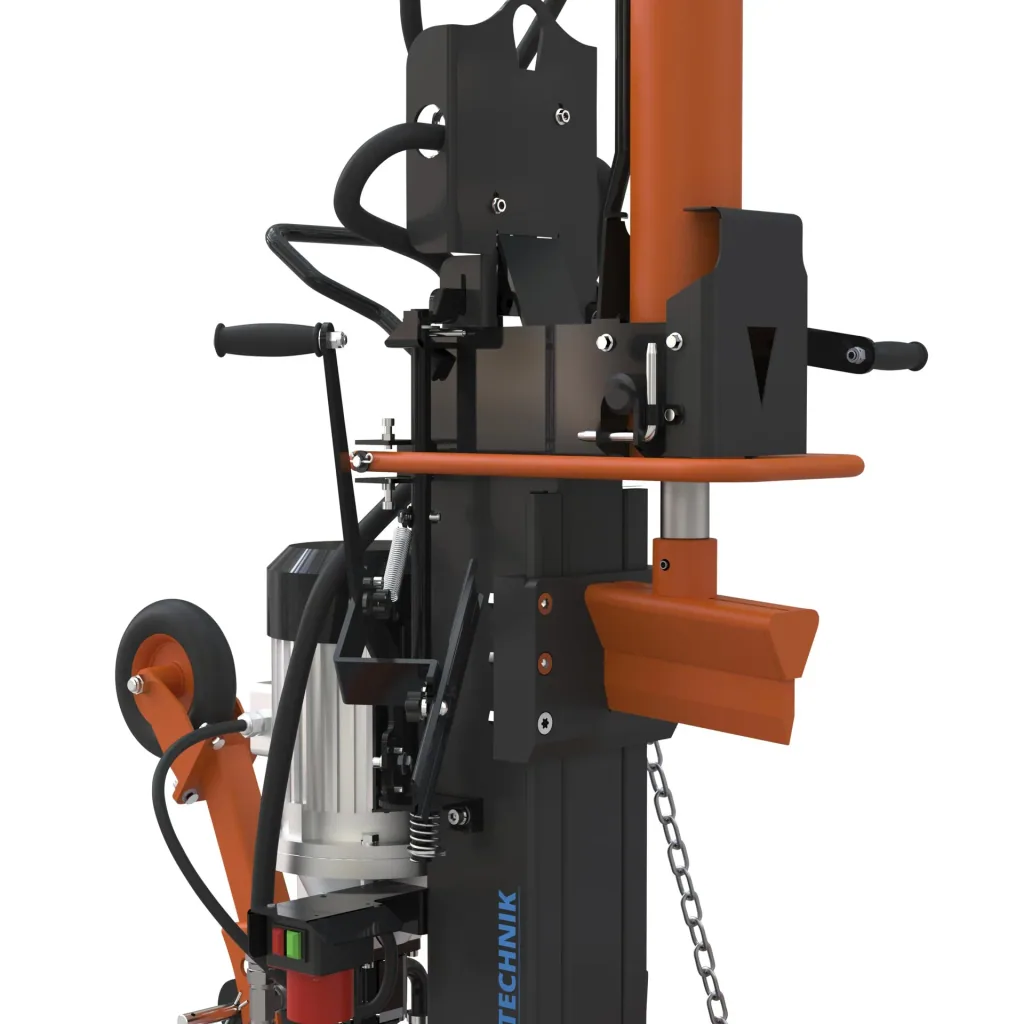

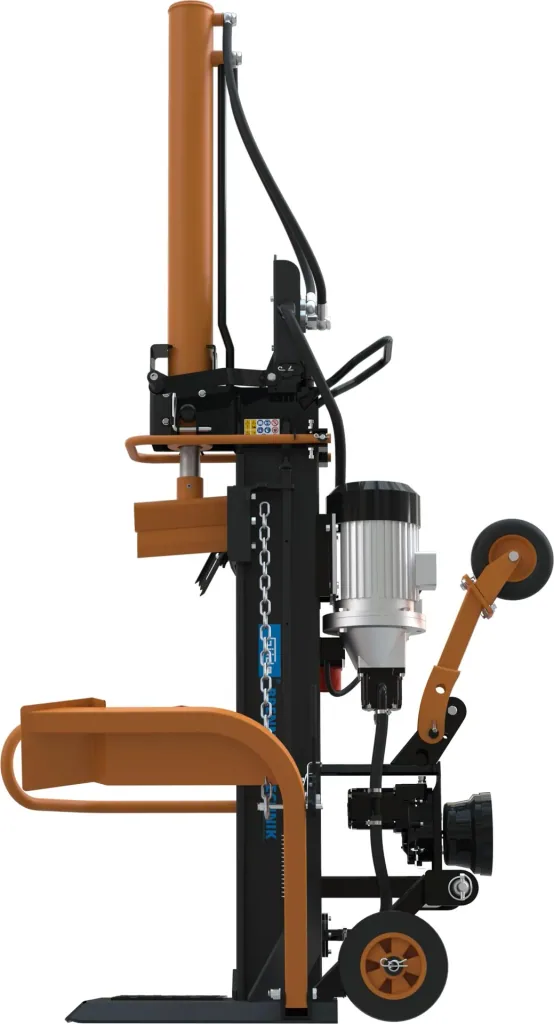

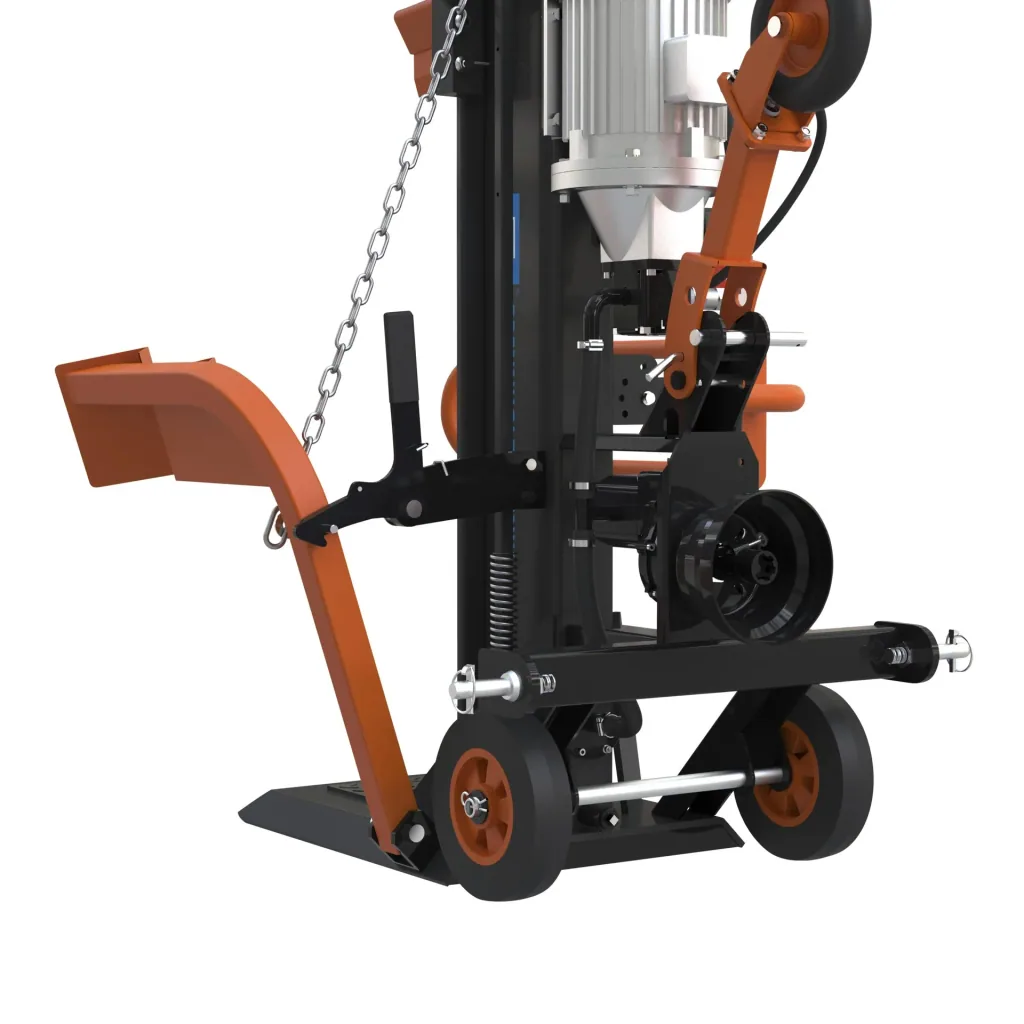

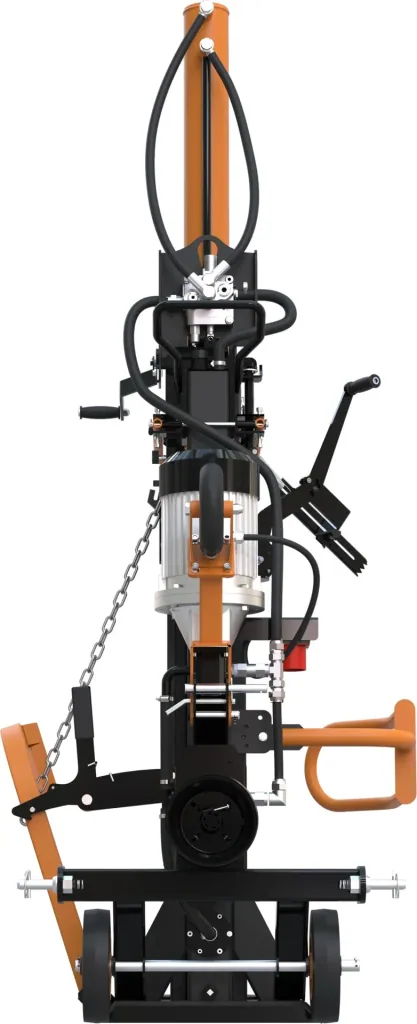

Log splitter GHS 1100/25TEZ-A

• Category 1 three-point linkage
• Hydraulic-mechanical log lifter
• Splitting material securing device
• Splitting knife made of special steel with a long service life
• Combined drive with 2 separate hydraulic pumps
• Powerful electric motor
• Switch-plug combination with phase inverter
• Alternative drive via PTO gearbox
• 2-hand safety operation
• Splitting material catch bracket on both sides
• 2 working speeds
• Manual resetting of the splitting wedge with safety shutdown
• Pivoting support wheel

The GHS 1100/25/TEZ-A log splitter has been developed according to the latest quality and safety standards. The "Combi" log splitter is ideal for splitting meter-long logs in the forest or on home land. The powerful 5.1 kW electric motor and cardan drive each power one of the two highly efficient hydraulic pumps, and the precisely graduated control valve ensures effective and economical operation with two splitting speeds. The three-point linkage and PTO transmission with a separate hydraulic pump alternatively enable mobile use with a tractor in the forest or at the polder camp. The hydraulic-mechanical log lifter effortlessly positions even heavy logs, ensuring back-friendly and comfortable splitting. The log securing device allows the log to be secured before the splitting process without the hassle of holding it. The long splitting blade is made of partially hardened special steel for a consistently long service life. The manual reset of the splitting wedge with integrated safety shut-off provides optimal protection and ensures efficient and fatigue-free splitting. The two-hand safety control, the on/off switch, and the splitting bar on both sides are further features for safe and effective operation. Finally, the three-point linkage and the foldable support wheel enable effortless transport and maneuvering. The easily lowerable cylinder allows for space-saving and compact storage and can be quickly returned to its working position for the next use.

Technical specifications:

• Mains voltage: 400 V
• Frequency: 50 Hz
• Operating mode: S6/40%
• Protection class (IP): 54
• Engine power (P1): 5.1 kW
• Engine speed: 1400 rpm
• PTO speed: 540 rpm
• Tractor power: 35 / 48 kW / HP
• Hydraulic oil volume: 24 l
• Hydraulic pressure: 275 bar
• Footplate WxD: 516 x 625 mm
• Hydraulic oil type: HLP 46
• Cylinder stroke: 985 mm
• Max. splitting pressure: 25 t
• Splitting length: 560-1100 mm
• Max. splitting length (without splitting cross): 1100 mm
• Number of forward speeds: 2
• Forward speed: 0.105-0.043 m/s
• Reverse speed PTO: 0.075 m/s
• Forward speed PTO: 0.105-0.043 m/s
• Reverse speed: 0.075 m/s
• Max. Splitting material Ø: 450 mm
• Noise level LWA: 89 dB
• Three-point hitch: CAT I


Dimensions: L x W x H: 1,050 x 1,700 x 2,500 mm

Weight: 320 kg

Scope of delivery:

• 1 x GHS 1100/25TEZ-A log splitter
• 1 x Operating instructions
