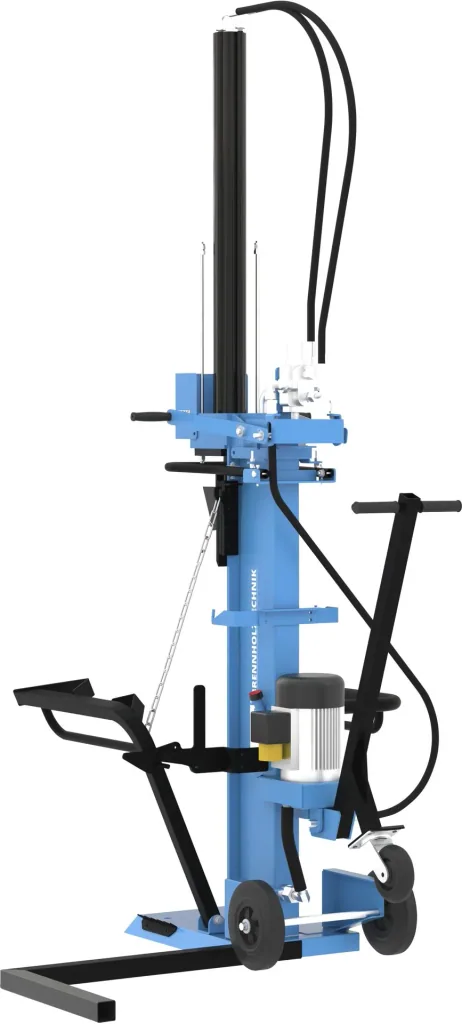

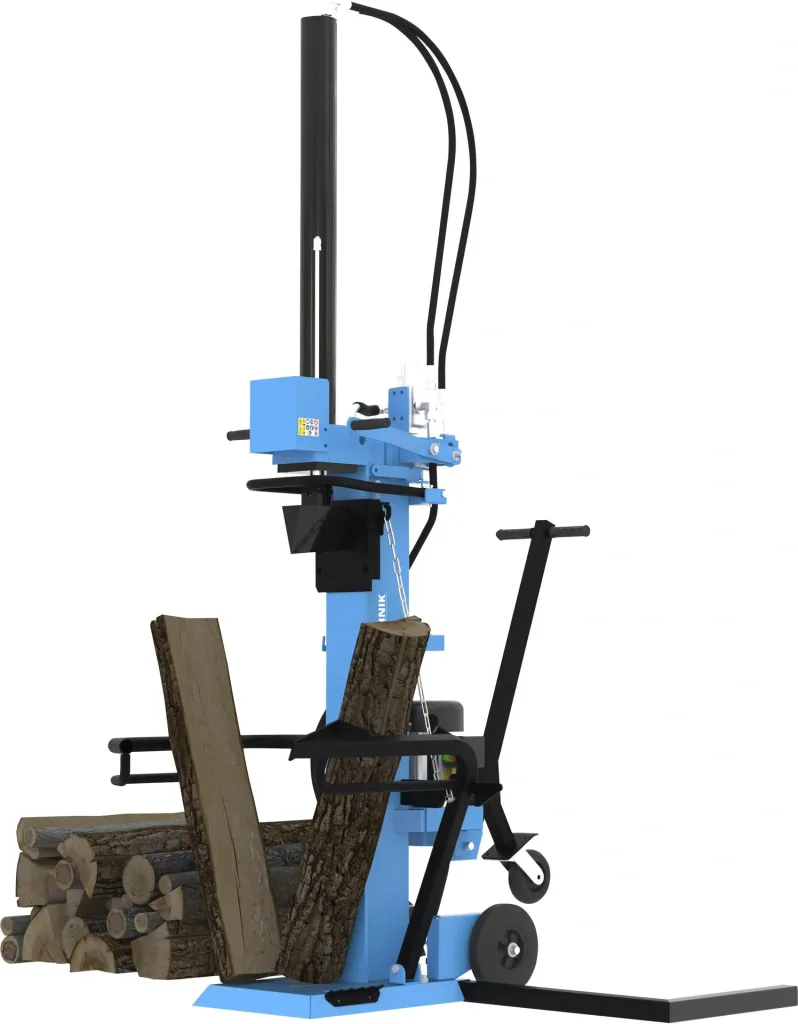

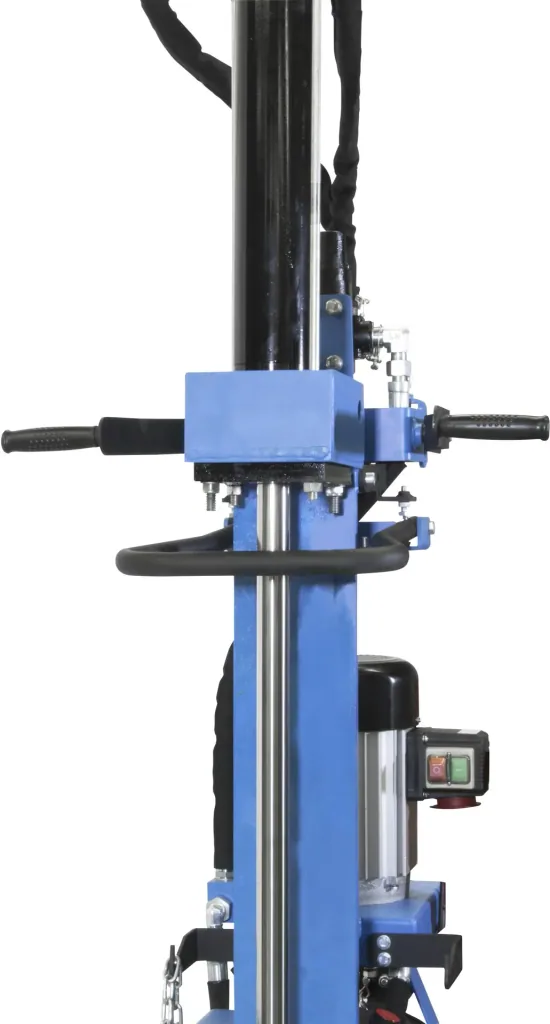

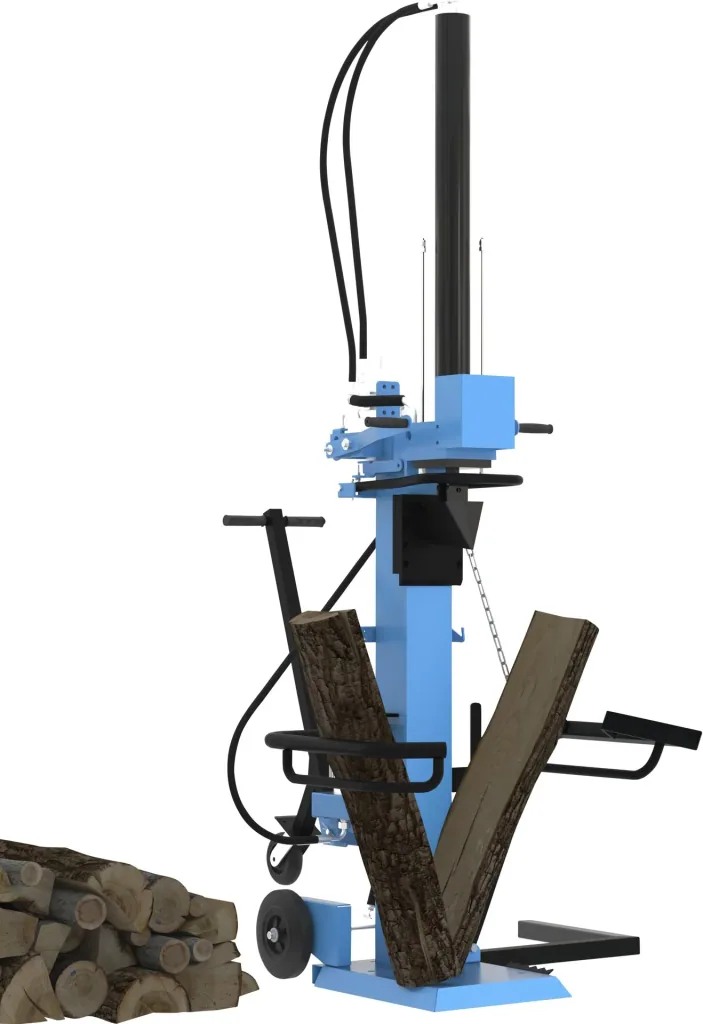

Houtklover GHS 1000/14TE-A
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-981503 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Hydraulic-mechanical log lifter
- Support boom for secure support
- Splitting material securing device
- Splitting knife made of special steel with a long service life
- Powerful electric motor
- Switch-plug combination with phase inverter
- Highly effective hydraulic pump
- 2-hand safety operation
- Splitting material catch on both sides
- Automatic resetting of the splitting wedge with safety shutdown
- Two speed levels
- Plug-in transport drawbar with swivel castor
Technical specifications:
- Mains voltage: 400 V
- Frequency: 50 Hz
- Operating mode: S6 40%
- Protection class: F
- Protection class (IP): IP54
- Motor power (P1): 4.3 kW
- Motor speed: 1420 rpm
- Hydraulic oil quantity: 10 l
- Hydraulic pressure: 245 bar
- Type of hydraulic oil: HLP 46
- Cylinder stroke: 960 mm
- Max. splitting pressure: 14 t
- Splitting length: max. 1000 mm
- Number of forward speeds: 2
- Forward speed: 0.20 fast / 0.038 slow m/s
- Return speed: 0.047 m/s
- Max. Splitting material Ø: 430 mm
- Noise level LWA: 97 dB
Dimensions: L x W x H: 765 x 500 x 2120 mm
Weight: 212 kg
Scope of delivery:
- 1 x log splitter GHS 1000/14TE-A
- 1 x operating instructions
| Voltage | |
|---|---|
| Voltage | 400 |
| IP protection rating | |
| IP protection rating | IP54 |
| Protection class | |
| Protection class | F |
| Return speed | |
| Return speed | 0.047 m/s |
| Forward speed | |
| Forward speed | 0.2 m/s |
| Drive | |
| Drive | Electric |
| Weight | |
| Weight | 212 kg |
| Colors | |
| Colors | Blue |
| Maximum splitting length | |
| Maximum splitting length | 1,000 mm |
| Splitting force (tonnes) | |
| Splitting force (tonnes) | 14 t |
| Maximum splitting diameter | |
| Maximum splitting diameter | 430 mm |
| External dimensions | |
| External dimensions | 765 x 500 x 2,120 mm |
Naam EU-verantwoordelijke: GÜDE GmbH & Co. KG
EU-verantwoordelijke straat: Birkichstrasse
EU-verantwoordelijke Huisnummer: 6
Postcode EU-verantwoordelijke: 74549
EU-verantwoordelijke gemeente: Wolpertshausen
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +496871909137

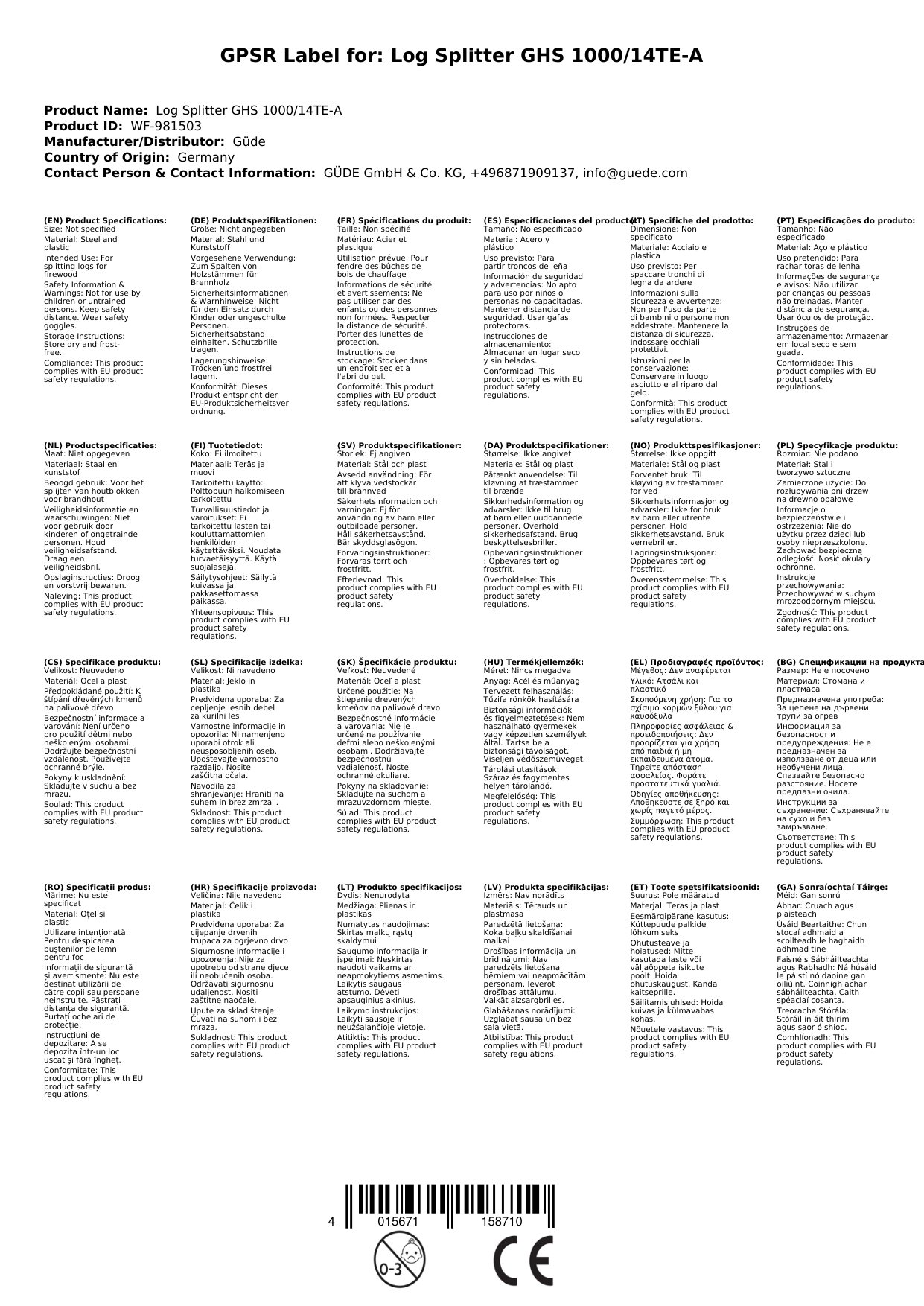

GPSR bijlage:
