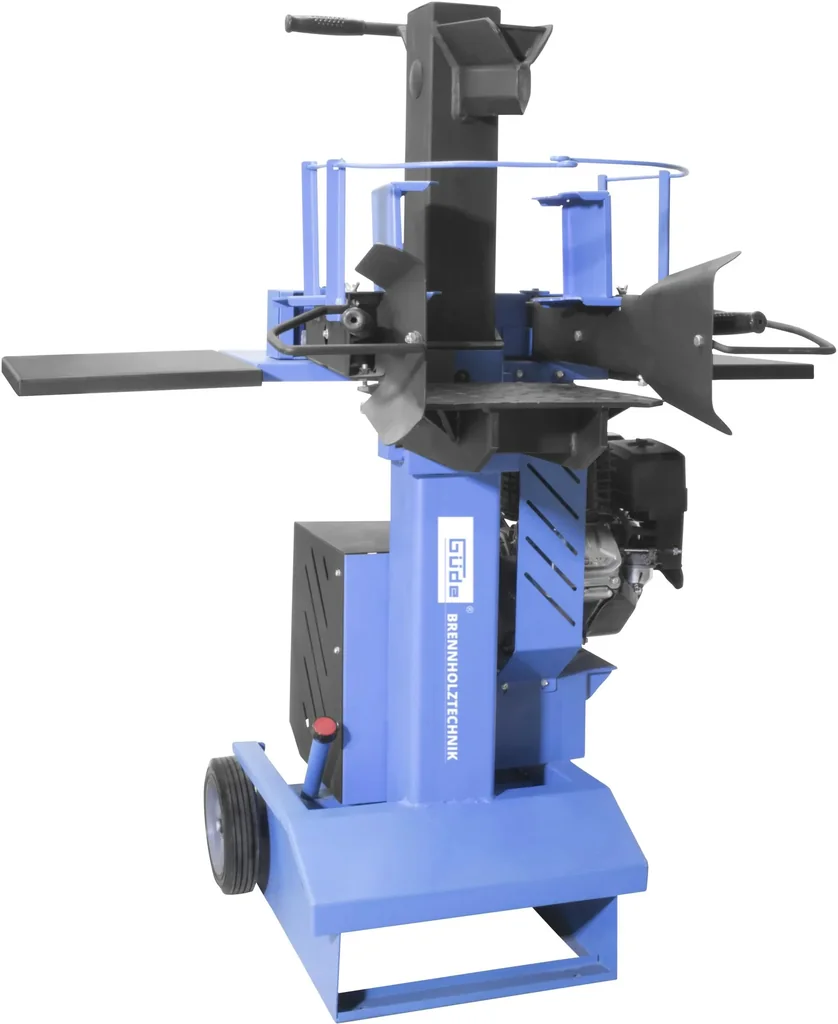

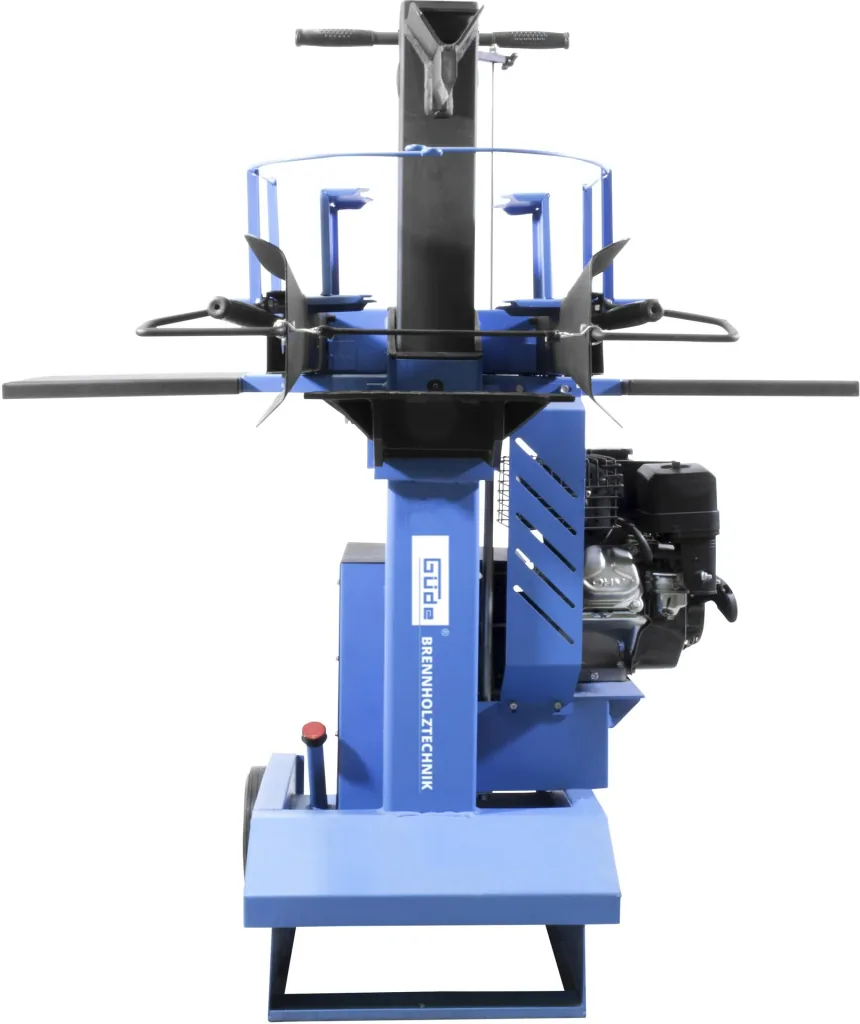

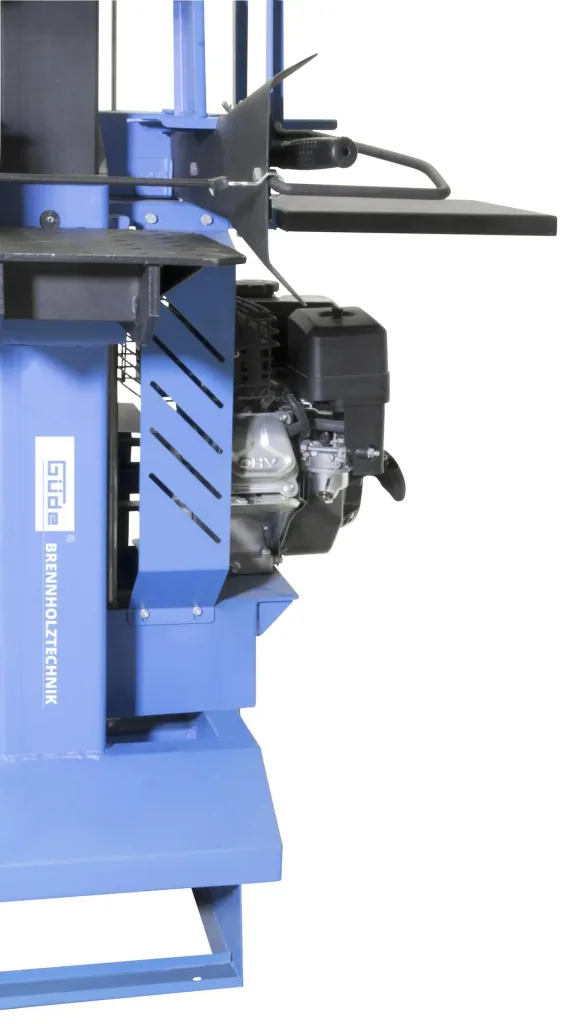

Petrol log splitter GHS 500/8TB

• 2-hand safety operation

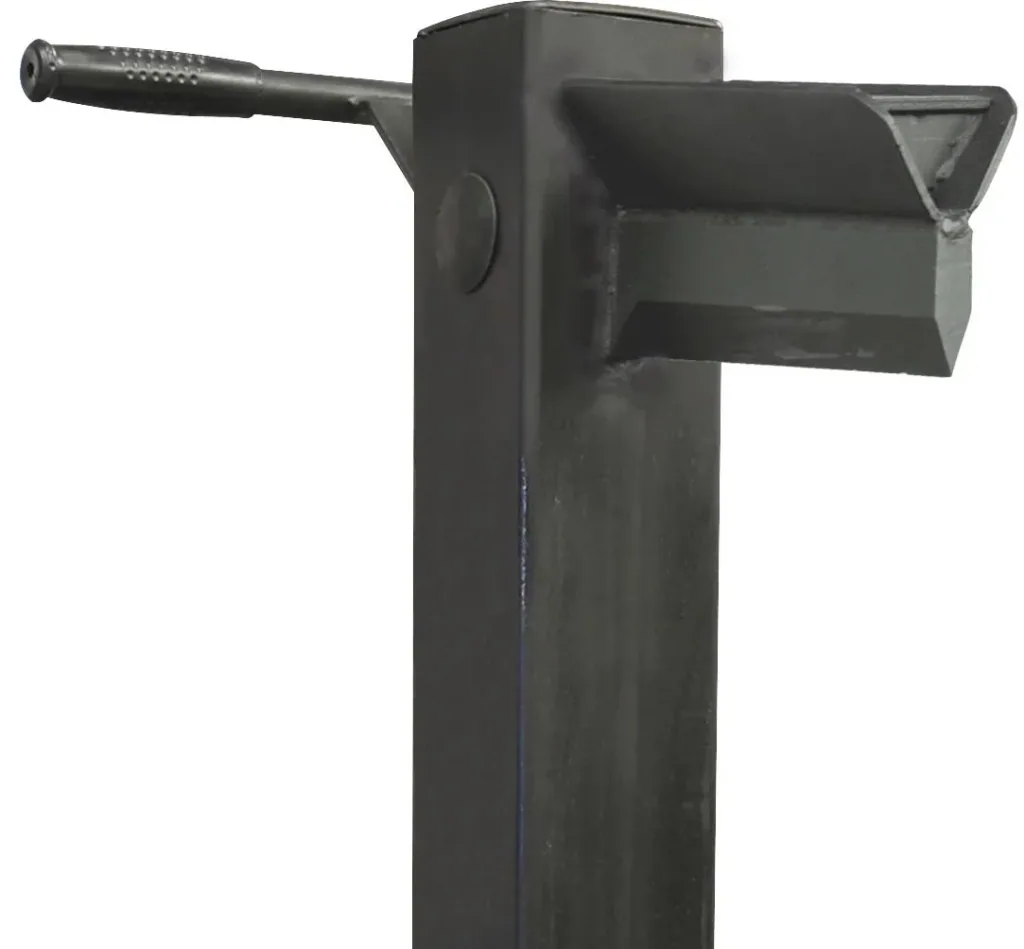

• Efficient Y-shaped splitting blade made of special steel
• Double-sided splitting material catcher for maximum safety
• Powerful gasoline engine
• Infinitely adjustable splitting stroke
• On/off switch
• Double-sided splitting material tray (removable)
• Large transport wheels including transport handle

The GÜDE LOG SPLITTER GHS 500/8TB has been developed according to the latest quality and safety standards. The short log splitter is ideal for splitting firewood up to 50 cm long. The 2-hand safety operation, the on/off switch, and the double-sided splitting material catcher offer optimal protection and ease of use for the user. The powerful petrol engine is tested according to the latest Euro V emissions standard, thus Güde is committed to sustainability for people and nature.
The powerful Power Engine combustion engine delivers 4.7 kW of power independent of electricity for work in the forest or on the polder site. The removable side tables, a continuously adjustable splitting stroke, and the large transport wheels including a carrying handle ensure maximum comfort.

Technical specifications:

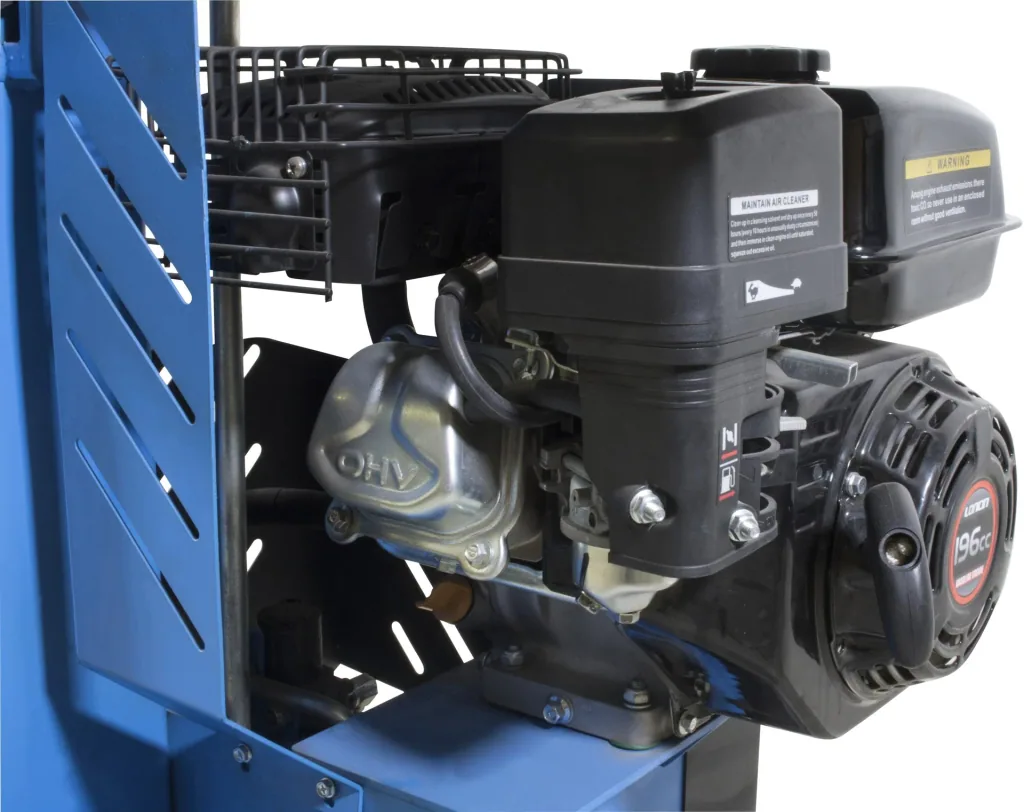

Combustion engine:

• Power engine 4.1 KW/5.5 HP
• E10 compatible
• EuroV

• Engine power: 4.1 / 5.5 (kW / HP)
• Rated speed: 3600 rpm
• Displacement: 196 cm³
• Tank capacity: 3.6 l
• Fuel: Gasoline (E10 compatible)
• Starting system: Recoil start
• Table depth: 310 mm
• Hydraulic pressure: 270 bar
• Table width: 300 mm
• Hydraulic oil type: HLP 46
• Cylinder stroke: 470 mm
• Max. splitting pressure: 8 t
• Splitting length: max. 500 mm
• Number of forward speeds: 1
• Forward speed: 0.045 m/s
• Reverse speed: 0.16 m/s
• Max. splitting material Ø: 350 mm
• Noise level LWA: 70 dB

Dimensions: L x W x H: 855 x 750 x 1510 mm

Weight: 121 kg

Scope of delivery:

• 1 x Gasoline log splitter GHS 500/8TB
• 1 x Operating instructions
