Log splitter GHS 1000/14TEZ-A
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-981500 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- 2-hand safety operation
- Splitting knife made of special steel with a long service life
- Splitting material catch bracket on both sides
- Combined drive with 2 hydraulic pumps
- Powerful electric motor
- Switch-plug combination with phase inverter
- Alternative drive via PTO gearbox
- Three-point hitch CAT 1
- Hydraulic-mechanical log lifter
- Splitting material securing device
- Two speed levels
- Support boom for secure stability.
- Automatic resetting of the splitting wedge with safety shutdown

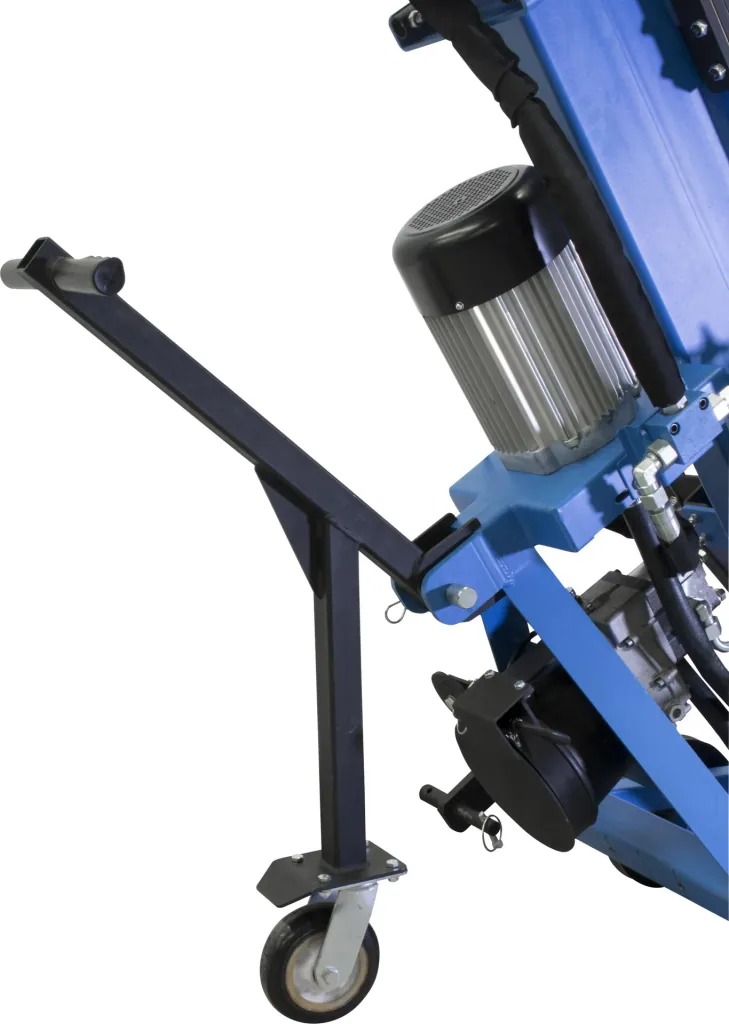

- Plug-in transport drawbar with steering roller
Technical specifications:
- Mains voltage: 400 V
- Frequency: 50 Hz
- Operating mode: S6/40%
- Protection class: F
- Protection type (IP): 54
- Engine power (P1): 4.3 kW
- Engine speed: 1420 rpm
- PTO speed: 540 min-1
- Tractor power: 18/25 kW / HP
- Hydraulic oil quantity: 10 l
- Hydraulic pressure: 250 bar
- Footplate WxD: 420 x 535 mm
- Type of hydraulic oil: HLP46
- Cylinder stroke: 960 mm
- Max. Splitting pressure: 14 t
- Splitting material length: 1000 mm
- Number of forward speeds: 2
- Forward speed: 0.20 / 0.038 m/s
- Reverse speed PTO: 0.07 m/s
- Forward speed PTO: 0.30 / 0.057 m/s
- Reverse speed: 0.047 m/s
- Max. Splitting material Ø: 430 mm
- Noise level LWA: 97 dB
- Three-point hitch: CAT. 1
Dimensions: L x W x H: 1150 x 1230 x 2500 mm
Weight: 232 kg
Scope of delivery:
- 1 x GHS 1000/14TEZ-A log splitter
- 1 x Operating instructions
| Colors | |
|---|---|
| Colors | blue |
| maximum splitting diameter | |
| maximum splitting diameter | 430 mm |
| maximum splitting length | |
| maximum splitting length | 1,000 mm |
| splitting force (tons) | |
| splitting force (tons) | 14 t |
| external dimensions | |
| external dimensions | 1,150 x 1,230 x 2,500 mm |
| voltage | |
| voltage | 400 |
| IP protection class | |
| IP protection class | IP54 |
| weight | |
| weight | 232 kg |
| drive | |
| drive | combined drive with 2 hydraulic pumps |
| return speed | |
| return speed | 0.047 m/s |
| forward speed | |
| forward speed | 0.2 m/s |
| protection class | |
| protection class | F |
