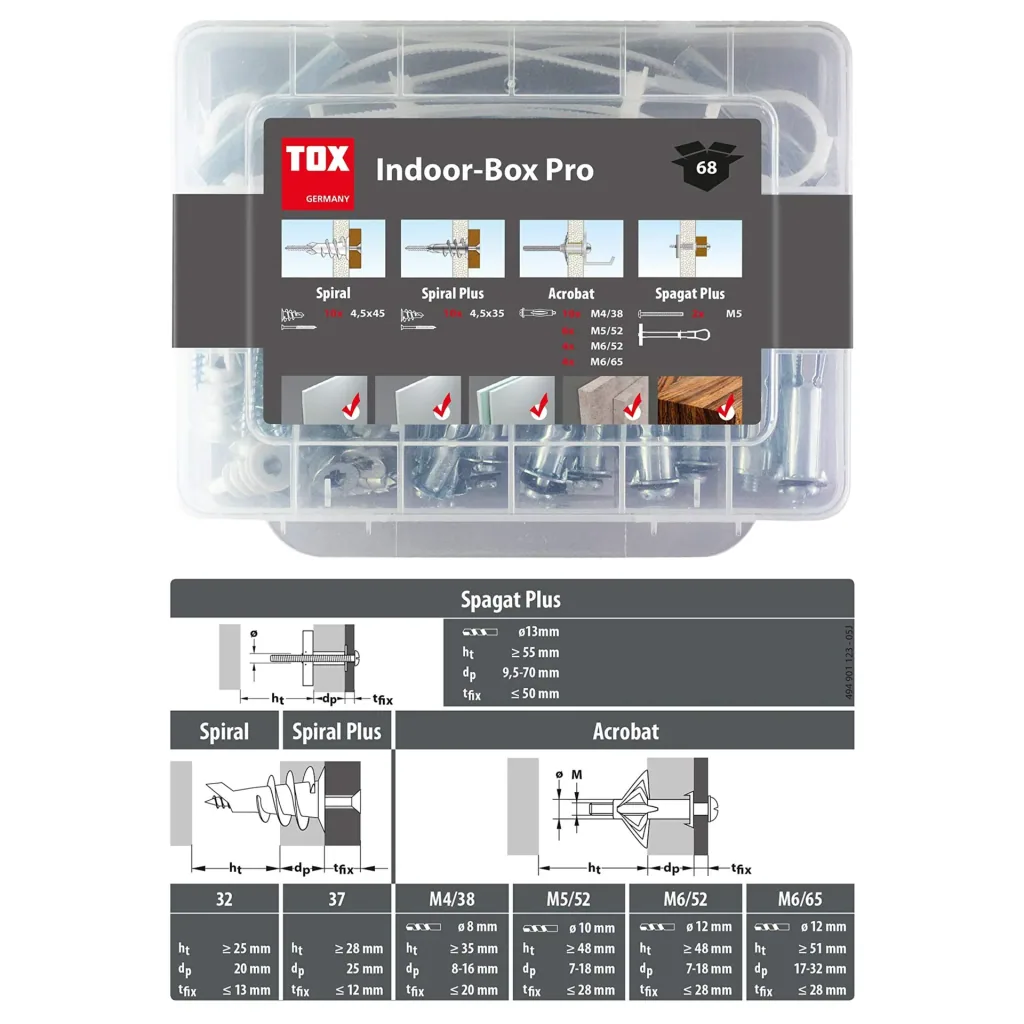

Hollow wall anchors - Indoor Box Pro assortment 68 pieces

Everything you need for fastening plasterboard or gypsum fiberboard in one practical set: Refillable, neatly stored in any workshop, and a transparent lid for a quick overview.

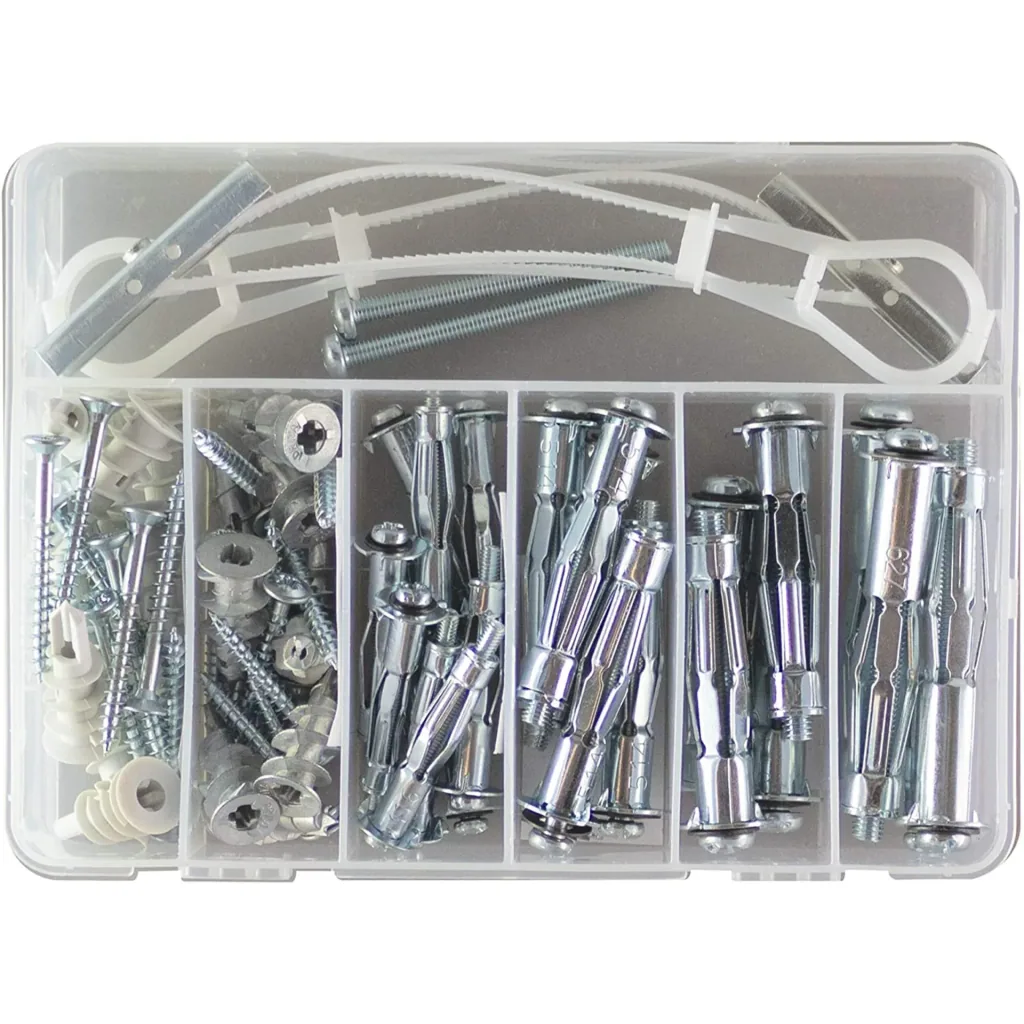

Contents (68 pieces)

• 10 Spiral plasterboard anchors with matching chipboard screws 4.5 x 45 mm, galvanized (PZ drive)
• 10 Spiral Plus plasterboard anchors with matching chipboard screws 4.5 x 45 mm, galvanized (PZ drive)
• 10 Acrobat M4 x 38 cavity wall anchors
• 6 Acrobat M5 x 52 cavity wall anchors
• 4 Acrobat M6 x 52 cavity wall anchors
• 4 Acrobat M6 x 65
• 2 Spagat Plus cavity toggle anchors with matching metric screws

Spiral plasterboard anchor

• No pre-drilling required: Screw directly into single-layer plasterboard
• No special tools required
• Same bit for screwing in the anchor and the screw
• High holding power in plasterboard up to 8 kg per fastening point

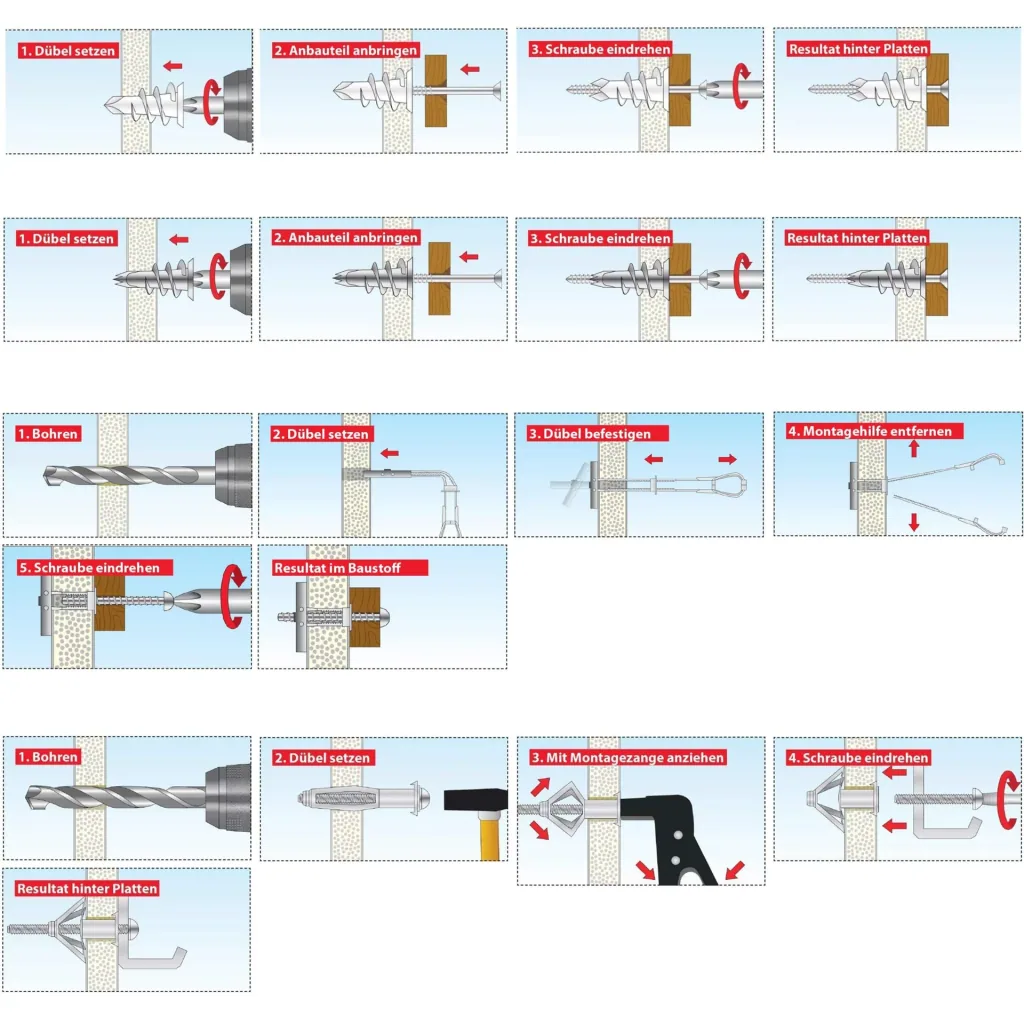

Processing & Installation

• Before screwing in, mark the plasterboard with the centering bit.
• Not suitable for gypsum fiberboard and tiled plasterboard.
• Limited space required behind the board due to the short anchor length.
• Use only chipboard and sheet metal screws with a diameter of 4.5 mm.
• Minimum screw length = anchor length 32 mm + fixture thickness.
• Flush wall finish.
• Pre-inserted installation.

Spiral Plus plasterboard anchor.

• No pre-drilling required.
• No special tools required.
• Same bit for screwing in the anchor and the screw.
• High holding values ​​of 20 kg each in gypsum fiberboard. Attachment point

Processing & Installation

• Not suitable for tiled plasterboard
• For gypsum fiberboard, pre-drill the board with a diameter of 8 mm
• Limited space required behind the board due to the short dowel length
• Only use chipboard and sheet metal screws with a diameter of 4.5 mm
• Minimum screw length = dowel length 32 mm + fixture thickness
• Center punch the board's cover board before installing the dowel
• Flush wall finish
• Pre-inserted installation

Acrobat cavity dowel

• No rotation in the drill hole thanks to anti-rotation locks
• For shallow cavity depths
• Suitable for single- and double-layer wallboards

Processing & Installation

• The anchor should preferably be installed using the TOX Acrobat Speed-Plus or Acrobat Speed-Pro can be installed; it can also be installed with a cordless screwdriver and a screwdriver.
• Please note the specified drill bit diameter.
• The anti-rotation locks can be pushed back to their original shape if necessary (e.g., on tiled plasterboard).
• Observe the minimum cavity depth and panel thickness.
• The hole in plasterboard must be drilled with a wood or metal drill.
• Pre-inserted installation.

Spagat Plus cavity toggle anchor.

• Extremely high holding power in cavities.
• The appropriate metric screws are included.
• For panel thicknesses from 9.5 - 70 mm.
• A longer screw must be used for panel thicknesses of 50 mm and above.
• The tilting mechanism automatically adjusts to the optimal angle. from

Processing & Assembly

• Observe the specified minimum cavity depth, panel thickness, and drill bit diameter.
• Observe vertical installation position for wall mounting.
• Pre-inserted installation.
• Place the screw on the wall with slight pressure and screw it in.
