Trailer lighting tester, 13-pin with battery
| Artikelnummer | WF-979868 |
| Merk | Berger & Schröter |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0

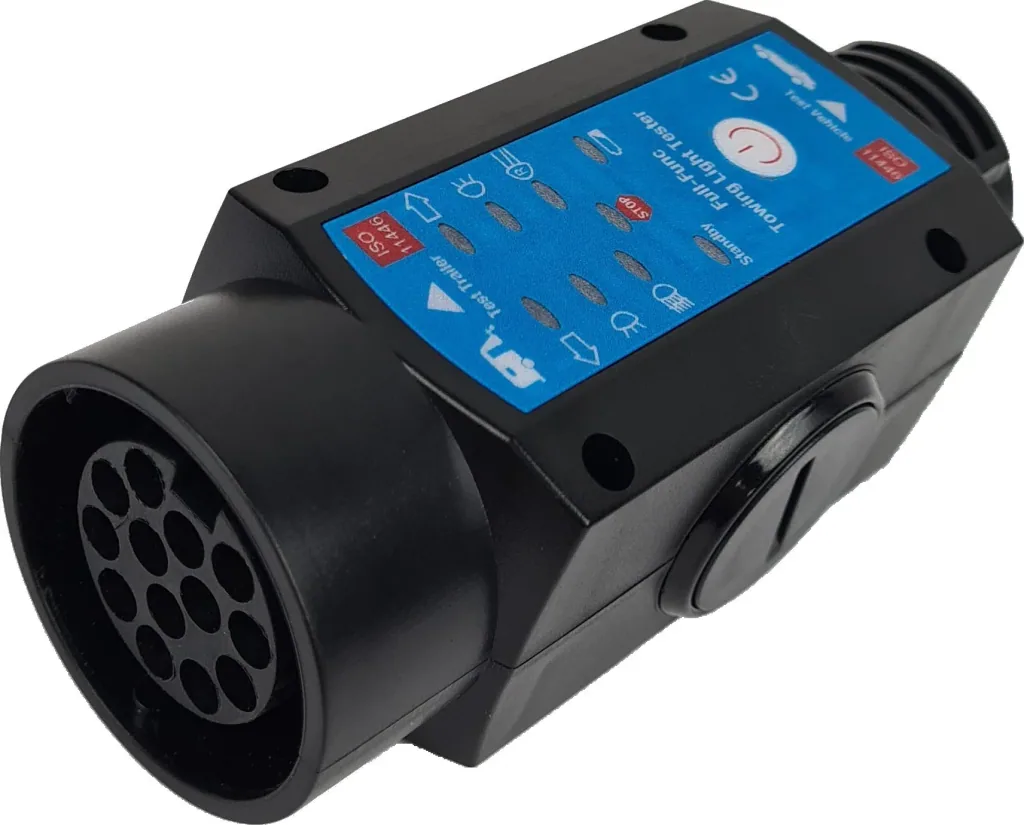

- Two test displays - one each on the top and bottom are clearly visible
- The tester can be connected directly to the trailer
- Immediately check the vehicle socket for functionality (brake only when applied, of course)

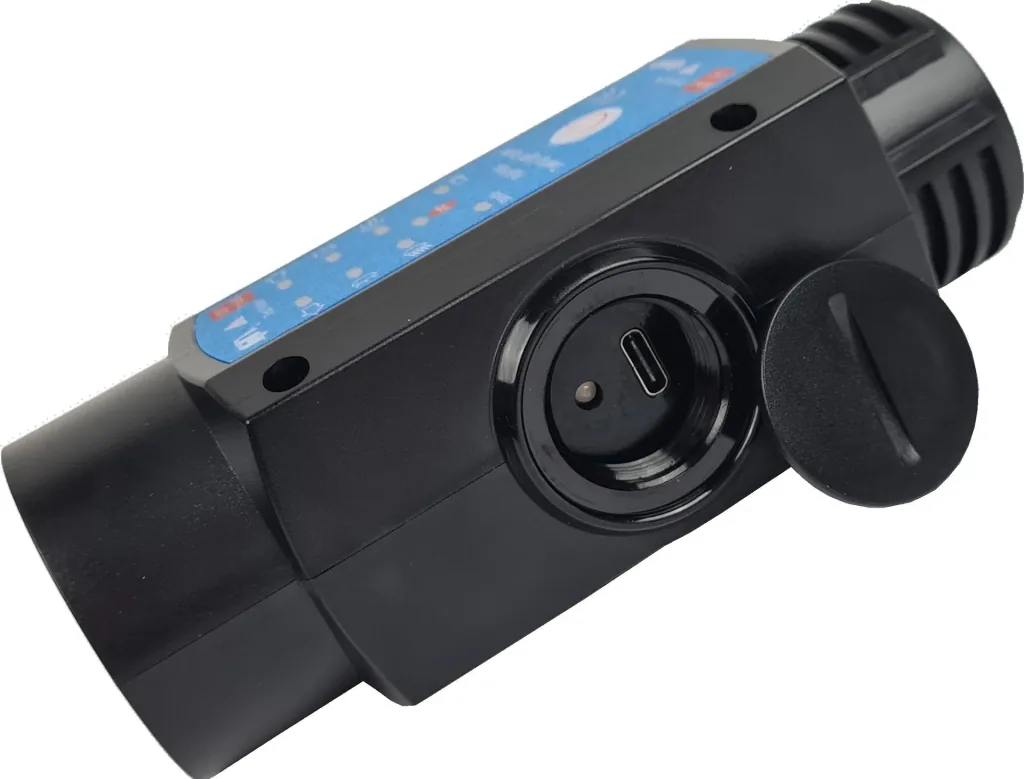

- Internal 3.6 V battery (850 mAh) can be charged via USB-C

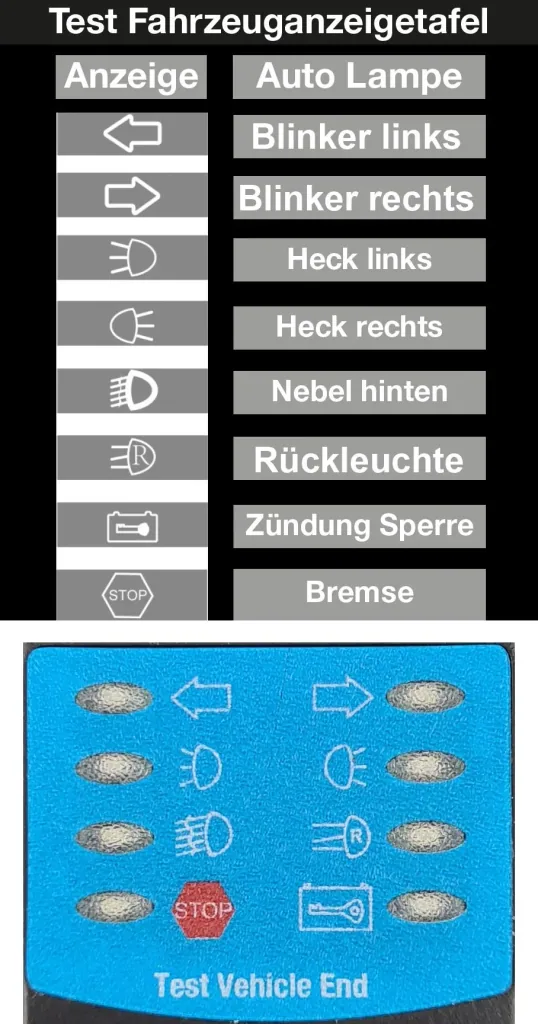

- Testable functions - left/right turn signal, brake light, left/right tail light, rear fog light

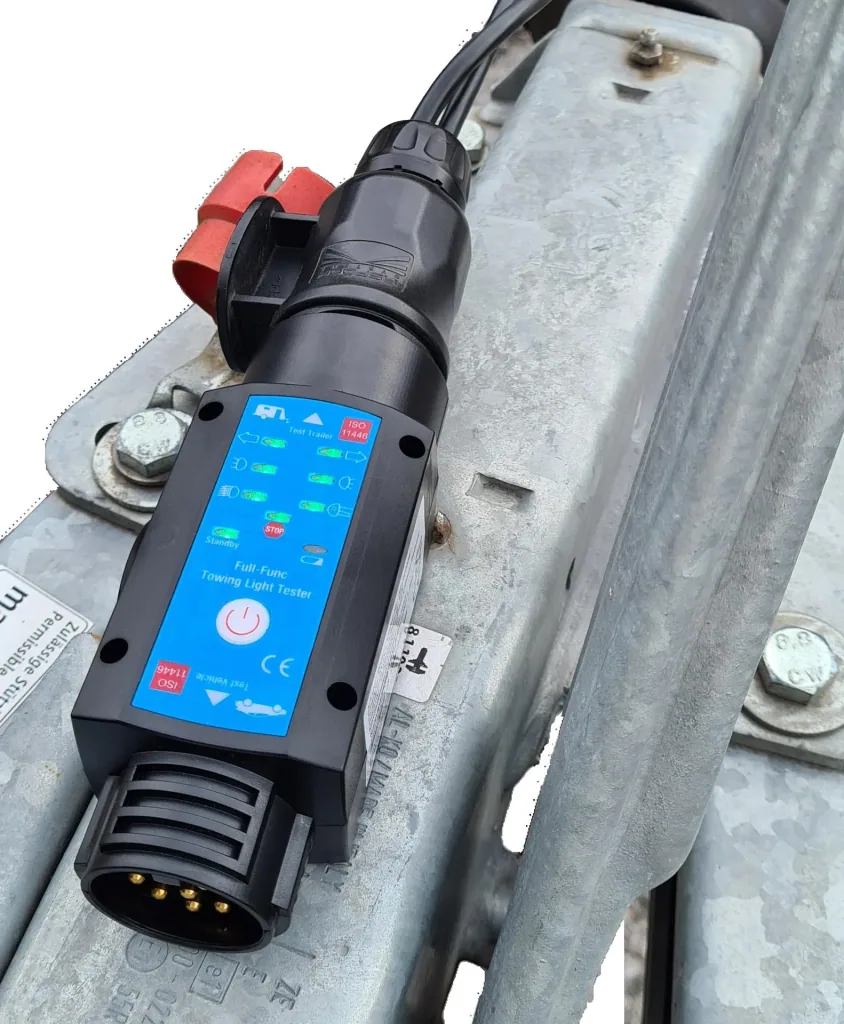

This LED tester tests all traffic-critical lighting functions on vehicle trailer sockets and trailer plugs with ISO11446.

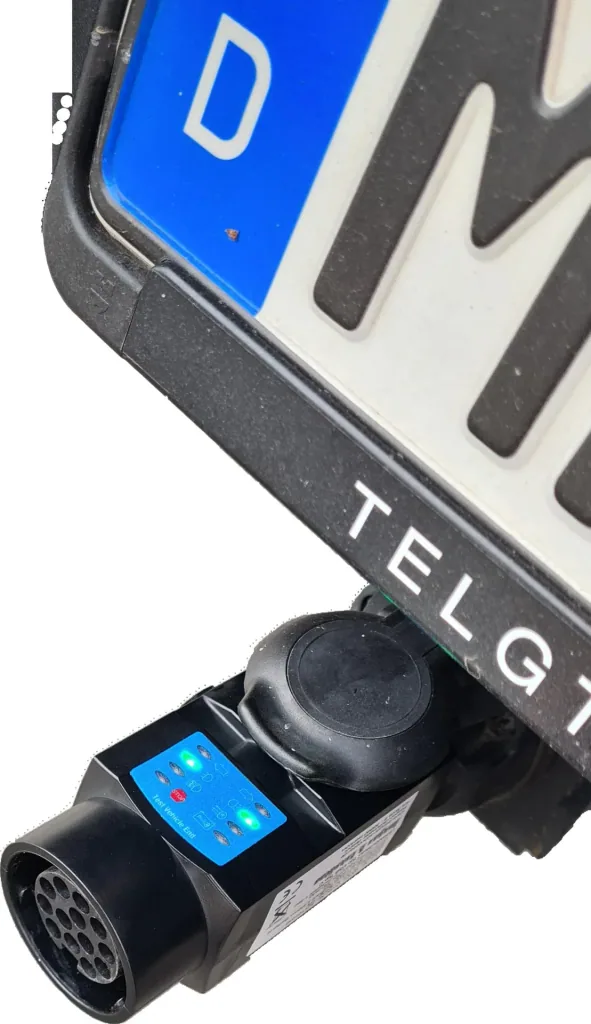

Two test displays: one each on the top and bottom are clearly visible. The tester can be connected directly to the trailer. You can also test the vehicle's power socket for functionality (the brakes only work when applied, of course).
Simple and quick: One end connects to the 13-pin trailer plug and the other end to the vehicle's 13-pin socket. This tester is easy to use, and any wiring fault in the towing vehicle and trailer is immediately indicated.
Wide compatibility: For all types of trailers and vehicles in Europe. No batteries are required, and the internal 3.6 V battery (850 mAh) can be charged via USB-C.
Technical Specifications
- Nominal voltage 3.6 V, 850 mAh
- Charging port USB-C
- Input 5 V DC, output 12 V
Scope of delivery
- 1 x test device with built-in battery
- 1 x instruction manual
| Battery type | |
|---|---|
| Battery type | Secondary cells (rechargeable battery) Lithium (Li-Ion) up to 50g |
| Colors | |
| Colors | blue |
| Colors | black |
| Number of batteries | |
| Number of batteries | 1 |
| Material | |
| Material | plastic |
| Number of poles | |
| Number of poles | 13 |
| External dimensions | |
| External dimensions | 130 x 55 x 45 mm |
| Weight | |
| Weight | 230 g |
