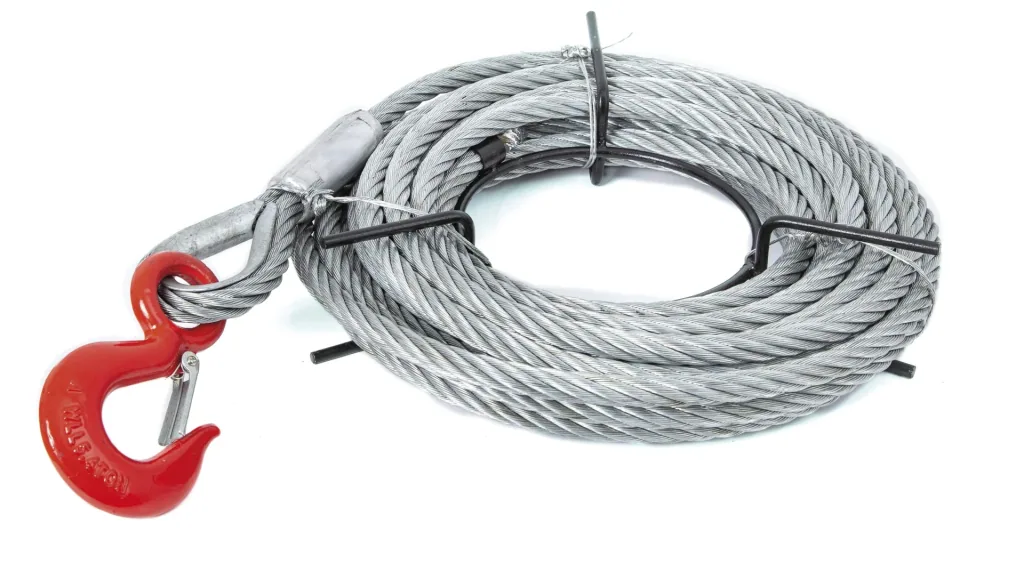

Ropemaster RM08 cable pulley, including lever tube and 20 m rope with hook
| Artikelnummer | WF-977974 |
| Merk | PLANETA |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- Load capacity from 800 kg to 5,400 kg
- Housing made of high-strength aluminum alloy
- Overload protection via shear pins
- Sturdy stop bolt
- Virtually maintenance-free

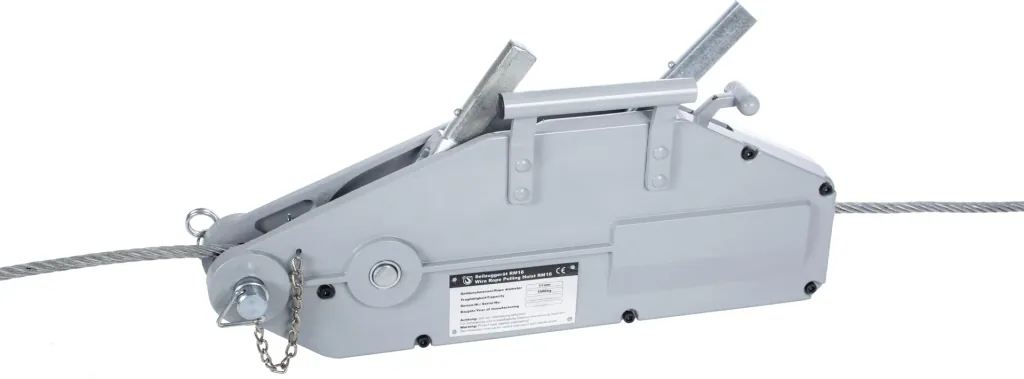

This wire rope hoist was specially designed for use in industry, particularly civil engineering, overhead line construction, shipbuilding, oil refineries, etc. The wire rope hoist is virtually maintenance-free – handling is light, simple, and safe.
The standard equipment includes the wire rope hoist with hand lever and an original PLANETA wire rope with a steel core.
Each wire rope hoist is overload-tested and delivered with a test certificate stating the serial number. PLANETA wire rope hoists are certified and approved by a large number of national and international authorities.
Processing and Equipment
Low-wear, parallel, large-surface clamping jaw pairs protect the traction rope by applying even surface load. The large stroke enables high operating speeds.
Stability is ensured by smooth, large-surface floor supports in both horizontal and vertical operating positions.
Rope feed lever and retraction lever on one level enable a narrow design and guarantee a centralized power flow.
Overload protection is provided by a shear pin in the feed lever. Spare pins are located in the hand lever handle or carrying handle and can be replaced without relieving the load on the traction rope.
| Rope diameter | |
|---|---|
| Rope diameter | 8.3 mm |
| Rope feed | |
| Rope feed | 52 mm |
| Drive | |
| Drive | Manual |
| Rope length | |
| Rope length | 20 m |
| Lever force | |
| Lever force | 34 daN |
| Weight | |
| Weight | 14.6 kg |
| Load capacity | |
| Load capacity | 800 kg |
| Lever length | |
| Lever length | 800 mm |
