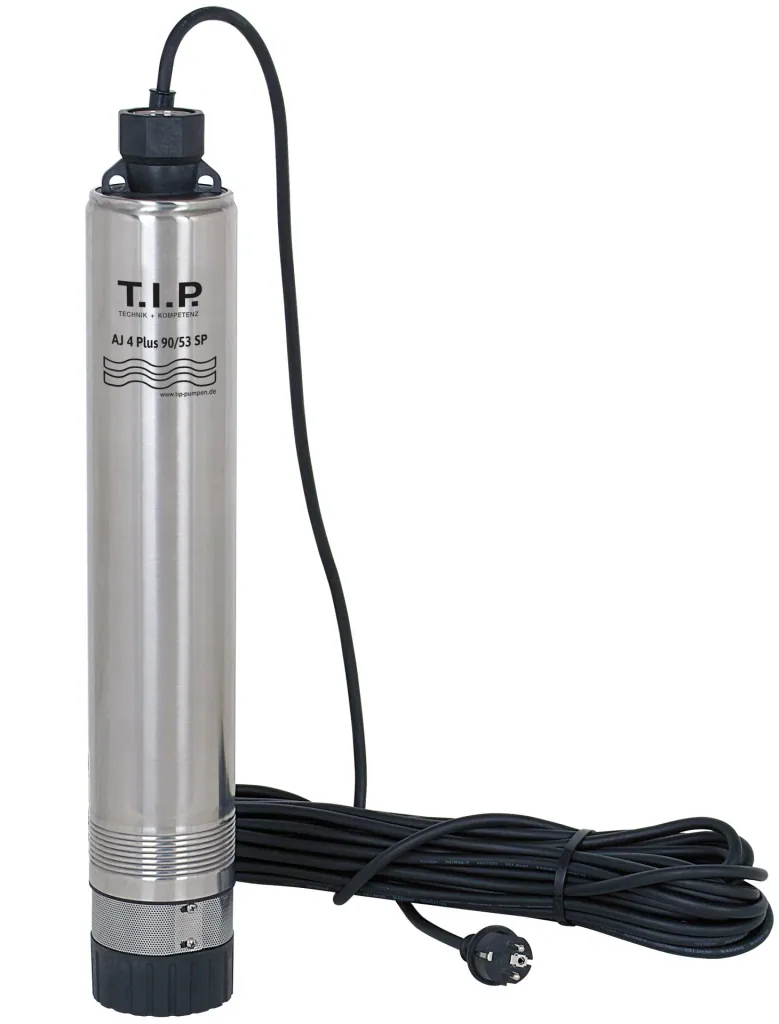

Tiefbrunnenpumpe BigWell 90/53
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-975357 |
| Merk | T.I.P. |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Powerful and energy-saving pump for pumping water from great depths
- Multi-stage pump housing reduces noise and efficiently pumps water where it is needed
- With a small outer diameter of only 9.6 cm, it is ideal for use in narrow wells with a diameter of 10 cm or more

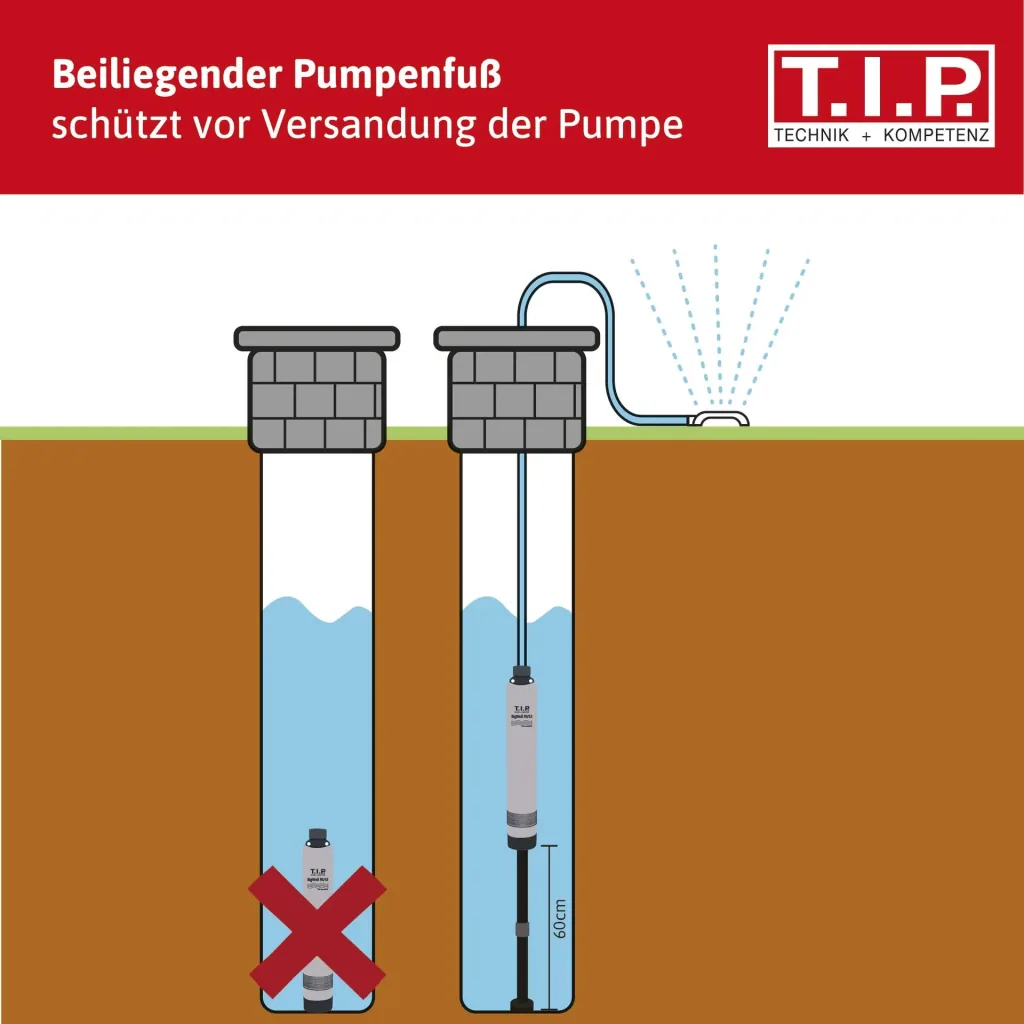

- Extendable base protects the pump hydraulics from silting and makes them sand-resistant for a sand content of 50 g/m³ in the water

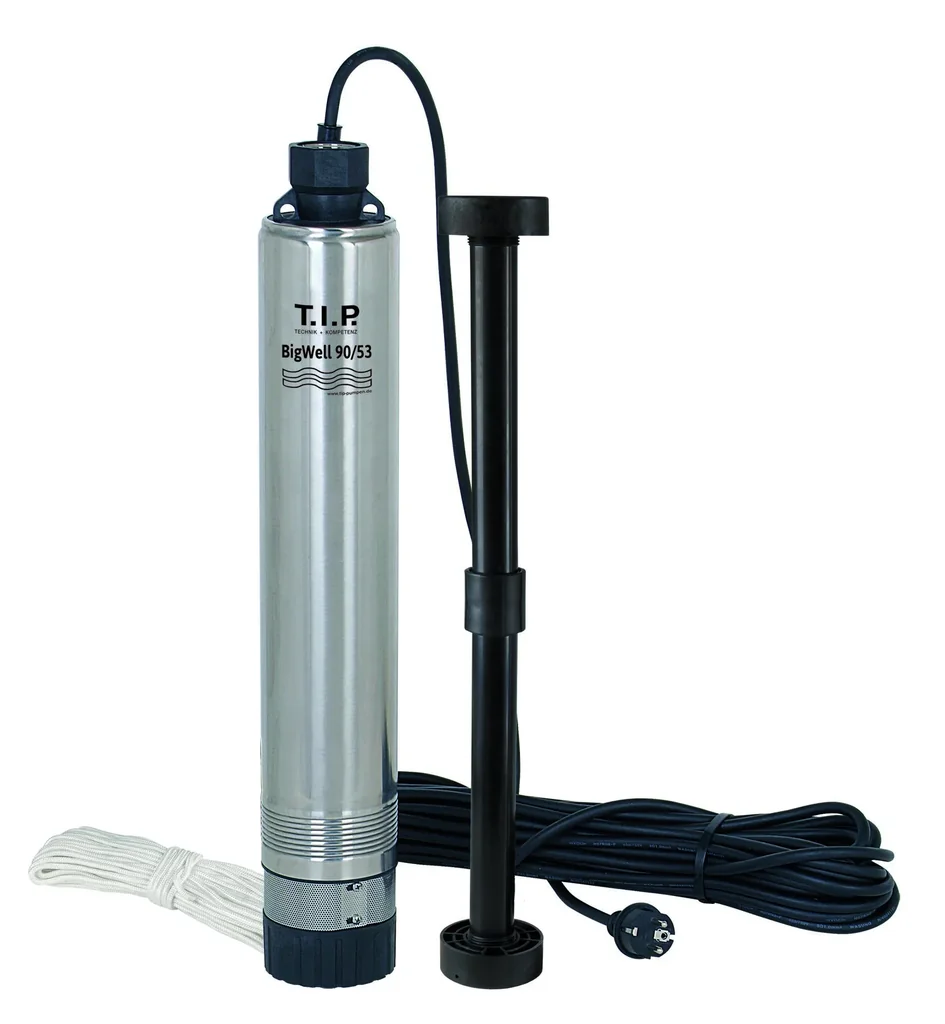

The pump has an integrated check valve, a 23 m connection cable, and a drainage rope for optimal positioning.
Technical Data
- Motor: 900 watts
- Maximum delivery head / pressure: 53 m / 5.3 bar
- Maximum delivery rate: 5,400 l/h
- Pump housing: stainless steel / Plastic
- Max. grain size: ≤ 1 mm
- Max. immersion depth: 20 m
- Connection cable: 23 m / H07RN-F
- Max. medium temperature: 35 °C
- Pressure connection: 39.59 mm (1 1/4" IG)
- Min. well diameter: 100 mm
- MEI (Minimum Efficiency Index): ≥ 0.40
Dimensions: 73.5 x 21.6 x 17 cm
Weight: 13.8 kg
| Maximum pressure | |
|---|---|
| Maximum pressure | 5.3 |
| Weight | |
| Weight | 13.8 kg |
| External dimensions | |
| External dimensions | 73.5 x 21.6 x 17 cm |
| Delivery head | |
| Delivery head | 53 m |
| Output power | |
| Output power | 900 W |
| Material | |
| Material | stainless steel |
| Material | plastic |
| Diameter | |
| Diameter | 9.6 cm |
| Maximum immersion depth | |
| Maximum immersion depth | 20 m |
| Delivery rate | |
| Delivery rate | 5,400 l/h |
| Cable length | |
| Cable length | 23 m |
| Drive | |
| Drive | 230 V |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
