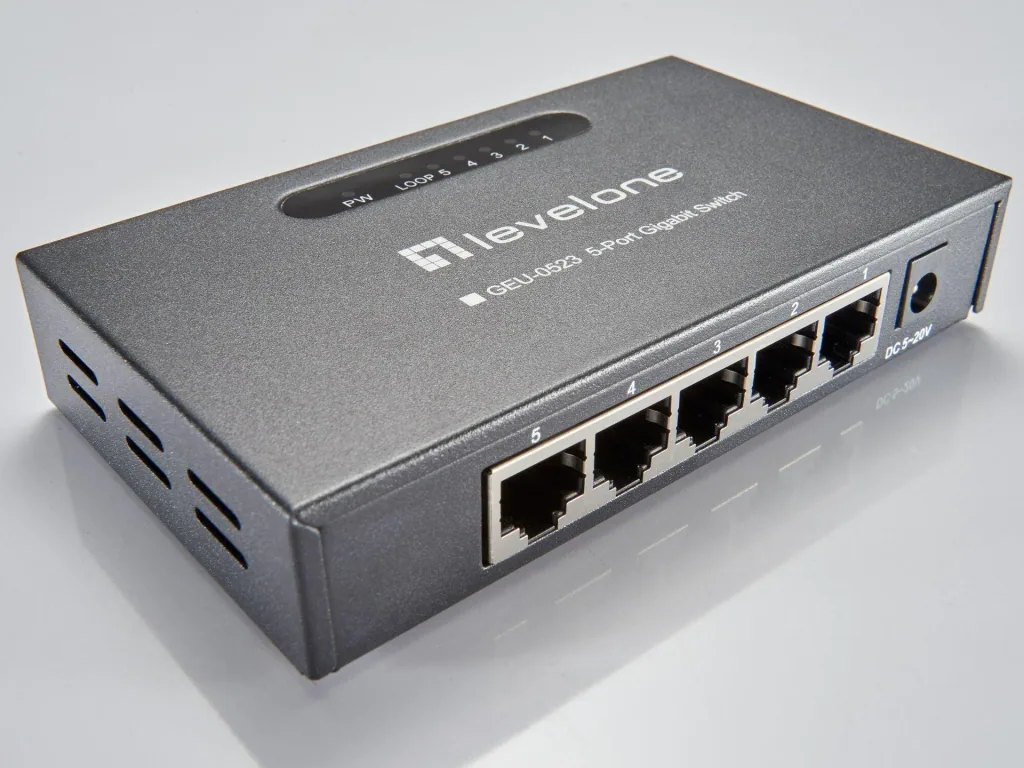

Switch 5x GE GEU-0523 Gigabit Metall

• 5 Gigabit Ethernet ports
• 10/100/1000 Mbps transmission speed
• 9K Jumbo Frames for high transfer rates
• Supports automatic learning and validity assignment for 2K MAC addresses
• Offers table or wall mounting
• Minimizes power consumption through modern energy efficiency (IEEE 802.3az)
• Offers loopback detection and visualizes this via LED display

The LevelOne GEU-0523 is a 5-port Gigabit (1000 Mbps) switch that uses non-blocking technology and also supports Fast Ethernet (10/100 Mbps) connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or uplink ports. Each port can be used as a general network port or as an uplink port to a router, server, hub, or other network switch. The GEU-0523 is the ideal choice for cost-effectively expanding your network.

Technical Specifications

Management features

Switch Type *: Unmanaged

Connectivity

Number of Basic Switching RJ-45 Ethernet Ports *: 5

Basic Switching RJ-45 Ethernet Ports Type *: Gigabit Ethernet (10/100/1000)

Number of Gigabit Ethernet (Copper) Ports: 5

Network

Network Standard *: IEEE 802.3az

10G support *: No

Self-learning of MAC addresses supported: Yes

Auto-aging of MAC addresses supported: Yes

Data Transfer

Routing/Switching Capacity *: 10 Gbit/s

MAC Address Table Size *: 2000 entries

Jumbo Frames Support: Yes

Jumbo Frames: 9000

Transmission Method: Store-forward

Packet Forwarding Rate (1 Gbit/s): 1488000 pps

Design

Rack Mount *: No

Product Color: Black

Housing Material: Metal

Indicator Lights: Yes

Wall Mountable: No

Performance

Built-in processor: Yes

Processor: MT7530D

Flash Memory: 1024 MB

Energy Management

Power supply included *: No

DC input voltage: 5 V

Current: 0.5 A

Power over Ethernet (PoE)

Power Over Ethernet (PoE) Support *: No

Operating Conditions

Operating temperature range: 0 - 40 °C

Storage temperature range: -40 - 70 °C

Operating humidity: 10 - 90%

Non-operating humidity: 5 - 90%

Weight and Dimensions

Width 124 mm

Depth 72 mm

Height 24 mm

Weight 174 g

Power adapter included
