- Pressure switch
- Pressure reducer - easy adjustment of the working pressure
- Vessel pressure and working pressure gauges
- 2 compressed air couplings
- Safety valve and condensate drain plug
- Practical carrying handle
- Integrated air filter
- Sturdy plastic wheels
- Check valve
- Double base with rubber buffer
- Including extensive accessory set
The Güde "405/10/50" compressor is a compressor with an oil-lubricated 2-cylinder V-unit and a powerful working pressure of max. 10 bar. The two pressure gauges and the safety valve ensure regulated working and vessel pressure as well as optimal operational reliability. Large wheels ensure that the compressor remains portable despite its considerable weight. The suction capacity is approx. 320 l per minute.
Technical data
- Mains voltage: 230 Volt
- Frequency: 50 Hertz
- Motor power (P1): 2.2 kW
- Operating mode: S3 50%
- Protection class: I
- Aggregate: Oil lubrication
- Motor speed: 2850 1/min
- Suction capacity: 320 l/min
- Eff. delivery volume 0 bar: 250 l/min
- Eff. delivery volume 4 bar: 210 l/min
- Eff. delivery volume 7 bar: 170 l/min
- Max. Pressure: 10 bar
- Number of cylinders: 2
- Number of compressed air couplings: 2
- Pressure gauge: 2
- Noise level LWA: 95 dB
Dimensions
- Tank capacity: 50 l
- Hose length: 5 m

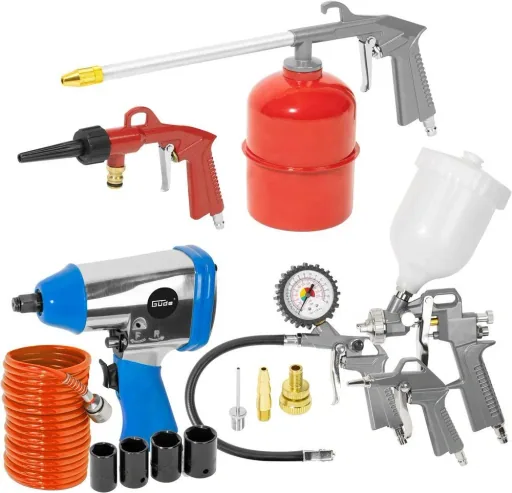

Scope of delivery
- 1 x Compressor
- 1 x Blow-out, paint spray, water and oil spray gun
- 1 x Tire inflator
- 1 x Spiral hose
- 1 x 3-piece adapter set
- 1 x ½" impact wrench set 5-piece set
- 1 x instruction manual
| Drive | |
|---|---|
| Drive | 230V motor |
| Weight | |
| Weight | 42 kg |
| External dimensions | |
| External dimensions | 680 x 360 x 640 |
Naam EU-verantwoordelijke: GÜDE GmbH & Co. KG
EU-verantwoordelijke straat: Birkichstrasse
EU-verantwoordelijke Huisnummer: 6
Postcode EU-verantwoordelijke: 74549
EU-verantwoordelijke gemeente: Wolpertshausen
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +49 7904 700-0

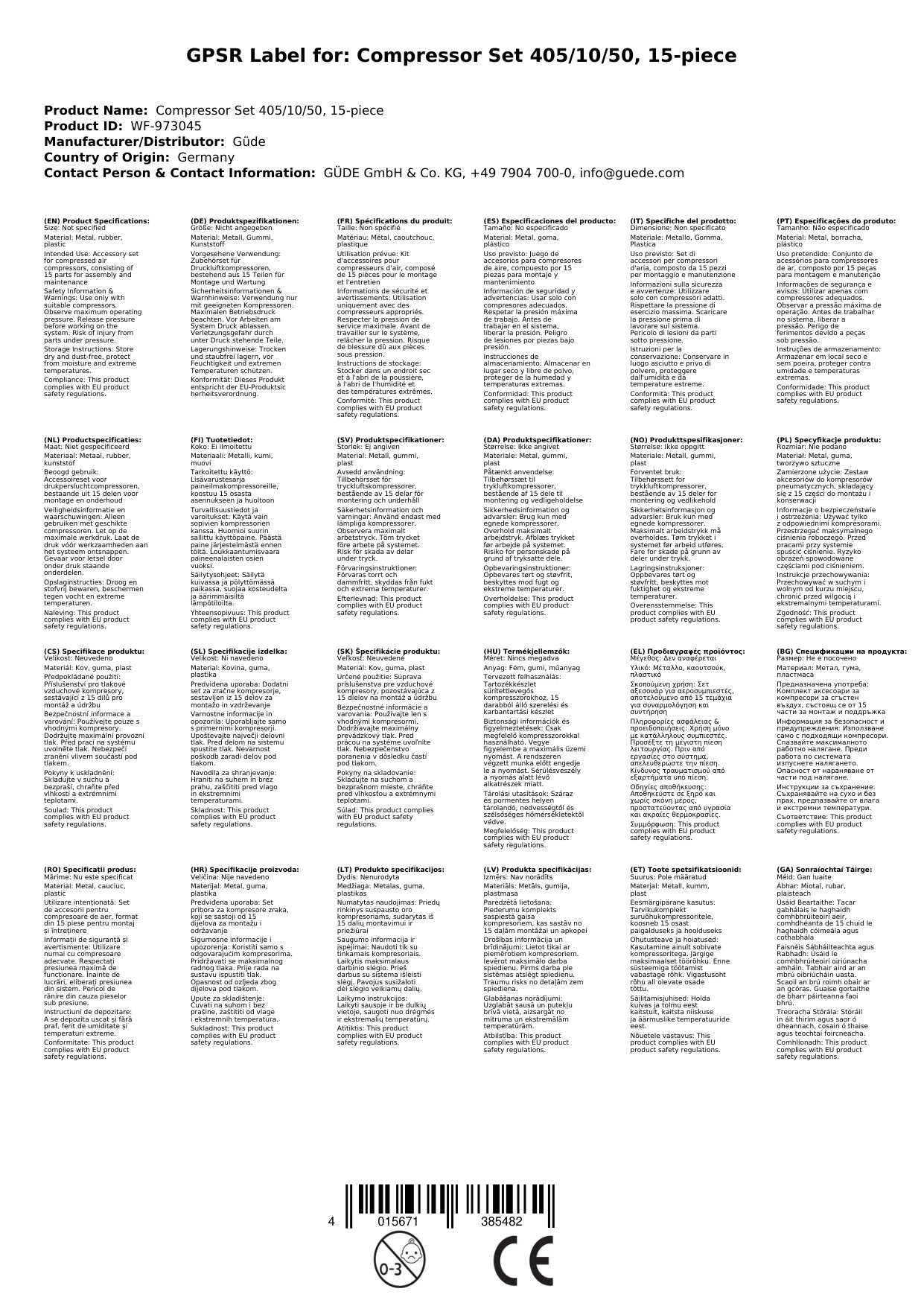

GPSR bijlage:
