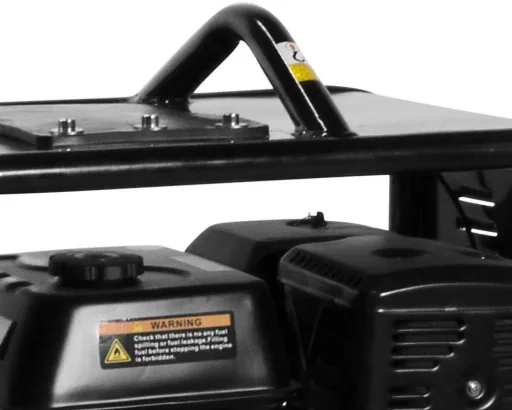

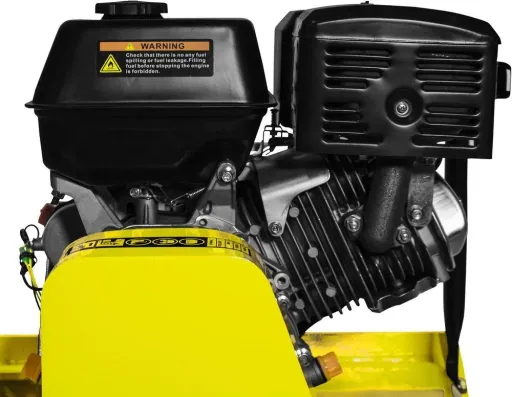

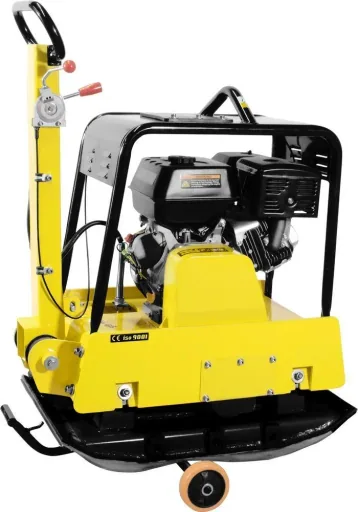

Trilplaat "GRP 260"
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-973041 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Outstanding propulsion and compaction performance
- Torsion-free and wear-free base plate
- The vibrating plate is reversible and has a forward and reverse function.
- Sturdy steel frame for easy transport and removal, and low-oil protection.
- Foldable handle with vibration dampening.
The "GRP 260" vibrating plate is ideal for repair work in gardening and landscaping. The machine, with its outstanding propulsion and compaction performance, has a torsion-free and wear-free base plate. The vibrating plate is reversible and has a forward and reverse function, as well as a low-oil protection. Thanks to the robust wheels and the sturdy steel frame, the machine is easy to transport. The handle is foldable and dampened against vibrations. Included in delivery are a polyurethane mat for sensitive surfaces and a chassis.
Technical Specifications
- Engine type: 4-stroke
- Engine power: 9.7 / 13 (kW / HP)
- Displacement: 389 cm³
- Idle speed: 1400 rpm
- Engine speed: 3600 rpm
- Tank capacity: 6.5 l
- Fuel: Unleaded gasoline
- Engine oil: 1.1 l
- Engine oil type: 10W-40
- Eccentric oil type: 15W-40
- Ramping system oil: 0.4 l
- Starting system: Reverse start
- Vibration shocks: 3750 /min
- Running speed: 22 m/min
- Max. compaction pressure: 38 kN
- Compaction depth: 90 cm
- Noise level LWA: 108 dB
Dimensions: approx. 1,370 x 645 x 1,120 mm
Working plate: approx. 820 x 480 mm
Weight: 268.5 kg
Scope of delivery
- 1 x "GRP 260" vibrating plate
- 1 x Polyurethane mat for sensitive surfaces
- 1 x Chassis
- 1 x Operating instructions
| Vibration shock | |
|---|---|
| Vibration shock | 3,750 m |
| Engine power | |
| Engine power | 13 hp |
| Noise level | |
| Noise level | 108 |
| Compression pressure | |
| Compression pressure | 38 |
| External dimensions | |
| External dimensions | 1,370 x 645 x 1,120 mm |
| Technical features | |
| Technical features | Recoil starter |
| Compression depth | |
| Compression depth | 90 cm |
| Displacement | |
| Displacement | 389 cc |
| Drive | |
| Drive | 4-stroke |
| Weight | |
| Weight | 268.5 kg |
| Running speed | |
| Running speed | 22 m/min |
