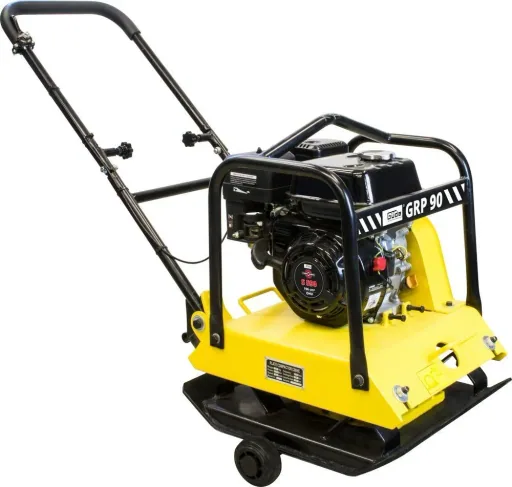

Vibrating plate "GRP 90"
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-973033 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Outstanding propulsion and compaction performance
- Low-oil protection and automatic advance
- Torsion-free and wear-free base plate
- Sturdy steel frame for easy transport
- Foldable handle with vibration dampening
The "GRP 90" vibratory plate is ideal for paving and repair work in gardening and landscaping. It boasts outstanding propulsion and compaction performance. Thanks to its robust wheels, the vibratory plate is easy to transport. The sturdy steel frame ensures easy transport. A polyurethane mat for sensitive surfaces is also included in delivery.
Technical data:
- Engine type: 4-stroke
- Engine power: 4.1 / 5.5 (kW / HP)
- Displacement: 196 cm³
- Idle speed: 1450 rpm
- Engine speed: Max. 3600 rpm
- Fuel: Unleaded petrol
- Engine oil: 0.6 l
- Engine oil type: 10W-40
- Eccentric oil type: 15W-40
- Eccentric oil: 0.2 liters
- Starting system: Reverse start
- Running speed: 22 m/min.
- Max. Compaction pressure: 16 kN
- Compaction depth: 35 cm
- Noise level LWA: 105 dB(A)
Dimensions: approx. 1135 x 450 x 920 mm
Working plate: 540 x 450 mm
Color: Yellow, Black
Weight: approx. 94.09 kg
Scope of delivery
- 1 x vibratory plate "GRP 90"
- 1 x polyurethane mat
- 1 x chassis
- 1 x operating instructions
| Weight | |
|---|---|
| Weight | 94.09 kg |
| Compression pressure | |
| Compression pressure | 16 |
| External dimensions | |
| External dimensions | 1135 x 450 x 920 mm |
| Running speed | |
| Running speed | 22 m/min |
| Displacement cc | |
| Displacement cc | 196 cc |
| Drive | |
| Drive | 4-stroke |
| Tank capacity | |
| Tank capacity | 3.6 l |
| Compaction depth | |
| Compaction depth | 35 cm |
| Technical features | |
| Technical features | Recoil starter |
| Vibration shocks | |
| Vibration shocks | 4,750 m |
| Engine power hp | |
| Engine power hp | 5.5 hp |
| Noise level | |
| Noise level | 105 |
