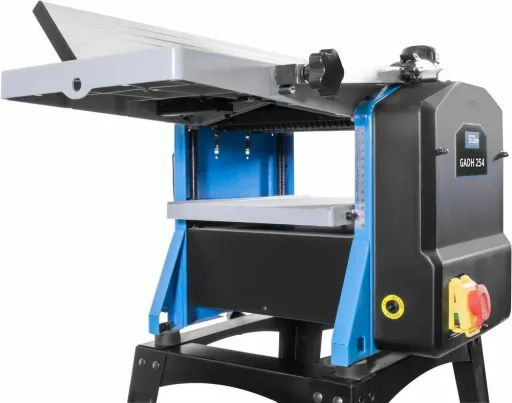

Jointer & Thicknesser "GADH 254"
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-973029 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews

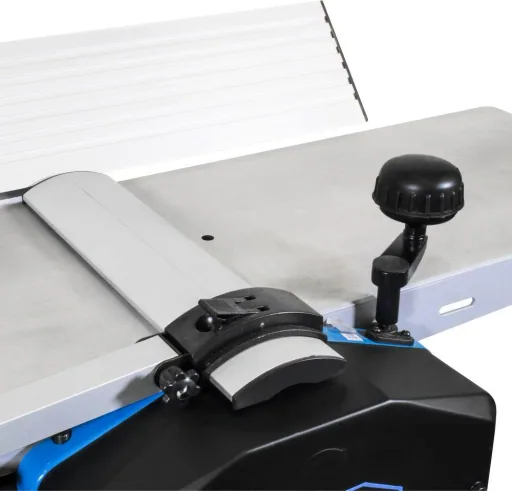

- Die-cast aluminum planing tables (precisely plane and finely milled)

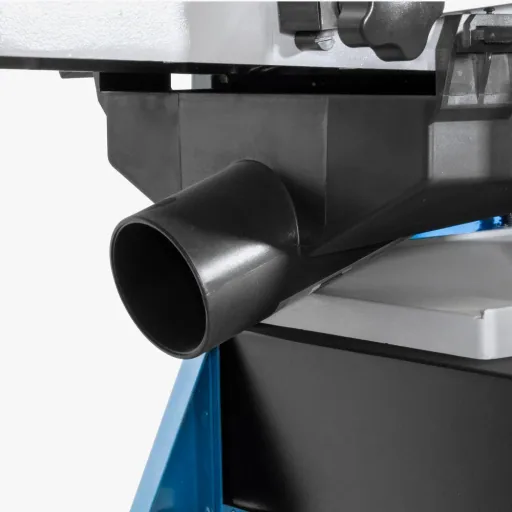

- Connection for chip extraction system and planer block guard
- Tool for changing blades and safety switch with zero-voltage release
- Cutter block with 2 HSS planer blades and push stick
- 4 angle steel feet and overload switch
This solid planer is ideal for professional hand tools and DIY use. It features robust construction with a powder-coated steel base. The die-cast aluminum planing and thicknessing table is fully equipped with angle steel feet.
The practical hand crank allows the thicknessing table to be adjusted as needed. The planer and thicknesser features a professional cutter block with 2 blades. Switching from thicknessing to planing is particularly easy.
Technical data
- Mains voltage: 230 volts
- Frequency: 50 Hertz
- Motor power (P1): 1500 watts
- Planer shaft speed: 8500 min-1
- Number of knives: 2
- Max. planing width: 254 mm
- Max. planing thickness: 6-120 mm
- Max. chip removal thickness: 0-2 mm
- Max. Stop inclination: 45°
- Noise level LWA: 93 dB
Dimensions: approx. 965 x 565 x 1114 mm
Planing table size: approx. 920 x 264 mm
Thicknesser table size: approx. 380 x 264 mm
Weight: 32.24 kg
Scope of delivery
- 1 x Planer & Thicknesser "GADH 254"
- 1 x Operating instructions
| Colors | |
|---|---|
| Colors | black |
| Power output | |
| Power output | 1,500 W |
| Colors | |
| Colors | silver-gray |
| Colors | blue |
| Idle speed | |
| Idle speed | 8,500 rpm |
| Weight | |
| Weight | 32.24 kg |
| Noise level | |
| Noise level | 92.9 |
| Drive | |
| Drive | 230 V motor |
| Planing width | |
| Planing width | 254 mm |
| Voltage | |
| Voltage | 230 V |
| Number of blades | |
| Number of blades | 2 |
| External dimensions | |
| External dimensions | 965 x 565 x 1,114 mm |
| Cutting material | |
| Cutting material | wood |
