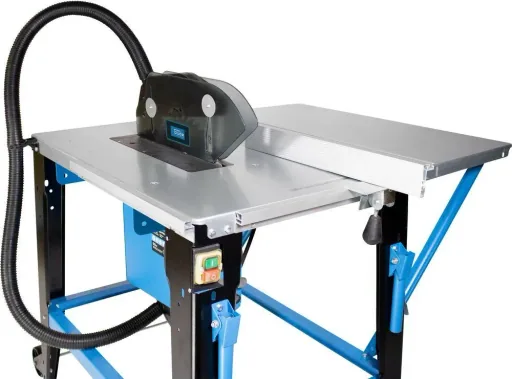

Table saw "GTKS315", 400 volts
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-973023 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- High-quality workmanship: Galvanized table

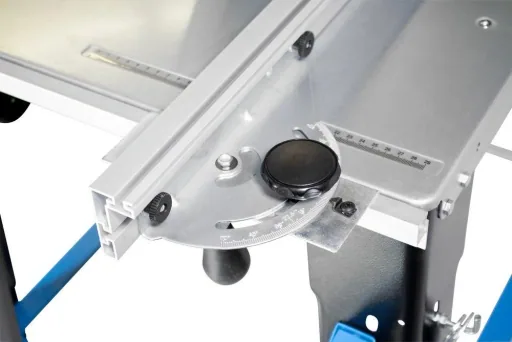

- Rip-cut and miter stop
- Saw blade height adjustment via crank
- With connection for dust extraction system

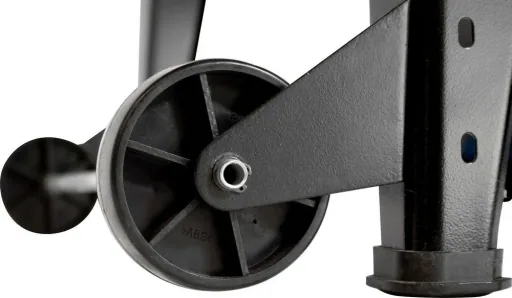

- Practical transport wheels and handle

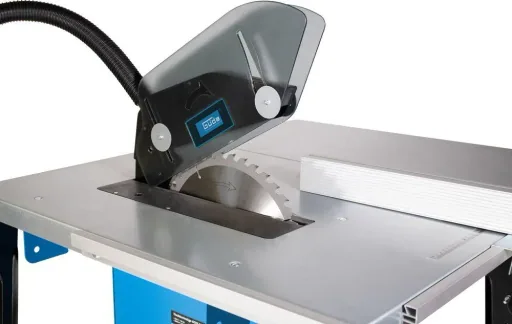

The powerful "GTKS315" table saw is characterized above all by its high-quality workmanship. It features a galvanized table with profiled all-round struts for optimal stability, as well as a connection for a dust extraction system for chip removal. The saw blade height can also be adjusted as needed using a smooth crank drive. The sturdy table extension can be removed if necessary.
Technical specifications:
- Mains voltage: 400 volts
- Frequency: 50 Hertz
- Operating mode: S6 40%
- Motor power (P1): 2.8 kW
- Motor power (P1): 2800 watts
- Motor speed: 2800 rpm
- Current consumption: 4.3 A
- Number of teeth: 40
- Saw blade type: carbide
Dimensions: approx. 1070 x 1050 x 620 mm
- Cutting height (at 45°): 30 mm
- Cutting height (at 90°): 83 mm
- Ø of the saw blade: 315 mm
- Saw blade bore: 30 mm
- Table width: 790 mm
- Table height: 810 mm
- Table depth: 580 mm
- Saw blade tiltable: 0-45°
Color: Black, Blue
Material: Plastic, Metal
Saw blade: Hard metal
Weight: 39.66 kg
Scope of delivery:
- 1 x table saw
- 1 x hard metal saw blade
- 1 x instruction manual
| External dimensions | |
|---|---|
| External dimensions | 1,050 x 620 x 1,070 mm |
| maximum cutting height 90 mm | |
| maximum cutting height 90 mm | 83 mm |
| disc/blade diameter | |
| disc/blade diameter | 315 mm |
| table size | |
| table size | 810 x 790 x 580 mm |
| idle speed | |
| idle speed | 2,800 rpm |
| colors | |
| colors | black |
| colors | blue |
| colors | silver |
| drive | |
| drive | 400 V motor |
| maximum cutting height 45 mm | |
| maximum cutting height 45 mm | 30 mm |
| saw blade material | |
| saw blade material | hard metal (HM) |
| angle adjustment | |
| angle adjustment | 45 degrees |
| weight | |
| weight | 39.67 g |
| voltage | |
| voltage | 400 V |
| noise level | |
| noise level | 93.3 g |
| cutting height | |
| cutting height | 30-83 mm |
