MIG 192/6K shielded gas welding machine

• For welding wire rolls up to 5 kg
• Housing made of powder-coated sheet steel
• 2-way pressure reducer
• Gas hose with connection clamps
• Handlebar

Powerful, compact gas shielded welding machine with high welding performance. With 6 switching levels and a continuously adjustable wire feed, the machine can be individually adjusted to different applications. Ideal for home use for occasional, small to medium-sized welding jobs with sheet metal, for example, in the car body area, but also with stronger materials.

With extensive accessories, such as the removable 3 m Euro hose package, ground cable, pressure regulator, gas hose, connection adapter, and certified welding shield, the machine is ready for immediate use. Only gas and a suitable welding wire need to be provided. The built-in cooling fan ensures sufficient duty cycle and overload protection provides the necessary safety.

Technical Data

• Mains voltage: 230 / 400 V
• Frequency: 50 Hz
• Protection class (IP): 21S
• Insulation class: H
• No-load power: 26 W
• Max. mains power 230 V: 4.5 kVA
• Max. mains power 400 V: 13.3 kVA
• Fuse, slow-blow: 16 A
• No-load voltage: 40 V
• Max. welding current 230 V: 120 A
• Max. Welding current 400 V: 160 A
• Welding current control range: 25-160 A
• Number of switching levels: 6
• Duty cycle at max. current 230 V: 115~15 A ~ %
• Duty cycle at max. current 400 V: 160~10 A ~ %
• Recommended material thickness: 1-9 mm
• Length of hose package: 3 m

Dimensions: 710 x 360 x 495 mm

Weight

• Net: 37.5 kg
• Gross: 41.45 kg

Scope of delivery

• 1 x MIG 192/6K inert gas welding machine
• 1 x 3 m Euro hose package
• 1 x ground cable

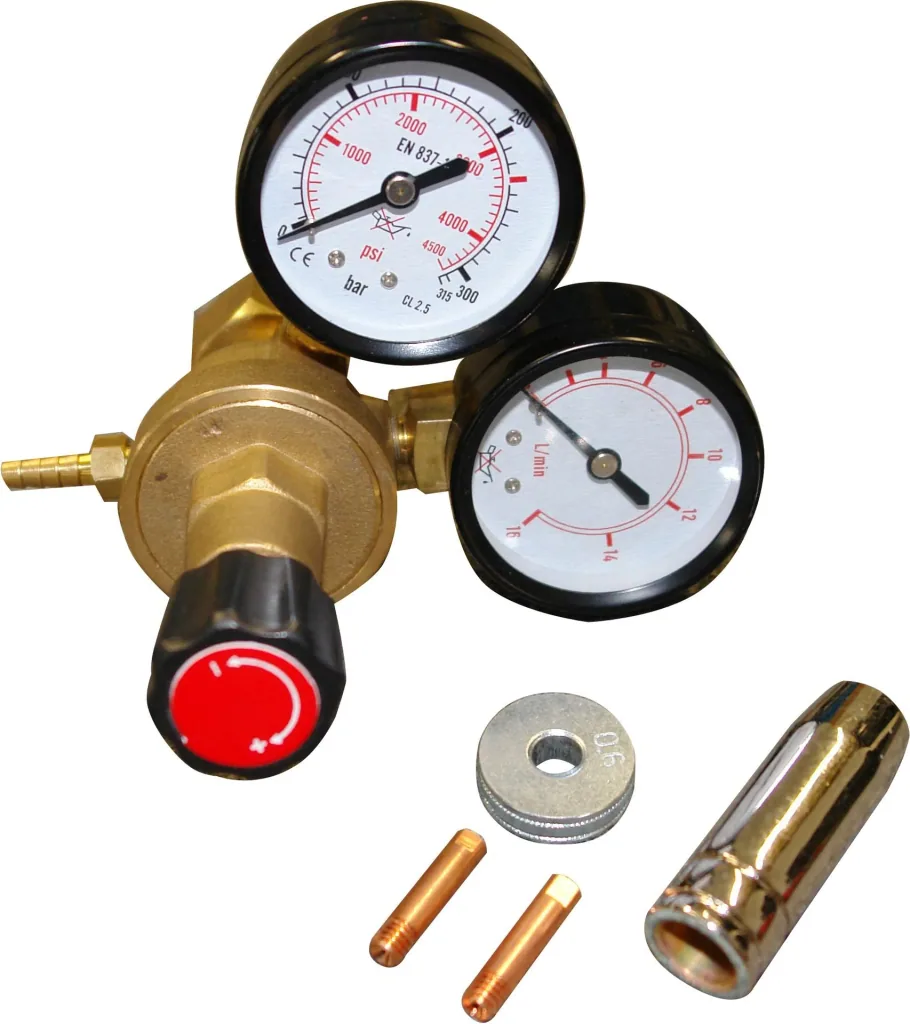

• 1 x pressure regulator
• 1 x gas hose
• 1 x connection adapter
• 1 x welding shield
• 1 x adapter plug 400V/230V
