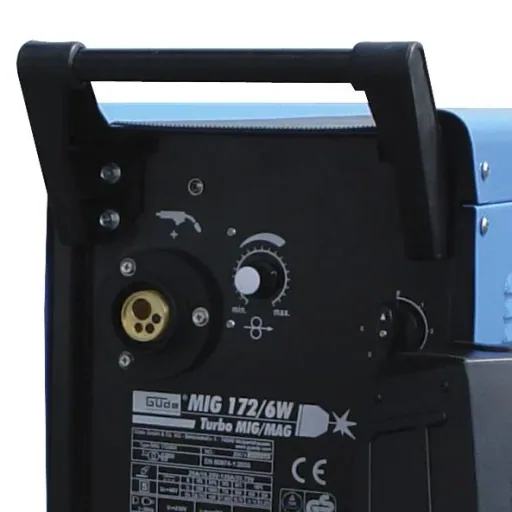

MIG 172/6W shielded gas welding machine
| Artikelnummer | WF-972966 |
| Merk | Güde |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- For welding wire rolls up to 5 kg
- Housing made of powder-coated sheet steel
- 1-way pressure reducer
- Gas connection hose with hose clamps
- Handlebar
Innovative, compact gas shielded welding machine with a high welding performance of . With 6 switching levels and a continuously adjustable wire feed, the machine can be individually adjusted to different areas of application. Ideal for home use for occasional, smaller welding jobs with sheet metal, for example, in the car body area.
With extensive accessories, such as the removable 3 m Euro hose package, ground cable, pressure regulator, gas hose, and certified welding shield, the machine is ready for immediate use. Only gas and a suitable welding wire need to be provided. The built-in cooling fan ensures sufficient duty cycle and overload protection provides the necessary safety.
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Protection class (IP): 21S
- Insulation class: H
- No-load power: 25 W
- Efficiency: 54%
- Max. mains power 230 V: 6.2 kVA
- Fuse, slow-blow: 16 A
- No-load voltage: 40 V
- Max. Welding current 230V: 135 A
- Welding current control range: 25-135 A
- Number of switching levels: 6
- Duty cycle at max. current 230V: 135~10 / 77~30 A ~ %
- Recommended material thickness: 1-8 mm
- Length of hose package: 3 m
Dimensions: 640 x 360 x 450 mm
Weight
- Net: 34.1 kg
- Gross: 37.5 kg
Scope of delivery
- 1 x MIG 172/6W inert gas welding machine

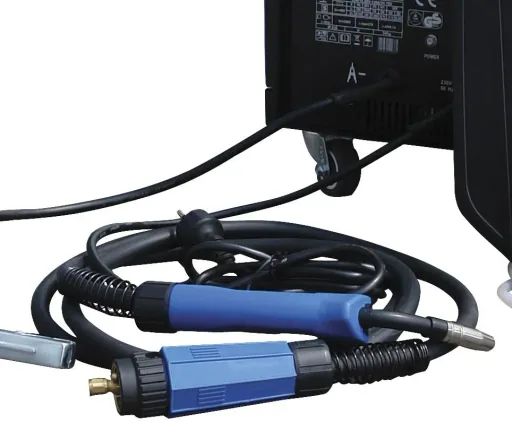

- 1 x 3 m Euro hose package
- 1 x ground cable
- 1 x pressure regulator
- 1 x gas hose
- 1 x welding shield
| Open circuit voltage | |
|---|---|
| Open circuit voltage | 40 V |
| Welding current | |
| Welding current | 135 A |
| Colors | |
| Colors | black |
| Colors | white |
| Colors | blue |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 3 m |
| Material thickness | |
| Material thickness | 8 mm |
| IP protection class | |
| IP protection class | IP21 S |
| Weight | |
| Weight | 34.1 kg |
| Variants | |
| Variants | MIG welding machine |
| Drive | |
| Drive | 230 V motor |
| Insulation class | |
| Insulation class | H |
| External dimensions | |
| External dimensions | 640 x 360 x 450 |
| Fuse | |
| Fuse | 16 A |
| Welding process | |
| Welding process | MIG |
| Welding process | MAG |
| Switching levels | |
| Switching levels | 6 |
