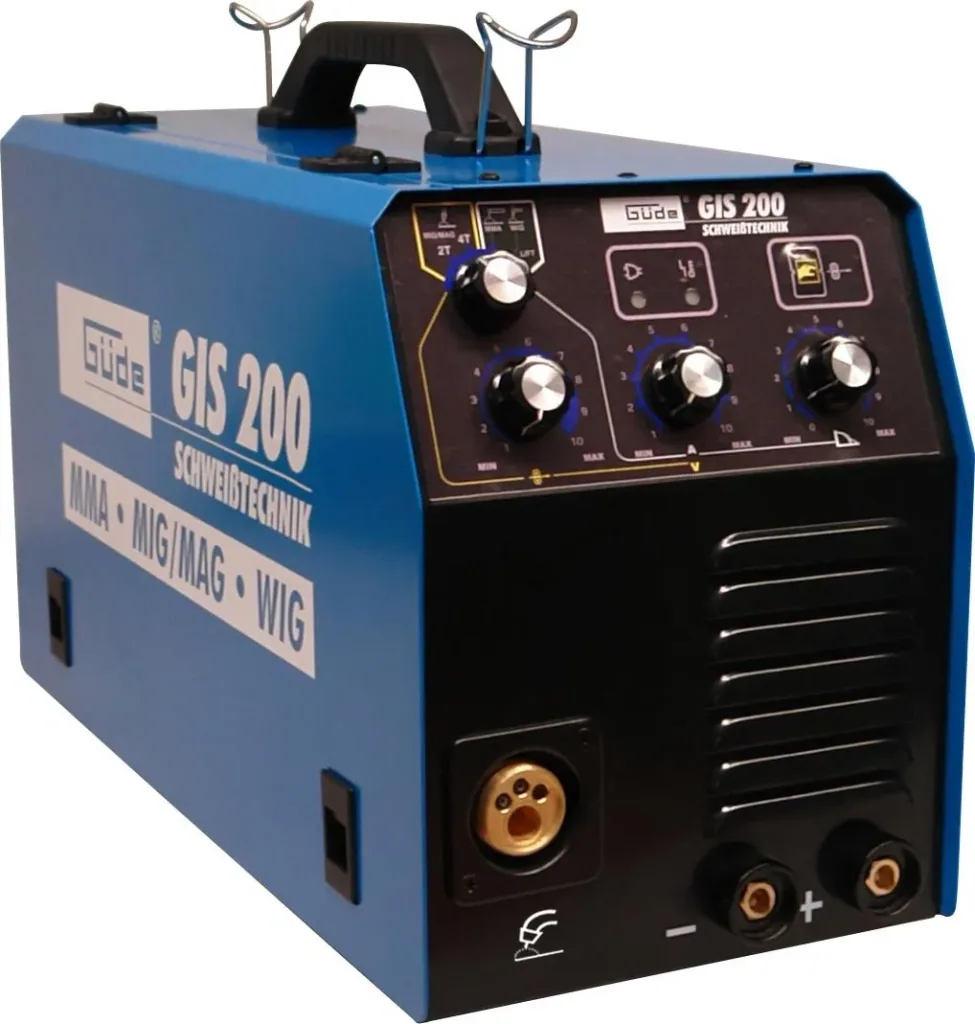

Inverter welding machine GIS 200

• Suitable for small spools and D200 (5 kg) plastic spools
• Housing made of powder-coated sheet steel
• Thermal overload protection
• 3 contact nozzles 0.6/0.8/1.0 mm
• 2-stroke pressure reducer
• 1 gas nozzle

The GIS 200 is THE universal inverter welding machine in the Güde fleet. All four welding processes are possible with this machine: MIG-MAG, MMA, Flux, and TIG welding. Ideal for occasional, short-term use for small to medium-sized welding jobs in the DIY and semi-professional sectors. Proven additional features such as ARC-Force, Anti-Stick, and Hot-Start ensure optimal welding comfort.

2-stroke and 4-stroke welding round out the professional features. Electrode holder and earth clamp as well as the brush hammer are of course included as standard. The same applies to the MIG-MAG torch and the pressure regulator for the shielding gas. The welding cart, which is also included in the scope of delivery, ensures order and optimal mobility.

Technical data

• Mains voltage: 230 V
• Protection class (IP): 21S
• Frequency: 50 Hz
• Insulation class: H
• No-load power: 9W (230V) / 17W (400V)
• Max. mains power 230 V: 5 kVA
• Fuse, slow-blow: 16 A
• No-load voltage: 10.4-26 V
• Max. Welding current 230 V: 200 A
• Welding current control range: 10-200 A
• Recommended material thickness: 0.8-15 mm
• Wire thickness (stainless steel): 0.8 mm

Dimensions: 820 x 400 x 1,035 mm

Weight

• Net: 33.5 kg
• Gross: 38.7 kg

Scope of delivery

• 1 x Inverter welding machine GIS 200
• 1 x 3 m hose package

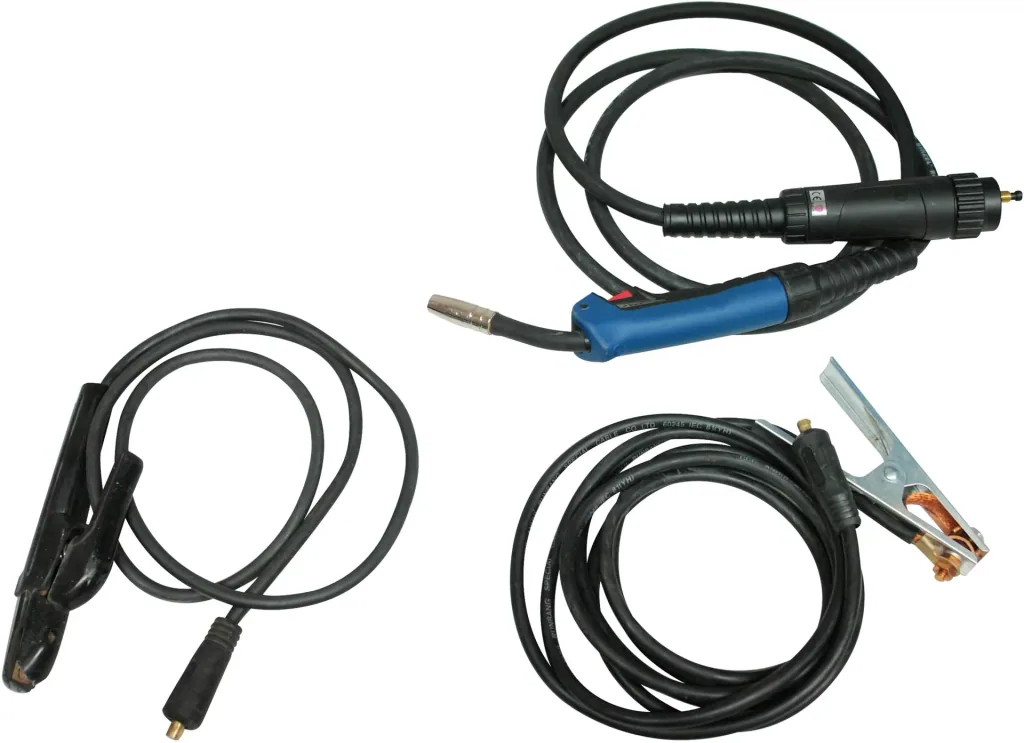

• 1 x Electrode holder
• 1 x Earth clamp
• 1 x Brush hammer
• 1 x MIG-MAG torch

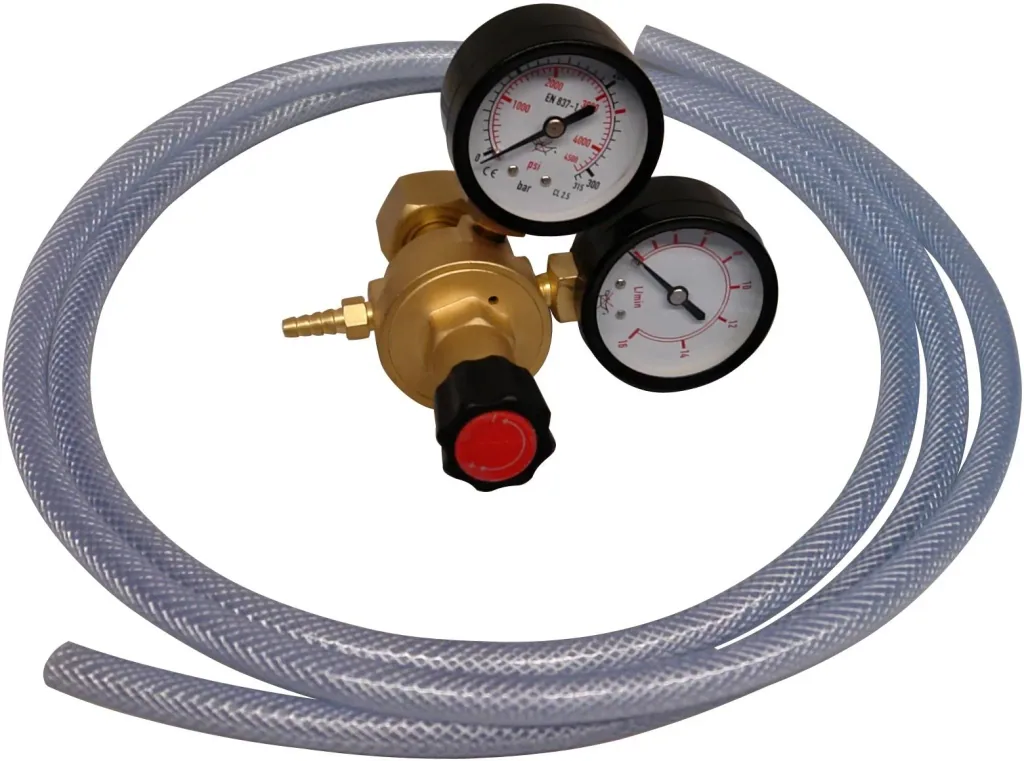

• 1 x Pressure regulator for the shielding gas
• 1 x Welding cart
