Metal band saw MBS 180
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-972959 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Sturdy cast iron construction

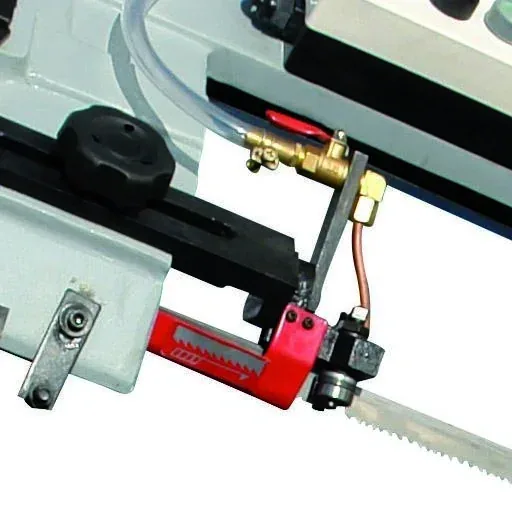

- Ball-bearing 3-point saw blade guide
- Coolant system
- Chip brush

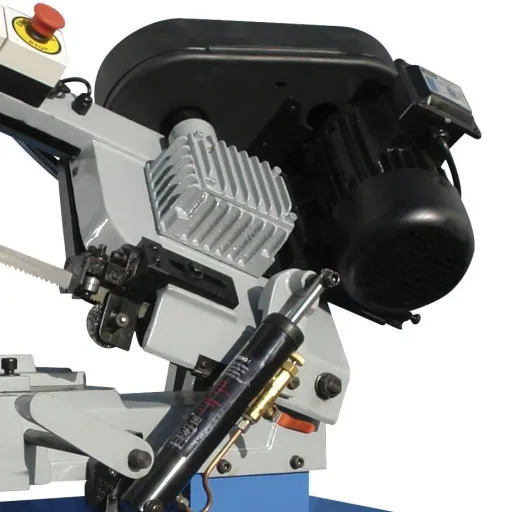

- Precisely adjustable lowering via hydraulic cylinder

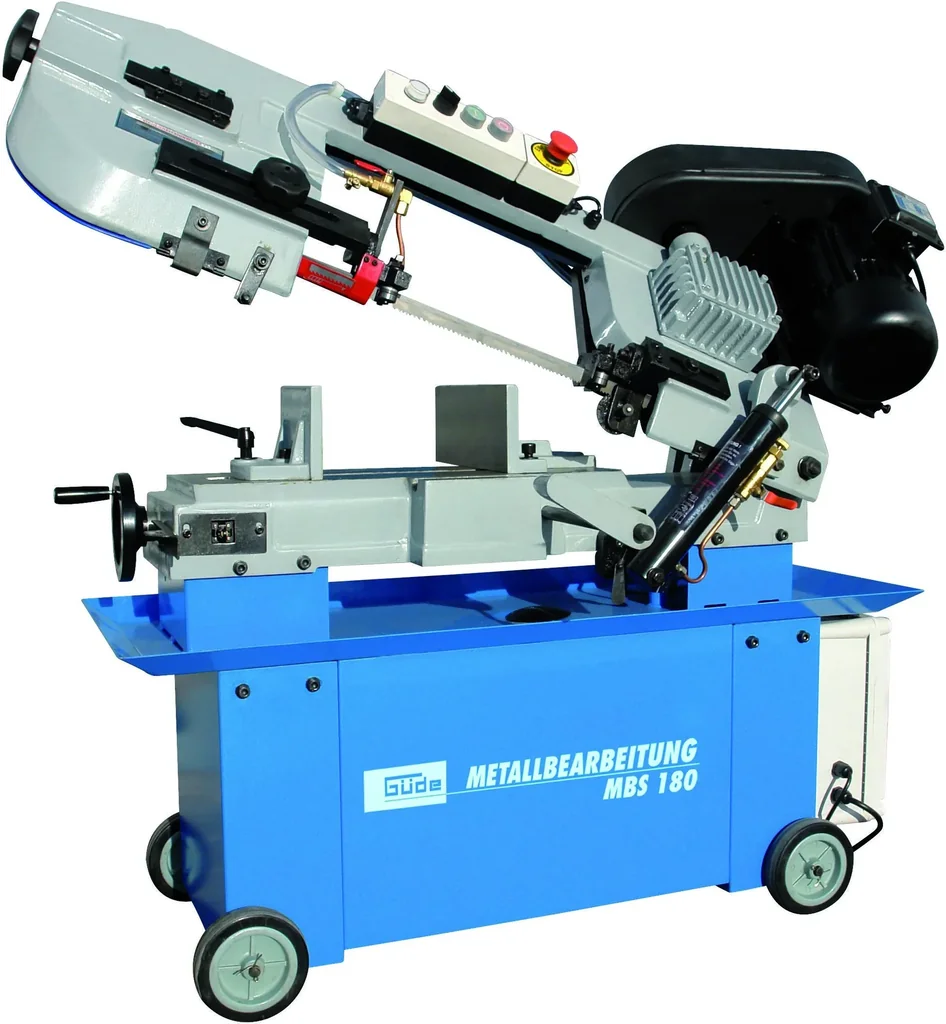

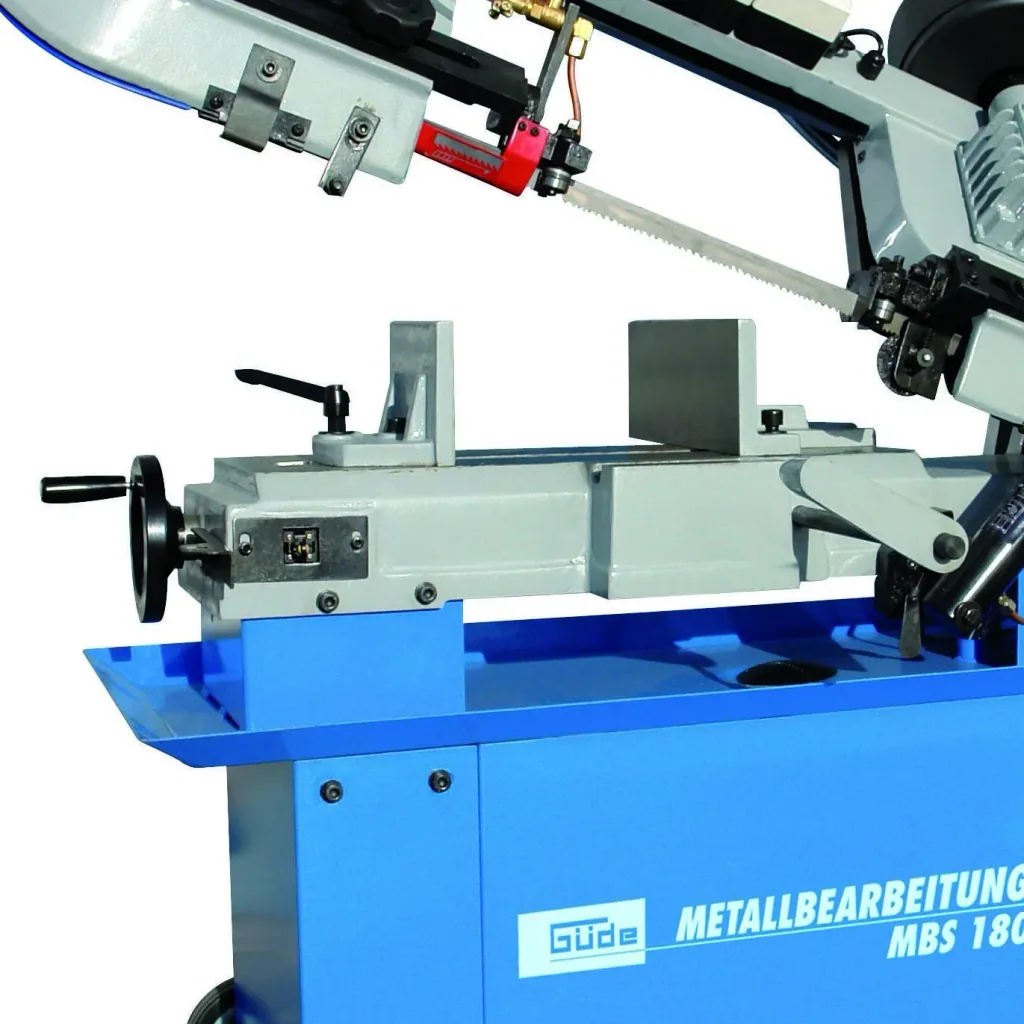

The MBS 180 metal band saw is a solid cast iron machine with a ball-bearing 3-point saw blade guide. The lowering of the saw arm with its high-quality bi-metal saw blade can be precisely adjusted via a hydraulic cylinder. The quick-action vice facilitates precise work, and the automatic limit switch ensures your safety.
Technical Specifications
- Mains voltage: 400 V
- Frequency: 50 Hz
- Protection class (IP): 44
- Motor power (P1): 750 W
- Cutting capacity, round at 90°: 178 mm
- Cutting capacity, round at 45°: 110 mm
- Cutting capacity, rectangular at 90°: 178 x 300 mm
- Cutting capacity, rectangular at 45°: 170 x 110 mm
- Belt speed: 22 / 34 / 45 / 64 m/min
- Noise level LWA: 80 dB
Dimensions
- 1,250 x 510 x 1,130 mm
- Width of the saw blade: 19.5 mm
- Length of the saw blade: 2,362 mm
- Thickness of the saw blade: 0.8 mm
Weight
- Net: 137 kg
- Gross: 176.6 kg
Scope of delivery: Metal band saw MBS 180
| Saw blade material | |
|---|---|
| Saw blade material | bi-metal |
| saw blade width | |
| saw blade width | 19.5 mm |
| power output | |
| power output | 750 W |
| colors | |
| colors | black |
| colors | blue |
| colors | silver |
| noise level | |
| noise level | 80 |
| weight | |
| weight | 176.6 kg |
| external dimensions | |
| external dimensions | 1250 x 510 x 1130 |
| cutting material | |
| cutting material | metal |
| voltage | |
| voltage | 400 V |
| IP protection class | |
| IP protection class | IP44 |
| saw blade length | |
| saw blade length | 2362 mm |
| blade thickness | |
| blade thickness | 0.8 mm |
