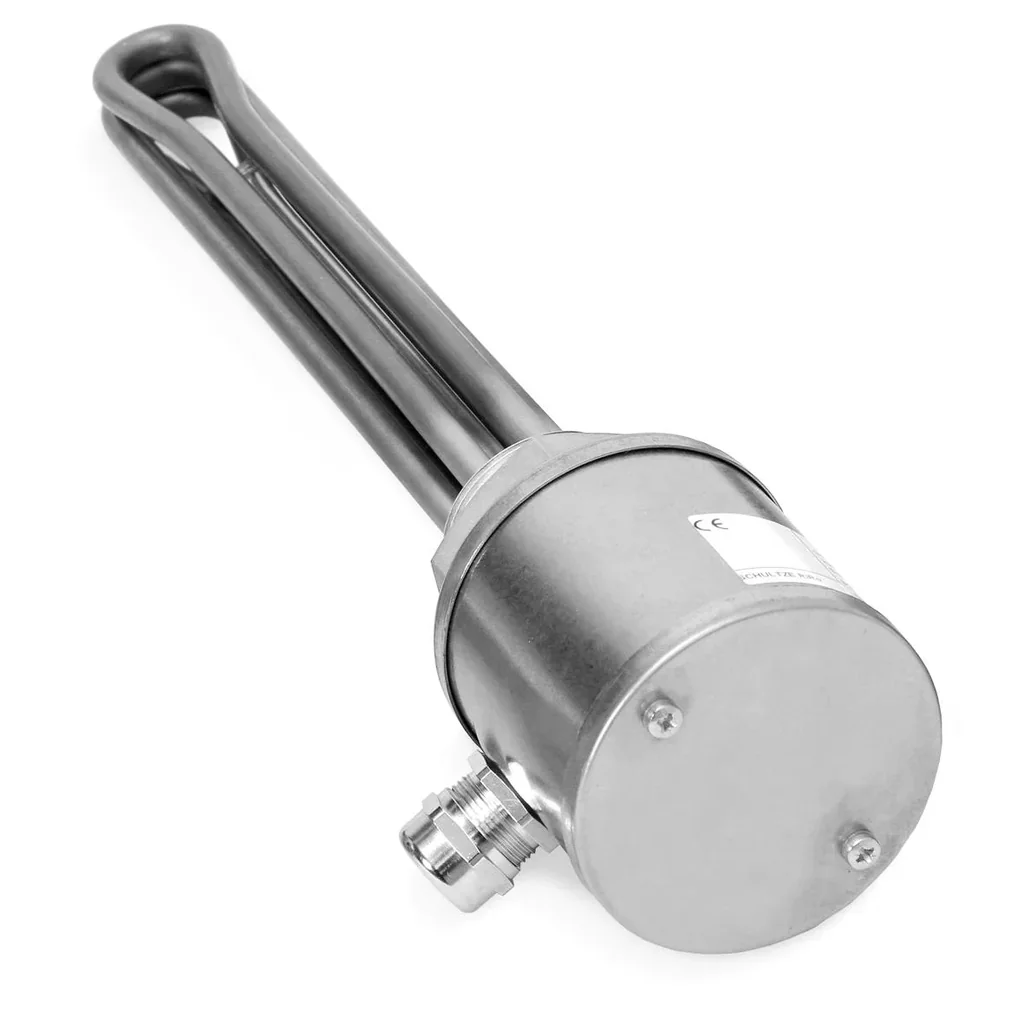

Screw-in heater G1 1/2, V2A / V4A, without controller, 6.0kW ET 470mm
| Artikelnummer | WF-972871 |
| Merk | Schultze |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
Screw-in heaters are versatile for heating liquid media. EHK G1 1/2 with V2A nipples are primarily for aggressive water and aqueous solutions.
3 tubular heaters ø 8.5mm made of stainless steel 1.4404, hard-soldered into V2A nipples G1 1/2. 6000 W, 400 V 3(N)~, immersion depth 470 mm, surface load 10 W/cm², unheated zone 60 mm. Universal version without controller, sensor conduit ø 10x0.5 mm, stainless steel connection housing IP66.
Use, for example, in washing machines, dishwashers, temperature control devices, and laboratory equipment. These devices are designed exclusively for industrial and commercial purposes.
Supplied with PG16 cable gland, without cable. When selecting, the permissible specific surface load for the respective medium must be considered and verified on site. Not permitted for enameled tanks with a protective anode.
Scope of delivery: 1 x screw-in heater G1 1/2, V2A / V4A, without controller, 6.0 kW, 470 mm offset
| Variants | |
|---|---|
| Variants | Screw-in heater |
| Protection class | |
| Protection class | IP 66 |
| Unheated zone | |
| Unheated zone | 60 mm |
| Material | |
| Material | Stainless steel 1.4404 |
| Operating voltage | |
| Operating voltage | 230/400 3(N) V |
| Output power | |
| Output power | 6,000 W |
| External dimensions | |
| External dimensions | Ø 8.5 mm |
| Surface load | |
| Surface load | 10 W/cm² |
| Immersion depth | |
| Immersion depth | 470 mm |
| Weight | |
| Weight | 1.53 kg |
