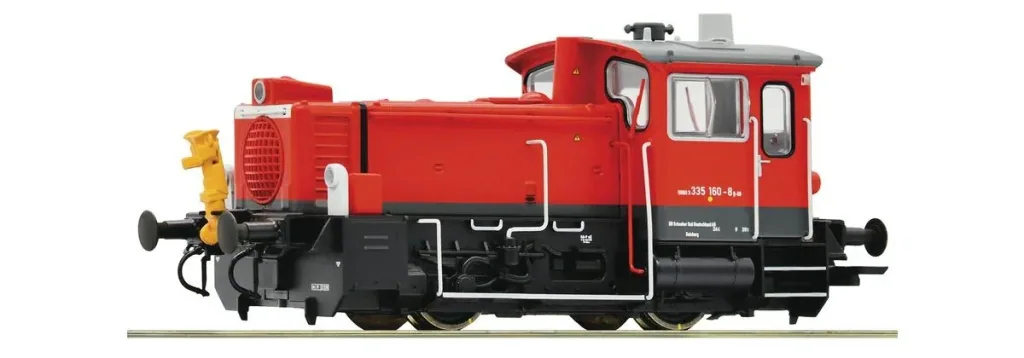

Diesel locomotive class 335 of Deutsche Bahn

• With digital shunting coupling for more fun
• Engine front end and gear block made of die-cast zinc, resulting in greater deadweight and high tractive power
• Prototypical light and sound functions can be switched using an onboard decoder
• Unobstructed view through the replica driver's cab
• With buffer capacitor for uninterruptible power supply


For shunting passenger and freight cars in stations, the German Federal Railway (DB) relied early on on smaller shunting locomotives. A further development of the Köf 11, with power transmission via cardan shafts and additional axle gear, was presented by Gmeinder in 1965.

251 shunting locomotives of this version, initially designated the Köf 12, were delivered to the DB as the Class 333. In order to save on personnel, a large proportion of the locomotives were equipped with radio remote control from the end of the 1980s onwards. These locomotives were designated the 335 series. The model can only be operated with analogue driving devices to a limited extent.


Technical Data

• Electrics:
  • Power system: 2L direct current
• Interfaces: Electrical interface for traction vehicles PluX22
• Lighting:
  • Headlights: 3 headlights, direction-dependent / 1 tail light, direction-dependent, LED
  • Interior lighting: LED; digitally controllable; Driver's cab lighting
• Coupling: Digitally controllable
• Decoder:
  • Digital decoder: On-board
  • Decoder type: On-board

Dimensions: 90 mm

Number of axles with traction tires: 1

Number of driven axles: 1

Railway administration: Deutsche Bahn AG (from 1994)

Epoch: VI

Gauge: H0

Scope of delivery

• 1 x Diesel locomotive series 335 of the Deutsche Bahn
• 1 x Operating instructions
