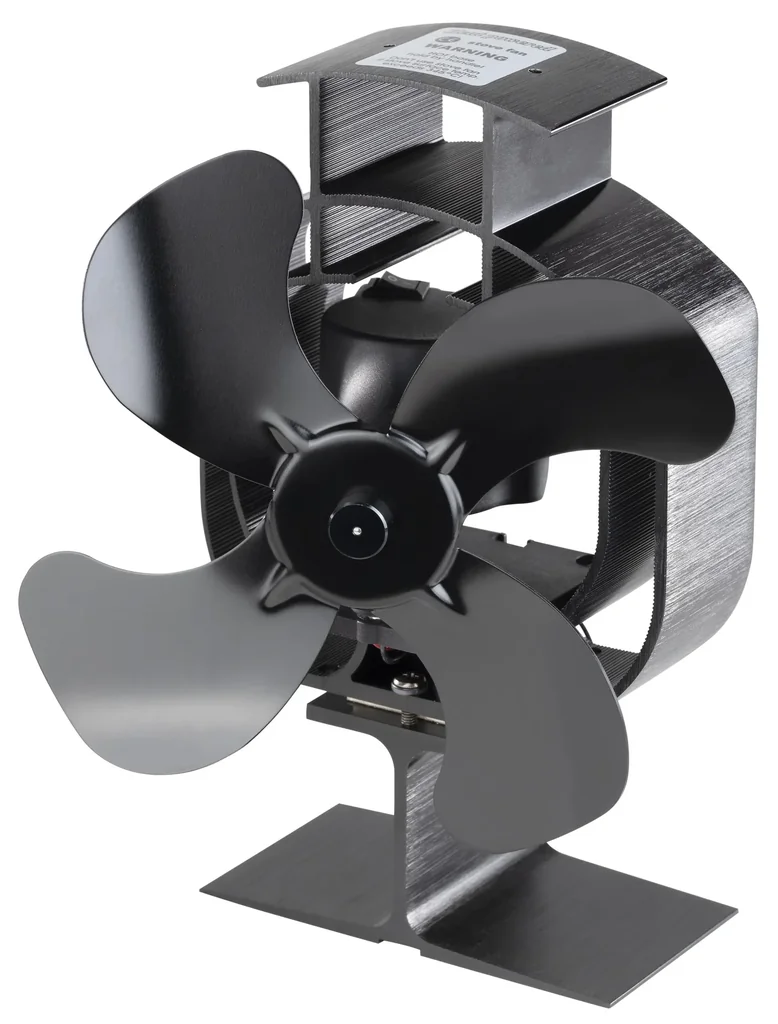

fireplace fan, pivoting

• The stove fan helps save heating costs by optimally distributing the stove heat throughout the room.
• The stove fan operates without electricity. There's no need to buy batteries or connect it to the mains.
• The stove fan runs quietly and creates a pleasant ambience and enjoyable peace.
• Thanks to its robust construction, the stove fan can withstand stove surface temperatures of up to 345°C.
• With its dimensions of 219 x 180 x 105 mm (HxWxD), the stove fan can be installed in a space-saving manner.

In the bitterly cold winter months, a stove not only provides sufficient warmth but also creates a pleasant ambience. The warm air from the stove is distributed very unevenly depending on the room. Directly in front of the stove, temperatures can be very high, while it can already be too cool on the couch. The stove fan optimally distributes heat and thus saves heating costs.

The cordless stove fan utilizes the Seebeck effect. As the heat from the stove increases, an electrical voltage is generated between two points on an electrical conductor that have different temperatures. This voltage is used to activate the stove fan. As electricity begins to be generated, the rotor blades are set in motion, effectively distributing the stove's heat throughout the room.

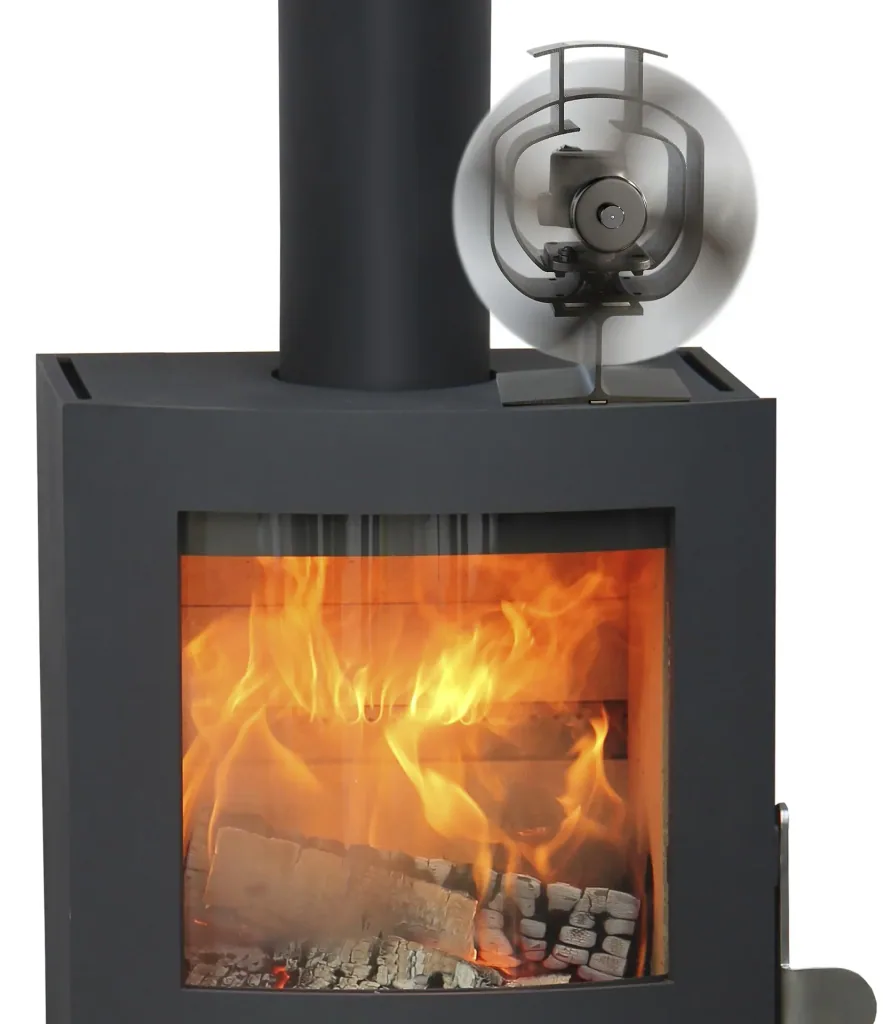

Thanks to its compact size, the stove fan can be optimally positioned without being an eye-catcher. Its size is sufficient to effectively heat a room of 15 to 20 square meters. The device's four rotor blades contribute to the positive heating effect. A solid base for the stove fan is important to ensure all safety aspects.

The robust aluminum construction of the stove fan allows the fan to be used with a stove surface temperature of up to 345°C. For safety reasons, the temperature should be checked regularly with a suitable measuring device.

Technical Data

• Maximum air flow: 180 CFM
• Speed: up to 1000 rpm
• Switch-on temperature: 50 / blade rotation, 90 / fan oscillation
• Operating temperature: 50 - 345 °C

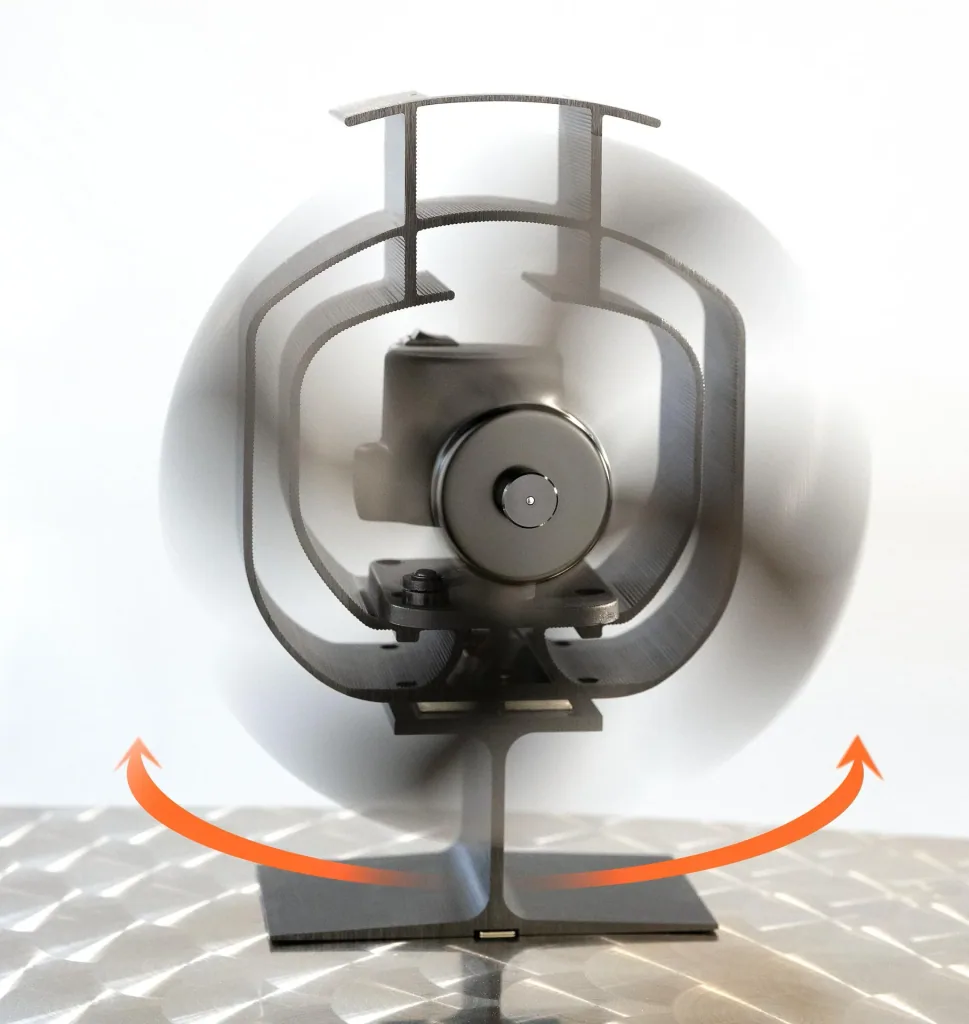

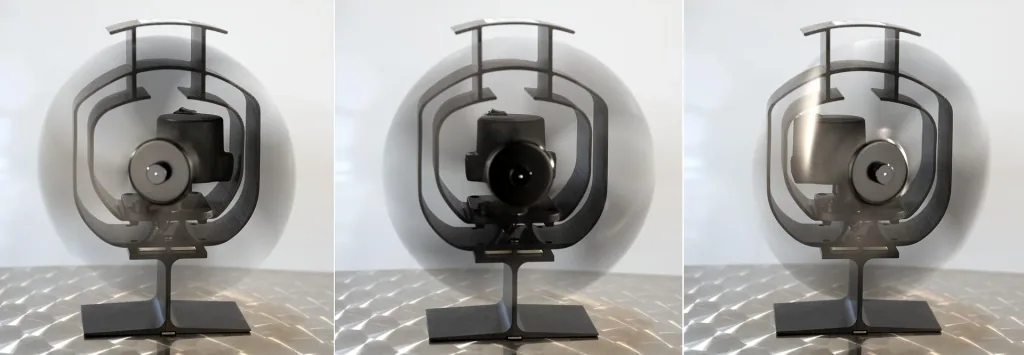

• Oscillating
• Oscillation angle: 46 °
• Fan diameter: 180 mm
• Air flow: 300 m3/h

Material: Aluminum, Surface: Anodized

Dimensions: (W x D x H) 180 x 105 x 219 mm

Weight: 715 g

Scope of delivery: 1 x fireplace fan, Swiveling

Notes:

• Operation should be supervised to prevent children from coming into contact with the fireplace fan. Risk of injury!
• The fireplace fan must not come into contact with open flames.
• Due to the high temperatures, wear protective gloves when transporting the fireplace fan.
