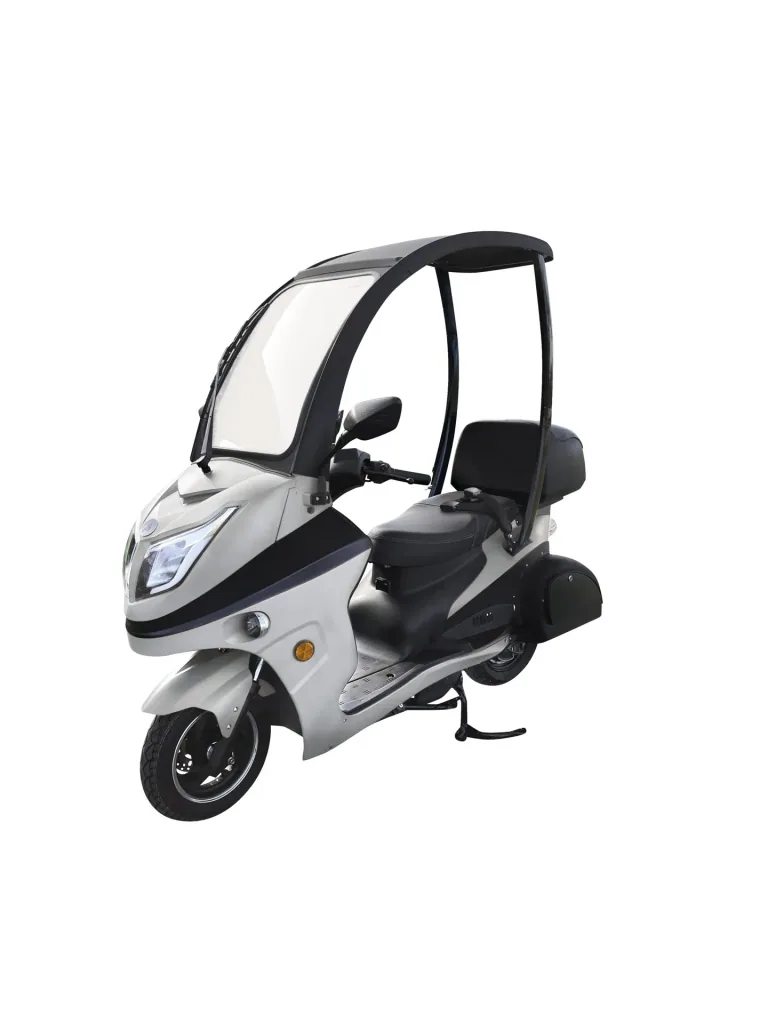

E-compact scooter "Lucca Duo" - 40 km/h, silver

• Already over 5,000 satisfied e-scooter customers
• Trendy e-scooter with 1500 watt rear hub motor – wind and weatherproof
• Maintenance-free riding comfort – up to 40 km/h and up to 50 km range* (our Eco standard)
• Including lockable rear luggage compartment, large storage compartment under the seat and two side storage compartments
• With EU type approval (COC) and approved according to StVZO
• Robust frame – full suspension – double brakes – pneumatic tires
• Powerful 60 volt lead-gel battery
• Fully covered – in various colors
• Permissible total weight up to 309 kg
• Including 2 years of free pick-up service

With the With the all-new, covered "Lucca Duo" electric scooter, you're perfectly protected from wind and weather – a side wind and weather protection is also available as an option.

The brushless 1,500-watt hub motor makes the e-scooter reach speeds of up to 40 km/h. The hydraulic braking system with disc brakes at the front and rear ensures excellent braking power and short stopping distances.

The "Lucca Duo" e-scooter is the perfect vehicle for up to two people and can be easily charged using any standard household outlet. The driver and passenger can comfortably sit on the comfortable seat.

The lead-gel battery installed under the seat provides a low center of gravity.

Together with the width of approximately 90 cm, this gives the e-scooter very good and safe handling, as well as good roadholding.

Technical data

• Motor/drive: Rear wheel hub motor (brushless and maintenance-free)
• Motor control: Integrated into the chassis
• Motor power: 1500 watts
• Battery: Lead-gel battery (maintenance-free)
• Voltage: 60 volts / 32 Ah
• Battery capacity: 1920 Wh
• Installation type: Battery permanently installed under the seat - replaceable
• Battery charging time: approx. 6 to 8 hours
• Max. Range* (our Eco standard) up to: 50 km
• Top speed: up to 40 km/h (depending on weather, ground conditions, environment and weight)
• Max. Gradient: approx. 20%
• Frame/Covering: Sturdy steel frame, weatherproof roof, full plastic cover
• Gearshift: Automatic – continuously adjustable via throttle twist grip
• Brakes: Hydraulic disc brakes front and rear
• Tires: 10-inch pneumatic tires with 3.00-10 valve, Ø 41 cm
• Steering: Handlebar grip like on a moped/motorcycle
• Control unit: Key switch and continuously variable twist grip operation, multifunction LCD display with speedometer, charge level indicator, and driving light indicator light
• Front lighting: LED headlight with daytime running light and indicators
• Rear lighting: LED taillight with brake light function and indicators
• Seat/Bench: Comfort seat made of high-quality textile leather and Safety belt
• Suspension: Comfort double suspension
• Splash guards: front and rear
• Stand: Double leg stand and side stand with safety shutdown
• Footboard: Weather-resistant, non-slip and extra-large
• Mirrors: Rear-view mirrors left and right

Dimensions (L x W x H): approx. 190 x 100 x 169 cm (including mirror)

Weight

• Battery: approx.: 54 kg
• Total weight including battery: approx. 155 kg

Scope of delivery

• Vehicle
• Battery
• Charger
• Attachments such as mirrors and luggage compartment
• Operating instructions
• EU Type Approval (COC)

Legal information and Notes:

Driver's License:

Minimum age 16 years (§ 10 FeV): A Class AM driver's license is required; this is part of driver's license classes A, B, and T.

Insurance/License Plate:

Insurance and license plate (moped license plate) are required. An EU type approval (COC) is included with the vehicle. With this certificate, a moped license plate can be obtained from an insurance company or bank.

Helmet Required:

Helmets are required.

Registration:

Approved according to the German Road Traffic Licensing Regulations (StVZO), with an EU type approval (COC). Use on roads with no minimum speed limit and on cycle paths approved for mopeds. No registration required,

no TÜV required.

Tax:

Tax-free

Warranty/Guarantee:

Assembly Instructions:

The e-scooter is delivered 99% pre-assembled on a pallet by a freight forwarder. All that's left to do is charge the battery, install add-on parts such as the mirror and luggage compartment, and

perform a functional and safety check.

Pick-up Service:

Free pick-up service within the warranty period for damage and repairs via the service hotline.
