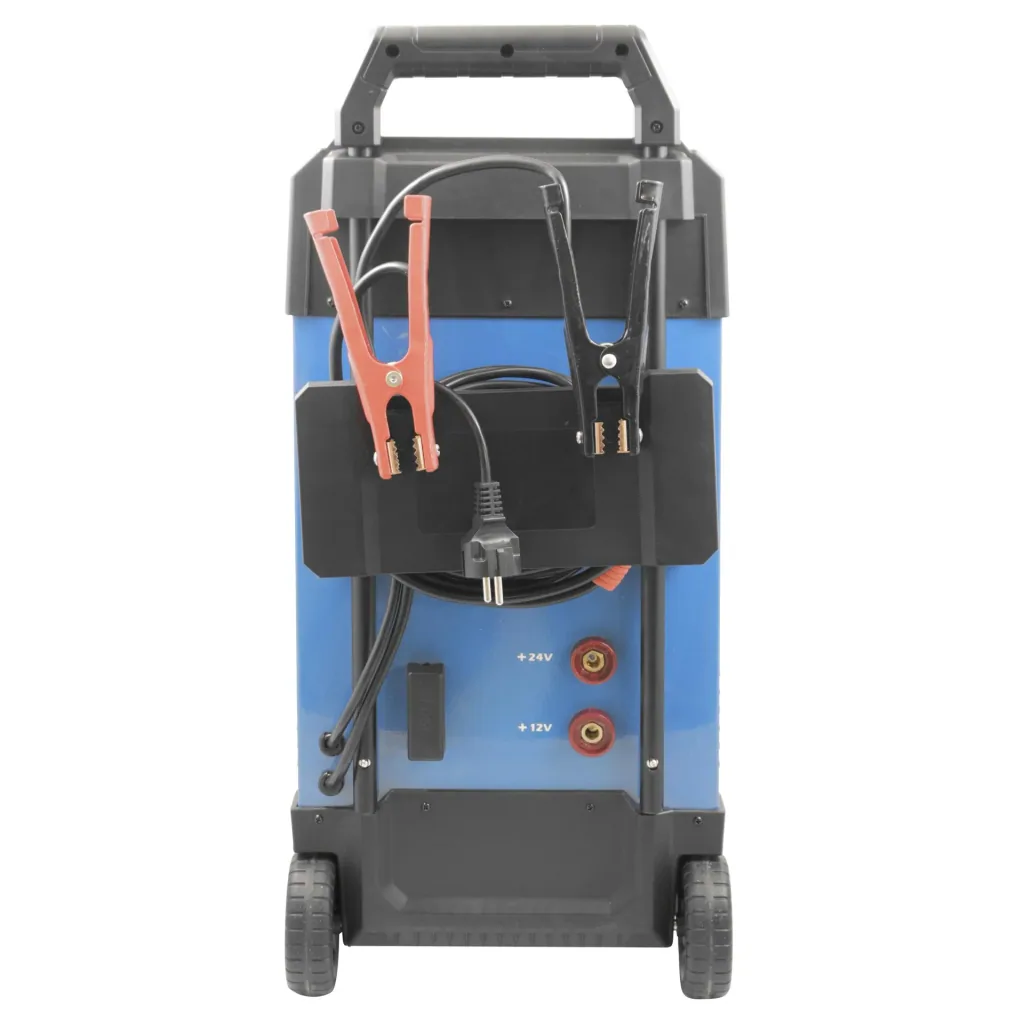

Digitale acculader GDB 24 Volt / 12 Volt -250

• Inverter technology to protect sensitive electronics
• Easy operation thanks to intelligent charging technology
• For all common 12 V and 24 V batteries

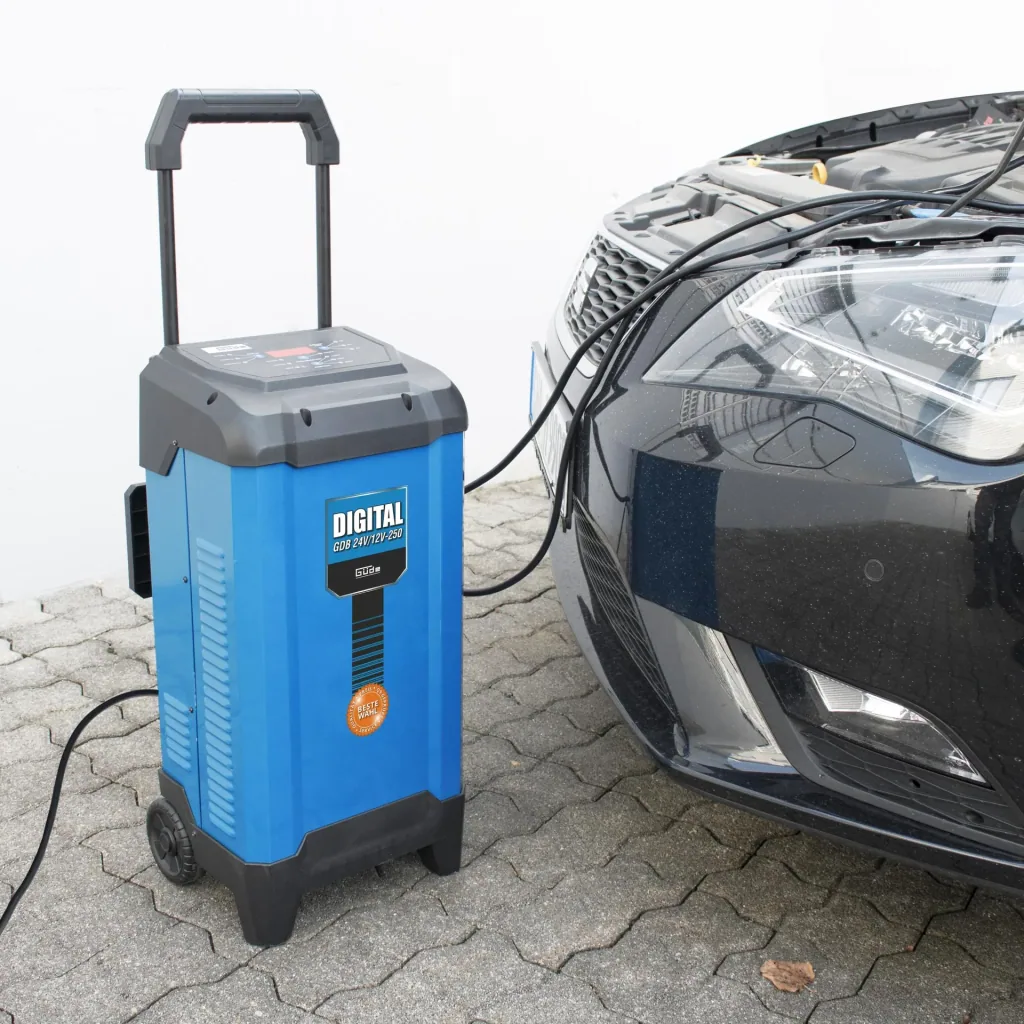

• Direct charging of a battery connected in the vehicle is possible
• Battery-saving 10-stage charging process
• Fully automatic diagnostic, rescue, charging, and maintenance functions
• Rescue function especially for deeply discharged batteries (from 1.5 V)
• Constant charge maintenance
• Overcharge, short-circuit, overheating, and reverse polarity protection
• Spark-proof
• Jump start function up to 250 A

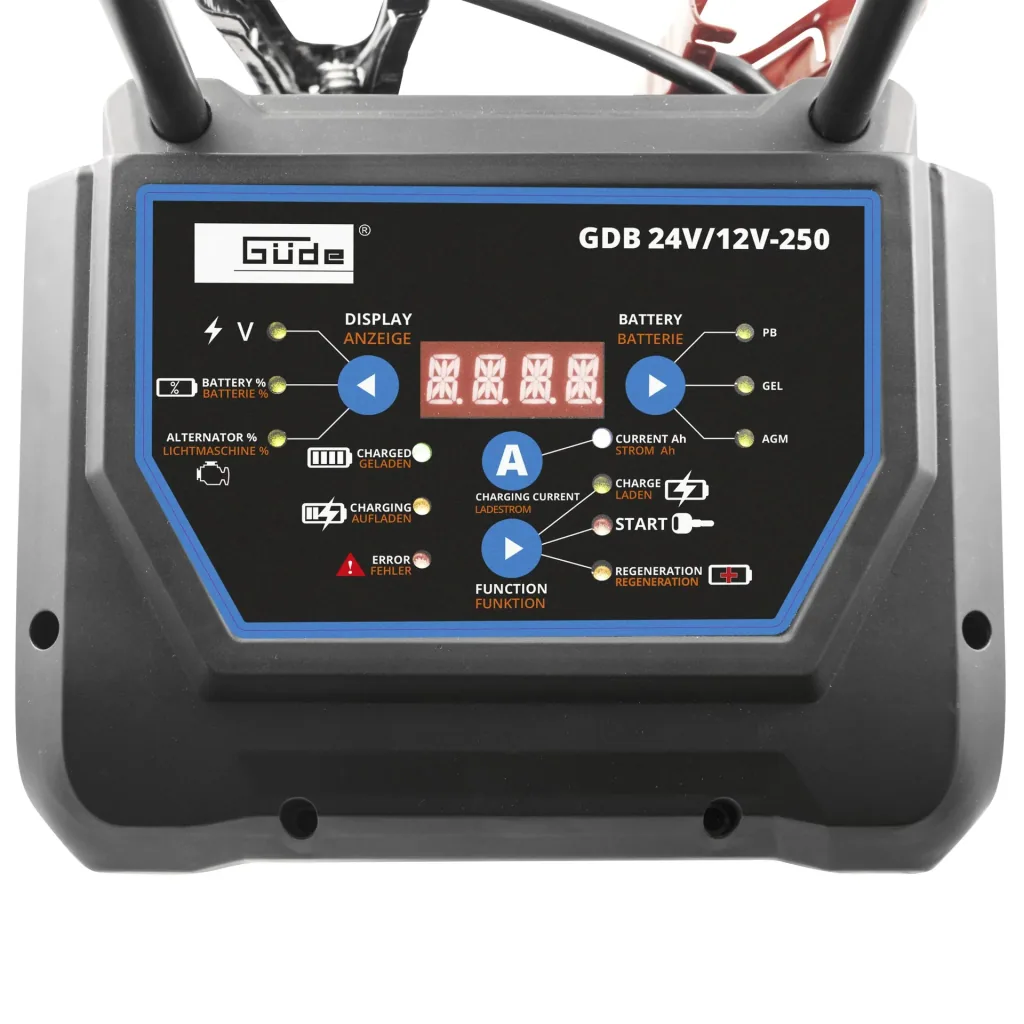

• LED display for charging current, charging voltage, and charging progress
• Fully insulated battery terminals

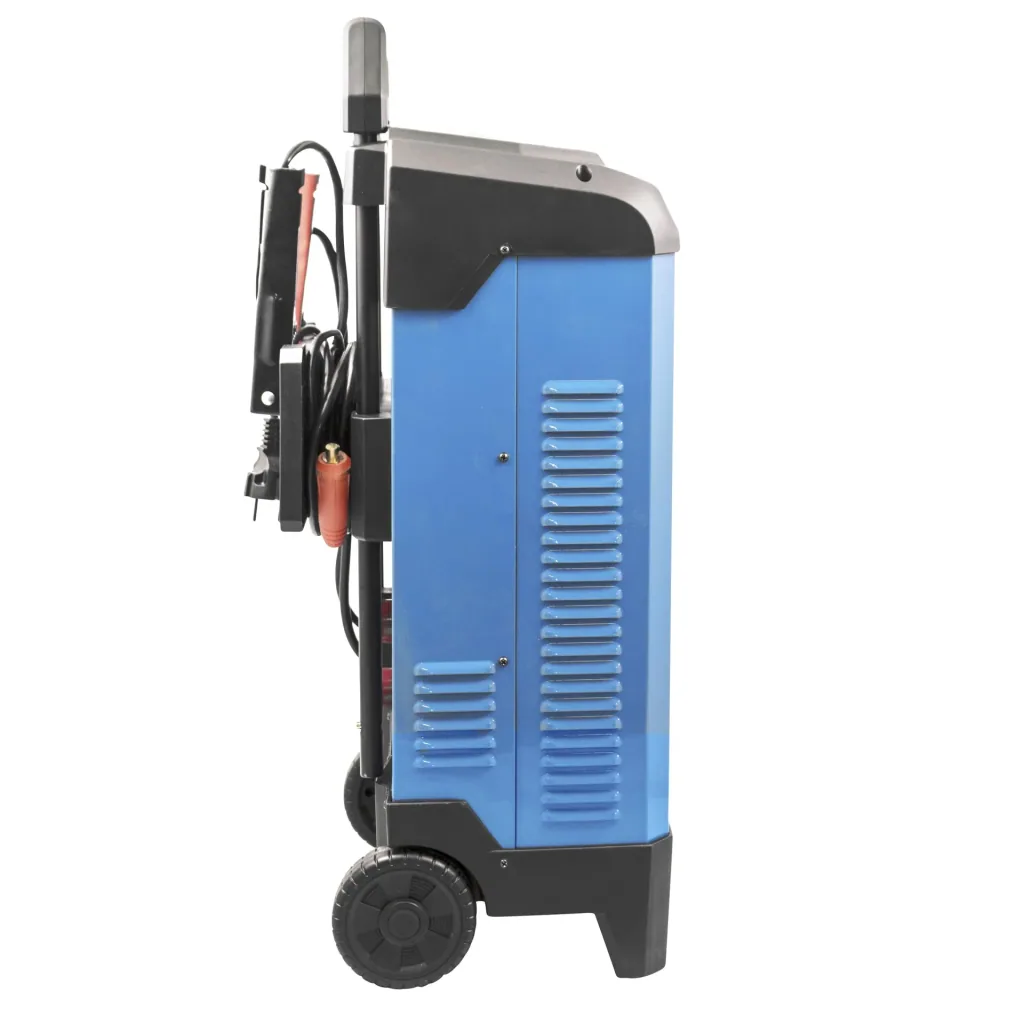

• Easy to maneuver thanks to 2 rollers
• Battery types: PB, GEL, AGM, WET

The Digital GDB 24V/12V-200 battery charger from Güde is suitable for all common 12-volt and 24-volt batteries and is safe and simple to use thanks to its intelligent charging technology.

The microprocessor-controlled inverter technology protects your vehicle's sensitive electronics and thus allows direct and completely safe charging of batteries connected to the vehicle.

The particularly battery-friendly 10-stage charging process ensures the longest possible battery life at full power.

Includes a fully automatic diagnostic, charging, and maintenance function, as well as a rescue function, which can be used specifically for deeply discharged batteries (from 1.5 volts). The jump-start function (up to 250 A) is also extremely useful in some unpleasant situations.

The device also features a number of technical protection mechanisms, such as overcharging, short-circuit, overheating, and reverse polarity protection. Once the charging process is complete, i.e., the battery is fully charged, the device automatically switches to trickle charge mode. This allows it to remain connected permanently to maintain the battery's full charge.

The practical LED display provides information about the current charging current, charging voltage, and charging progress. The battery charger is naturally spark-proof, the battery terminals are fully insulated, and its two wheels make the device easy to maneuver, despite its 17 kg weight.

Technical Specifications:

• Mains voltage: 230 volts
• Frequency: 50 Hz
• Output voltage: 12 / 24 volts
• Slow-blow fuse: 16 A
• Mains power: 6000 watts
• Efficient charging current: 5 / 15 / 30 / 40 A
• Battery capacity: 20 - 450 Ah
• Number of fuses: 10 pieces
• Fuse: 50 A
• Jump start device 1.5 volts: 200 A
• Battery start without pre-charging: 35 - 50 Ah
