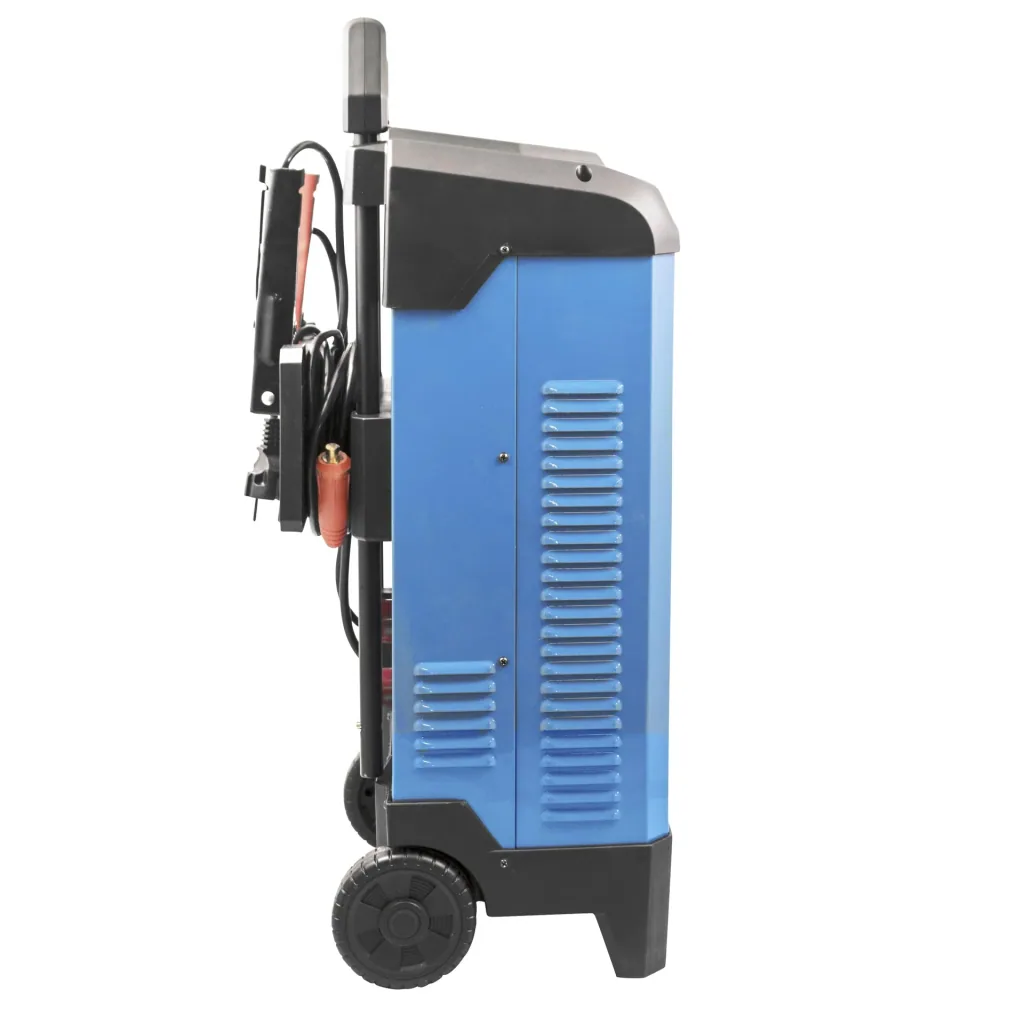

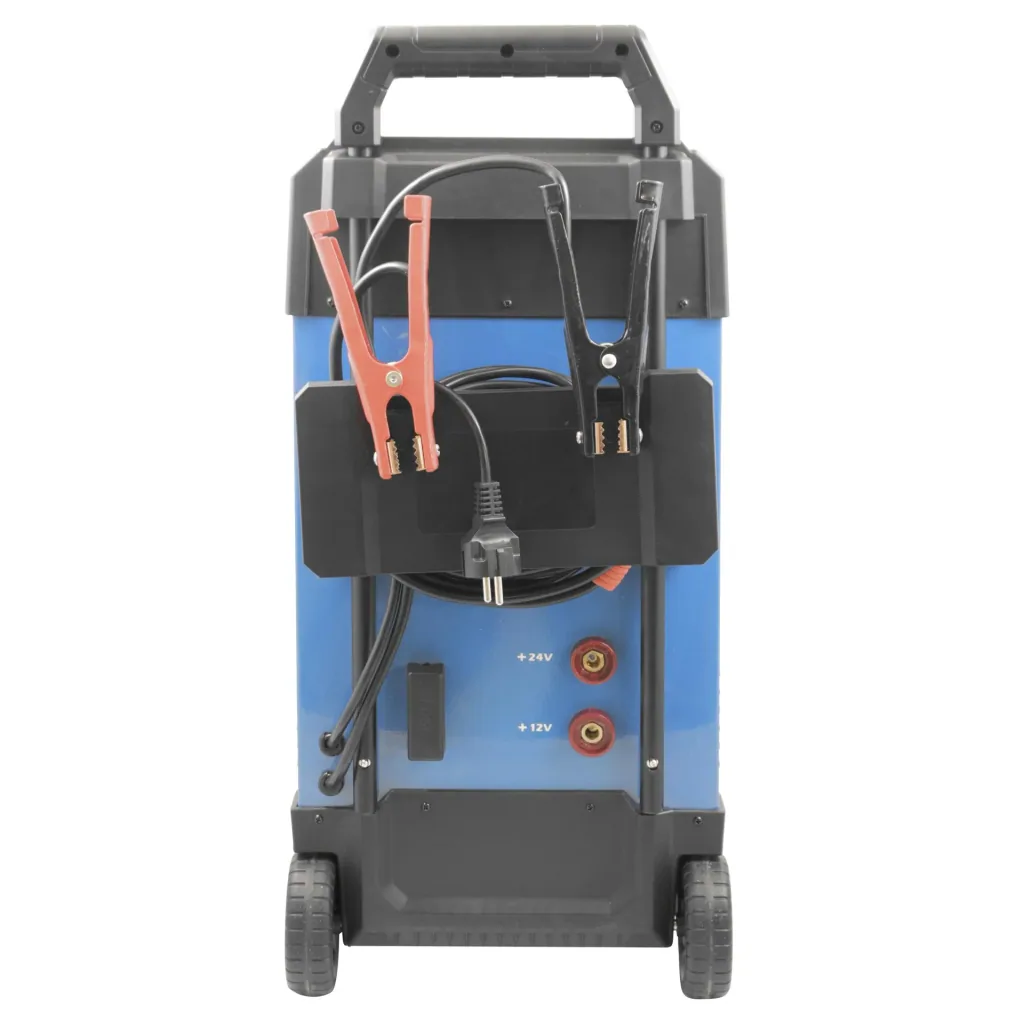

Digitale acculader GDB 24V/12V

• Inverter technology to protect sensitive electronics
• Easy operation thanks to intelligent charging technology
• For all common 12 volt and 24 volt batteries
• Direct charging of a battery connected in the vehicle is possible
• Battery-saving 10-stage charging process
• Fully automatic diagnostic, rescue, charging, and maintenance functions
• Rescue function especially for deeply discharged batteries (from 1.5 volts)
• Constant charge maintenance
• Overcharge, short-circuit, overheating, and reverse polarity protection
• Spark-proof
• Jump start function up to 200 A
• LED display for charging current, charging voltage, and charging progress
• Easy to maneuver thanks to 2 rollers
• Fully insulated battery terminals
• Battery types: PB, GEL, AGM, WET

The Digital GDB 24V/12V-200 battery charger from Güde is suitable for all common 12-volt and 24-volt batteries and is safe and easy to use thanks to its intelligent charging technology.

The microprocessor-controlled inverter technology protects your vehicle's sensitive electronics and thus allows direct and completely safe charging of batteries connected to the vehicle.

The particularly battery-friendly 10-stage charging process ensures the longest possible battery life at full power.

Included are fully automatic diagnostic, charging, and maintenance functions, as well as a rescue function, which can be used specifically for deeply discharged batteries (from 1.5 volts).

The jump start function (up to 200 A) is also very useful in some unpleasant situations. The device also features a range of technical protection mechanisms, including overcharging, short-circuit, overheating, and reverse polarity protection.

Once the charging process is complete, meaning the battery is fully charged, the device automatically switches to trickle charge mode. This allows it to remain connected permanently to maintain the battery's full charge level.

The practical LED display provides information about the current charging current, charging voltage, and charging progress. The battery charger is naturally spark-proof, the battery terminals are fully insulated, and its two wheels make the device easy to maneuver despite its 17 kg weight.

Technical Specifications

• Mains voltage: 230 volts
• Frequency: 50 Hz
• Output voltage: 12 / 24 volts
• Slow-blow fuse: 16 A
• Mains power: 6000 watts
• Charging current efficiency: 5 / 15 / 30 / 40 A
• Battery capacity: 20-450 Ah
• Number of fuses: 10 pieces
• Fuse: 50 A
• Jump start device 1.5 V: 200 A
• Battery start without pre-charging: 35 - 50 Ah

Dimensions (L x W x H): 297 x 295 x 670 mm

Weight: 16.8 kg
