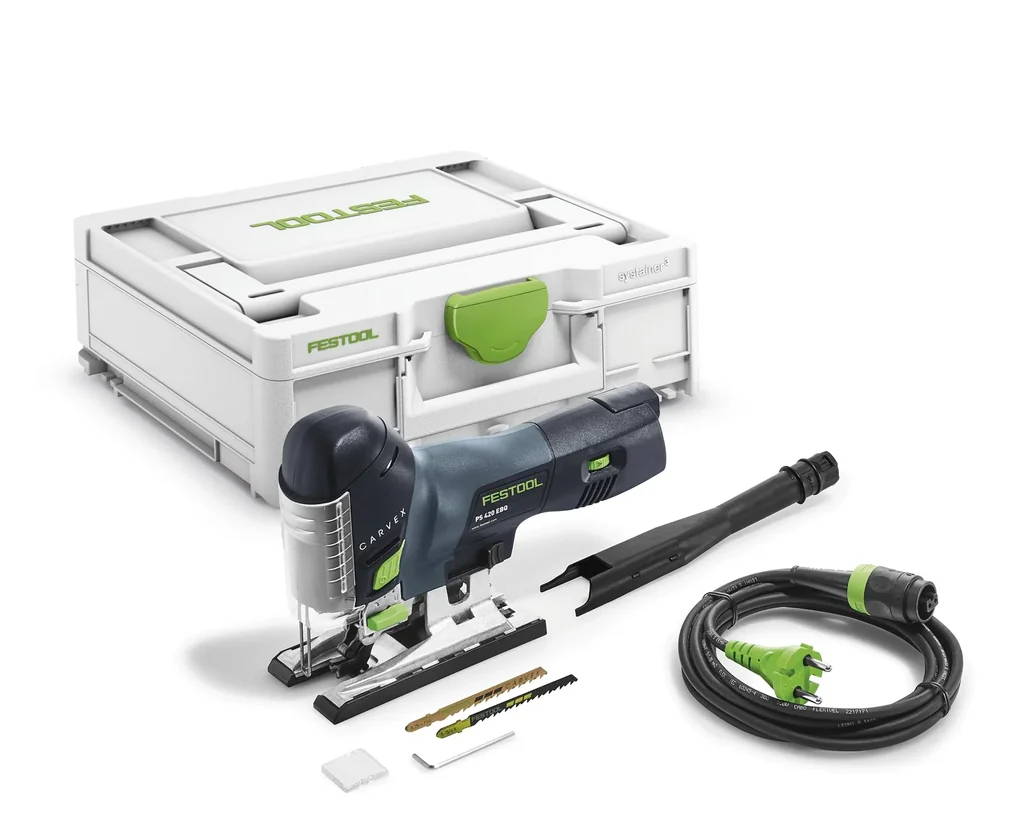

Pendulum jigsaw PS 420 EBQ-Plus

• Excellent cornering performance thanks to triple saw blade guides and torsion-resistant lifting rod
• Easy handling thanks to soft grip and ergonomic design
• On/off switch on both sides, accessible from any gripping position
• Quick, tool-free changing of tables, guide plates, and saw blades
• Clearly visible markings thanks to strobe light and powerful extraction
• Tool length can be shortened thanks to pivoting plug-it cable
• Powerful pulling power for rapid sawing progress
• Effort-saving low weight: 1.9 kg

Ergonomic, lightweight, and handy – with the CARVEX, you can work comfortably in any position. And fast: with 3,800 strokes per minute for inimitably powerful pulling power and unbeatable cornering performance. But everyone knows that power only becomes a valuable parameter when it is combined with exceptional precision. That's exactly where we came in. With a newly designed hammer guide for unprecedented accuracy. And parallel, adjustable guide jaws that keep the saw blade on track and guarantee the highest precision. This means that it remains a typical CARVEX at its core – but the first test already tells us: It is the new generation CARVEX PS 420.

Main Applications

• Cutouts for sinks and cooktops
• Fitting work on furniture, kitchens, and interior fittings
• Sawing circles and curves
• Notching end strips
• Cutting workpieces to length
• Protrusions on beams
• Cuts from below

Technical Data

• Power consumption: 550 W
• Stroke rate: 1,500 - 3,800 rpm
• Pendulum stroke adjustment in steps: 4.00
• Cutting depth for wood: 120.00 mm
• Cutting depth for non-ferrous metal: 20.00 mm
• Cutting depth steel (soft): 10.00 mm
• Drive type: mains

Weight: 1.90 kg
