Sliding mitre saw TE-SM 216 Dual

• Specially mounted pull function with perfect gliding properties

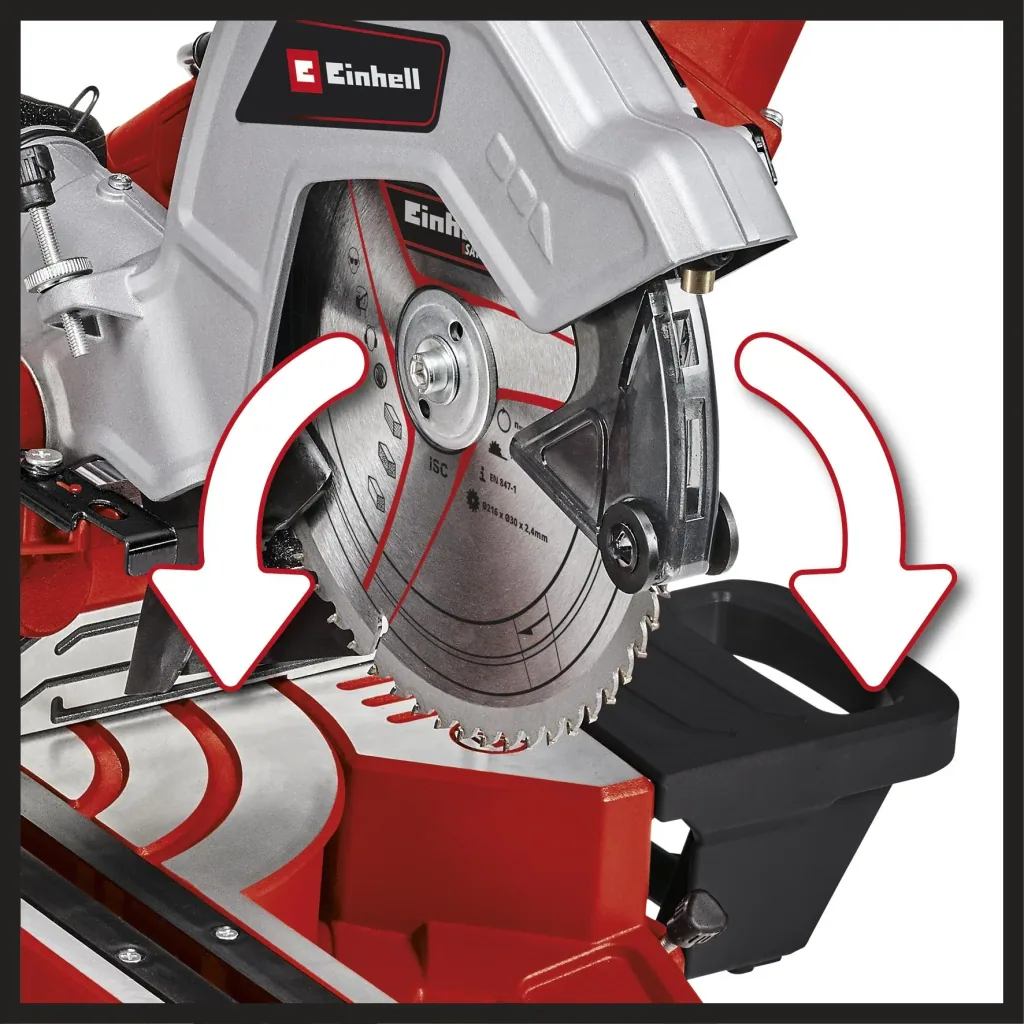

• Smooth-running sawhead joint mechanism for fatigue-free sawing

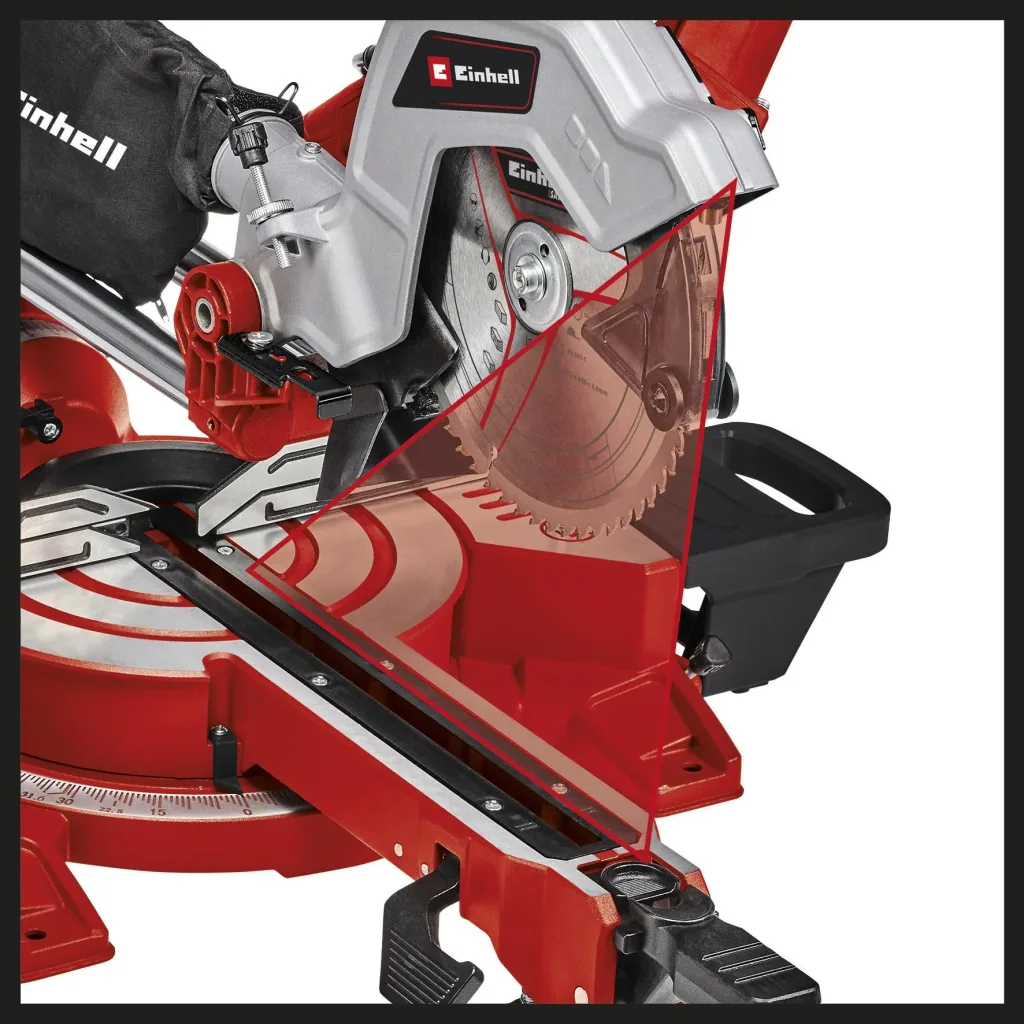

• A clearly visible laser makes it easier to position the workpiece
• Angle adjustment on the rotary table is convenient using quick adjustment
• Rotary table with locking positions at the most common angles

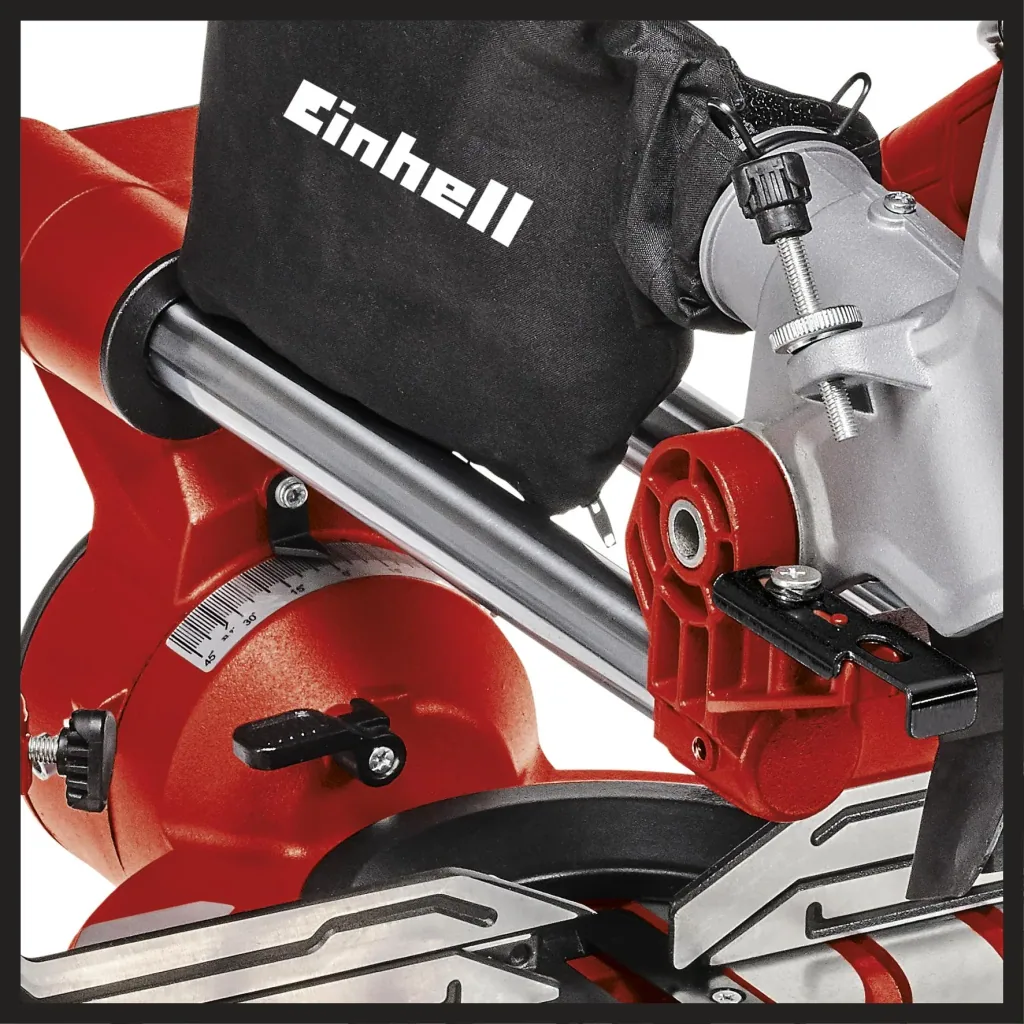

• Head tiltable to the left and right, also with quick adjustment

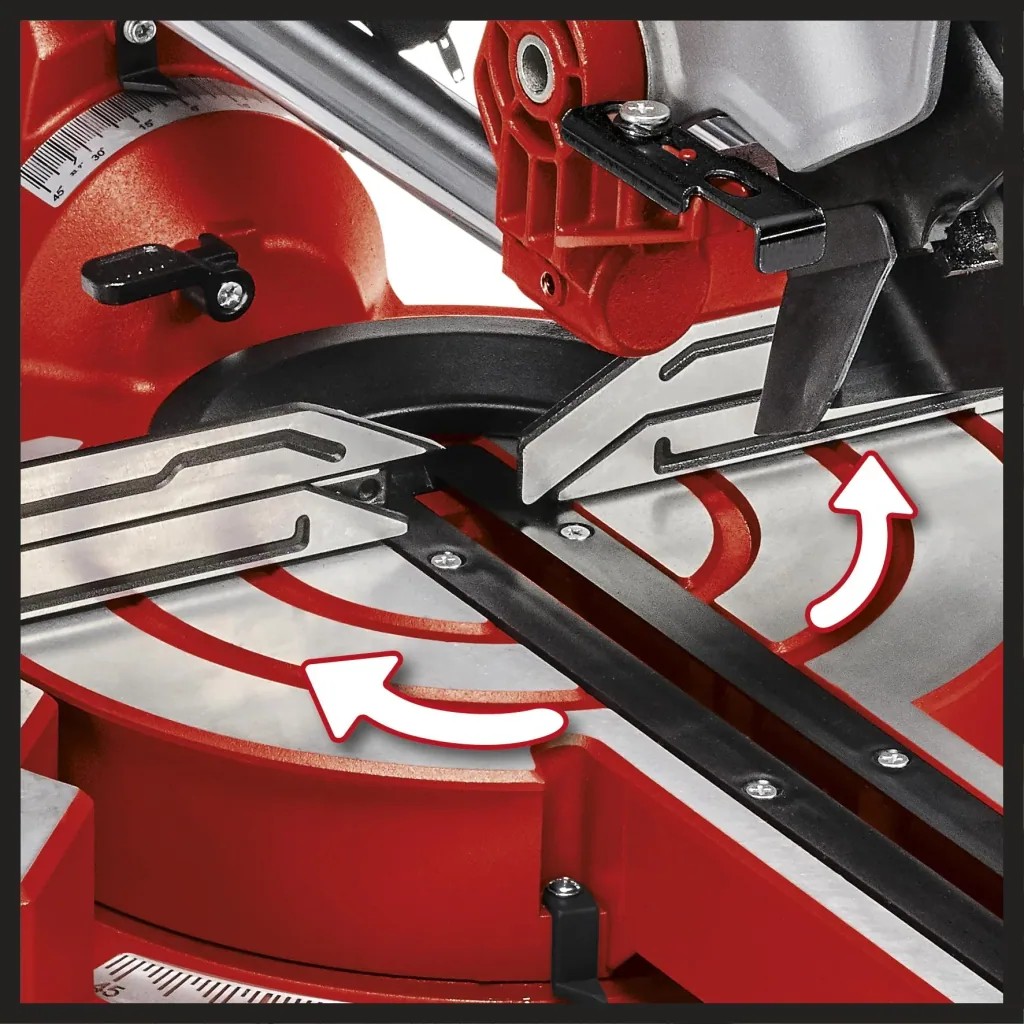

• Left and right table extensions for longer workpieces
• High-quality carbide saw blade for a perfect cut
• Easily accessible spindle lock and saw blade screw
• Includes a clamping device for securing the workpiece
• All angle scales are clearly visible and readable for the user

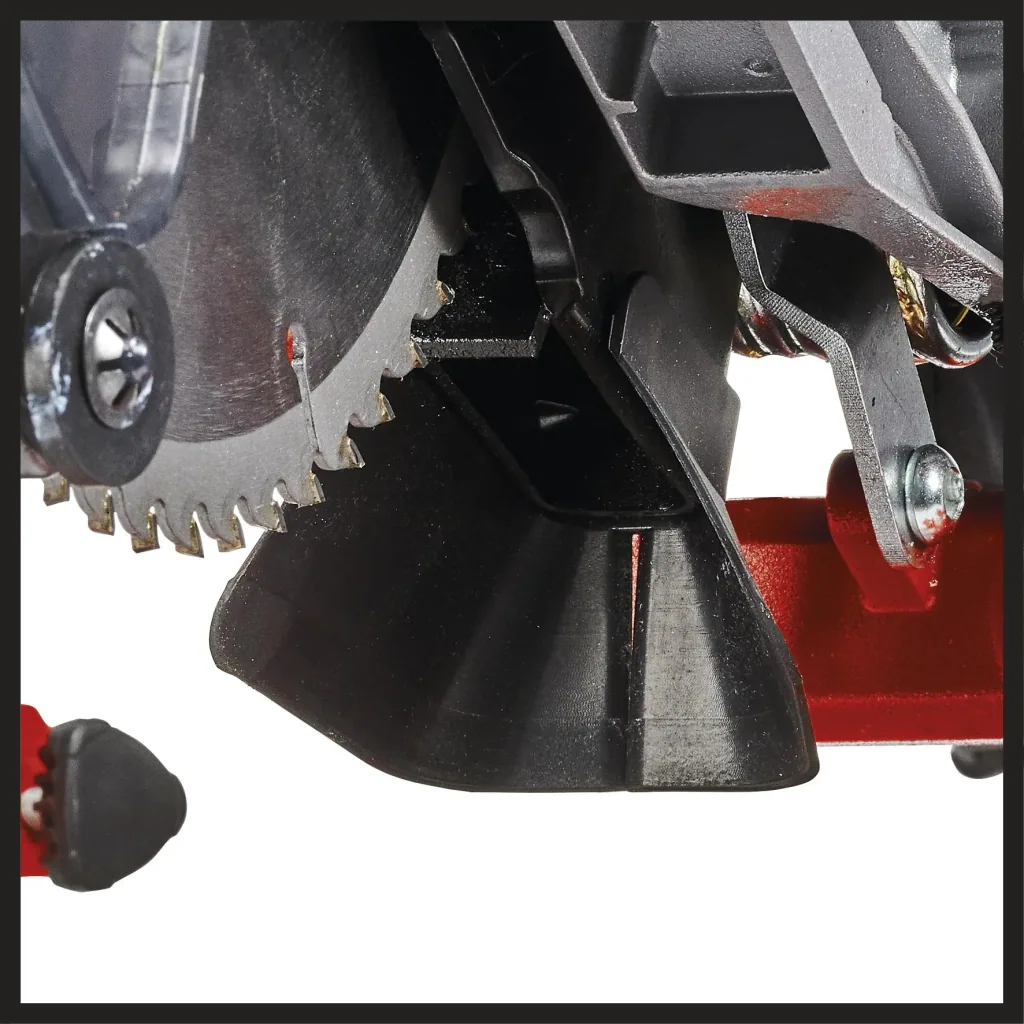

• Dust collection funnel behind the saw blade for better dust removal

The Einhell The TE-SM 216 Dual sliding miter saw is ideally equipped for many jobs. Both the sliding function and the saw head joint are equipped with a special mechanism for particularly smooth operation. The turntable has precise angle adjustment with locking positions for the most common angles, and the saw features a practical quick-adjustment mechanism. The saw head can also be tilted left and right for miter cuts, also with quick adjustment. The powerful cutting line laser makes work much easier, and the spindle lock and saw blade screw are easily accessible for simple saw blade changes. The dust collection funnel behind the saw blade greatly improves sawdust removal.

Technical specifications

• Mains connection: 220-240 V | 50 Hz
• Power: 1500 W
• Number of saw teeth: 60
• Max. Power (S6 | S6%): 1800 W | 25%
• Idle speed: 5000 min^-1
• Saw blade: Ø216 x ø30
• Pivoting range (saw head): -45 ° - +45 °
• Pivoting range (saw table): -47 ° - +47 °
• Cutting width 90° x 90°: 305 x 65
• Cutting width 90° x 45°: 215 x 65
• Cutting width 45° x 90°: 305 x 35
• Cutting width 45° x 45°: 215 x 35
• Extraction connection diameter: 35 mm

Dimensions: 810 x 490 x 320 mm
