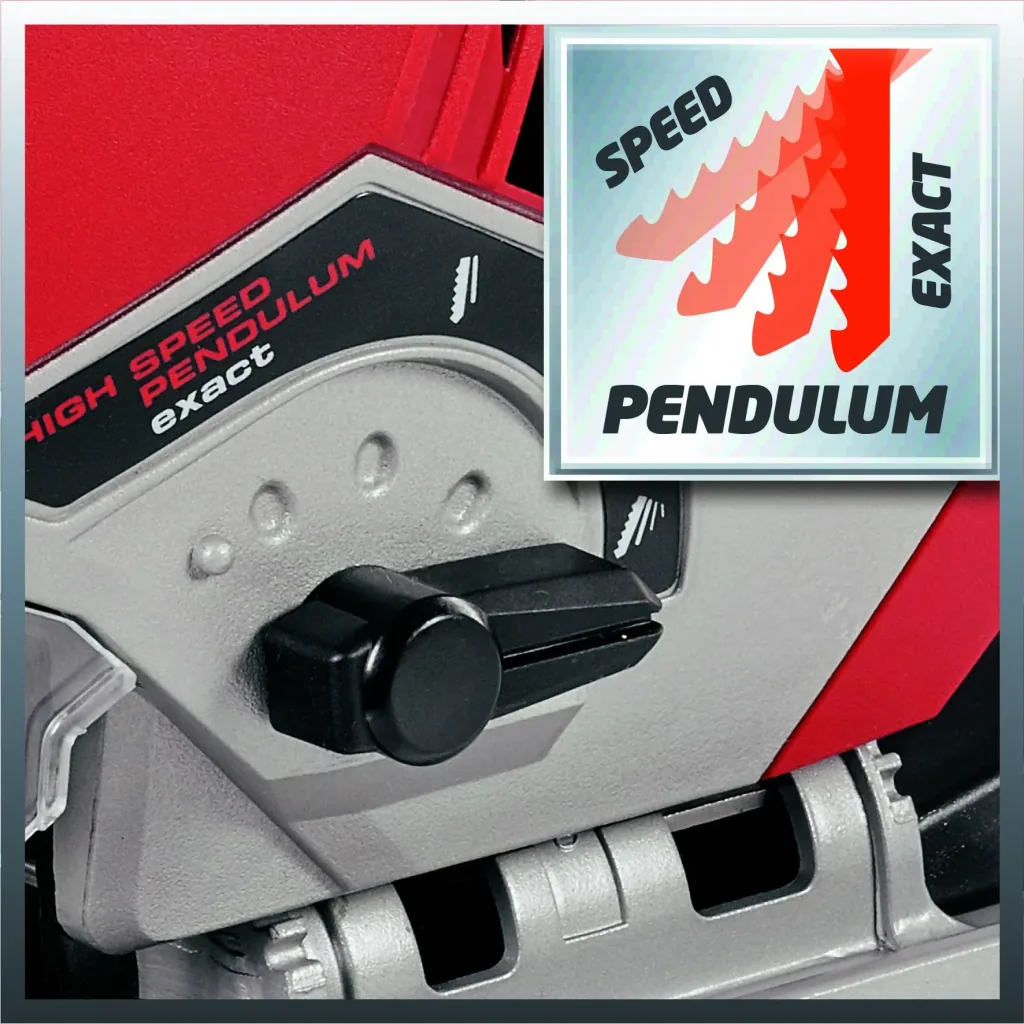

- 4-way adjustable pendulum stroke 0/1/2/3
- Tool-free saw blade change (T-shank and U-shank)
- Use of saw blades with T-shank and U-shank
- Aluminum saw shoe, tool-free adjustable
- Stroke rate control electronics
- LED light

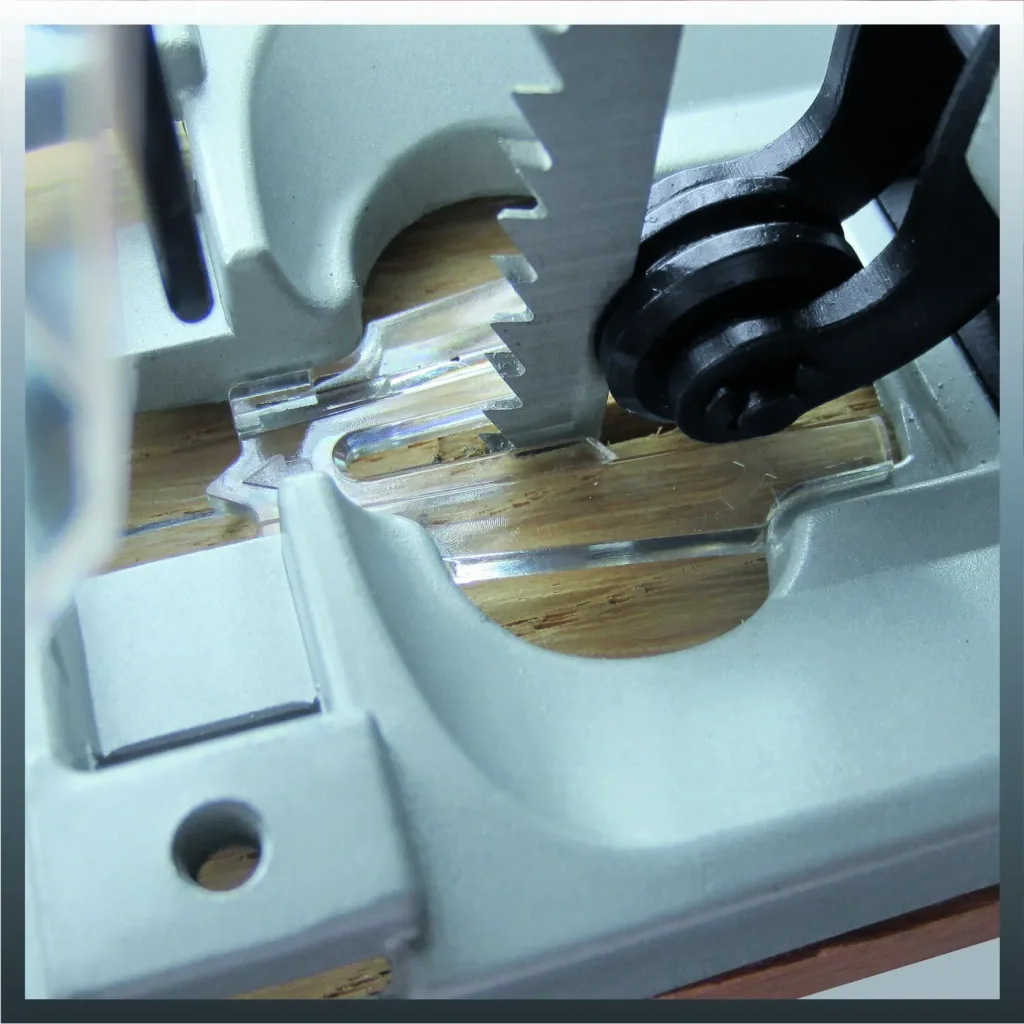

- Chip guard for improved surface quality
- Dust blower function (can be switched off)

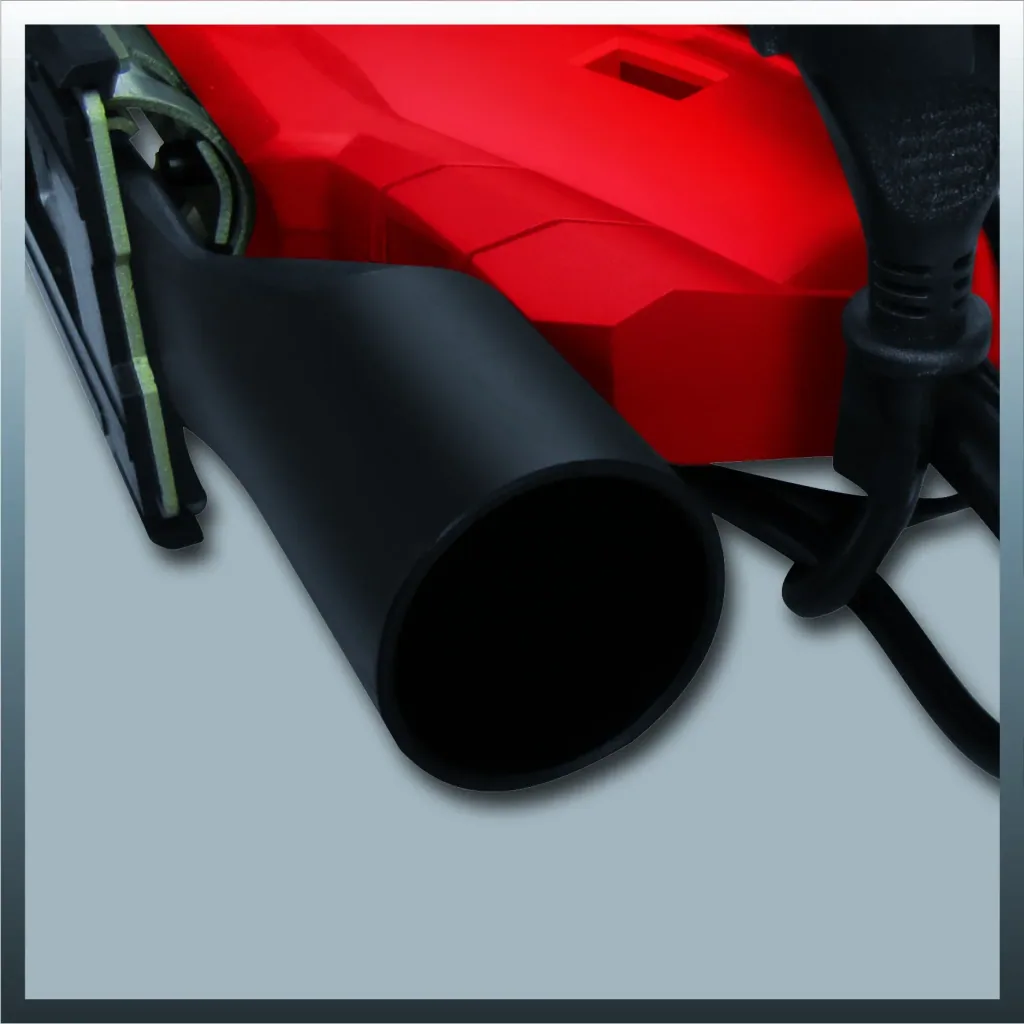

- Dust extraction via adapter
- Saw shoe pivots up to 45°
- Foldable privacy screen
- Soft grip

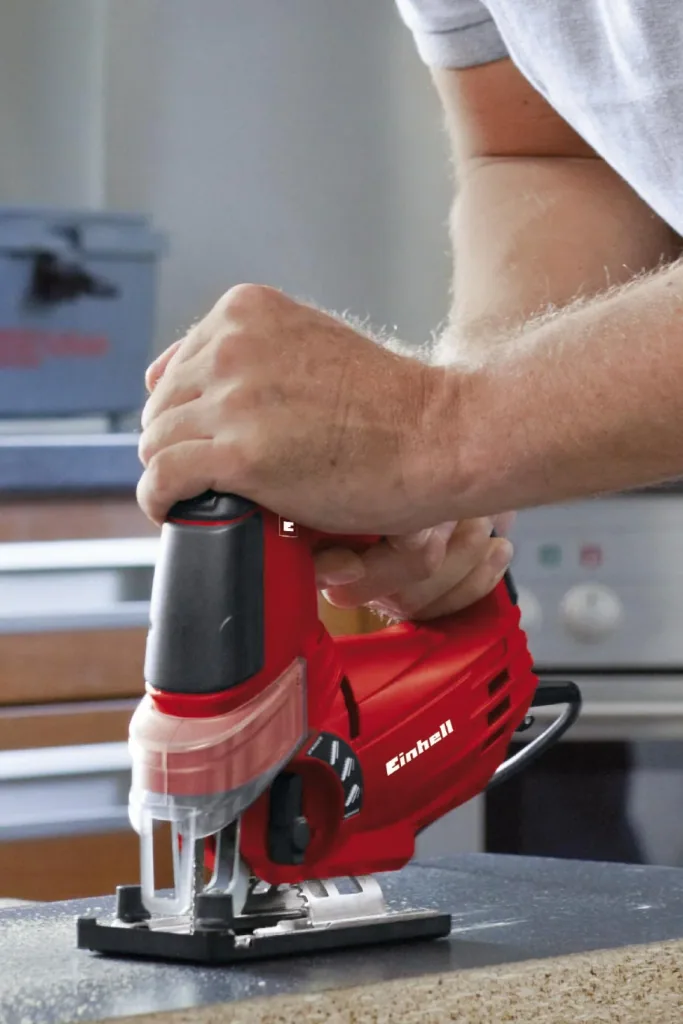

The TE-JS 100 is a powerful model for ambitious sawing work on any material. The 4-way adjustable pendulum stroke and the stroke rate control electronics enable individual material processing. The tool-free saw blade change enables the use of saw blades with T and U shanks and also saves valuable time.
Technical data
- Mains connection: 230 V | 50 Hz
- Power: 750 W
- Stroke rate: 800 - 3000
- Stroke height: 23 mm
- Cutting depth in wood: 100 mm
- Cutting depth in plastic: 12 mm
- Cutting depth in steel: 10 mm
- Max. Bevel cuts: 45°
Scope of delivery
- 1x jigsaw TE-JS 100
- 1x cable clip

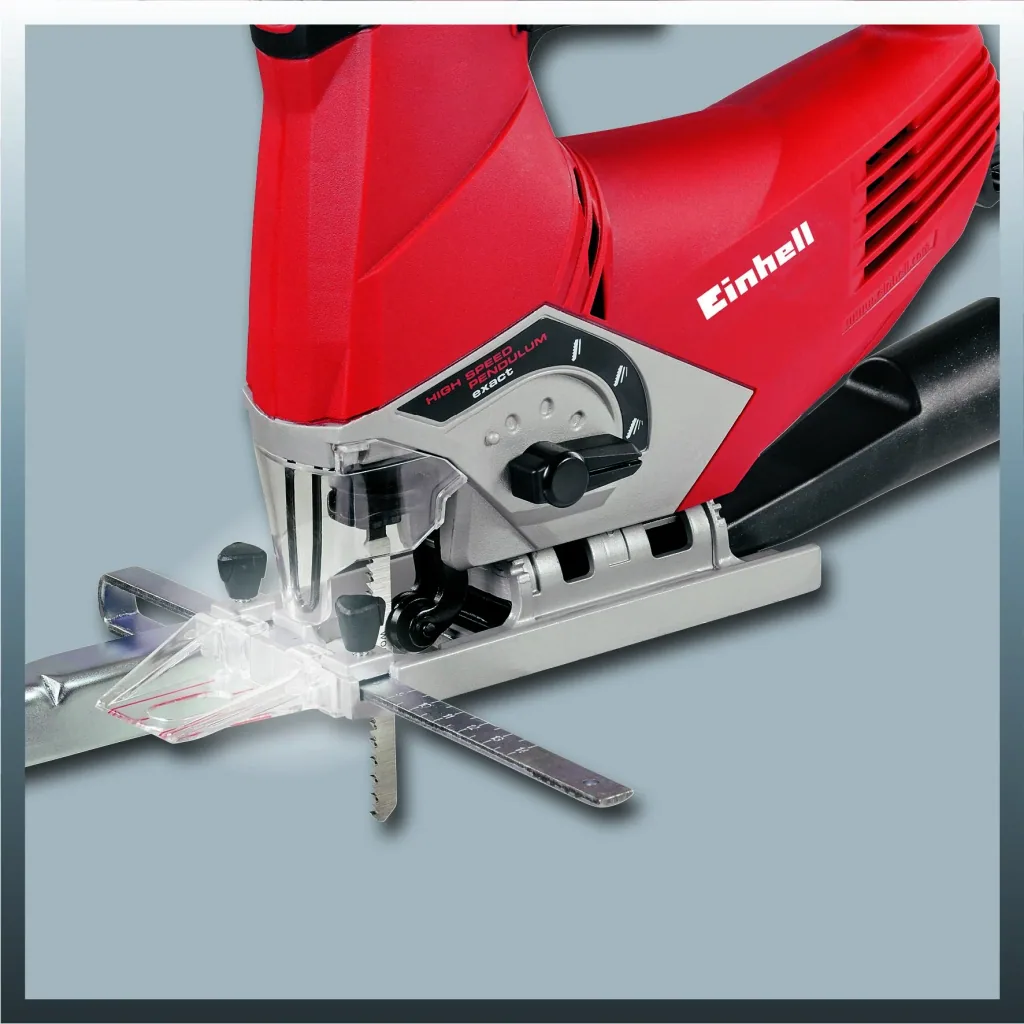

- 1x parallel stop
- 1x saw blade for wood
- 1x transport and storage case
| Weight | |
|---|---|
| Weight | 2,400 g |
| Cutting thickness metal | |
| Cutting thickness metal | 10 mm |
| Cutting thickness plastic | |
| Cutting thickness plastic | 12 mm |
| Drive | |
| Drive | 230 V motor |
| Protection class | |
| Protection class | II |
| Noise level | |
| Noise level | 98.7 |
| Cutting thickness aluminum | |
| Cutting thickness aluminum | 10 mm |
| Stroke rate | |
| Stroke rate | 3,000 rpm |
| Voltage | |
| Voltage | 230 V |
| Cutting thickness wood | |
| Cutting thickness wood | 100 mm |
| Stroke height | |
| Stroke height | 23 mm |
