Compressor 805/10/100 PRO

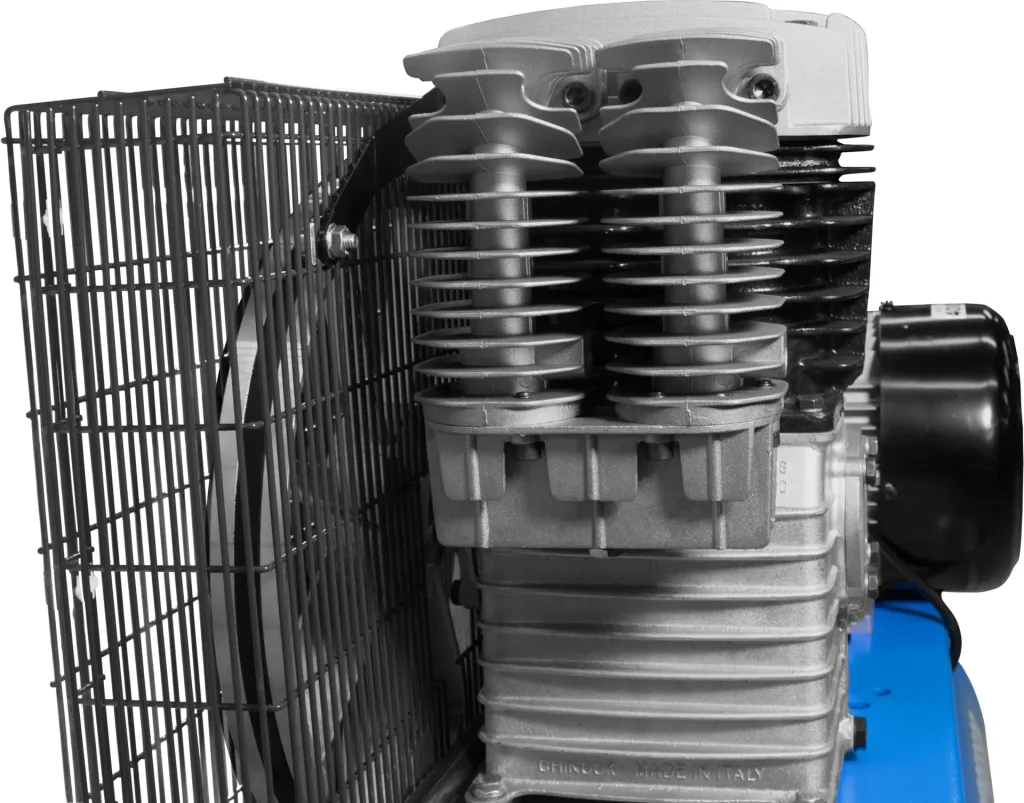

• Two-stage, 2-cylinder unit; oil-lubricated
• Belt drive
• Carrying handle
• Condor pressure switch

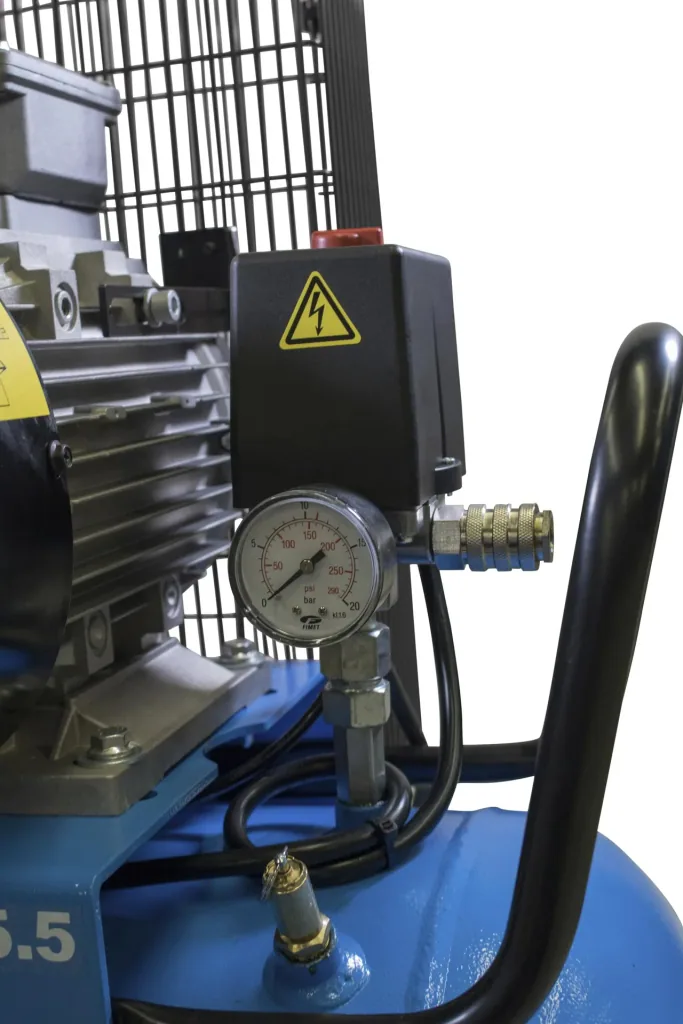

• 2 pressure gauges (tank pressure and working pressure)
• Integrated pressure reducer and water separator
• 3 compressed air couplings
• 3 aftercoolers
• Safety valve
• Check valve
• Condensate drain plug
• Air filter
• Overload protection
• Plastic wheels

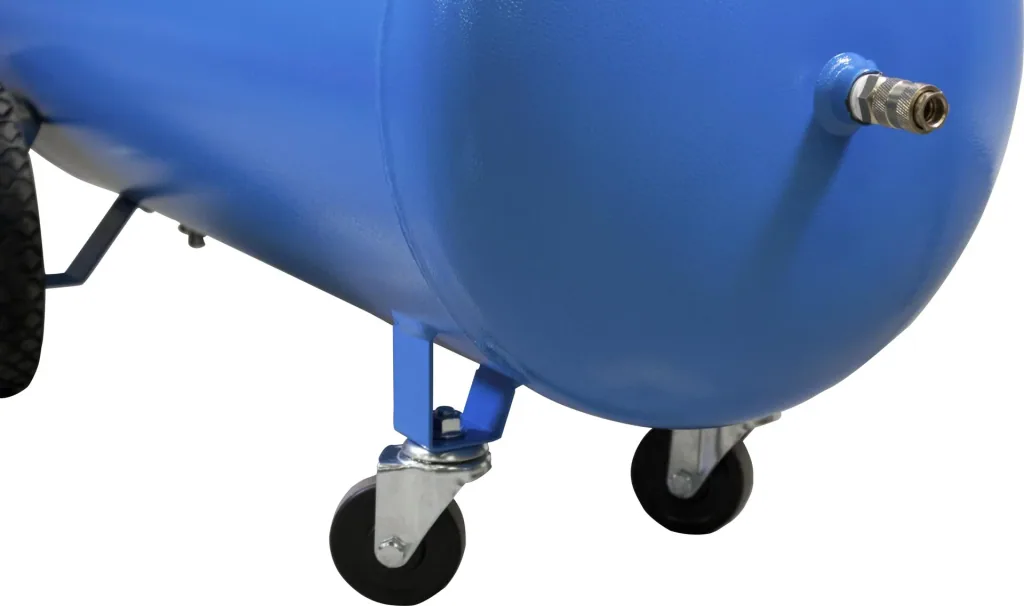

• 2 swivel casters

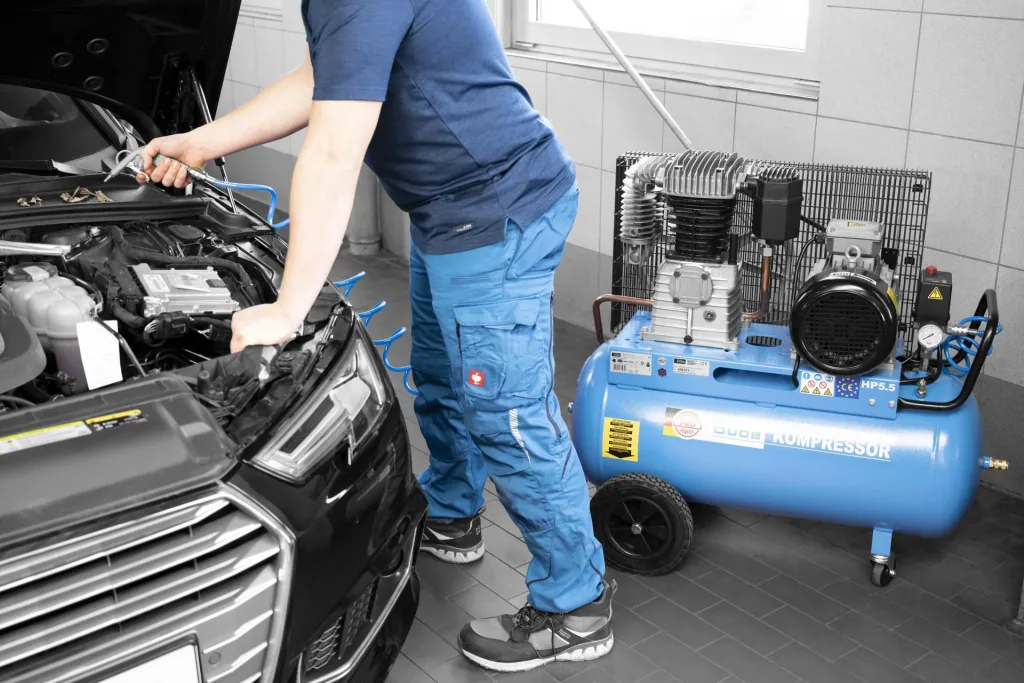

Pressurize your pneumatic tool. The powerful Güde 805/10/100 compressor can handle anything - whether impact wrenches, chipping hammers, drills, or sandblasting cabinets. The belt-driven motor gives you a long-lasting compressor with a 100-liter tank and 4.0 kW power connection. Thanks to a two-stage, two-cylinder unit, the air is compressed even more effectively, providing even more air output, resulting in an effective delivery rate of an impressive 459 l/min. For easier handling, the Güde compressor has a carrying handle and two wheels, as well as two movable casters.

Technical specifications:

• Mains voltage: 400 V
• Frequency: 400 V  50 Hz
• Motor power (P1):    4.0 kW
• Protection class (IP):             44
• Aggregate:       Oil lubrication
• Engine speed:          3410 1/min
• Compressor speed:     1290 min-1
• Suction power:          765 l/min
• eff. Delivery quantity 0 bar:         459 l/min
• eff. Delivery quantity 4 bar:         395 l/min
• eff. Delivery quantity 7 bar:         381 l/min
• max. Pressure:   10 bar
• Boiler capacity: 100 l
• Number of cylinders: 2
• Number of compressed air couplings: 3
• Pressure gauges: 2
• Noise level LWA: 97 dB

Dimensions:

Item dimensions (L/W/H) in mm: 1120/495/970

Color: blue, black, silver

Material: plastic, metal

Weight: 102.3 kg
