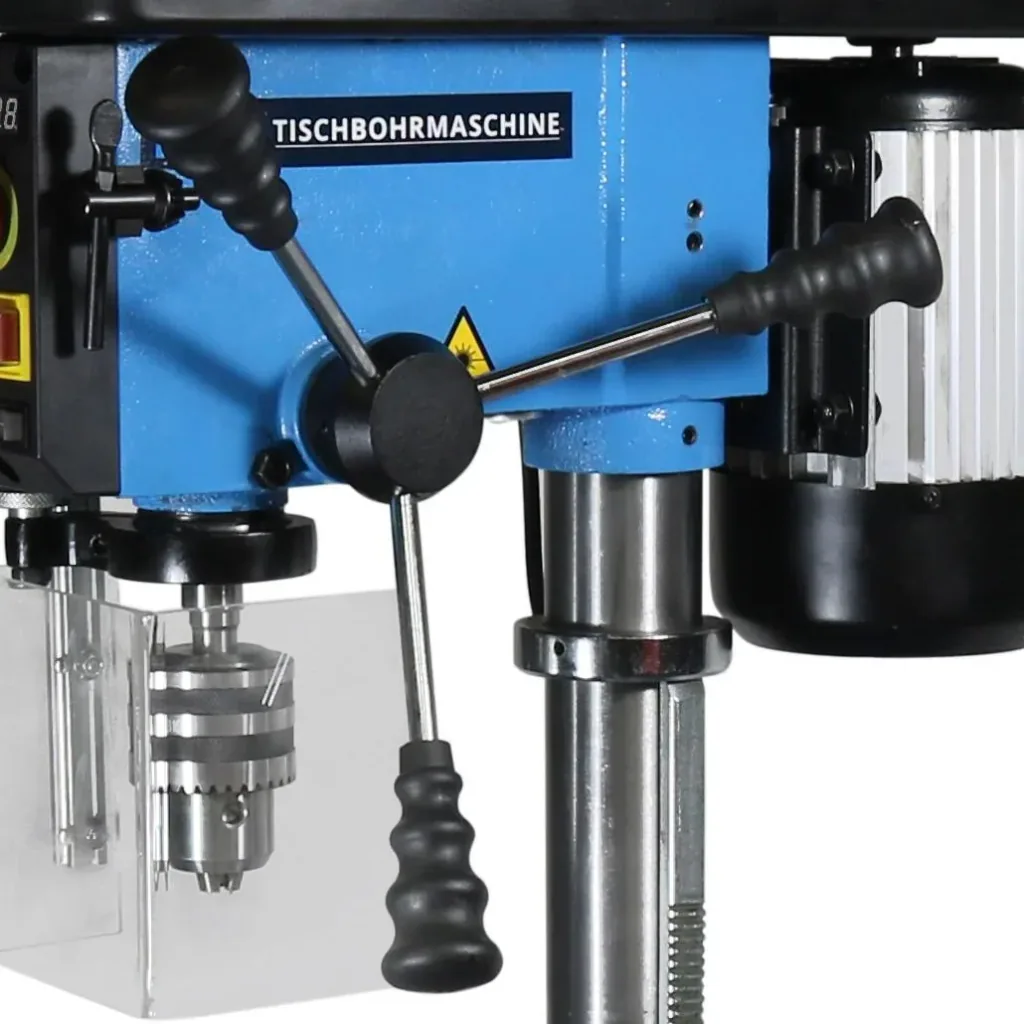

Kolomboormachine GTB 16/500 Vario

• V-belt drive with continuously variable speed adjustment
• Digital speed display
• Position laser
• V-belt tensioning system
• Ball-bearing drill spindle
• High spindle concentricity (<0.02 mm)
• Keyed drill chuck 1-16 mm
• Spindle mount MK2 and drill chuck taper B16
• Drill table size 245 x 245 mm

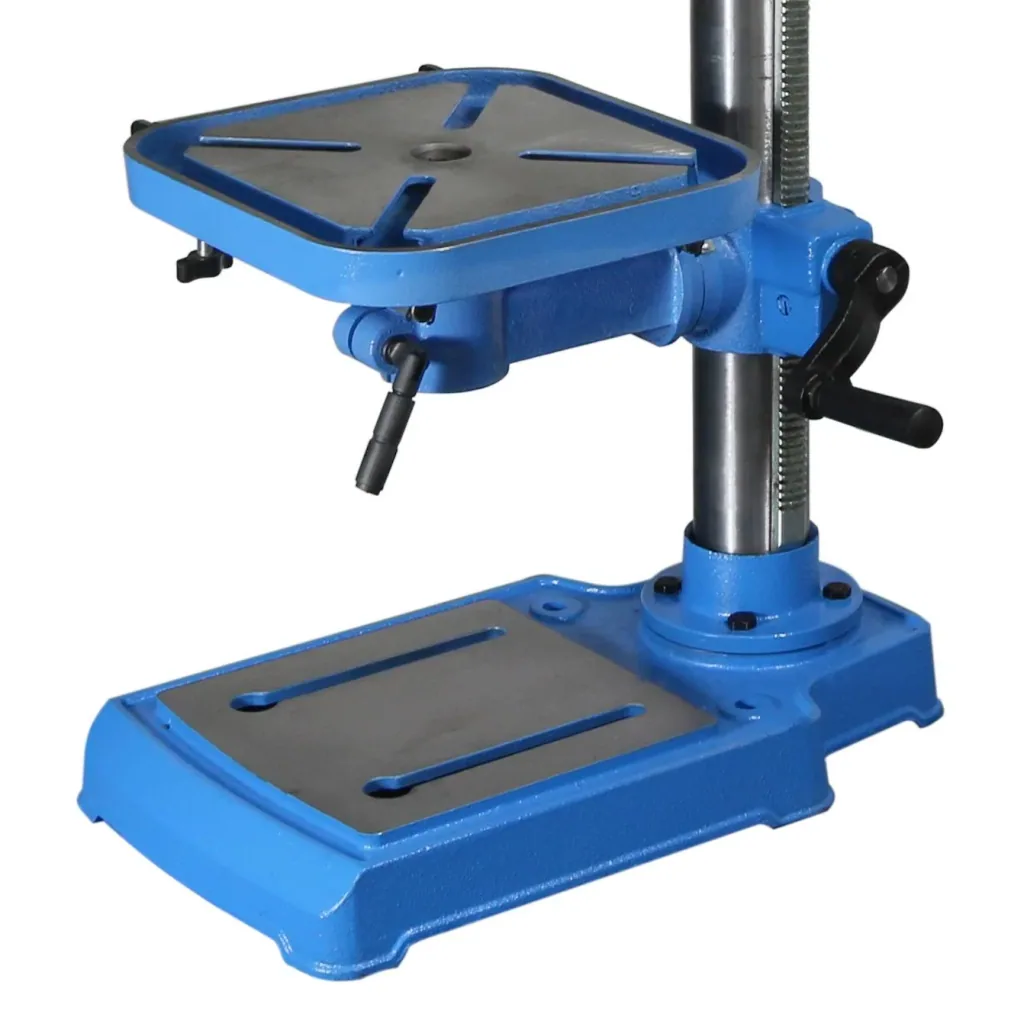

• Drill table height adjustable, +/- 45° tiltable and 360° pivotable
• Drill table with collecting troughs for coolant
• Adjustable drilling depth stop for precise drilling
• Max. distance between drill chuck and drill table 245 mm
• Max. Distance between drill chuck and base: 420 mm
• Base size: 410 x 245 mm with slots for vice attachment

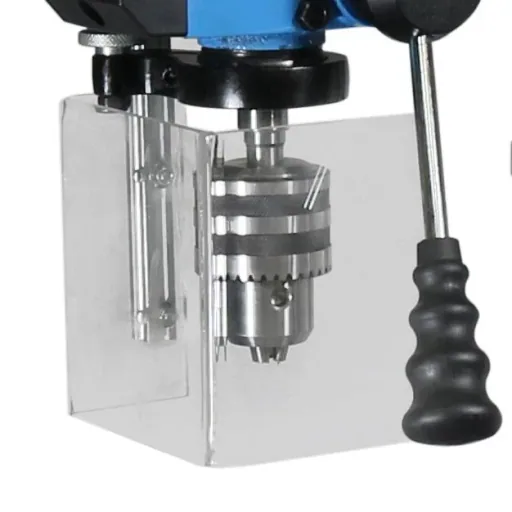

• Foldable chip guard with microswitch
• On/off switch with zero-voltage release

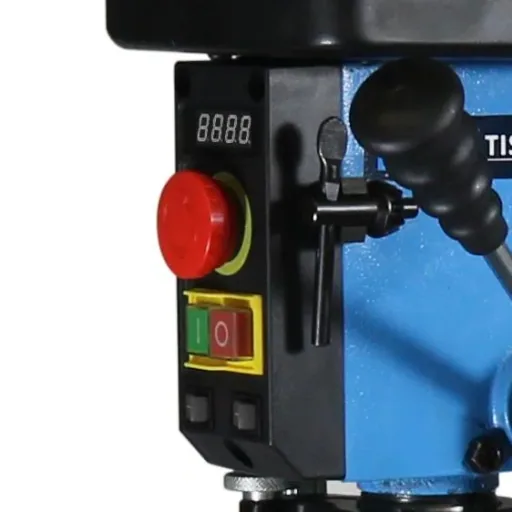

• Emergency stop switch
• LED work light

Technical data

• Mains voltage:                         230 V
• Frequency:                             50 Hz
• Operating mode:                                S1
• Protection class:                             I
• Engine power  P1:                   500 W
• Spindle stroke:                              90 mm
• Spindle speed:                      290-2500 min-1
• Number of stages:                   stepless
• Projection:                               155 mm
• max. Drill chuck span:     16 mm
• min. Drill chuck span:        1 mm
• Drill chuck cone:                        16 B
• Spindle mount:                        2 MK
• Drilling diameter for steel:      16 mm
• Table:                                         245 x 245 mm
• Column diameter:             60 mm
• Length of the connecting cable: 200 cm
• Noise level LWA: 72.9 dB

Dimensions L x W x H: 570 x 325 x 900 mm

Weight: 40 kg
