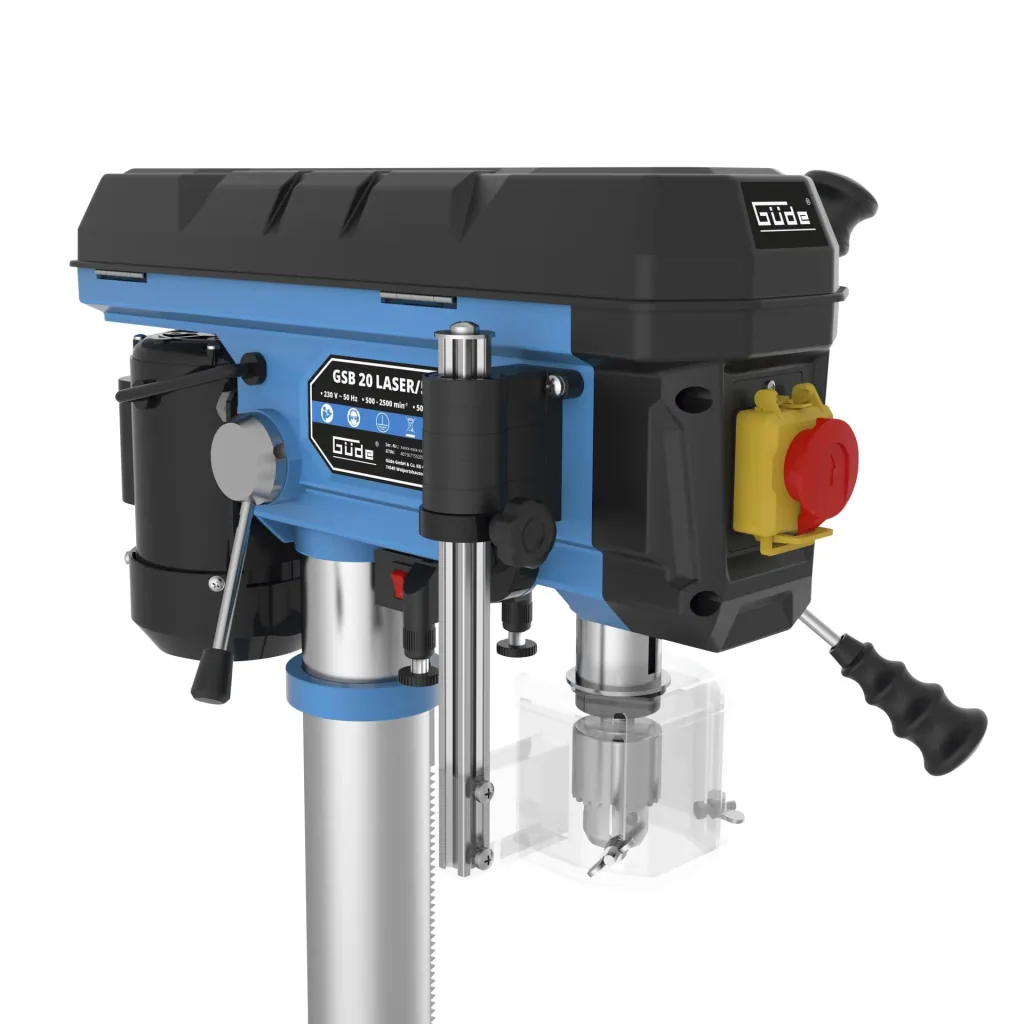

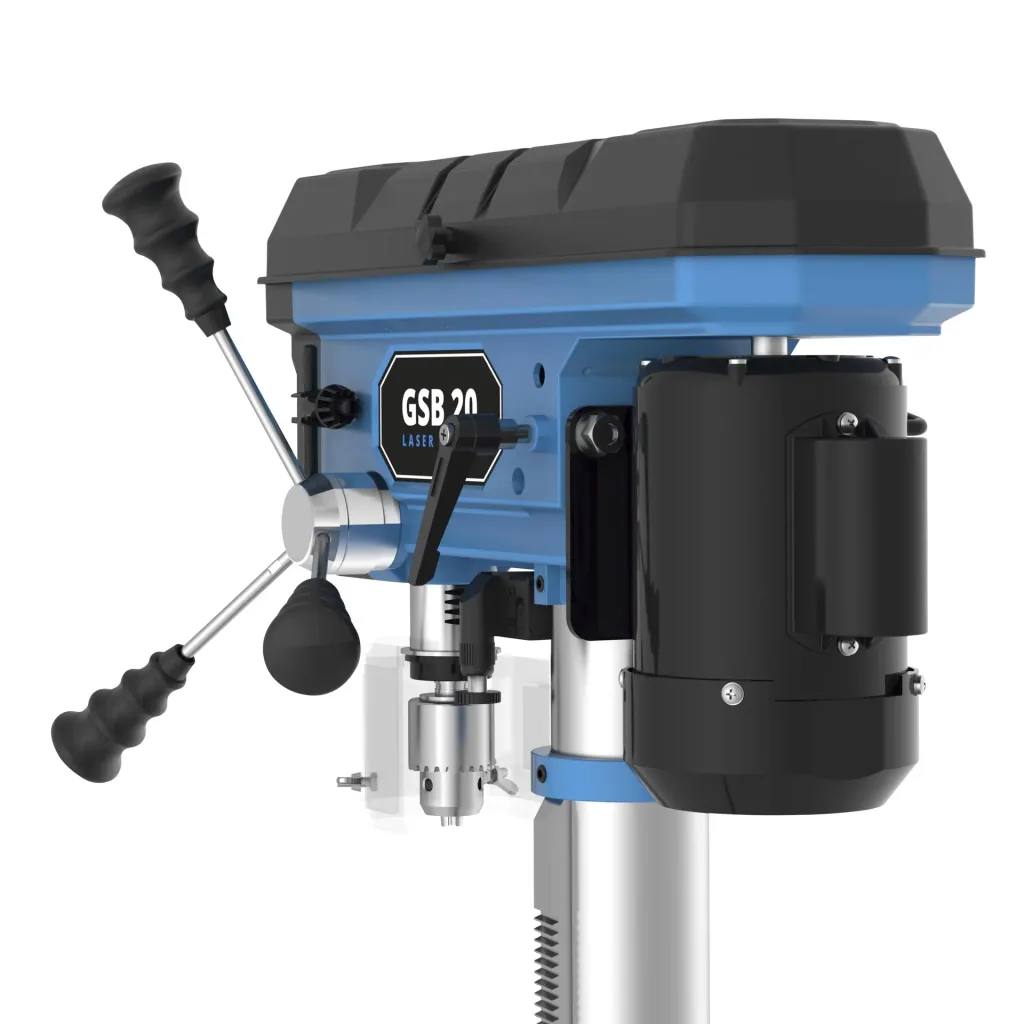

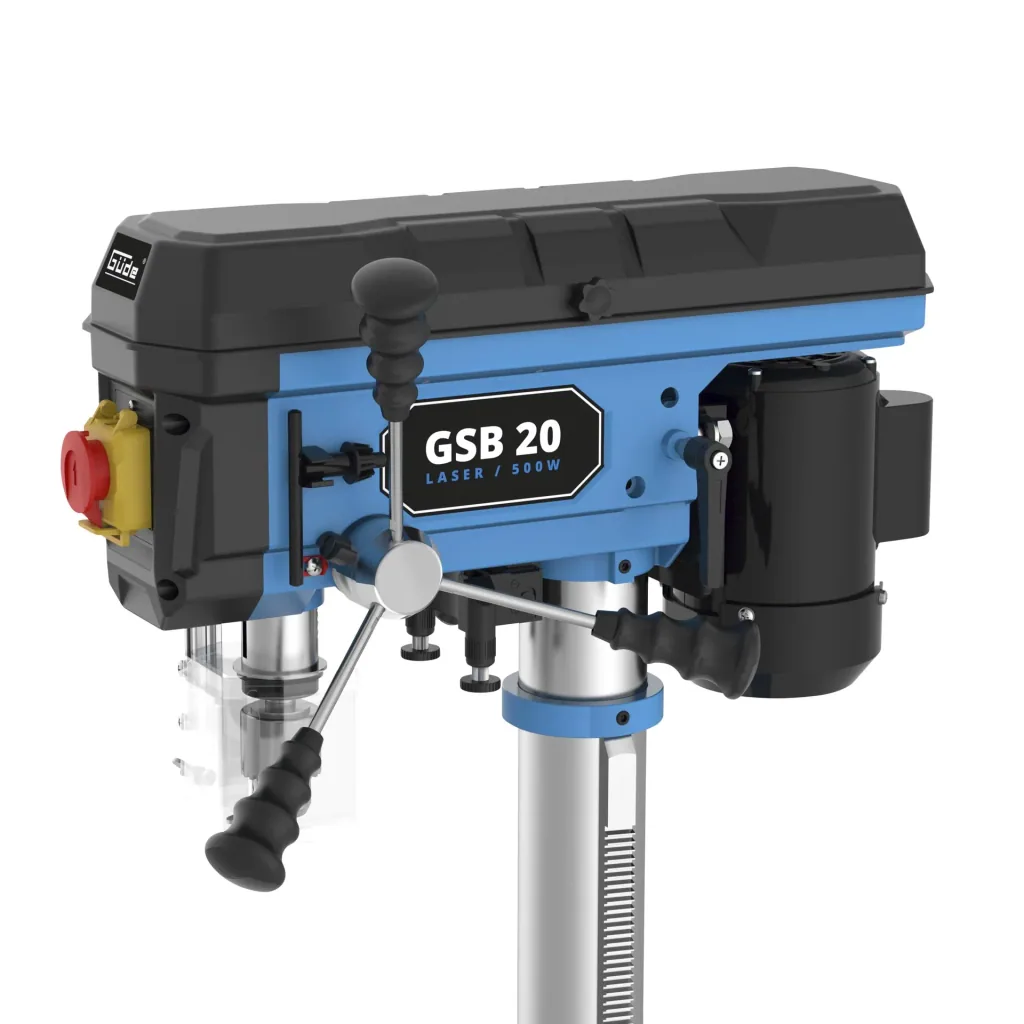

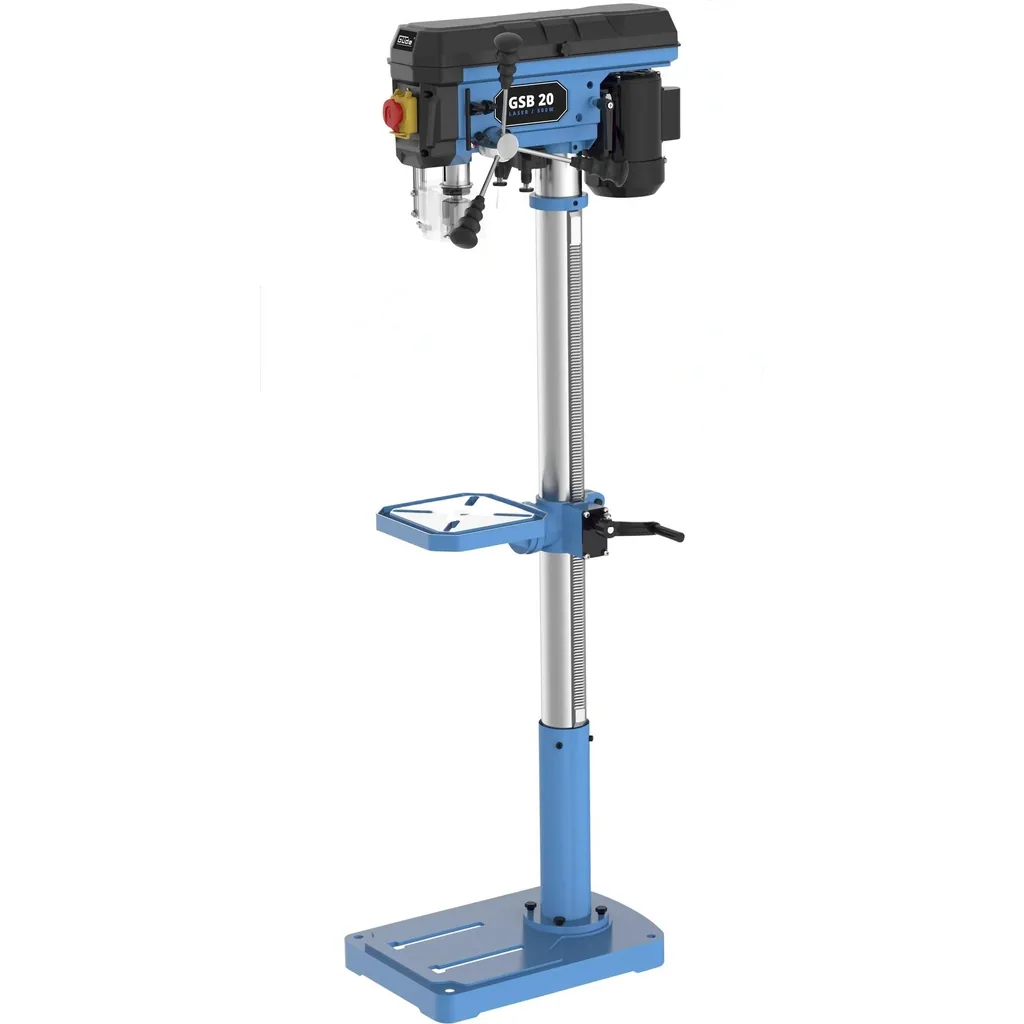

Kolomboormachine GSB 20 LASER/500W
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-953021 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- V-belt drive, speed adjustment via stepped pulley
- V-belt tensioning system
- Ball-bearing drill spindle
- Drill chuck cone B16
- Drill table size 210 x 210 mm
- Drill table height adjustable, tiltable +/- 45°
- Drill table with collecting troughs for coolant
- Adjustable drilling depth stop for precise drilling
- Max. distance between drill chuck and drill table 590 mm
- Max. Distance between drill chuck and base: 1200 mm
- Base size: 300 x 435 mm with slots for vice attachment
- Foldable chip guard with microswitch
- On/off switch with zero-voltage release
- Emergency stop switch

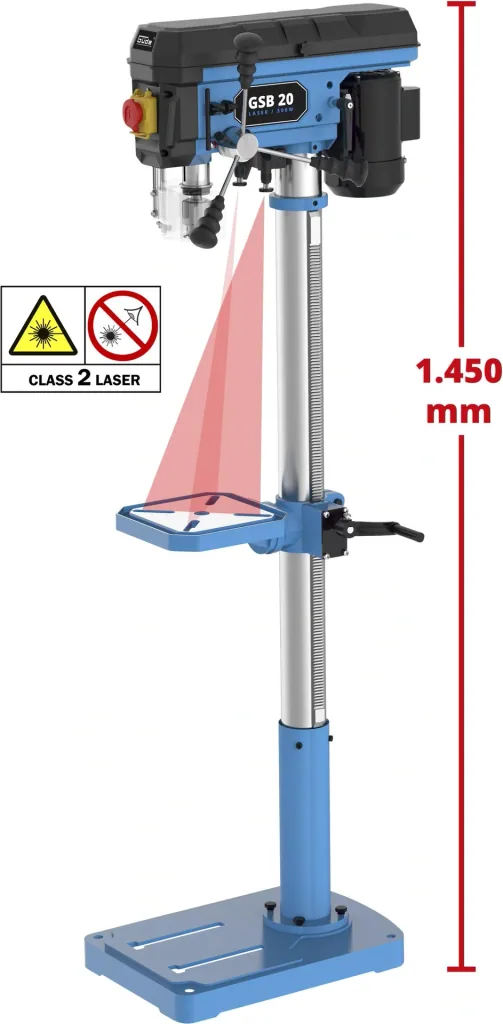

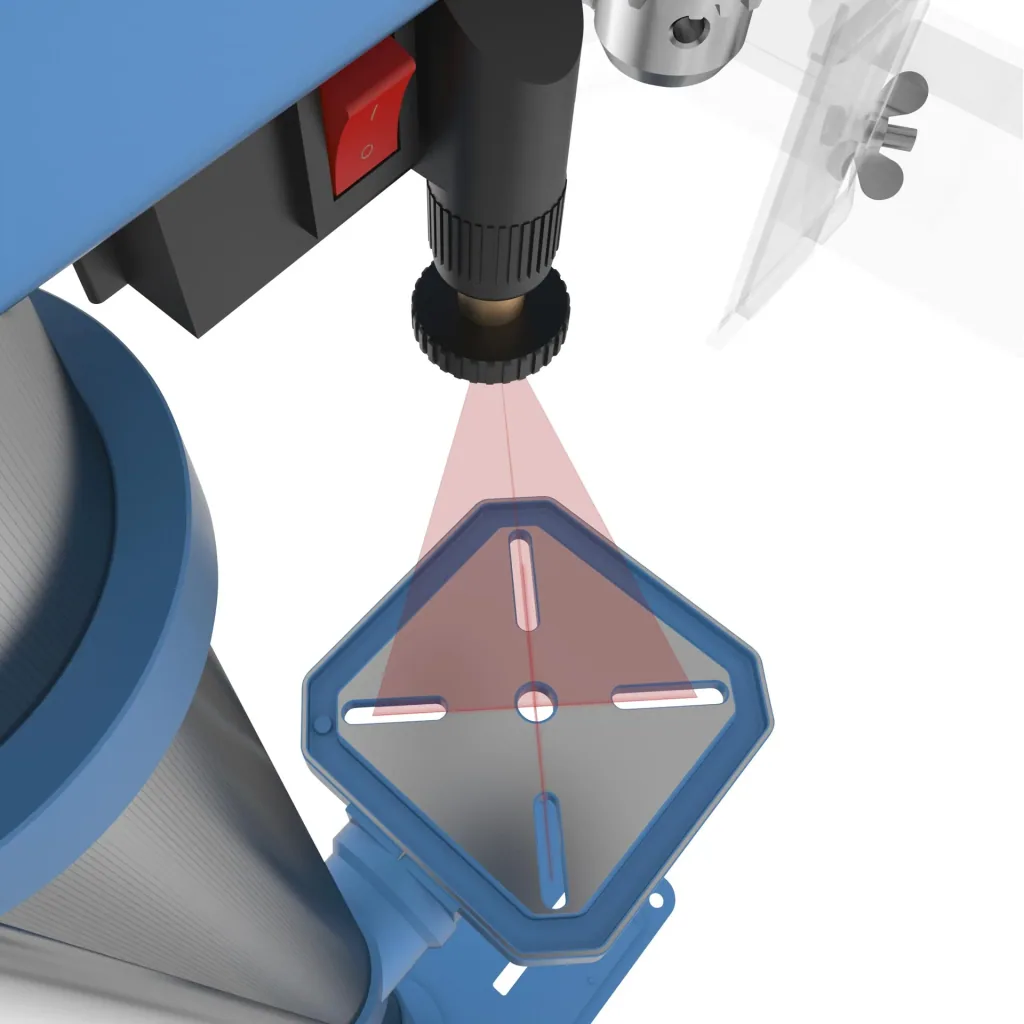

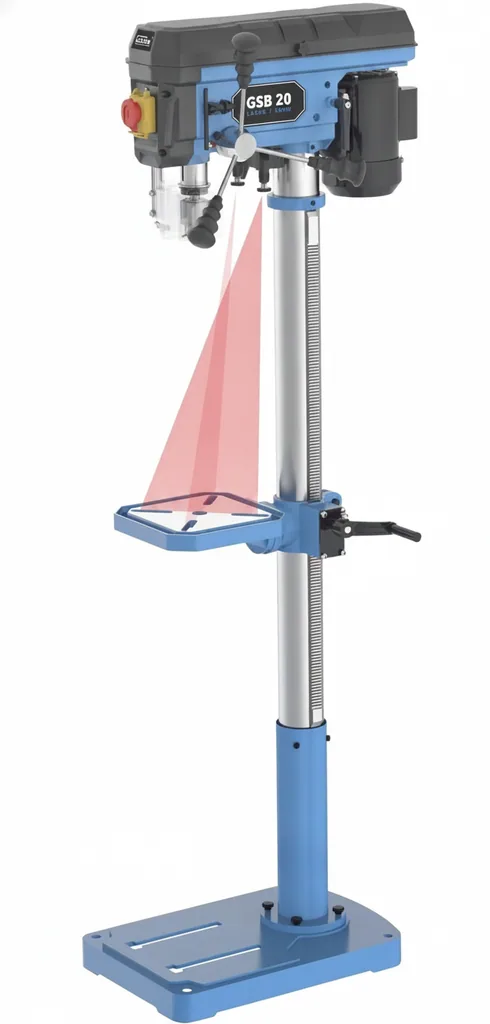

- Position laser for precise drilling results
Technical data:
- Mains voltage: 400 V
- Frequency: 400 V 50 Hz
- Operating mode: S2 15min
- Protection class: I
- Engine performance P1: 500 watts
- Spindle stroke: 50 mm
- Spindle speed: 500-2600 min-1
- Number of stages: 5
- Outreach: 140 mm
- max. Drill chuck span: 16 mm
- min. Drill chuck span: 3 mm
- Drill chuck cone: 16 B
- Drilling diameter for steel: 16 mm
- Table: 210 x 210 mm
- Footplate W x D: 300 x 435 mm
- Diameter of the column: 70 mm
- Length of the connection cable: 200 cm
- Noise value LWA: 71 dB
Dimensions L x W x H: 540 x 350 x 1450 mm
Weight: 26.64 kg
| External dimensions | |
|---|---|
| External dimensions | 540 x 350 x 1450 |
| Table size | |
| Table size | 210 x 210 mm |
| Projection | |
| Projection | 145 mm |
| Drill chuck type | |
| Drill chuck type | Keyed chuck |
| Number of gears | |
| Number of gears | 5 |
| Noise level | |
| Noise level | 86 |
| Drive | |
| Drive | Manual |
| Drive | 230V motor |
| Protection class | |
| Protection class | I |
| Weight | |
| Weight | 26.644 kg |
| Power output | |
| Power output | 500 W |
| Drill chuck width | |
| Drill chuck width | 16 mm |
| No-load speed | |
| No-load speed | 2600 rpm |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| IP protection class | |
| IP protection class | IPX0 |
| Spindle mount | |
| Spindle mount | 2 MK |
Naam EU-verantwoordelijke: GÜDE GmbH & Co. KG
EU-verantwoordelijke straat: Birkichstrasse
EU-verantwoordelijke Huisnummer: 6
Postcode EU-verantwoordelijke: 74549
EU-verantwoordelijke gemeente: Wolpertshausen
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +496871909137

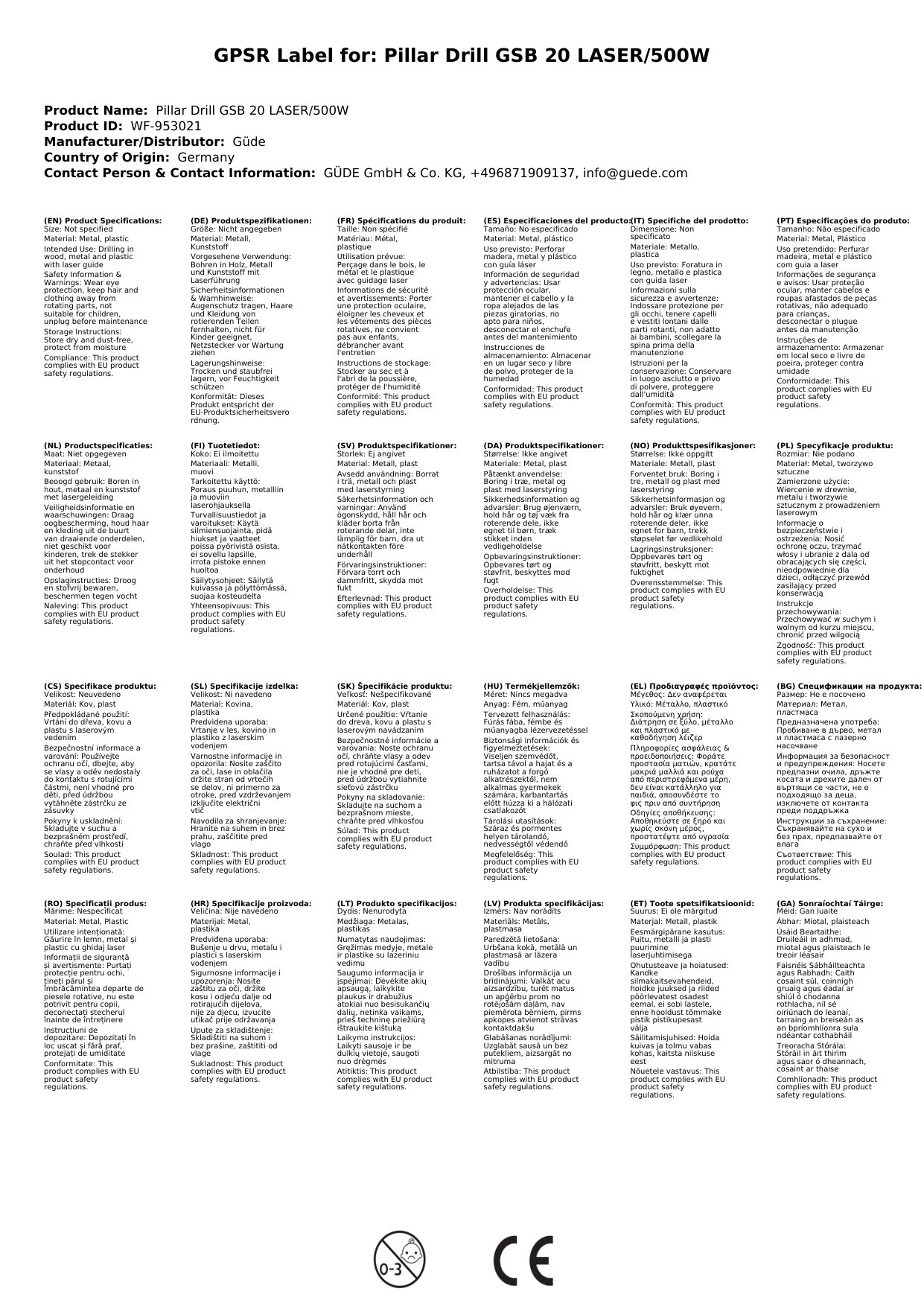

GPSR bijlage:
Downloaden
