Tafelboormachine GTB 13/355
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-952990 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- V-belt drive, speed adjustment via stepped pulley
- V-belt tensioning system
- Ball-bearing drill spindle
- Keyed drill chuck 1.5 - 13 mm
- Drill chuck cone B16

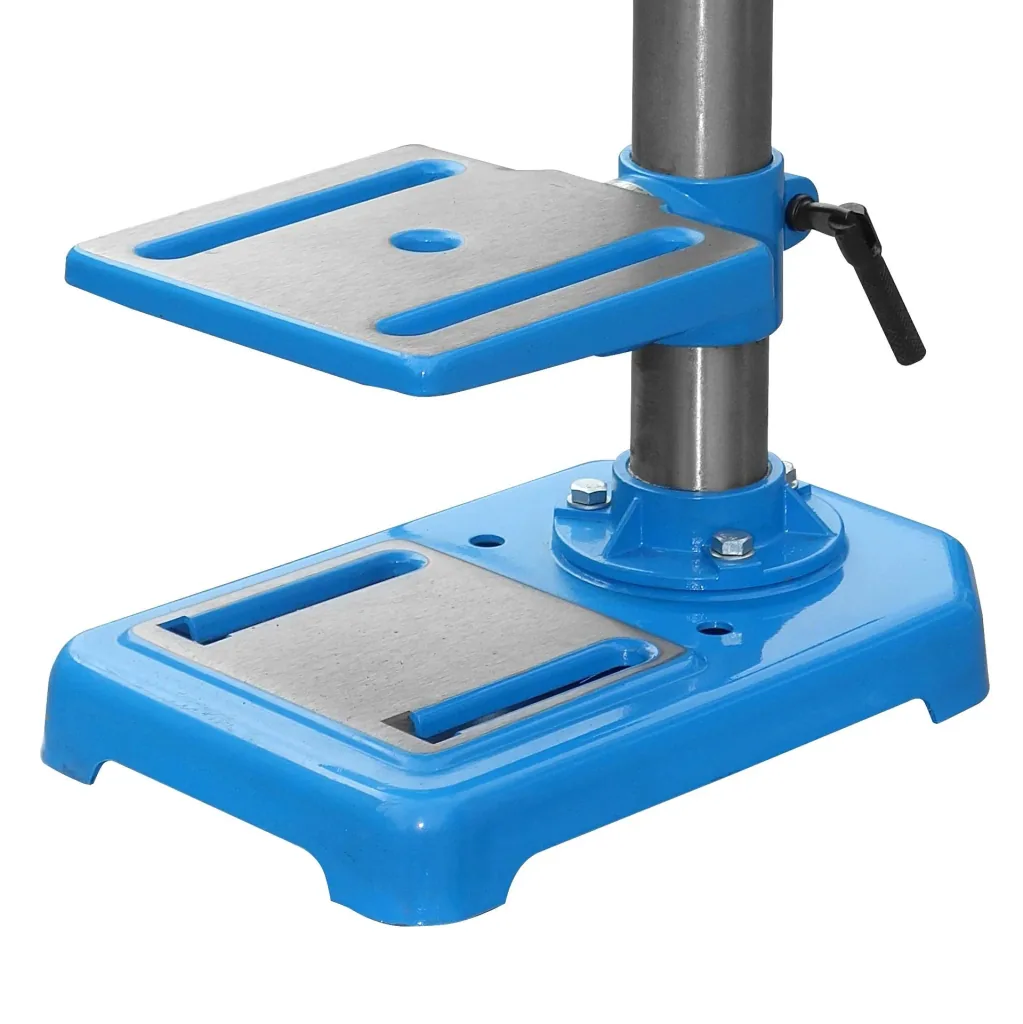

- Drill table size 160 x 160 mm
- Drill table height adjustable, +/- 45° tiltable and 360° pivotable
- Adjustable drilling depth stop for precise drilling
- Max. distance between drill chuck and drill table 175 mm
- Max. Distance between drill chuck and base: 255 mm
- Base size: 190 x 300 mm with slots for vice attachment

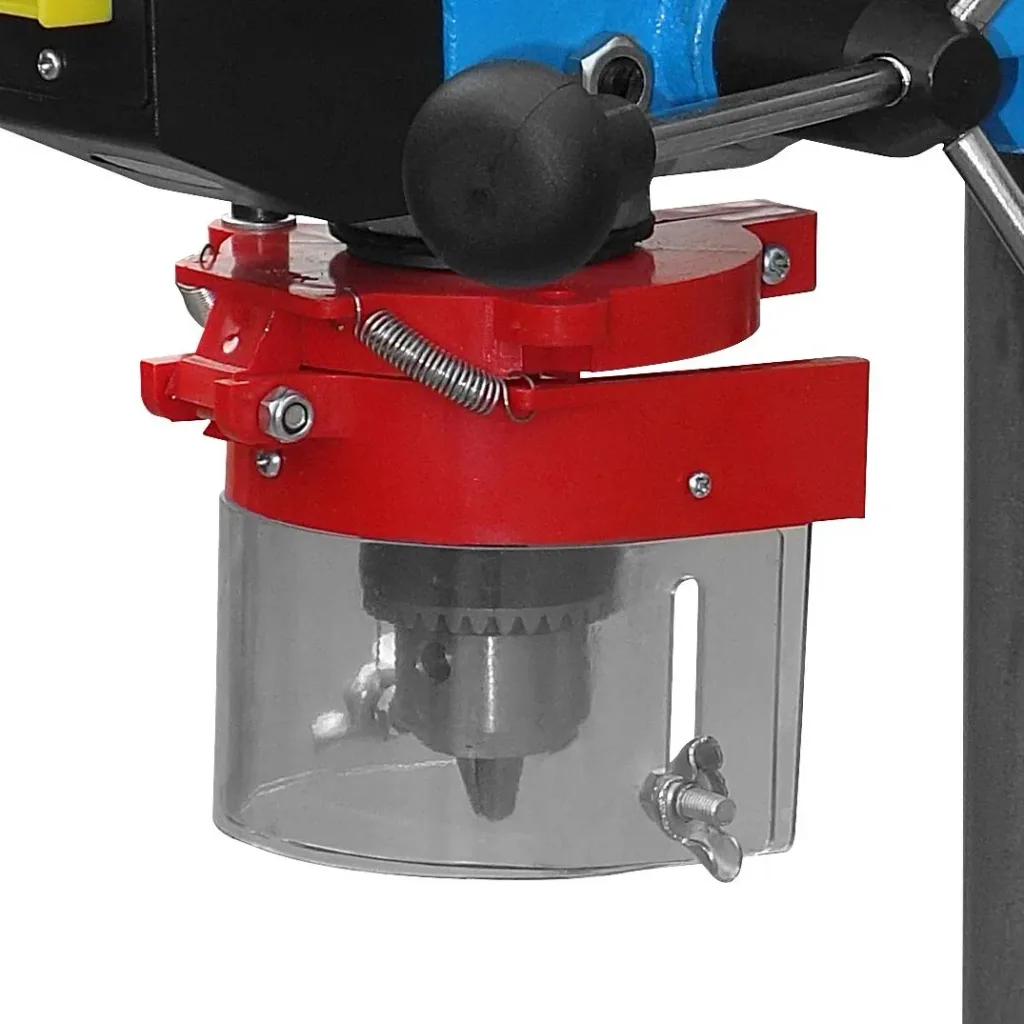

- Foldable chip guard
- On/off switch with zero-voltage release
Table drilling machine for precise series drilling in wood and metal, with step drive.
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Operating mode: S1
- Protection class: I
- Engine power P1: 350 W
- Spindle stroke: 50 mm
- Spindle speed: 580-2650 min-1
- Number of stages: 5
- Projection: 105 mm
- max. Drill chuck span: 13 mm
- min. Drill chuck span: 1.5 mm
- Drill chuck cone: 16 B
- Spindle holder: 2 MK
- Drilling diameter for steel: 13 mm
- Width of the table: 160 mm
- Depth of the table: 160 mm
- Footplate W x T 190 x 300 mm
- Diameter of the column: 46 mm
- Length of the connection cable: 200 cm
- Cable type: H05VV-F
- Noise level LWA: 75 dB
Dimensions:
(L x W x H) 435 x 245 x 580 mm
Weight: 13.9 kg
Color: blue, black
Material: metal, plastic
| Protection class | |
|---|---|
| Protection class | I |
| Drive | |
| Drive | Manual |
| Drive | 230V motor |
| Weight | |
| Weight | 13.9 kg |
| Chuck type | |
| Chuck type | Keyed chuck |
| Number of gears | |
| Number of gears | 5 |
| Noise level | |
| Noise level | 75 |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| External dimensions | |
| External dimensions | 435 x 245 x 580 |
| Table size | |
| Table size | 160 x 160 mm |
| Projection | |
| Projection | 105 mm |
| Colors | |
| Colors | blue |
| Chuck width | |
| Chuck width | 13 mm |
| Colors | |
| Colors | black |
| Power output | |
| Power output | 350 W |
| No-load speed | |
| No-load speed | 2650 rpm |
Naam EU-verantwoordelijke: GÜDE GmbH & Co. KG
EU-verantwoordelijke straat: Birkichstrasse
EU-verantwoordelijke Huisnummer: 6
Postcode EU-verantwoordelijke: 74549
EU-verantwoordelijke gemeente: Wolpertshausen
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +496871909137

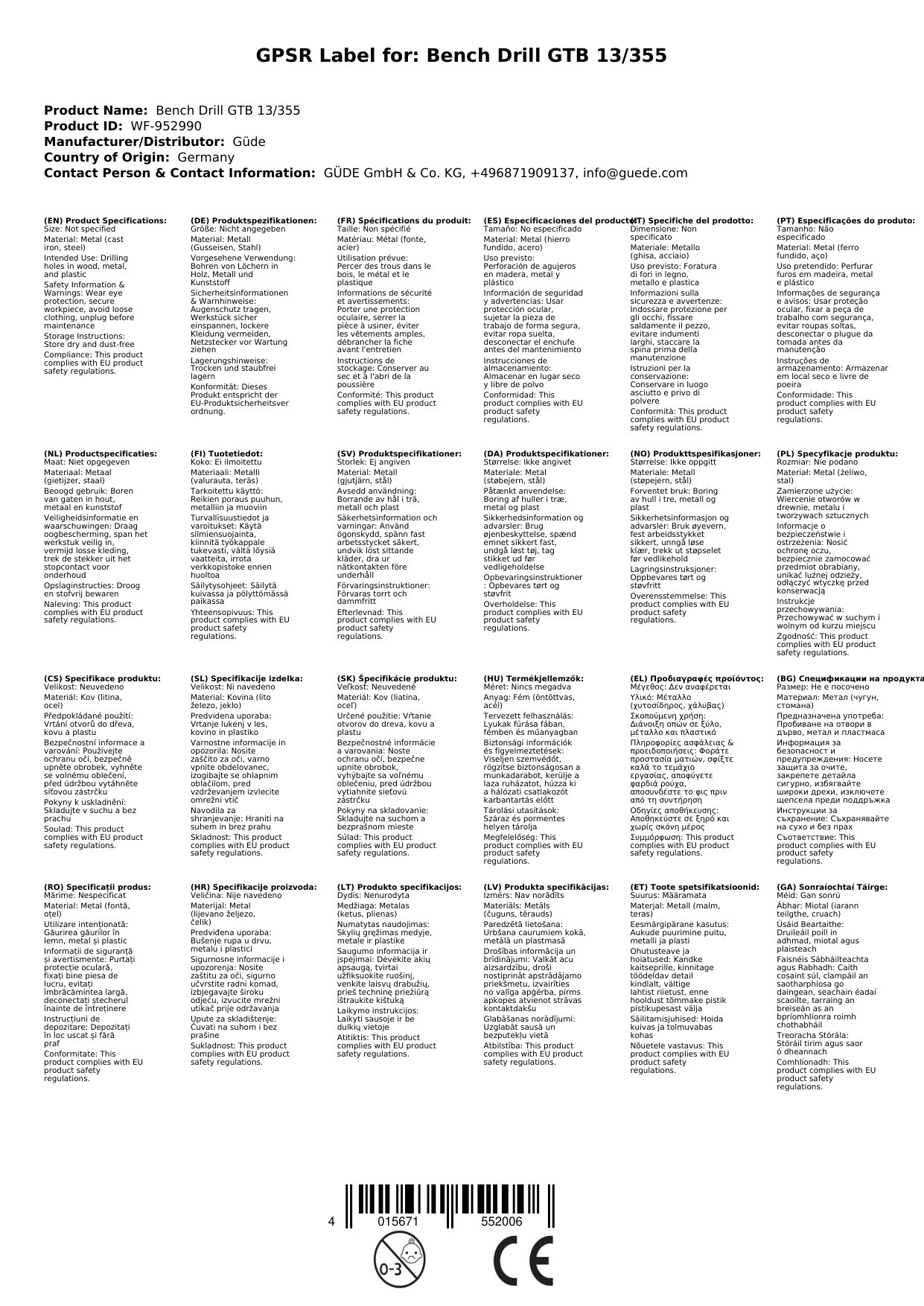

GPSR bijlage:
