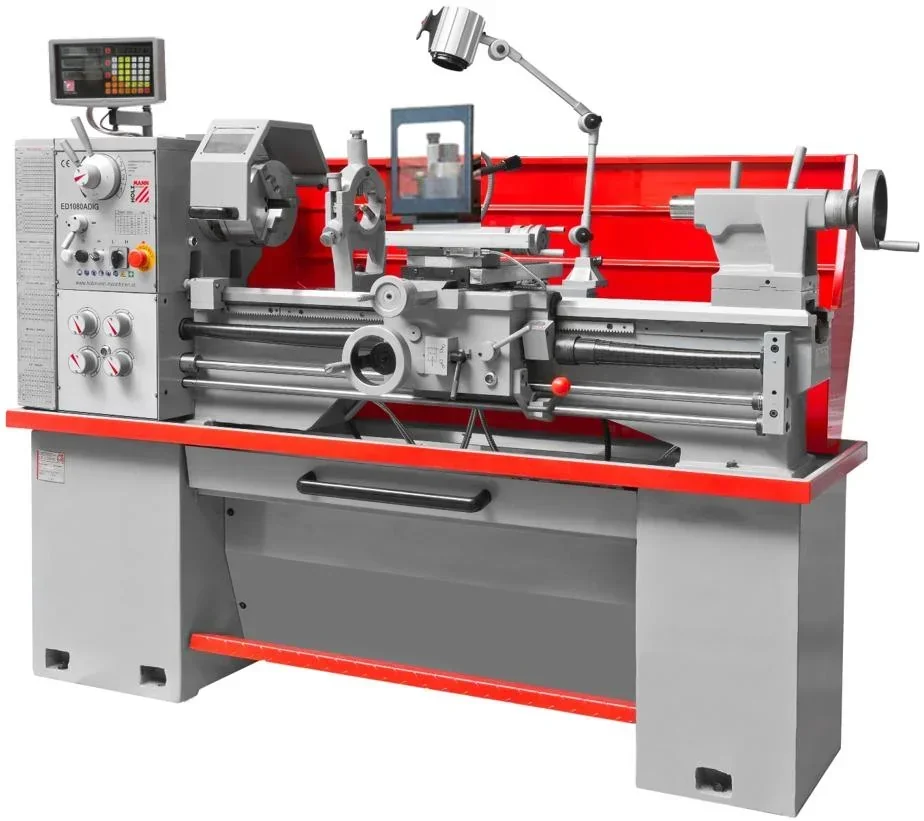

Metal lathe ED1080ADIG 400V
| Artikelnummer | WF-951427 |
| Merk | Holzmann |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- Standard oversized spindle bore with Ø 52mm enables machining
- Large shaft diameter
- Foot brake - for maximum safety and minimal idle times thanks to immediate spindle stop
- Induction hardened and precision ground prism bed guideway
- Removable bridge enables the machining of workpieces with
- diameters up to Ø 520 mm
- Extremely smooth running thanks to precisely machined gear components and
- vibration-reducing cast iron machine bed
- Large digital display for easier operation
Scope of delivery: 3-jaw chuck Ø200mm, 4-jaw face plate Ø200mm, clamping disk, 2 fixed center centers MK4, steady rest (fixed and moving), cast iron base, spindle brake, thread gauge, quick-change holder, coolant system,
Technical data:
Motor power S1 in W 2.2 kW
Voltage 400V / 3 / 50Hz
Center distance in mm 1080
Center height in mm 200
Max. swing diameter of bed in mm 400
Max. swing diameter of cross slide in mm 250
Max. Swing diameter without bridge in mm 520
Spindle speed in min-1 65-1810
Spindle bore in mm 52
Spindle mount MK/MT6
Tailstock taper MK/MT4
Longitudinal slide travel in mm 1080
Cross slide travel in mm 230
Top slide travel in mm 210
Quill travel in mm 115
Metric thread in mm/r 0.4-7
Inch thread 4-60 TPI
Max. Tool holder 20x20 mm
Longitudinal feed 0.0527-1.2912 mm
Cross feed 0.011-0.276 mm
Weight
Net weight in kg 630
| Power output | |
|---|---|
| Power output | 2,400 W |
| Center height | |
| Center height | 200 mm |
| Drive | |
| Drive | 380 V motor |
| Drive | Manual |
| Spindle bore | |
| Spindle bore | 52 mm |
| Spindle mount | |
| Spindle mount | 6 MK-MT |
| Top slide travel | |
| Top slide travel | 210 mm |
| Voltage | |
| Voltage | 400 V |
| Spindle travel | |
| Spindle travel | 115 mm |
| Center distance | |
| Center distance | 1,080 mm |
| Thread cutting range | |
| Thread cutting range | 0.4 mm |
| External dimensions | |
| External dimensions | 2,080 x 810 x 1,580 mm |
| Weight | |
| Weight | 845 kg |
| Tailstock mount | |
| Tailstock mount | 4 mm |
| Carrying case | |
| Carrying case | No |
| Noise level | |
| Noise level | 78 |
| Cross travel | |
| Cross travel | 1,080 mm |
