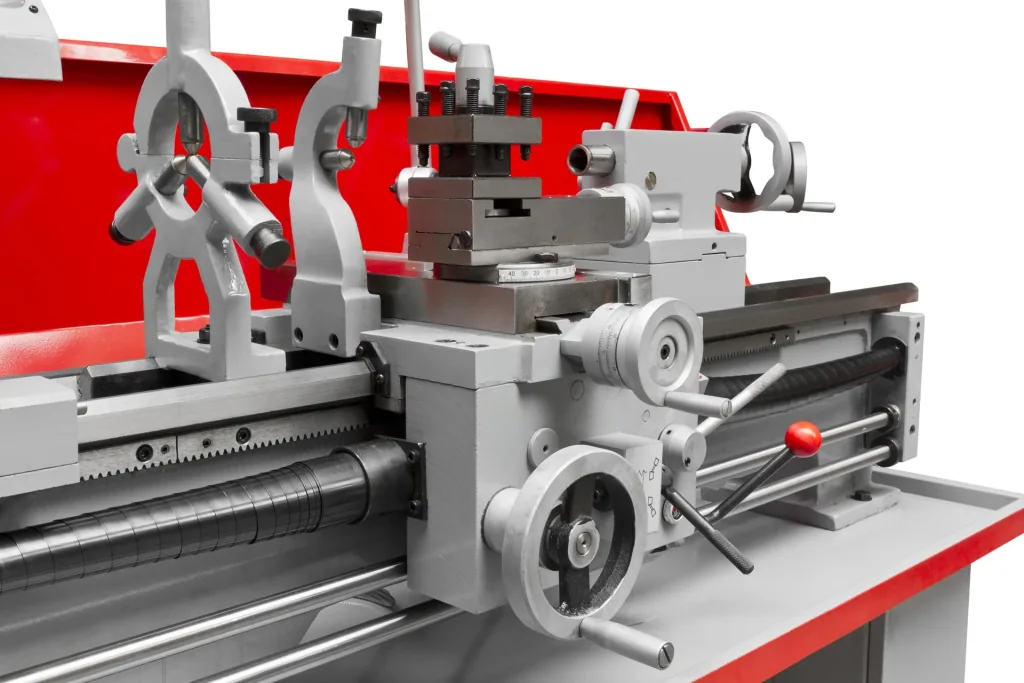

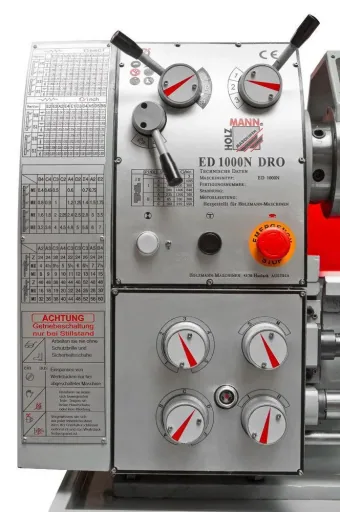

Metal lathe with digital display ED1000N DIG_400V

• Simple and quick speed change via gear shift
• Heavily ribbed prism bed made of gray cast iron, induction hardened and ground
• Removable bridge, enables the machining of large workpieces
• Hardened and ground main spindle ensures high concentricity
• Gear and feed gear running in an oil bath ensure a long service life
• Lead and feed spindle can be easily switched off
• Guides are easy to adjust using V-ledges
• 4-way tool holder for clamping multiple moving irons
• Hardened and ground gear wheels ensure absolutely smooth running
• Including slip clutch, halogen light and spindle cover
• CAMLOCK spindle mount D1-4, DIN 55029
• Large digital display for easier operation

Scope of delivery:                                                                                                                                                                                                         3-jaw chuck with interchangeable jaws Ø160 mm, face plate, chuck guard, machine base, splash guard, fixed steady, moving steady, chip tray, 4-way tool holder, change gear set, 2x fixed centers MK3, thread gauge, operating tools, reducer MK5/MK3, halogen lamp

Technical data:

Motor power S6 in W 1500

Motor power S1 in W 1100

Voltage 400V

Lathes

Longitudinal feed 0.079-1.291

Cross feed   0.017-0.276

Spindle bore in mm     38

Spindle mount     MK5/MT5

Tailstock taper        MK3/MT3

Max. swing diameter of cross slide in mm   198

Max. swing diameter without bridge in mm     450

Spindle speed in min-1     65-1810

Metric thread in mm/r      0.7-7

Inch thread   4-60

Cross slide travel in mm 160

Top slide travel in mm 80

Center distance in mm 1000

Max. bed swing diameter in mm 332

Center height in mm 165

Weight

Net weight in kg 550
