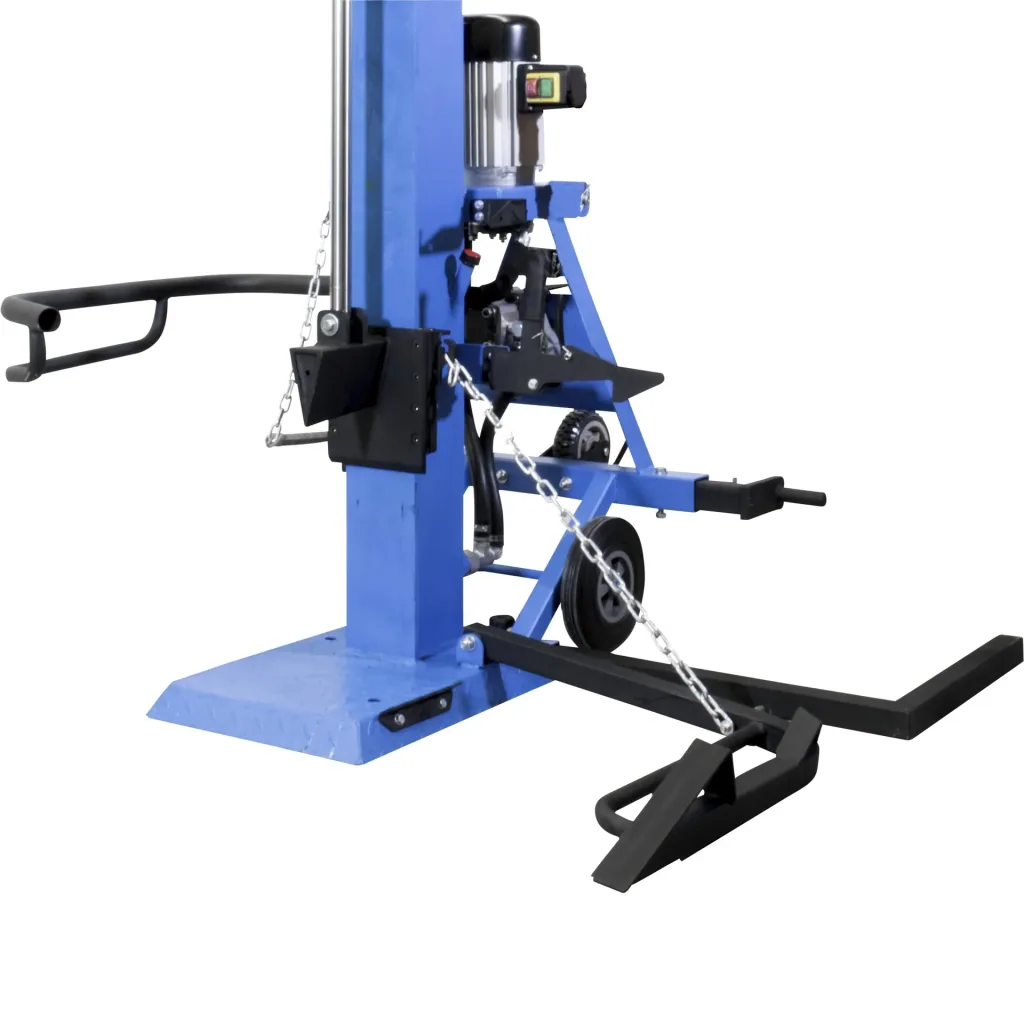

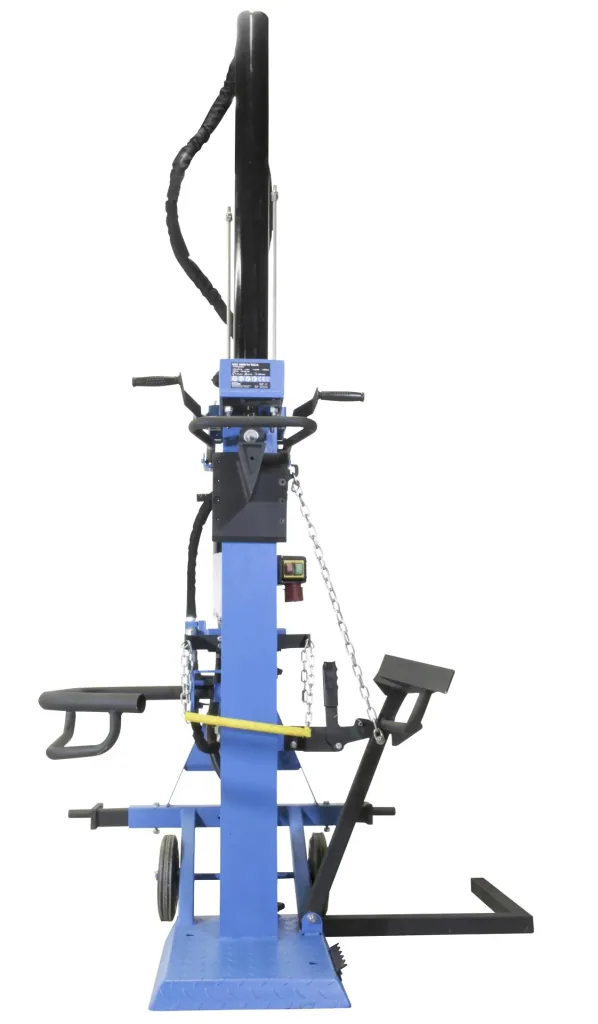

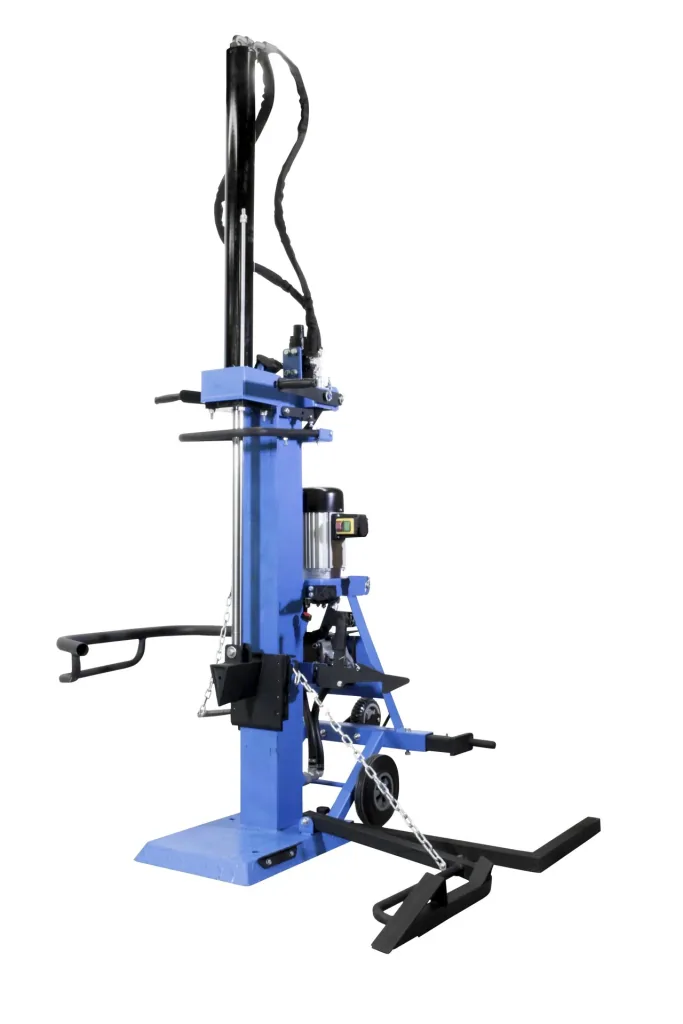

Houtklover "GHS 1000/20TEZ-A"

• Complies with the latest quality and safety standards: With splitting knife made of special steel with a long service life
• With three-point hitch

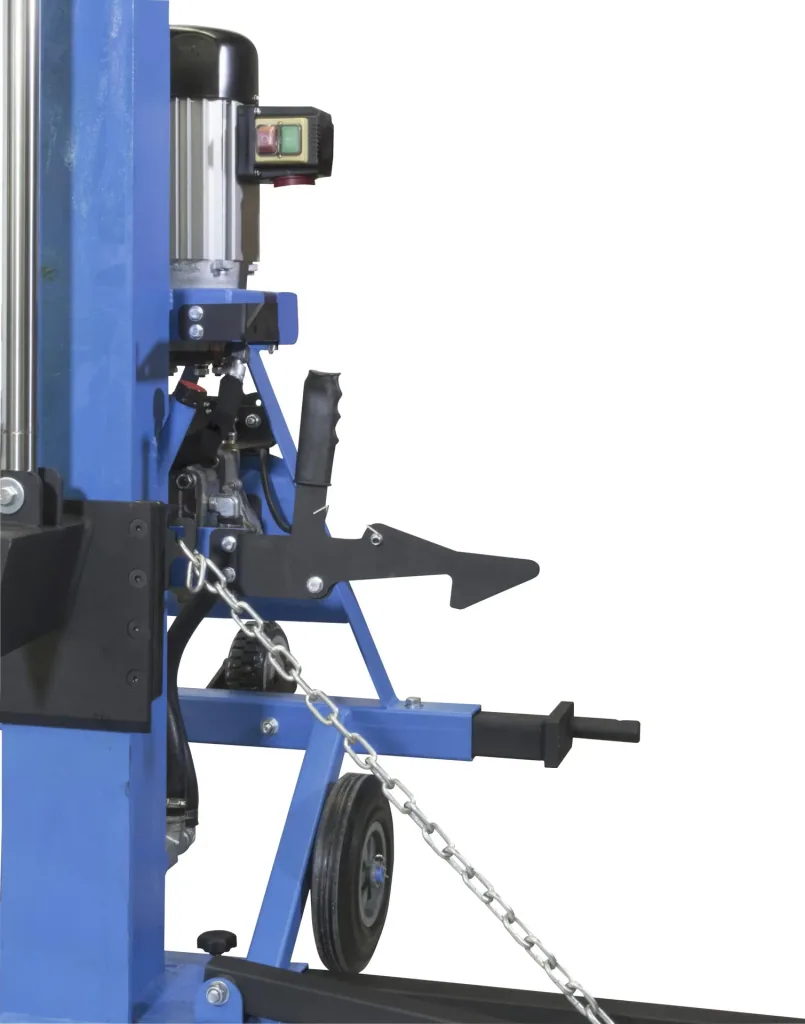

• Hydraulic-mechanical log lifter: Combined drive with 2 hydraulic pumps

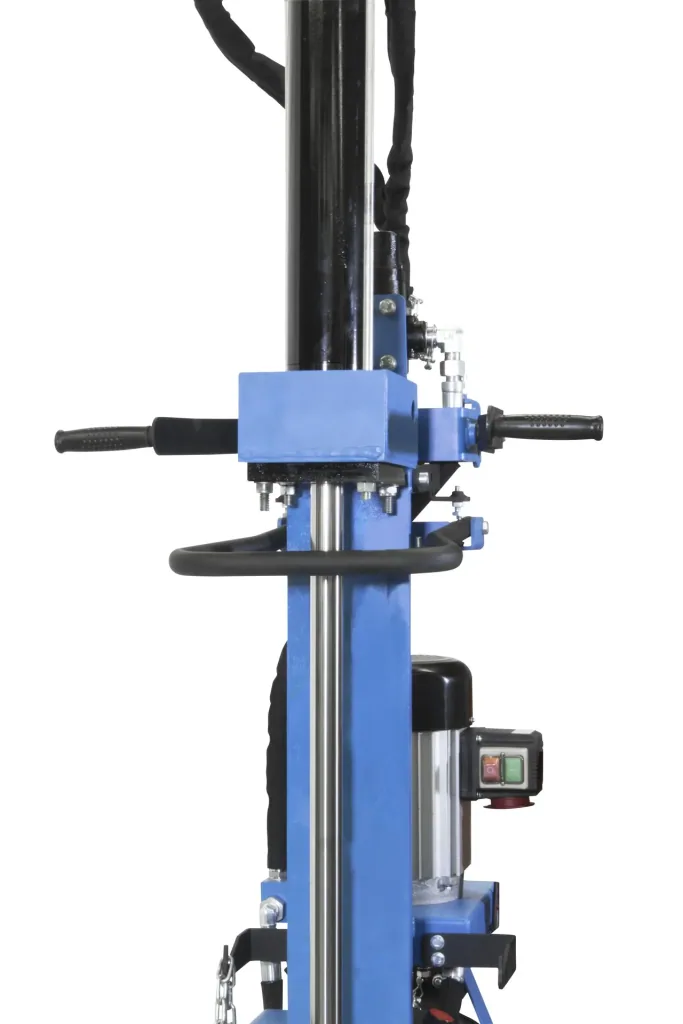

• Highest safety at work: 2-hand safety operation, support boom for secure standing and splitting material fixing device
• Powerful electric motor
• Switch-plug combination with phase inverter
• Alternative drive or PTO transmission
• Splitting material catch bracket on both sides
• Automatic resetting of the splitting wedge with safety shutdown
• Two speed levels
• Plug-in transport drawbar with steering roller

The "GHS 1000/20TEZ-A" log splitter is certified according to Developed according to the latest quality and safety standards, the "Kombi" log splitter is ideal for splitting meter-long logs in the forest or on home property. The powerful 5.5 kW electric motor powers one of the two highly effective hydraulic pumps and a precisely graduated control valve, allowing the operator to choose between two feed speeds. The three-point linkage and PTO transmission also enable mobile use with a tractor in the forest or at the polder camp. The hydraulic-mechanical log lifter effortlessly positions even heavy logs, ensuring back-friendly and comfortable splitting. The log securing device allows the log to be secured before the splitting process without the hassle of holding it. The long splitting blade is made of partially hardened special steel for a long service life. The automatic resetting of the splitting wedge with integrated safety shut-off offers optimal protection and ensures efficient and fatigue-free splitting. The 2-hand safety operation, the on-off switch, as well as the splitting material catch bar on both sides are further measures for safe and effective work. The three-point linkage and the transport drawbar enable effortless transport and maneuvering.

Technical Data

Mains voltage: 400 volts

Frequency: 50 Hertz

Operating mode: S6/40%

Engine power (P1): 5.5 kW

Engine speed: 1420 rpm

PTO speed: 540 rpm

Tractor power: 22/30 kW / HP

Hydraulic oil capacity: 13 liters

Hydraulic pressure: 270 bar

Footplate W x D: 450 x 600 mm

Hydraulic oil type: HLP46

Cylinder stroke: 960 mm

Max. splitting pressure: 20 t

Splitting material length: 1000 mm

Number of forward speeds: 2

Forward speed: 0.2 / 0.05 (fast/slow) m/s

Reverse speed PTO: 0.1 m/s

Forward speed PTO: 0.3 / 0.07 (fast/slow) m/s

Reverse speed: 0.07 m/s

Max. Splitting material Ø: 450 mm

Noise level LWA: 89 dB

Three-point hitch: CAT. 1

Dimensions:

Item dimensions (L x W x H): 1210 x 1380 x 2500 mm

Base plate W x D: 450 x 600 mm

Color: Blue, Black

Material: Metal, Plastic

Splitting blade: Special steel with a long service life

Weight: 325 kg

Scope of delivery

·        1 x log splitter GHS 1000/20TEZ-A

·         1 x User Manual
