Car battery charger LI 7-3.5A 7 A

• For Li-Ion batteries
• 7-stage automatic charging cycle
• Error display
• Charging progress in %
• Convenient connection
• Suitable for 6 / 12 volt batteries

The Li 7 microprocessor charger from AEG is a charger specifically designed for Li-Ion batteries, designed to optimally charge them with their specific charging requirements, unlike conventional car battery chargers.

The charger is equipped with a microprocessor (MCU - Micro-Computer Unit) and has fully automatic charging, diagnostic, rescue, and maintenance functions.

After selecting the connected battery (6 volts or 12 volts), the charger detects the battery capacity and condition and calculates the required charging parameters (charging voltage, charging current). This enables efficient and safe charging.

If the battery voltage is set incorrectly, or if the battery is defective, no charging will take place and the "Error" LED will light up.

The "trickle charge" function allows the charger to remain connected permanently. The full charge level is maintained.

Technical data

• Operating voltage: 230 volts
• Input current: max. 1.5 A
• Recommended battery capacity at 12 volts max.: 129 Ah
• Recommended battery capacity at 6 volts max.: 70 Ah
• Charging current at 12 volts: 7 A, at 6 volts: 3.5 A
• Protection class: IP65
• Overvoltage protection
• Trick charge

·        Display: V = battery voltage, A = charging current, % = battery charge level in percent

Dimensions (L x W x H) 320 x 230 x 75 mm, weight 1.23 kg

Scope of delivery:

•  Microprocessor charger LI 7

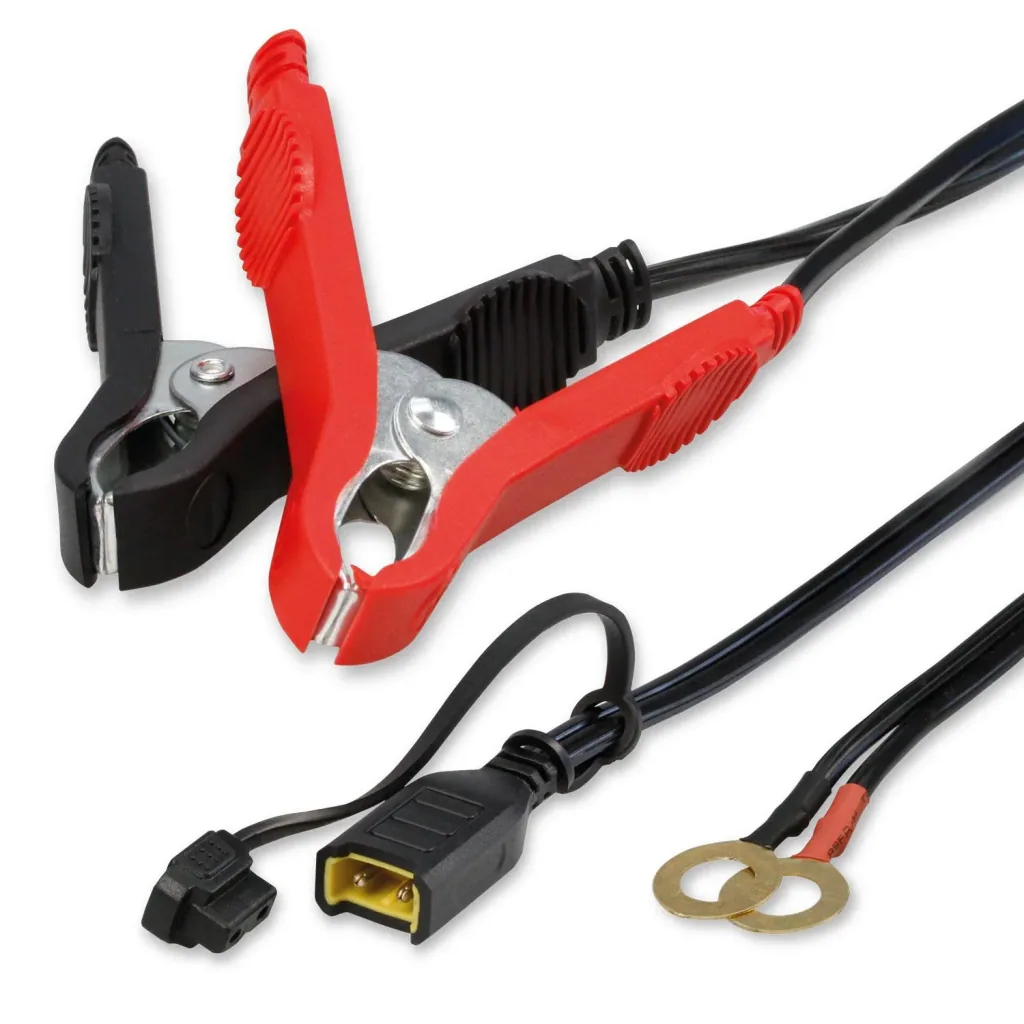

•  Pole connection cable with terminals
•  Pole connection cable with eyelets (10 mm)
•  Operating instructions.
