TX-128 surveillance camera set with 7" touchscreen

Digital, wireless, weatherproof outdoor radio camera system with recording function.

Expandable with up to 3 cameras.

You can obtain these via the shop search with the item number 949829 or further down as accessories.

Special features

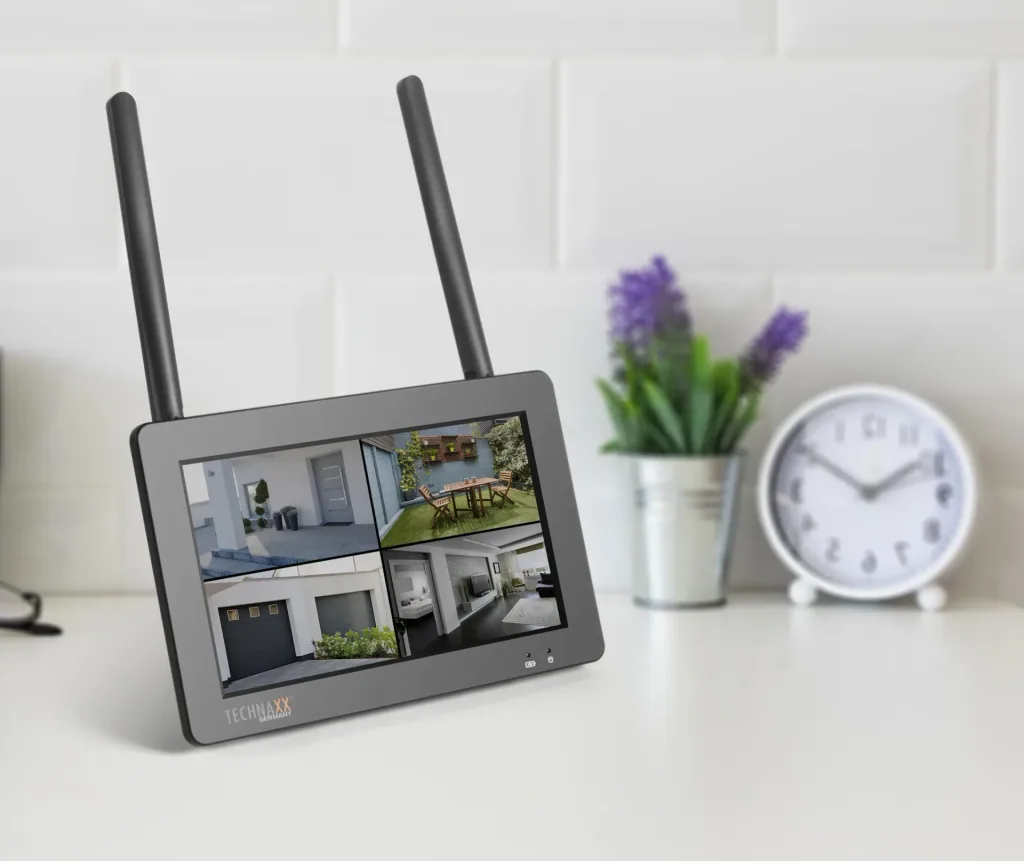

• 7" monitor with touchscreen for live view of up to 4 cameras
• Recorder & receiver & monitor in one device
• Full HD IP camera for outdoor use (IP66)

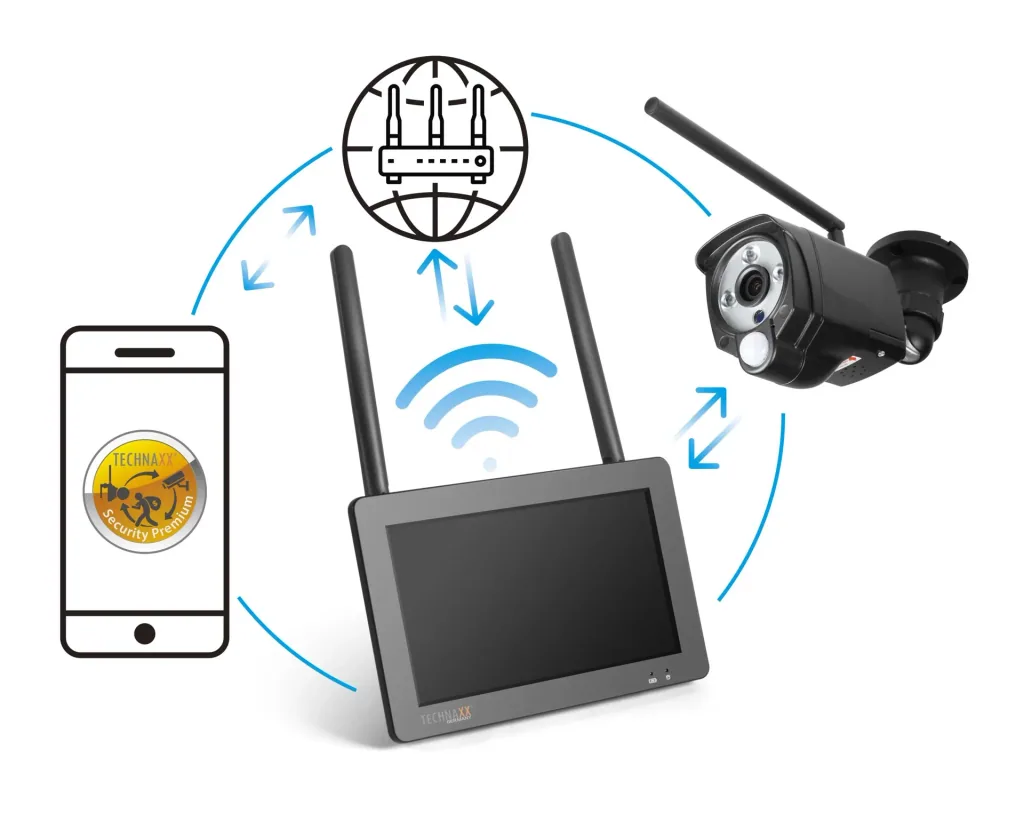

• Wireless radio video transmission between camera and monitor
• Camera has infrared LEDs for night vision (b/w)
• Live monitoring via free iOS & Android app (worldwide)
• Alarm function (push notification) on your smartphone
• Integrated microphone & speaker for 2-way communication
• H.264/H.265 video compression (for space-saving, high-quality recordings)
• Continuous loop recording with automatic overwriting
• Save recordings on a MicroSD card up to 128GB* (*not included)

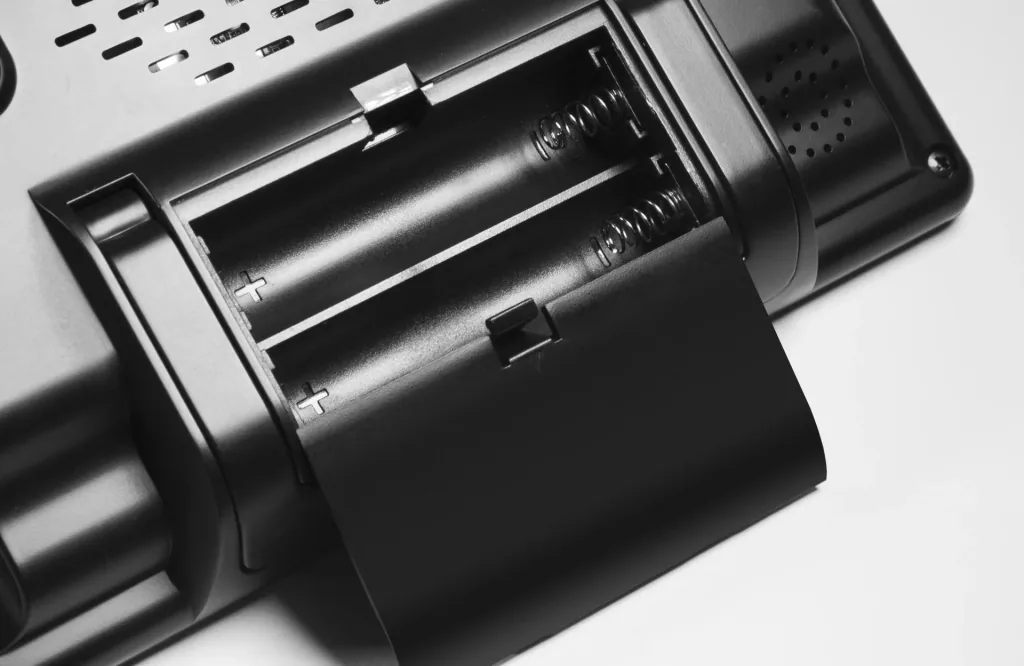

• Battery operation of the monitor for approx. 2h

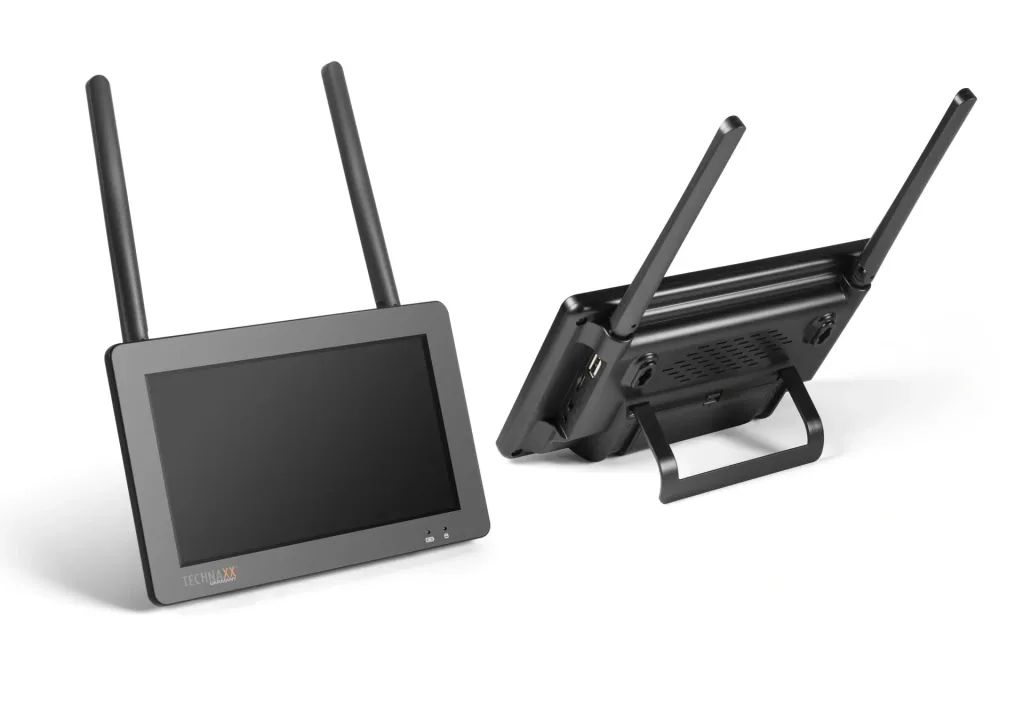

Technical data monitor

• Screen size: 7” (17.8cm); touch screen, 1024x600 pixels
• Network interface: 2.4GHz WLAN; Radiated transmission power: max. 100mW
• Connection 30m open field to the router
• Supports MicroSD cards (HC/XC) up to 128GB (FAT32/exFAT) class10
• File size (night; B/W): 1 MB/min (32 GB min. 10 days recording - one camera)
• File size (day; color): 4.5 MB/min (32 GB min. 5.0 days recording - one camera)
• Power supply: DC 5V/2.5A; Power consumption: max. 8W
• Operating conditions: 0°C~+40°C, humidity max. 80% (non-condensing)

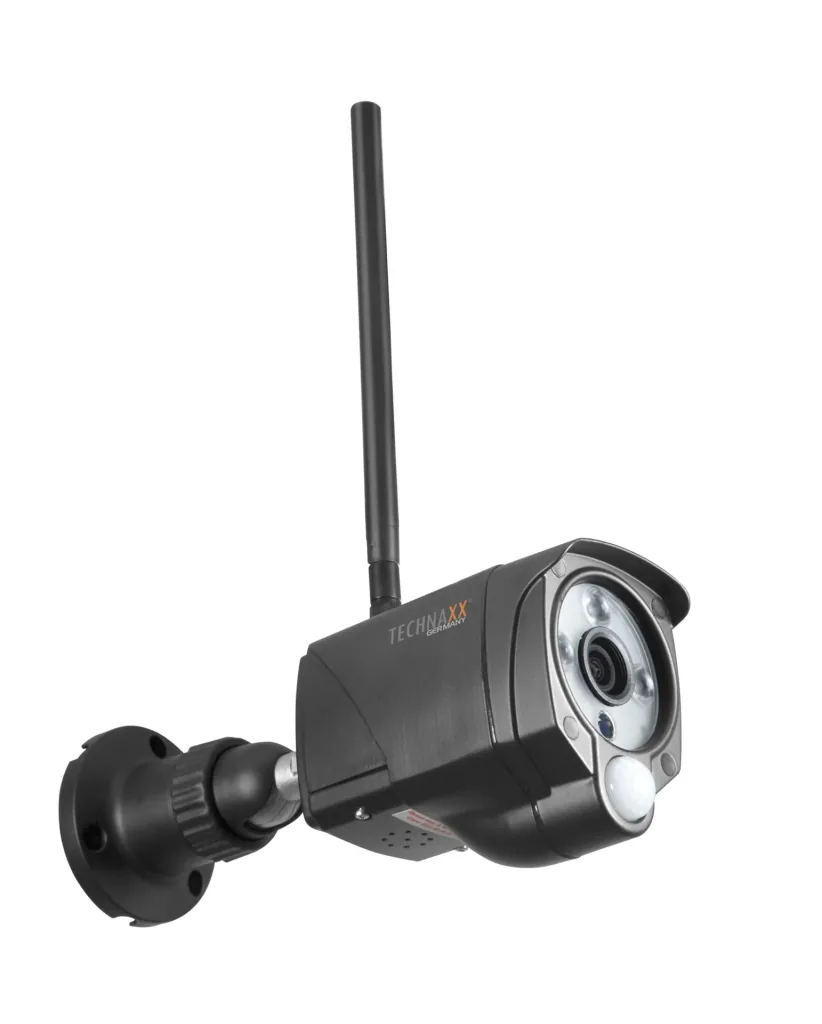

Technical specifications camera:

• Color sensor: 1/2.9" CMOS (2 MP)
• Minimum illumination: 0.1 Lux @ (F2.0, AGC ON), 0 Lux with 3x IR LEDs
• Lens / Shutter: f=3.6mm / 1/25s ~1/25000s
• Network interface: 2.4GHz WLAN; Radiated transmission power: max. 100mW
• Connection 100m open field to the monitor
• Power supply: DC 12V / 1A; Power consumption: max. 6W
• Operating conditions: 0°C~+40°C, humidity max. 80% (non-condensing)



App:

• "Security Premium": iOS 9.0 or later; Android 7.0 or later
• Languages: EN, DE, FR, ES, IT, NL, SE, DK, NO, FI, CZ, PO (06-2020)



Scope of delivery

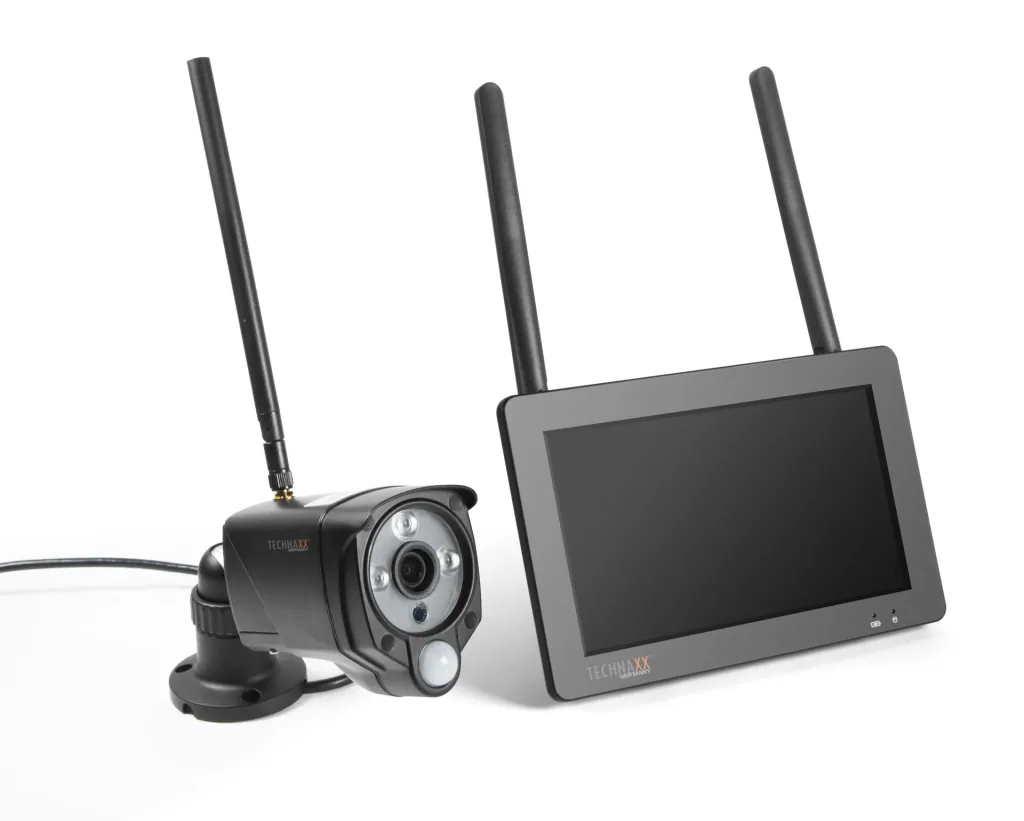

• Surveillance camera set with 7" touchscreen TX-128 (1x monitor & 1x camera)
• 1x 5V/2.5A power adapter
• 1x 12V/1A power adapter
• 2x batteries type 18650 2600mAh
• 5x screws & Dowels
• Instruction manual (short)


Weight

• Device weight (monitor): 500g
• Device weight (camera): 700g

Dimensions

• Device dimensions (monitor): (L) 19.1 x (W) 12.3 x (H) 3.2cm
• Device dimensions (camera): (L) 20.0 x (W) 8.0 x (H) 6.0cm (+18cm antenna)
