Kolomboormachine GSB 25

• V-belt drive, speed adjustment by
  Stepped pulley • V-belt tensioning system • Ball-bearing drill spindle • Keyless drill chuck 3-16 mm • Spindle mount MK3 and drill chuck taper B16 • Drilling table size 325 x 325 mm • Drilling table height adjustable, tiltable +/- 45° and pivotable 360° • Drilling table with collecting troughs for coolant • Adjustable drilling depth stop for precise drilling • Max. distance between drill chuck and drill table 550 mm • Max. distance between drill chuck and base 1100 mm • Base size 305 x 520 mm with elongated holes for vice attachment • Foldable chip guard • On/off switch with zero-voltage release • Right/left rotation

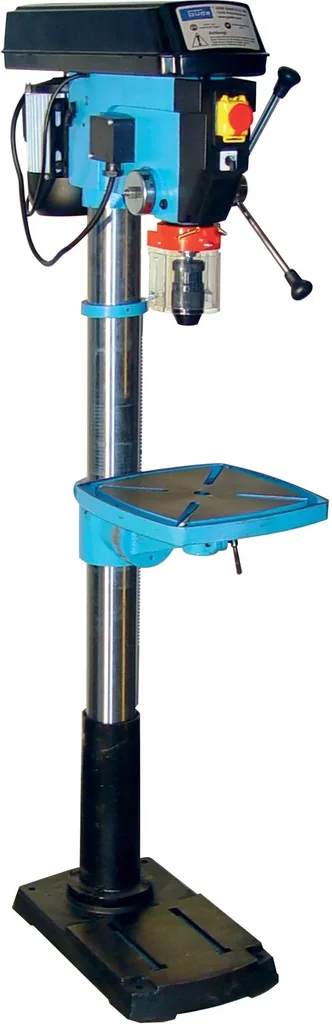

The Güde GSB 25 pillar drill with a motor power of 1100 watts is equipped with right/left rotation.

The drilling table size is 325 x 325 mm, is height-adjustable, can be tilted by +/- 45°, and can be swiveled 360°.

The drilling table is equipped with collecting channels for coolant and has an adjustable drilling depth stop for precise drilling.

The maximum distance from the drill chuck to the drilling table is 550 mm and from the base 1100 mm. Furthermore, the pillar drill has a foldable chip guard and an on/off switch with zero-voltage release.

Technical specifications:
Mains voltage: 400 V
Frequency: 50 Hz
Operating mode: S6 60%
Protection class: I
Protection type (IP): 44
Motor power P1: 1100 W
Spindle stroke: 120 mm
Spindle speed: 160 - 3000 min-1
Number of steps: 16
Throat: 215 mm
Max. drill chuck clamping width: 16 mm
Min. Drill chuck opening: 3 mm
Drill chuck taper: 16 B
Spindle mount: 3 MK
Drill diameter for steel: 25 mm
Table width: 335 mm
Table depth: 335 mm
Base plate W x D: 305 x 520 mm
Column diameter: 92 mm
Connection cable length: 93 cm
Cable type: H05VV-F
Dimensions L x W x H: 690 x 325 x 1,660 mm
Net weight: 78 kg
