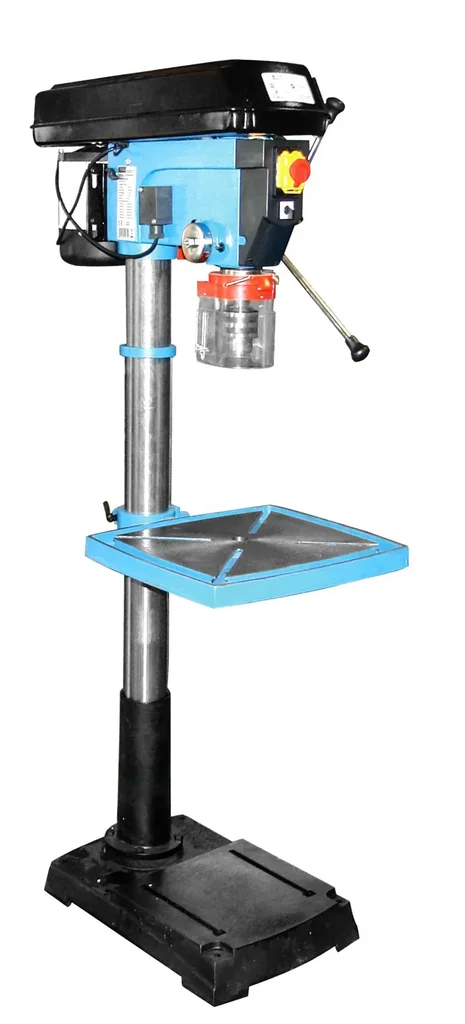

Kolomboormachine GSB 32
| Artikelnummer | WF-949092 |
| Merk | Güde |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
- V-belt drive, speed adjustment via stepped pulley
- V-belt tensioning system
- Ball-bearing drill spindle
- Keyed drill chuck 5-20 mm
- Spindle mount MK3 and drill chuck taper B22
- Drill table size 425 x 475 mm
- Drill table height adjustable, +/- 45° tiltable and 360° pivotable
- Drill table with collecting troughs for coolant
- Adjustable drilling depth stop for precise drilling
- Max. distance between drill chuck and drill table 610 mm
- Max. Distance from drill chuck to base: 1100 mm
- Base size: 400 x 595 mm with slots for vise attachment
- Foldable chip guard
- On/off switch with zero-voltage release
- Right/left rotation
The Güde GSB 32 pillar drill with a 1500-watt motor is equipped with right/left rotation. The drill table measures 425 x 475 mm, is height-adjustable, can be tilted by +/- 45°, and can be swiveled 360°. The drilling table is equipped with collecting channels for coolant and has an adjustable drilling depth stop for precise drilling.
The maximum distance from the drill chuck to the drilling table is 610 mm and from the base 1100 mm. Furthermore, the pillar drill has a foldable chip guard and an on/off switch with zero-voltage release.
Technical specifications:
Mains voltage: 400 V
Frequency: 50 Hz
Operating mode: S6 60%
Protection class: I
Protection type (IP): 32
Motor power P1: 1500 W
Spindle stroke: 120 mm
Spindle speed: 110 - 2880 min-1
Number of steps: 12
Throat: 260 mm
Max. drill chuck clamping width: 20 mm
Min. Drill chuck opening: 5 mm
Drill chuck taper: 22 B
Spindle mount: 3 MK
Drill diameter for steel: 32 mm
Drill diameter for wood: 16 mm
Table width: 425 mm
Table depth: 475 mm
Base plate W x D: 400 x 595 mm
Column diameter: 92 mm
Connection cable length: 93 cm
Cable type: H05VV-F
Dimensions L x W x H: 850 x 600 x 1,700 mm
Net weight: 114 kg
• Base plate W x D: 400 x 595 mm
• Column diameter: 92 mm
• Length of connection cable: 93 cm
• Base size 400 x 595 mm (with elongated holes for vice attachment)
Scope of delivery:
• 1 x Güde GSB pillar drill 32
| Table size | |
|---|---|
| Table size | 425 x 475 mm |
| External dimensions | |
| External dimensions | 850 x 600 x 1700 |
| Spindle mount | |
| Spindle mount | 3 MK |
| Voltage | |
| Voltage | 380 V |
| Cable length | |
| Cable length | 0.93 m |
| Protection class | |
| Protection class | I |
| Spindle stroke | |
| Spindle stroke | 120 mm |
| Drive | |
| Drive | 380 V motor |
| Drive | Manual |
| Power output | |
| Power output | 1,500 W |
| Drill chuck width | |
| Drill chuck width | 20 mm |
| Weight | |
| Weight | 114 kg |
| Noise level | |
| Noise level | 91 |
