Bench drill GTB 16 LASER/550W
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-948980 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Position laser for precise drilling results
- V-belt drive and clamping system
- Speed adjustment via stepped pulley
- Ball-bearing drill spindle
- Including 65 mm machine vice
The Güde GTB 16 Laser bench drill with a motor power of 550 watts has additional features.
- Keyed drill chuck 3-16 mm,
- Drill chuck taper B 16,
- Height-adjustable drill table +/- 45° tiltable and 360° pivotable,

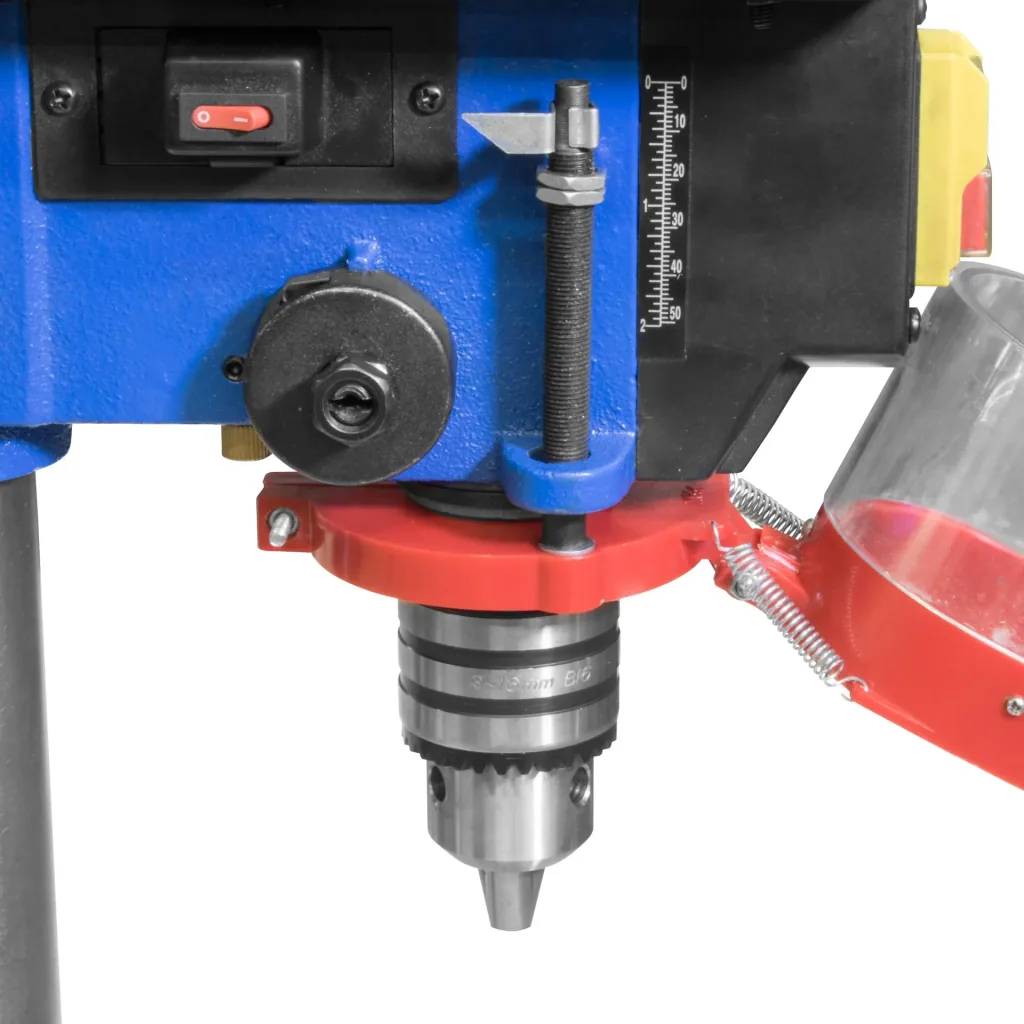

- Adjustable drilling depth stop for precise drilling.
- Maximum distance from drill chuck to the drilling table is 175 mm and to the base 260 mm.
- Base size is 190 x 300 mm with slots for vice attachment.

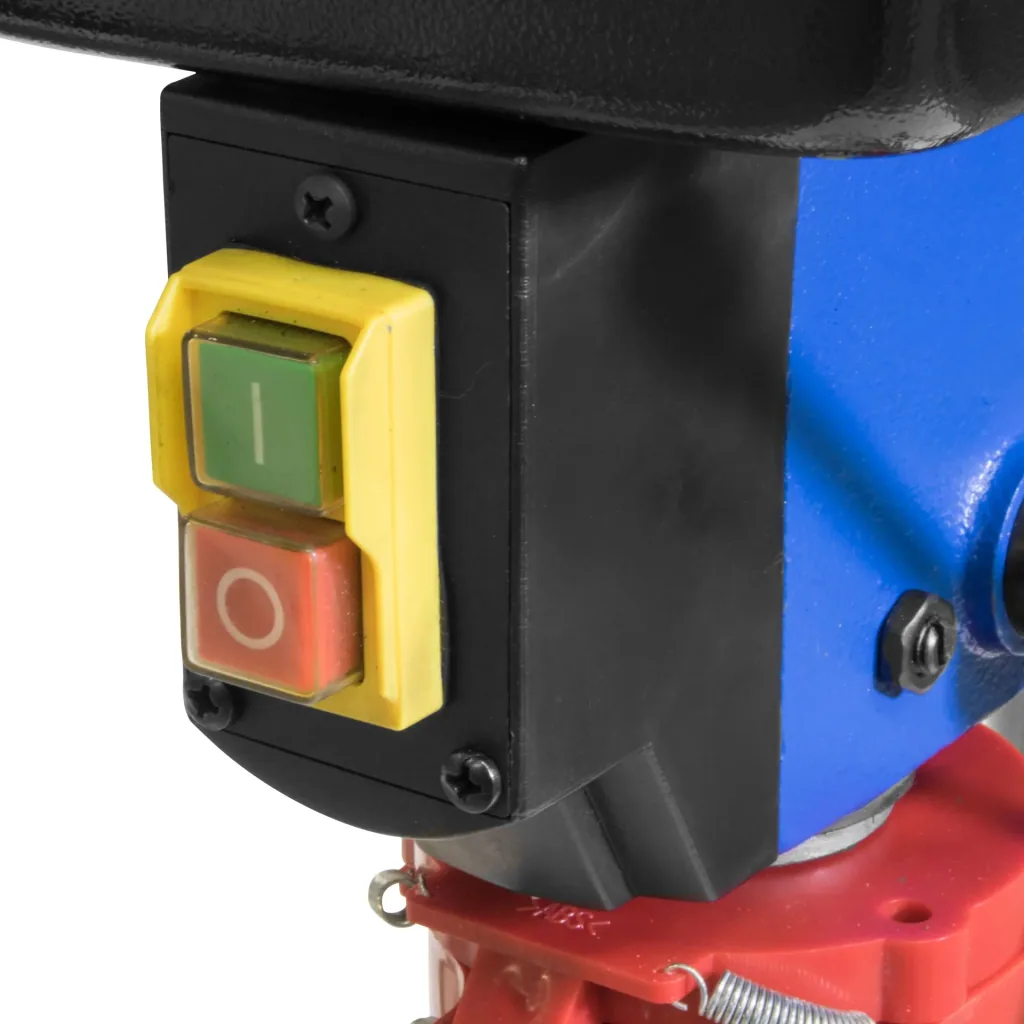

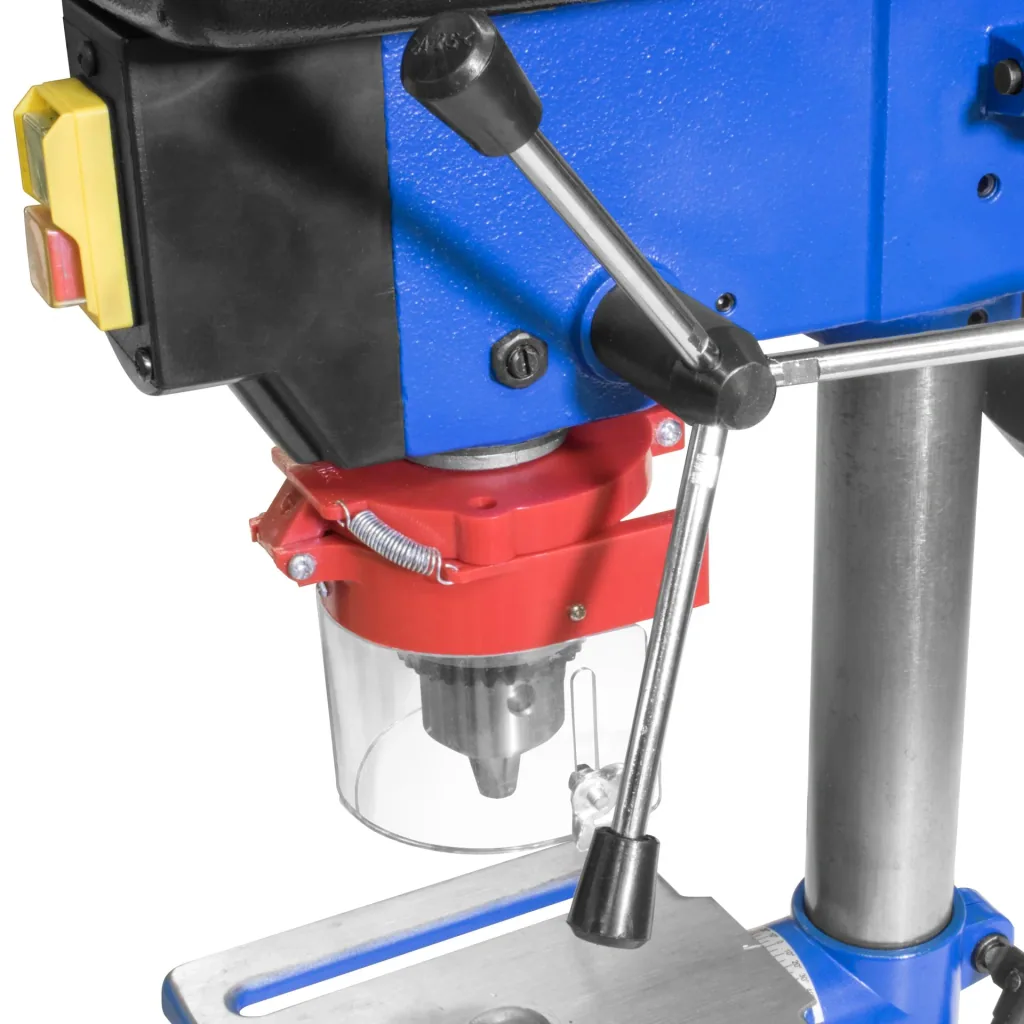

- Foldable chip guard, on/off switch with zero-voltage release.
Technical specifications:
- Mains voltage: 230 volts
- Frequency: 50 Hz
- Operating mode: S2 15 minutes
- Protection class: I
- Motor power P1: 550 watts
- Motor speed: 550 - 2500 rpm
- Spindle stroke: 50 mm
- Number of steps: 5
- Throat: 104 mm
- Maximum drill chuck clamping width: 16 mm
- Minimum drill chuck width: 3 mm
- Drill chuck taper: 16 B
- Table width: 164 mm
- Table depth: 162 mm
- Footplate W x D: 90 x 298 mm
- Column diameter: 46 mm
- Length: 420 mm
- Width: 209 mm
- Height: 580 mm
- Net weight: 13.5 kg
Dimensions:
L x W x H: 420 x 209 x 580 mm
Scope of delivery:

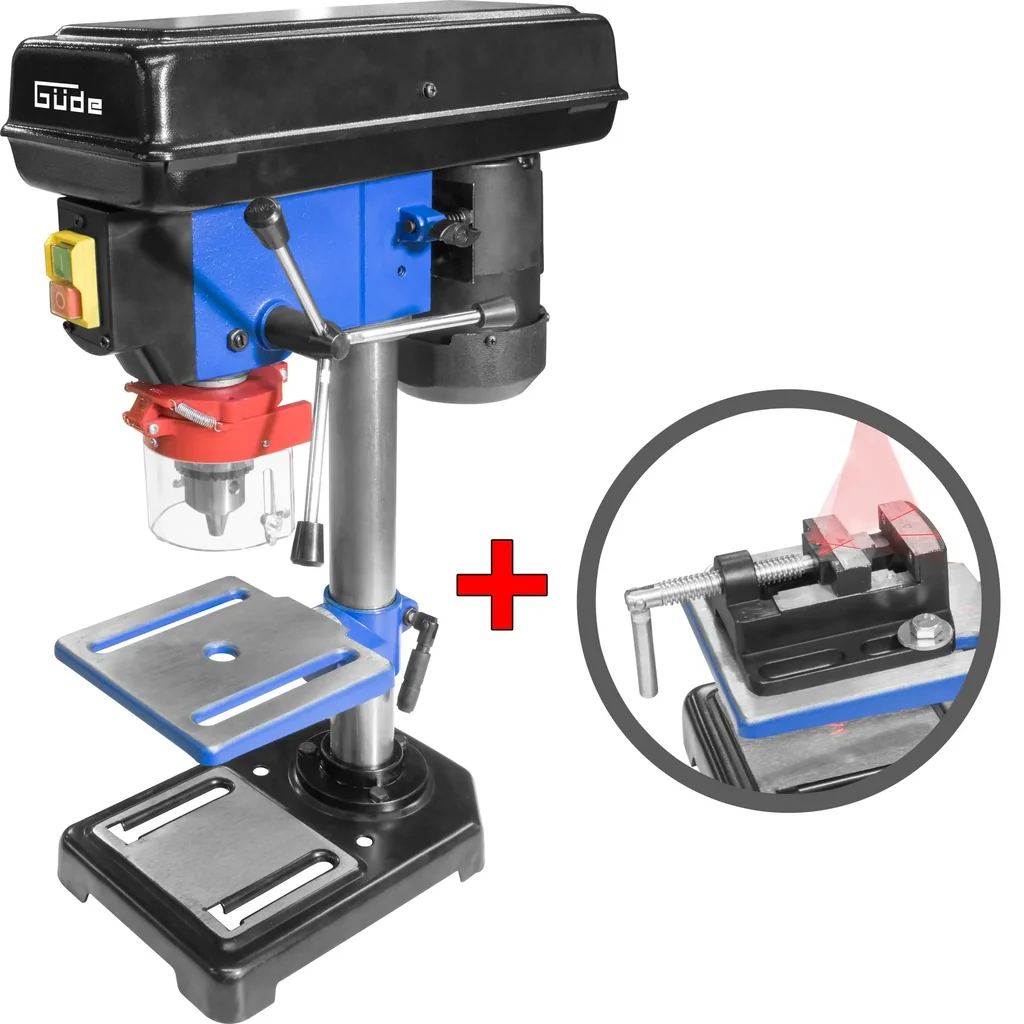

•1 x Güde table drilling machine GTB 16 LASER / 550W
•1 x machine vice 65 mm
| External dimensions | |
|---|---|
| External dimensions | 420 x 209 x 235 |
| Table size | |
| Table size | 164 x 162 mm |
| Projection | |
| Projection | 104 mm |
| Protection class | |
| Protection class | I |
| Drive | |
| Drive | Manual |
| Drive | 230V motor |
| Drilling capacity in steel | |
| Drilling capacity in steel | 16 mm |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| Weight | |
| Weight | 13.5 kg |
| Carrying case | |
| Carrying case | No |
| Power output | |
| Power output | 550 W |
| Colors | |
| Colors | Black |
| Colors | Blue |
| Chuck width | |
| Chuck width | 16 mm |
| Noise level | |
| Noise level | 77.9 |
| Number of gears | |
| Number of gears | 3 |
