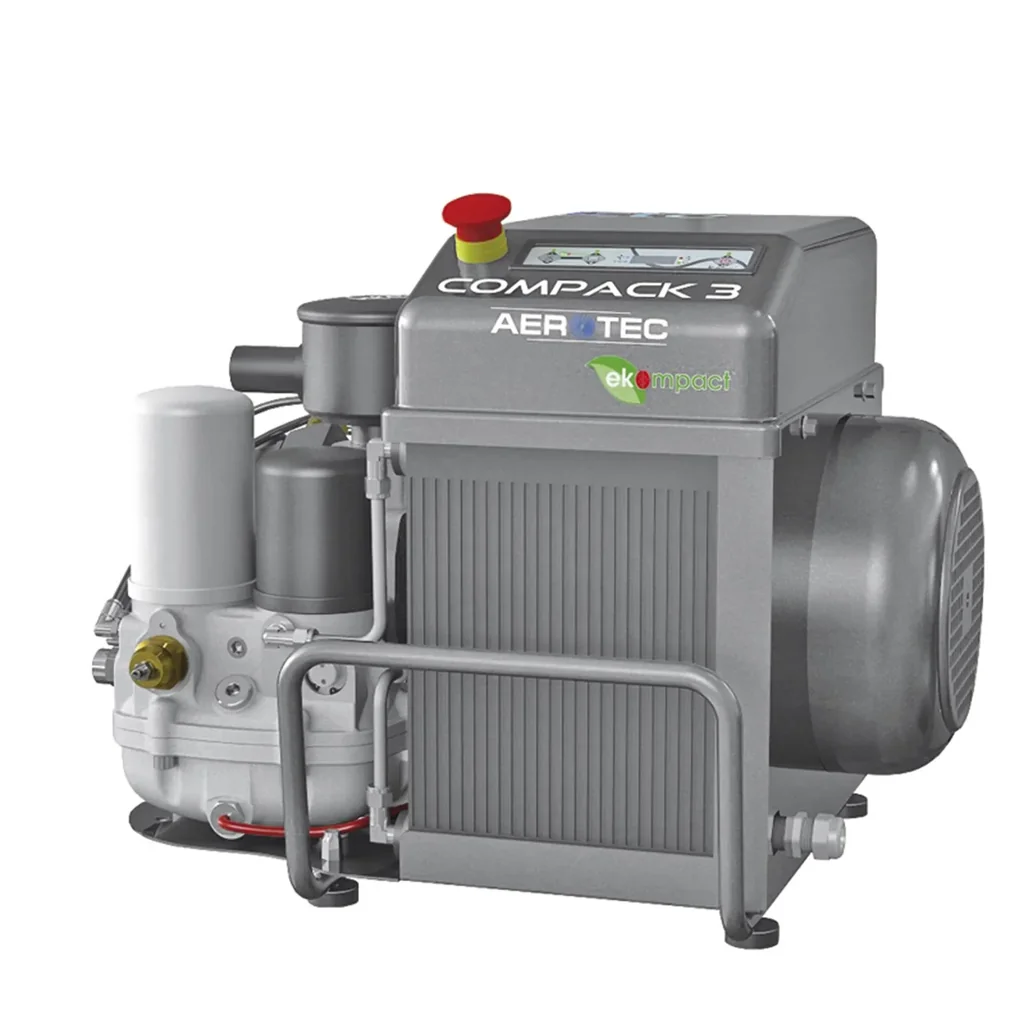

Screw base COMPACK 3 - 400 Volt -
| Artikelnummer | WF-943339 |
| Merk | Aerotec |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
This mobile screw base enables compressed air supply to the biogas plant during 24-hour operation, thus guaranteeing a reliable oxygen supply to the fermenter.
This maintains the gas mixture at the perfect level, ensuring effective explosion protection.
Furthermore, the COMPACK's continuous operation capability makes it perfect for car washes and auto repair shops. Even during short use, the integrated oil heater keeps condensate formation at an extremely low level, thus reducing wear.
The practical microprocessor control offers the option of remote activation and remote on/off. This means the user always has an overview of the compressed air system.
- Plug and play, compact in the smallest of spaces
- Very compact and perfectly suited as a side-mounted base and for use on service vehicles
- Side-mounted carrying handles
- Mounted on rubber buffers to prevent vibrations
!! With microprocessor control for programming and display of the most important working parameters!!
Technical Data
- Vessel pressure: 10 bar
- Suction capacity: 360 l/min
- Sound pressure level: 86 LWA65, 69 dBA
- Motor: 3 KW / 4 HP
- Air connection: 3/8"
- Voltage: 400 Volt ~ 50 Hz
Dimensions: (W x L x H): 550 x 390 x 430
Weight: 44 kg
| Motor power kW | |
|---|---|
| Motor power kW | 3,000 W |
| Carrying case | |
| Carrying case | no |
| Weight | |
| Weight | 44 kg |
| Operating pressure | |
| Operating pressure | 10 bar |
| Noise level | |
| Noise level | 69 dB(A) |
| External dimensions | |
| External dimensions | 550 x 390 x 430 |
| Voltage | |
| Voltage | 400 V |
| Output power | |
| Output power | 3,000 W |
| Suction capacity | |
| Suction capacity | 360 l/min |
| Drive | |
| Drive | 380 V motor |
